1. Introduktion
The FNIRSI-1014D is a versatile 2-in-1 device combining a digital oscilloscope and a signal generator. It features a 7-inch 800x480 resolution color TFT LCD, dual channels with 100MHz bandwidth, and a 1GS/s sampling rate. This manual provides essential information for the proper setup, operation, and maintenance of your device.
This device is suitable for various applications including electronic DIY, appliance repair, car repair, equipment debugging, scientific research, and product development.

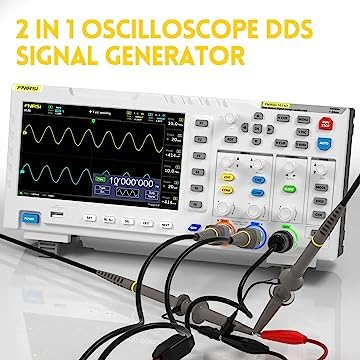

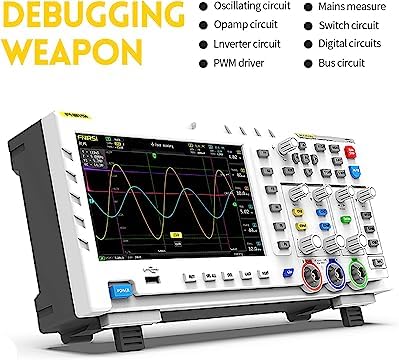

Figure 1: FNIRSI-1014D demonstrating its applicability in multiple fields such as electronic DIY, appliance repair, and scientific research.
2. Sikkerhedsoplysninger
Læs og forstå alle sikkerhedsinstruktioner, før du bruger enheden. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller beskadigelse af enheden.
- Brug kun den medfølgende strømadapter og kabler.
- Brug ikke enheden i vådt eller damp forhold.
- Sørg for korrekt ventilation for at forhindre overophedning.
- Undgå at udsætte enheden for direkte sollys eller ekstreme temperaturer.
- Forsøg ikke at åbne eller ændre enheden. Overlad al service til kvalificeret personale.
- Always connect the ground lead of the probe before connecting the signal lead.
3. Pakkens indhold
Carefully unpack the device and check for the following items. If any item is missing or damaged, contact your supplier immediately.
- FNIRSI-1014D Digital Oscilloscope
- 100MHz Oscilloscope Probes (x2)
- USB oplader
- USB kabel
- Alligator Clip kabel
- Brugervejledning (dette dokument)

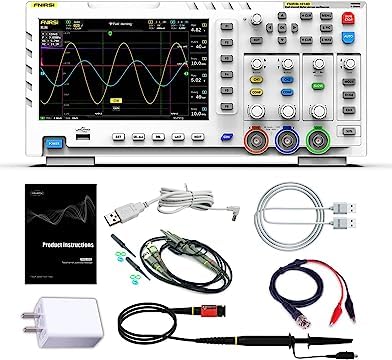

Figure 2: The FNIRSI-1014D oscilloscope shown with its complete set of accessories, including probes, cables, and power adapter.
4. Enhed overview
4.1 Frontpanel
The front panel features the 7-inch LCD display, control buttons, rotary encoders, and input connectors for the oscilloscope channels and signal generator output.

Figur 3: Forside view of the FNIRSI-1014D, highlighting the display, control panel, and input/output ports.
4.2 Bagpanel
The rear panel typically includes the power input and possibly a USB port for data transfer or firmware updates.

Figur 4: Bagside view of the FNIRSI-1014D, showing the power input and identification label.
5. Opsætning
- Strømtilslutning: Connect the provided USB charger and cable to the device's power input port. Plug the charger into a suitable power outlet.
- Tænd: Press the 'POWER' button located on the front panel to turn on the device.
- Probeforbindelse: For oscilloscope measurements, connect the 100MHz probes to the CH1 and CH2 BNC input connectors. Ensure the probes are securely twisted into place.
- Probekompensation: Before taking measurements, it is recommended to compensate the probes. Connect the probe tip to the probe compensation output (usually a square wave signal on the device) and adjust the probe's compensation trimmer until a flat-top square wave is displayed on the screen.
6. Grundlæggende betjening
6.1 Oscilloskoptilstand
The FNIRSI-1014D operates primarily as a dual-channel digital oscilloscope. The main display shows the waveforms, measurement parameters, and control settings.

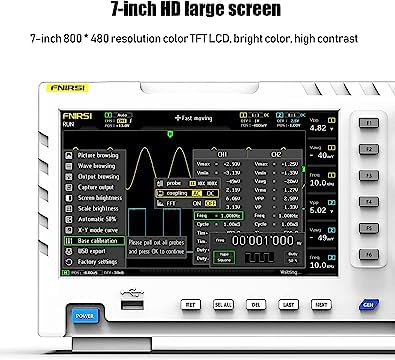

Figure 5: The oscilloscope display showing various menu options for settings like coupling, scale, and trigger.
- Vertikale kontroller: Use the CH1/CH2 buttons and associated rotary encoders to adjust vertical position and voltage scale (Volts/Div) for each channel.
- Horisontale kontroller: Use the TIME/DIV rotary encoder to adjust the horizontal time base.
- Triggerindstillinger: The 'EDGE' button allows selection of rising or falling edge trigger. 'MODE' button selects trigger mode (Auto, Normal, Single).
- AUTO knap: Pressing the 'AUTO' button automatically adjusts the vertical and horizontal settings to display a stable waveform.
- Målefunktioner: The device supports various automatic measurements. Refer to the on-screen menu for available parameters.
6.2 Signalgeneratortilstand
The FNIRSI-1014D includes a built-in 10MHz DDS signal generator capable of producing 14 types of waveforms.

Figure 6: The FNIRSI-1014D connected with probes, demonstrating its signal generation capabilities.
- Activating Generator: Press the 'GEN' button to access the signal generator functions.
- Valg af bølgeform: Use the navigation buttons to select the desired waveform type (e.g., Sine, Square, Triangle).
- Frekvens/AmpLysjustering: Use the rotary encoders to set the frequency and amplitude of the generated signal.
- Udgangsforbindelse: Connect the signal generator output (typically a dedicated BNC port or shared with CH2 in generator mode) to the circuit or device under test.
7. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the device's exterior. For stubborn dirt, a slightly damp en klud med et mildt rengøringsmiddel kan bruges, så det sikres, at der ikke kommer væske ind i enheden.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når den ikke er i brug.
- Probepleje: Handle probes carefully. Avoid bending or stressing the cables. Keep probe tips clean.
- Batteri (hvis relevant): If the device has an internal rechargeable battery, follow manufacturer guidelines for charging and storage to prolong battery life.
8. Fejlfinding
- Ingen strøm:
- Ensure the power adapter is correctly connected and the power outlet is functional.
- Kontroller, at tænd/sluk-knappen er korrekt aktiveret.
- Ingen bølgeformvisning:
- Verify probes are correctly connected to the input channels and the signal source.
- Adjust the vertical (Volts/Div) and horizontal (Time/Div) scales.
- Check trigger settings (Mode, Level, Edge). Try pressing the 'AUTO' button.
- Ensure the input coupling (AC/DC) is appropriate for the signal.
- Forvrænget bølgeform:
- Perform probe compensation.
- Check for proper grounding of the device and the circuit under test.
- Ensure the signal amplitude does not exceed the input range of the oscilloscope.
9. Specifikationer

Figure 7: Detailed specifications of the FNIRSI-1014D, including display, performance, and accessory information.
| Feature | Specifikation |
|---|---|
| Model | FNIRSI-1014D |
| Kanaler | 2 |
| LCD størrelse | 7 tommer |
| LCD opløsning | 800*480 |
| Displayteknologi | TFT LCD |
| Båndbredde | 100 MHz |
| Sampling Rate | 1GS/s |
| Tid til at stå op | <3.5 år |
| Opbevaringsdybde | 240 kbit |
| Indgangsmodstand | 1MΩ |
| Følsomhed | 50mV - 500V |
| Tidsbase | 50S - 10nS |
| Trigger-tilstand | Single/Normal/Auto |
| Trigger Edge | Stigende/Faldende |
| Kobling | AC/DC |
| Highest Test Voltage | 1X: 40V, 10X: 400V |
| Markør | Position XY Trigger Y |
| Rulletilstand | Understøttet |
| One-button AUTO | Understøttet |
| Bølgeformlagring | 1000 pictures + 1000 waveforms |
| Waveform Manager | Understøttet |
| Voltage Nøjagtighed | ±5 % |
| Frekvens præcision | ±0.01% High precision |
| Parameter Measurements | 12 kinds in total |
| Signalgenerator | 14 kinds of waveforms |
| Optag output | Understøttet |
| Forlængelse | USB eksport |
| Strømforsyning | 5V 2A/3A/4A |
| Dimensioner | 310mm * 145mm * 70mm |
| Tilbehør | 2x 100M Probes, USB Charger, User Manual |
10. Garanti og support
FNIRSI products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official FNIRSI webwebsted. Gem venligst din købsbevis til garantikrav.
