1. Introduktion
Thank you for choosing the Parts Express Executive 200 Watt Portable Bluetooth Speaker Kit. This kit provides a high-quality audio experience with a powerful 3-driver system, delivering exceptional depth, clarity, and detail. Designed for versatility, it is suitable for various environments, from offices and bedrooms to outdoor picnics. The kit features onboard controls for sound customization and a rugged Baltic birch plywood enclosure for durability and easy assembly. This manual will guide you through the assembly process, operation, and maintenance of your new speaker kit.
Nøglefunktioner:
- High power 3-driver system for amazing depth, clarity, detail, and output.
- Onboard controls for easy sound customization.
- Designed for excellent on-axis performance and accurate response.
- High-quality Baltic birch plywood enclosure, rugged and easy to assemble.
- Includes all necessary components for construction.
2. Sikkerhedsoplysninger
Please read and understand all safety instructions before assembling and operating this product. Failure to follow these instructions may result in injury or damage to the product.
- Elektrisk sikkerhed: Ensure all electrical connections are secure and properly insulated. Disconnect power before performing any maintenance or assembly.
- Værktøjer: Use appropriate tools for assembly. Exercise caution when using sharp objects or power tools.
- Ventilation: Ensure adequate ventilation around the speaker to prevent overheating.
- Placering: Placer højttaleren på en stabil, flad overflade for at forhindre den i at falde.
- Fugtighed: Dette produkt er ikke vandtæt. Undgå udsættelse for vand eller overdreven fugt.
- Lydstyrkeniveauer: Prolonged exposure to high volume levels can cause hearing damage. Use responsibly.
3. Hvad er der i æsken
Carefully unpack all components and verify that you have received all items listed below. If any parts are missing or damaged, please contact customer support.
Image 3.1: All components of the Parts Express Executive 200 Watt Portable Bluetooth Speaker Kit, including drivers, amplifier, crossover components, knock-down enclosure panels, and power supply.
- Knock-down enclosure panels (Baltic birch plywood)
- Drivers (woofers, mid-range/tweeters)
- Crossover komponenter
- Amplifier modul
- Batterier
- Power supply/charger
- Wiring and connectors
- Mounting hardware (screws, feet)
4. Monteringsvejledning
Follow these step-by-step instructions to assemble your Parts Express Executive Portable Bluetooth Speaker Kit. It is recommended to have basic tools such as a screwdriver, wood glue, and clamps tilgængelig.
- Forbered kabinettet:
Identify all the Baltic birch plywood panels for the enclosure. Dry-fit the panels together to understand their orientation before applying any adhesive. Ensure all cutouts for drivers, control panel, and port are correctly aligned.

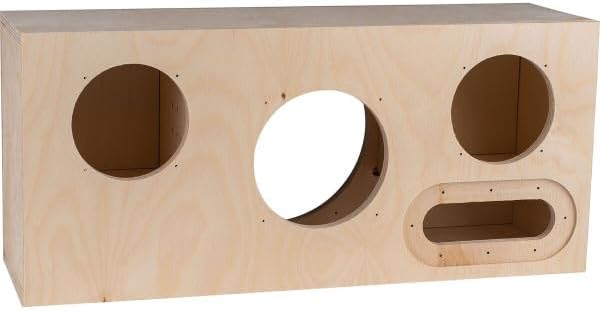

Billede 4.1: Forside view of the unassembled wooden speaker enclosure, showing the cutouts for the main drivers and the control panel.
Billede 4.2: Bagside view of the unassembled wooden speaker enclosure, featuring a large circular cutout for the subwoofer and a smaller port opening.
- Assemble the Enclosure:
Apply wood glue to the edges of the enclosure panels and carefully assemble them. Use clamps to hold the panels firmly in place while the glue dries. Ensure all joints are tight and flush. Allow sufficient drying time as per the glue manufacturer's instructions.
- Install Crossover Components and Wiring:
Mount the crossover components inside the enclosure according to the provided wiring diagram. Connect the internal wiring to the appropriate terminals for the drivers, amplifier, and control panel. Ensure all connections are secure and properly insulated.
- Monter Amplifier and Control Panel:
Installer amplifier module and the control panel into their designated cutouts. Secure them with the provided screws. Connect the pre-wired control panel to the amplifier modul.
Billede 4.3: Nærbillede view of the speaker's control panel, featuring five rotary knobs for adjusting Sub Level, Sub Filter, Mid/High Level, Treble, and Master Volume.
- Install the Drivers:
Carefully mount the woofers and mid-range/tweeters into their respective cutouts on the front baffle. Secure them with the provided screws. Connect the driver wires to the crossover network and amplifier, der sikrer korrekt polaritet.
Billede 4.4: Forside view of the fully assembled speaker, showcasing the two smaller full-range drivers, the central larger mid-bass driver, and the integrated control panel.
Billede 4.5: Bagside view of the fully assembled speaker, highlighting the large subwoofer driver and the rear port.
- Install Batteries and Power Supply:
Insert the batteries into their compartment and connect them to the amplifier. Connect the external power supply to the speaker's power input for charging and continuous operation.
- Afsluttende inspektion:
Before first use, perform a visual inspection to ensure all components are securely mounted, all wires are connected correctly, and there are no loose parts.
5. Betjeningsvejledning
Once assembled, your Parts Express Executive speaker is ready for use. Follow these steps to power on, connect, and control your speaker.
5.1 Tænd/sluk
- To power on the speaker, locate the power switch (usually integrated with the Master Volume knob or a separate switch on the control panel) and turn it to the 'ON' position.
- For at slukke skal du dreje kontakten til 'OFF'-positionen.
5.2 Bluetooth -parring
- Ensure the speaker is powered on and in Bluetooth pairing mode (an indicator light may flash).
- On your audio device (smartphone, tablet, laptop), enable Bluetooth and search for available devices.
- Select "Executive Speaker" or a similar name from the list of devices.
- Once paired, the speaker will indicate a successful connection (e.g., a solid indicator light or an audible tone).
5.3 Kontrolpanelfunktioner
The control panel allows you to customize the sound output. Refer to Image 4.3 for knob identification.
- Underniveau: Adjusts the output volume of the subwoofer. Turn clockwise to increase bass, counter-clockwise to decrease.
- Sub Filter: Controls the crossover frequency for the subwoofer. This determines which low frequencies are sent to the subwoofer.
- Mid/High Level: Adjusts the output volume of the mid-range and high-frequency drivers.
- Diskant: Fine-tunes the high-frequency response. Turn clockwise for brighter sound, counter-clockwise for softer highs.
- Hovedvolumen: Styrer højttalerens samlede udgangslydstyrke.
6. Vedligeholdelse
Proper care will ensure the longevity and optimal performance of your speaker kit.
- Rensning: Use a soft, dry cloth to clean the exterior of the speaker. Avoid abrasive cleaners or solvents.
- Opbevaring: Når højttaleren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: If the speaker uses rechargeable batteries, follow the manufacturer's guidelines for charging and discharging to maximize battery life. Avoid fully draining the batteries frequently.
- Forbindelser: Periodically check all external connections for tightness and corrosion.
7. Fejlfinding
If you encounter issues with your speaker, refer to the following common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd | Speaker not powered on; Volume too low; Bluetooth not connected; Incorrect wiring. | Ensure power is on; Increase Master Volume; Re-pair Bluetooth; Check internal wiring connections. |
| Forvrænget lyd | Volume too high; Source audio quality poor; Driver damage. | Reduce volume; Try a different audio source; Inspect drivers for physical damage. |
| Problemer med Bluetooth-forbindelse | Speaker too far from device; Interference; Speaker not in pairing mode. | Move device closer; Avoid obstacles; Ensure speaker is in pairing mode; Forget device on phone and re-pair. |
| Batteriet oplades ikke | Power adapter not connected; Faulty adapter/cable; Battery issue. | Ensure power adapter is securely connected to speaker and outlet; Try a different outlet; Contact support if issue persists. |
If the problem persists after trying these solutions, please contact Parts Express customer support for further assistance.
8. Specifikationer
Below are the technical specifications for the Parts Express Executive 200 Watt Portable Bluetooth Speaker Kit.
Image 8.1: Dimensions of the assembled Parts Express Executive speaker, measuring 20 inches in width, 9 inches in height, and 6 inches in depth.
- Modelnavn: Executive
- Mærke: Dele Express
- Højttalertype: Multimedia, Portable Bluetooth Speaker Kit
- Forbindelse teknologi: Bluetooth
- Trådløs kommunikationsteknologi: Bluetooth
- Højttalers maksimale udgangseffekt: 200 watt
- Lydudgangstilstand: Stereoanlæg
- Surround Sound Kanalkonfiguration: 2.1
- Strømkilde: Batteridrevet
- Kontrolmetode: Touch (via knobs)
- Produktdimensioner: 20 cm B x 9 cm H x 6 cm D
- Bashøjttalerens diameter: 5.25 tommer
- Lyddrivertype: Dynamisk Driver
- Indkapslingsmateriale: Baltisk birkekrydsfiner
- Kompatible enheder: Bærbar computer, MP3-afspiller, smartphone, tablet
- UPC: 848864056418
9. Garanti og support
This Parts Express product comes with a limited warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Parts Express customer service.
Parts Express Customer Service:
- Besøg Parts Express-butik på Amazon for mere information og kontaktmuligheder.
