ATTACK SHARK X Ajazz AK820 Mekanisk Tastatur Brugermanual

Produkt overview

The ATTACK SHARK X Ajazz AK820 is a 75% layout hot-swappable mechanical keyboard designed for gaming and everyday use. It features an 82-key layout, a multi-function rotary knob, gasket-mounted design for enhanced typing feel, and customizable LED backlighting. This keyboard is compatible with both Windows and Mac operating systems and connects via USB-C wired connection.

Nøglefunktioner

• 75% Percent Layout (82 keys) for space efficiency while retaining essential keys.
• N-Key Rollover (NKRO) ensures all simultaneous key presses are registered accurately.
• Multi-Function Metal Knob for independent volume control and mute functionality.
• Gasket Mounted Design with 5 layers of sound insulation (Poron sandwich cotton, IXPE under-axis pad, PET premium sound pad, bottom cotton) for a softer, more elastic typing experience and reduced noise.
• Hot-Swappable PCB (3/5-pin) allows for easy switch replacement without soldering.
• Pre-lubed AS Red Switches (linear) with a 50 million keystroke lifespan, ideal for gaming and office use.
• 20 LED Backlight Effects (white light) with 5 brightness levels and 5 lighting speeds.
• Durable PBT Keycaps with wear-resistant, waterproof properties and high light transmittance.
• Ergonomic Design with OEM keycaps for comfortable typing.

Pakkens indhold

• ATTACK SHARK X Ajazz AK820 Mechanical Keyboard
• USB kabel
• 2-in-1 Key Extractor (Keycap Puller)

Tastaturlayout

Figur 1: Overview of the AK820 keyboard layout.

Figure 2: Visual representation of the AK820's key features.

Opsætning

Tilslutning af tastaturet

1. Find USB-C-porten på bagsiden eller siden af ​​tastaturet.
2. Tilslut det medfølgende USB-C-kabel til tastaturets USB-C-port.
3. Plug the other end of the USB cable into an available USB port on your computer (PC or Mac).
4. Tastaturet er plug-and-play og burde blive genkendt automatisk af dit operativsystem.

Figure 3: The compact design and USB-C connection point.

Betjeningsvejledning

Multimedia Knob Functionality

The metal rotary knob located on the top right of the keyboard provides convenient multimedia control:

• Rotere: Turn the knob clockwise to increase volume, and counter-clockwise to decrease volume.
• Trykke: Press the knob to mute or unmute the audio.

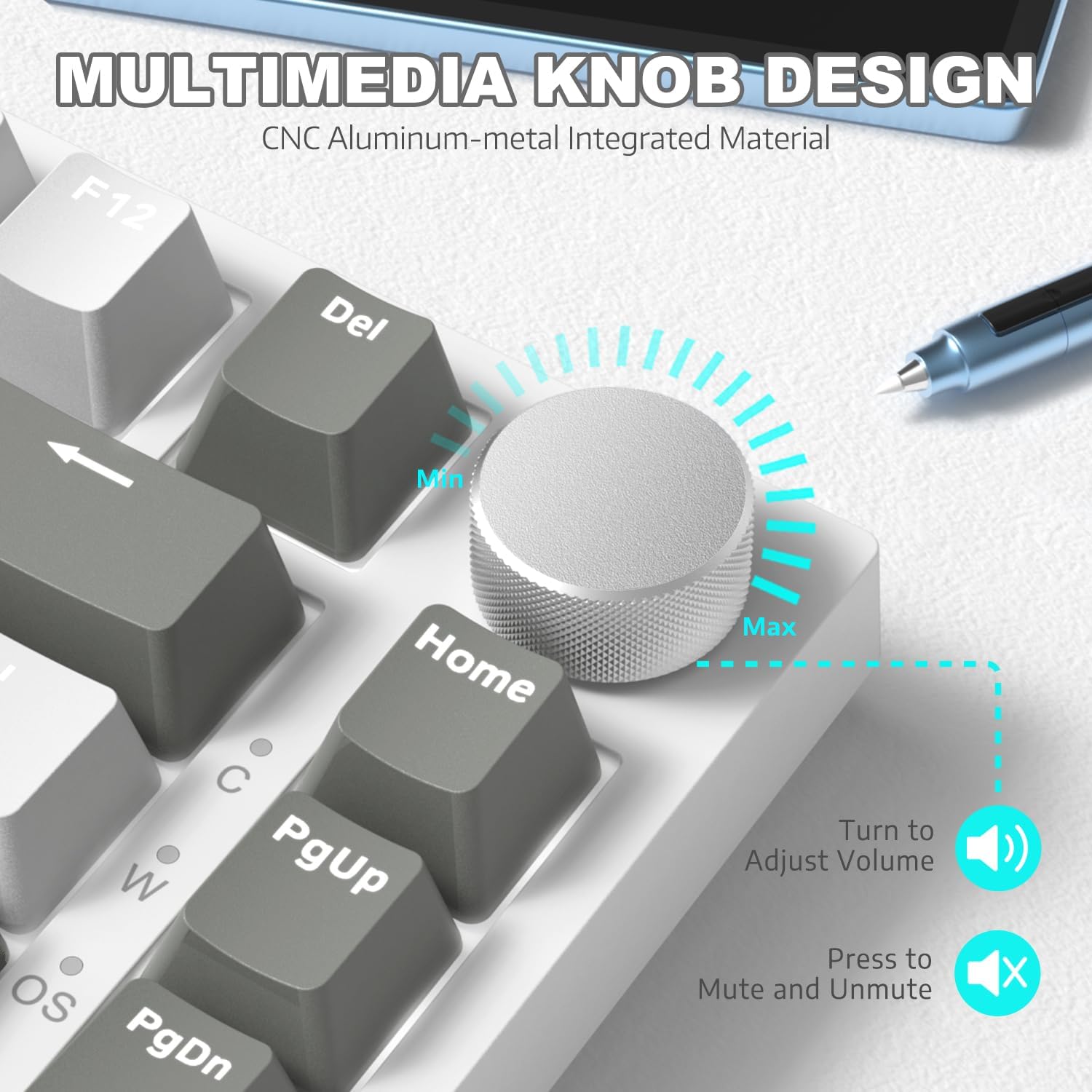

Figur 4: Detaljeret view of the multimedia knob and its functions.

Baggrundslys kontrol

The AK820 features 20 white LED backlight effects. You can customize the lighting to suit your preference:

• Skift lyseffekter: Trykke FN + | to cycle through the 20 available backlight effects.
• Juster lysstyrke: Use specific key combinations (refer to keyboard legends or software) to adjust between 5 brightness levels.
• Juster hastighed: Use specific key combinations (refer to keyboard legends or software) to adjust between 5 lighting speeds.
• Custom Gaming Lighting: Trykke FN + 1! / 2@ / 3# to access and customize 3 sets of gaming lighting effects. Choose the light recording mode and save your lighting profiles.

Figur 5: Tastaturvisningenasing its LED backlight effects.

Hot-swap-switche

The AK820's high-quality PCB supports 3/5-pin hot-swap switches, allowing you to easily change switches without soldering. This feature enables customization of your typing experience.

• Use the included 2-in-1 key extractor to carefully remove keycaps and switches.
• Align the pins of the new switch with the sockets on the PCB and gently press down until it clicks into place.
• Udskift tastaturdækslet.

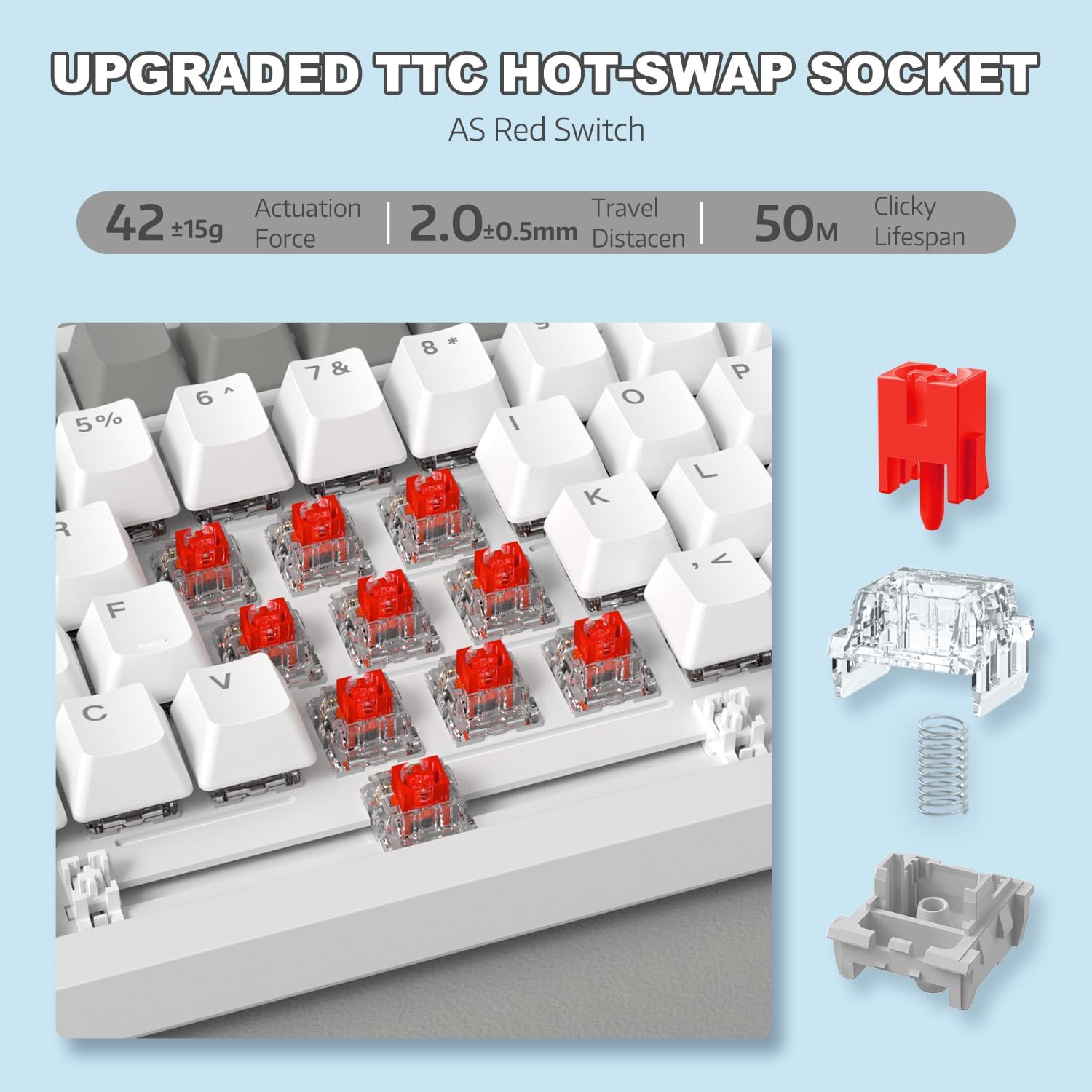

Figur 6: Illustration af den hot-swap-bare kontaktmekanisme.

Video 1: Demonstrating the unboxing, features, and sound test of the ATTACK SHARK AK820 mechanical keyboard, including its hot-swappable switches and rotary knob.

N-Key Rollover (NKRO)

The AK820 supports N-Key Rollover, meaning that every key press is registered independently, even when multiple keys are pressed simultaneously. This is crucial for fast-paced gaming and accurate typing, preventing
