Kolink Unity Arena Mid-Tower PC-kabinet Brugermanual

Indledning

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Kolink Unity Arena Mid-Tower PC Case. Please read this manual carefully before beginning assembly to ensure proper setup and to maximize the performance and longevity of your system. Keep this manual for future reference.

Produkt overview

The Kolink Unity Arena is a mid-tower PC case designed for high-performance gaming systems. It features a borderless glass side panel for an unobstructed view of internal components and comes with four pre-installed Kolink Umbra X ARGB/PWM fans for efficient cooling and customizable lighting. The spacious interior supports E-ATX motherboards and large graphics cards up to 420mm, including NVIDIA RTX 40 series. It also accommodates up to three radiators for advanced liquid cooling solutions and includes a dedicated half PSU shroud for clean cable management.

Billede: Foran til venstre view of the Kolink Unity Arena PC case, showcasing the borderless glass side panel and three pre-installed RGB fans on the front.

• Mid-Tower Design: Optimized for a balance of size and component compatibility.
• Borderless Glass Panels: Provides an uninterrupted view of your internal hardware.
• Extensive Hardware Support: Compatible with E-ATX motherboards and GPUs up to 420mm, including NVIDIA RTX 40 series.
• Avanceret køling: Supports up to three radiators and includes four pre-installed Kolink Umbra X ARGB/PWM fans.
• Dedicated PSU Shroud: A half power supply shroud helps maintain a clean and organized interior.

Specifikationer

Opsætning og installation

Follow these steps to properly set up and install your components into the Kolink Unity Arena PC case.

1. Udpakning og klargøring

1. Tag forsigtigt pc-kabinettet ud af emballagen.
2. Placer etuiet på en stabil, flad overflade.
3. Identify the accessory box, which contains screws, zip ties, and other small parts.

Billede: Vinklet top-front view of the Kolink Unity Arena PC case, highlighting the top ventilation and the illuminated RGB fans visible through the front glass panel.

2. Removing Panels

• Glass Side Panel: The borderless glass side panel is typically secured with thumbscrews at the rear. Unscrew these and carefully slide or lift the panel off. Place it on a soft, non-abrasive surface to prevent scratches.
• Solid Side Panel: The solid right-side panel (behind the motherboard tray) is also usually secured with thumbscrews. Remove these to access the cable management area.

Billede: Bag-højre view of the Kolink Unity Arena PC case, showing the solid right side panel and the rear exhaust fan area.

3. Installation af bundkort

1. Install the I/O shield (if not pre-attached to your motherboard).
2. Align your E-ATX or smaller motherboard with the standoffs inside the case.
3. Fastgør bundkortet med de passende skruer fra tilbehørssættet.

Billede: Indre view of the Kolink Unity Arena PC case from the front, displaying the motherboard tray, the three front-mounted fans, and the PSU shroud at the bottom.

4. Installation af grafikkort (GPU)

• Fjern de nødvendige PCIe-slotdæksler på bagsiden af ​​kabinettet.
• Insert your graphics card into the primary PCIe slot on the motherboard.
• Secure the GPU with screws. The case supports GPUs up to 420mm in length.

5. Storage Device Installation (HDDs/SSDs)

Refer to the case's internal layout for specific drive bay locations and mounting mechanisms. Typically, 2.5" SSDs mount on the back of the motherboard tray, and 3.5" HDDs are installed in a drive cage near the PSU shroud.

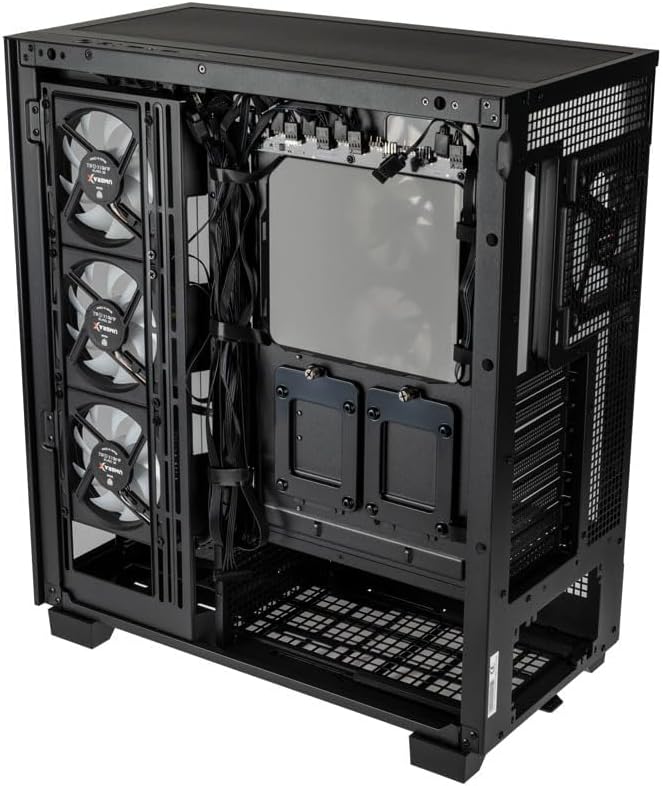

Billede: Bageste interiør view of the Kolink Unity Arena PC case, focusing on the cable management area behind the motherboard tray and drive mounts.

6. Installation af strømforsyningsenhed (PSU)

• Mount your ATX power supply into the dedicated half PSU shroud at the bottom rear of the case.
• Secure it with screws from the rear of the case.

7. Installation af ventilator og radiator

• The case comes with four pre-installed Kolink Umbra X ARGB/PWM fans.
• Additional fans or radiators can be installed at the top, front, or rear depending on your cooling needs. The case supports up to three radiators.

Billede: Close-up of the three pre-installed Kolink Umbra X fans mounted at the front of the Kolink Unity Arena PC case, highlighting their design.

8. Tilslutning af front-I/O

Connect the front panel cables (USB, audio, power switch, reset switch, LED indicators) to the corresponding headers on your motherboard. Refer to your motherboard manual for exact header locations.

Billede: Close-up of the top I/O panel of the Kolink Unity Arena PC case, featuring USB ports, audio jacks, and power/reset buttons.

9. Kabelforvaltning

Brug kabelføringsudskæringerne og fastgørelsespunkterne bag bundkortbakken til at organisere kablerne. Dette forbedrer luftgennemstrømningen og æstetikken.

Betjeningsvejledning

Tænder

Once all components are installed and connected, ensure the power supply switch is in the 'ON' position. Press the power button on the front I/O panel to start your system.

RGB lysstyring

The pre-installed Kolink Umbra X fans feature ARGB lighting. The case includes a built-in controller with a SATA power input. Connect this controller to your power supply. If your motherboard does not support ARGB control, you can typically manage the lighting effects using the reset button on the front I/O panel, which often doubles as an RGB mode switch when connected to the case's controller.

Opretholdelse

Regelmæssig vedligeholdelse er med til at sikre optimal ydeevne og forlænger levetiden for dine pc-komponenter.

• Støvfiltre: The Kolink Unity Arena case is equipped with dust filters. Periodically remove and clean these filters (e.g., top, front, bottom) to prevent dust buildup inside the case. Use compressed air or wash them gently with water and allow them to dry completely before reinstallation.
• Indvendig rengøring: With the system powered off and unplugged, carefully open the side panels and use compressed air to remove dust from internal components, especially heatsinks and fan blades.
• Rengøring af ventilator: Gently clean the blades of the pre-installed fans with a soft brush or compressed air to maintain efficient airflow.

Fejlfinding

If you encounter issues during or after assembly, consider the following common troubleshooting steps:

• Systemet tænder ikke:
  • Sørg for, at strømkablet er korrekt tilsluttet til både strømforsyningen og stikkontakten.
  • Kontroller, at strømforsyningskontakten er i 'ON'-positionen.
  • Check all power connections to the motherboard (24-pin ATX, 8-pin CPU) and GPU.
  • Confirm the front panel power switch cable is correctly connected to the motherboard header.
• Ventilatorer drejer ikke / RGB virker ikke:
  • Kontroller blæserens strømforbindelser til bundkortet eller blæserstyringen.
  • Ensure ARGB cables are properly connected to the motherboard's ARGB header or the case's integrated controller.
  • If using the case's controller, verify it is receiving SATA power.
• Ingen skærmoutput:
  • Sørg for, at dit skærmkabel er tilsluttet grafikkortet, ikke bundkortets integrerede grafikport (medmindre du bruger integreret grafik).
  • Sæt grafikkortet tilbage i dets PCIe-slot.
  • Check GPU power connections.

Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Kolink's official website may also provide details regarding product support and warranty terms.

• Tilgængelighed af reservedele: Oplysningerne er ikke tilgængelige.
• Softwareopdateringer garanteret indtil: Oplysningerne er ikke tilgængelige.

For technical assistance or further inquiries, please visit the official Kolink support webwebsted eller kontakt deres kundeserviceafdeling.
