Rebel KOM1031 Dual-Band trådløs netværksrepeater brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, configuration, and operation of your Rebel KOM1031 Dual-Band Wireless Network Repeater. This device is designed to extend the coverage of your existing Wi-Fi network, providing a stronger and more reliable signal in areas with weak or no coverage. It supports both 2.4 GHz and 5 GHz wireless bands, offering flexible connectivity options and high data transfer rates.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• Rebel KOM1031 Wireless Network Repeater
• Brugervejledning (dette dokument)
• Ethernet Cable (may be included, check packaging)

Figur 2.1: The Rebel KOM1031 Repeater packaging, showing the device and its key features.

3. Produktet er slutview

Familiarize yourself with the physical components and indicators of the Rebel KOM1031 Repeater.

3.1. Enhedslayout

Figur 3.1: Front view of the Rebel KOM1031 Repeater, highlighting the LED indicators and Ethernet ports.

Figur 3.2: Side view of the Rebel KOM1031 Repeater, showing the four external antennas in an extended position.

Figur 3.3: Bund view of the Rebel KOM1031 Repeater, illustrating the integrated power plug and two RJ45 Ethernet ports.

3.2. LED-indikatorer

4. Opsætningsvejledning

Follow these steps to set up your Rebel KOM1031 Repeater.

4.1. Initial Placement and Power On

1. Vælg en placering: Plug the repeater into an electrical outlet in an area between your main router and the location where you need improved Wi-Fi coverage. Ensure it is within the range of your existing Wi-Fi signal.
2. Tænd: Plug the device directly into a standard wall socket. The SYS/POWER LED should illuminate. Wait approximately 30-60 seconds for the device to boot up.

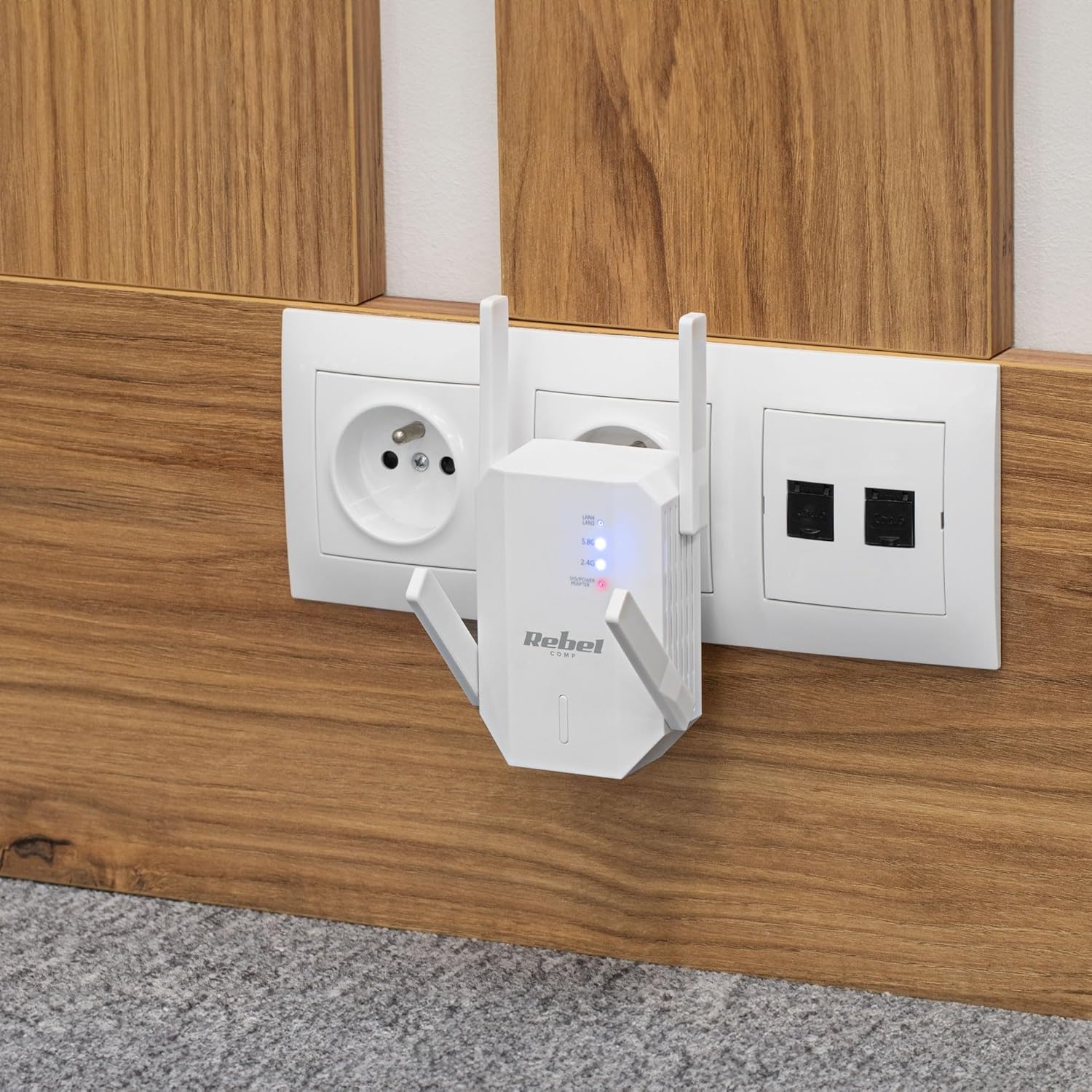

Figur 4.1: The Rebel KOM1031 Repeater plugged into a wall outlet, ready for configuration.

4.2. Connecting to the Repeater

3. Opret trådløs forbindelse: On your computer or mobile device, search for available Wi-Fi networks. Connect to the network named "Rebel_XXXX" or similar (check the label on the device for the default SSID). No password is required for the initial connection.
4. Adgang Web Interface: Åbn a web browser (e.g., Chrome, Firefox, Edge) and enter the default IP address or domain name (usually 192.168.10.1 or rebelrepeater.net) into the address bar. Press Enter.
5. Login: When prompted, enter the default username and password (usually admin for begge).

4.3. Configuration Wizard (Repeater Mode)

Most users will configure the device in Repeater Mode to extend an existing Wi-Fi network.

6. Select Repeater Mode: På web interface, select "Repeater Mode" or "Wi-Fi Repeater" from the available options.
7. Scan efter netværk: The device will scan for available Wi-Fi networks. Select your main Wi-Fi network (SSID) from the list.
8. Indtast adgangskode: Enter the Wi-Fi password (security key) of your main router.
9. Konfigurer repeater SSID (valgfrit): You can choose to keep the same SSID as your main network or create a new one (e.g., "MyHome_EXT"). It is recommended to use a different SSID to easily distinguish between networks.
10. Anvend indstillinger: Click "Apply" or "Save" to confirm your settings. The repeater will restart. This process may take a few minutes.
11. Tilslut igen: After the repeater restarts, disconnect from the repeater's default Wi-Fi network and connect to your newly configured extended network (e.g., "MyHome_EXT") using the password you entered.

Your Rebel KOM1031 Repeater should now be extending your Wi-Fi network. Check the signal strength in previously weak areas.

5. Driftstilstande

The Rebel KOM1031 supports multiple operating modes to suit various networking needs.

5.1. Repeatertilstand (standard)

In Repeater Mode, the device extends the coverage of an existing wireless network. It receives the wireless signal from your main router and re-transmits it, effectively expanding the Wi-Fi range. This is the most common mode for eliminating Wi-Fi dead zones.

5.2. Adgangspunktstilstand (AP)

In AP Mode, the device connects to a wired network (via an Ethernet cable) and broadcasts a new wireless network. This is useful for adding Wi-Fi capability to a wired-only network or creating a new Wi-Fi hotspot from a wired internet connection.

1. Tilslut Ethernet: Connect an Ethernet cable from your router or modem to one of the RJ45 ports on the KOM1031.
2. Adgang Web Interface: Follow steps 4.2 to access the web interface.
3. Vælg AP-tilstand: Choose "AP Mode" or "Access Point" from the configuration options.
4. Konfigurer Wi-Fi-indstillinger: Set a new SSID (network name) and a strong password for your new wireless network.
5. Anvend indstillinger: Save the configuration. The device will restart and operate as an Access Point.

6. Vedligeholdelse

Korrekt vedligeholdelse sikrer din enheds levetid og optimale ydeevne.

• Rensning: Brug en blød, tør klud til at rengøre enheden. Brug ikke flydende rengøringsmidler eller aerosoler.
• Ventilation: Ensure the device is placed in a well-ventilated area. Do not block the ventilation slots.
• Firmwareopdateringer: Kontroller jævnligt producentens website for firmware updates. Updating firmware can improve performance and security.
• Nulstilling: If the device malfunctions or you forget the login credentials, you can perform a factory reset. Locate the reset button (usually a small pinhole) and press it with a paperclip for 5-10 seconds while the device is powered on. The device will revert to factory default settings.

7. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger.

7.1. No Internet Access After Setup

• Check Main Router: Sørg for, at din primære router har en aktiv internetforbindelse.
• Bekræft adgangskode: Double-check that you entered the correct Wi-Fi password for your main router during setup.
• Relocate Repeater: The repeater might be too far from your main router. Move it closer to ensure it receives a strong signal.
• Genstart enheder: Restart your main router, the repeater, and your client devices.

7.2. Kan ikke få adgang Web Ledelsesside

• Tjek forbindelsen: Ensure your device is connected to the repeater's Wi-Fi network (either the default "Rebel_XXXX" or your configured extended network).
• Bekræft IP-adresse: Confirm you are using the correct IP address (e.g., 192.168.10.1) or domain name (rebelrepeater.net).
• Ryd browsercache: Try clearing your web browser's cache or using a different browser.
• Gendan fabriksindstillinger: If all else fails, perform a factory reset (see Section 6. Maintenance) and try setting up again.

7.3. Weak Signal or Slow Speed

• Optimal placering: Ensure the repeater is placed optimally, roughly halfway between your router and the dead zone. Avoid physical obstructions like thick walls or metal objects.
• Interferens: Andre elektroniske enheder (mikrobølgeovne, trådløse telefoner) kan forårsage interferens. Prøv at flytte repeateren væk fra sådanne enheder.
• Antennejustering: Adjust the external antennas for better signal reception and transmission.

8. Tekniske specifikationer

9. Sikkerhedsoplysninger

Please read and follow these safety guidelines to prevent damage to the device or injury to yourself.

• Udsæt ikke enheden for vand, fugt eller ekstreme temperaturer.
• Forsøg ikke selv at skille enheden ad eller reparere den. Overlad al service til kvalificeret personale.
• Ensure the power outlet used is easily accessible and provides the correct voltage (110-240V).
• Undgå at placere enheden i nærheden af ​​varmekilder eller i direkte sollys.
• Hold enheden væk fra børn og kæledyr.

10. Garanti og support

For warranty information, technical support, or further assistance, please refer to the official Rebel website or contact your retailer. Please have your product model number (KOM1031) and purchase details ready when seeking support.
