The Testo 310 II Combustion Analyzer is a reliable and stable measuring instrument designed for commissioning and maintenance of hot water and residential heating systems. It provides comprehensive support for daily measurement tasks, simplifying operations for heating fitters and technicians.
Nøglefunktioner omfatter:
- Effektiv: Perfect for complex flue and exhaust gas analyses, simplifying maintenance and safety checks on heating systems.
- Bredt udvalg: Measures temperature (K TC and J TC), flue gas O2, flue gas draft, flue gas loss, efficiency, pressure, flue gas CO range without H2 compensation, and ambient CO.
- Nøjagtig: Equipped with highly sensitive sensors for precise temperature and flue gas measurements, delivering reliable accuracy.
- Nem betjening: Intuitive interface with straightforward menus for efficient and error-free diagnostics.
- Komplet sæt: Includes rechargeable battery, calibration protocol, probe, silicon hose, particle filters, sturdy case, thermal paper, and Bluetooth printer.
Figure 1: Complete Testo 310 II Combustion Analyzer kit, including the analyzer unit, probe, printer, and various accessories, all neatly organized within its durable carrying case.
2. Opsætning
Before first use, ensure all components are present and the analyzer is charged.
- Unboxing: Carefully remove all items from the sturdy carrying case. Verify the presence of the Testo 310 II analyzer, flue gas probe, silicon hose for pressure measurement, particle filters, charging puck, and the Bluetooth printer (if included in your set).
- Opladning: The Testo 310 II uses a rechargeable lithium-ion battery. Connect the provided charging puck to the analyzer's charging socket at the base of the unit. Use the included USB cable and power adapter to charge the device. It is recommended to use only the standard charging puck provided by Testo to ensure proper voltage and prevent damage.
- Probeforbindelse: Attach the flue gas probe to the designated port on the analyzer. Ensure a secure connection. For extended reach, additional silicone tubing can be attached to the probe.
- Tænd: Press the power button on the analyzer. The unit will initiate a self-calibration process upon startup. Allow the calibration to complete before proceeding with any measurements. The display will show a countdown during this process.
Figur 2: Forside view of the Testo 310 II Combustion Analyzer, highlighting its robust design and clear display.

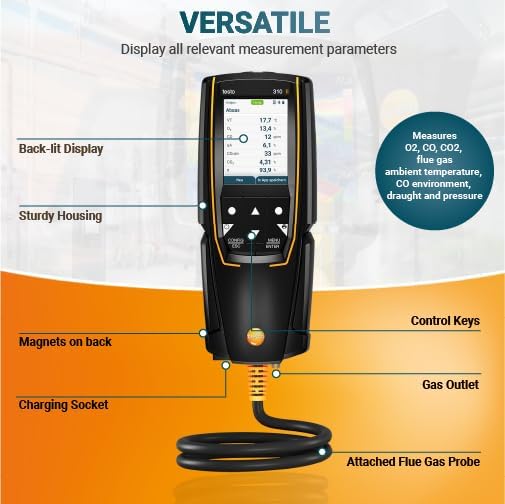

Figure 3: The Testo 310 II Analyzer with the flue gas probe securely connected, ready for measurement.
Video 1: En overview of the Testo 310-2 Combustion Analyzer, demonstrating its components and initial setup procedures.
3. Betjeningsvejledning
The Testo 310 II features an intuitive user interface with menu navigation for various measurement tasks.
- Menu navigation: Use the arrow keys to navigate through the four integrated measurement menus: Flue Gas, Draught, Ambient CO, and Pressure. The high-resolution graphic display shows all measurement results at a glance.
- Fuel Source Selection: The analyzer allows selection of different fuel sources (e.g., natural gas, propane, oil, wood) to ensure accurate calculations for combustion efficiency. Navigate to the fuel settings within the menu to select the appropriate type.
- Magnetisk montering: For hands-free operation, the Testo 310 II features magnets on its back, allowing it to be fixed to metal surfaces such as a burner or furnace during measurements.
- Testo Smart App Connection: The Testo Smart App (compatible with Android 8.0+ and iOS 13.0+) enables remote operation and configuration of your instrument. It provides live measurement streaming, allows saving measurement data in .txt format, and facilitates direct on-site printing via the optional Testo quick printer.
- Data Transfer and Printing: Measurement results can be transferred via Bluetooth to the optional Testo quick printer for immediate printouts or sent by e-mail for digital documentation.
Figure 4: The versatile display of the Testo 310 II, showing various measurement parameters clearly.
Figure 5: Demonstrating the Testo Smart App connection, allowing live measurement streaming and data management from a smartphone or tablet.
4. Vedligeholdelse
Regular maintenance ensures the longevity and accuracy of your Testo 310 II Combustion Analyzer.
- Probe Filter Replacement: The probe features easily replaceable particle filters. Check the filter regularly for debris and replace it when visibly dirty or when measurement accuracy is affected. Refer to the full instruction manual for detailed steps on filter replacement.
- Condensate Trap: The condensate trap can be emptied quickly. Ensure it is regularly drained to prevent buildup, which could affect probe performance.
- Rensning: Wipe the analyzer and probe with a soft, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Store the unit and its accessories in the sturdy case provided to protect them from dust, moisture, and physical damage.
Figur 6: A view of the accessories included with the Testo 310 II, such as particle filters and the silicon hose, which are crucial for maintenance.
5. Fejlfinding
This section provides basic guidance for common issues. For detailed troubleshooting, refer to the complete product manual or contact Testo support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Lavt batteri eller opladningsproblem. | Ensure the unit is fully charged using the provided charging puck and cable. Check power outlet. |
| Upræcise aflæsninger. | Dirty probe filter, uncalibrated unit, or incorrect fuel type selected. | Replace probe filter. Allow unit to complete calibration upon startup. Verify correct fuel type in settings. |
| Probe not connecting. | Loose connection or damaged cable/probe. | Ensure probe is securely connected. Inspect cable for damage. |
6. Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | Testo |
| Modelnummer | 0563 3105 01 |
| Stil | App-forbindelse |
| Strømkilde | Batteridrevet |
| Farve | Sort |
| Produktdimensioner | 2" D x 3" B x 8" H |
| Varens vægt | 1.5 pund |
| Alarm | Hørbar |
| Driftsfugtighed | 0 % til 80 % |
| Kompatible enheder | Android 8.0 or newer, iOS 13.0 or newer |
| Øverste temperaturvurdering | 752 grader Fahrenheit |
| Målenøjagtighed | ±1.8 °F (32° to 212 °F) / ±1 °C (0 to +100 °C) ±1.5 % of mv (> 212 °F) / ±1.5 % of mv (> 100 °C) |
| Batterier | 1 Lithium Ion batteri påkrævet (medfølger) |
| Voltage | 5 volt |
| Wattage | 1500 milliarderamp_timer |
| Oprindelsesland | Tyskland |
7. Garanti og support
For warranty information, technical support, or service inquiries regarding your Testo 310 II Combustion Analyzer, please contact Testo directly through their official website or customer service channels. Keep your purchase receipt and product model number handy for faster assistance.
You can visit the official Testo store for more information: Testo Official Store
