AXLAHA Headlight Assembly User Manual

1. Introduktion

This manual provides essential information for the installation, operation, and maintenance of your new AXLAHA Headlight Assembly. This product is designed as a direct replacement for the original headlights on specified Toyota Tacoma models, ensuring optimal fit and performance. Please read this manual thoroughly before proceeding with installation or use.

Billede 1: Generelt view of the AXLAHA Headlight Assembly for Toyota Tacoma.

2. Køretøjskompatibilitet

Denne forlygteenhed er kompatibel med følgende køretøjsmodeller:

• Lave: Toyota
• Model: Tacoma
• år: 2012, 2013, 2014, 2015

Note: This product is designed for OE Type Halogen Headlight Models Only. Bulbs are IKKE inkluderet.

OEM-delnumre: 8111004181 (Right/Passenger Side), 8115004181 (Left/Driver Side)

3. Produktfunktioner

• Konstruktion af høj kvalitet: Manufactured from durable materials and quality tested for performance and longevity.
• IP70 vandtæt rating: Designed to prevent water accumulation and ensure reliable operation in various weather conditions.
• Forbedret belysning: Features reflectors with special fine chrome plating to increase light reflectivity, improving visibility and driving safety.
• Adjustable Light Pattern: Equipped with an adjuster for easy customization of the light beam as needed.
• UV Block Clear Coat: The lens features a UV coating for resistance against yellowing, cracking, and hazing, extending the lifespan of the headlights.

Image 2: Front details of the headlight assembly, showing the clear lens, parking light, turn signal light, high/low beam, and safety reflector.

Billede 3: Detaljeret view of the amber reflector, turn signal light, and high/low beam bulb area.

Image 4: The headlight assembly is designed to be waterproof, protecting against rain, snow, and dust.

Image 5: The UV block clear coat helps prevent hazing and cracking over time.

4. Opsætning og installation

The AXLAHA Headlight Assembly is designed for a plug-and-play installation, requiring no complicated techniques or drilling. It comes as a pair, including both driver and passenger side units.

4.1. Før installation

• Sørg for, at dit køretøj er slukket, og at batteriet er frakoblet af sikkerhedsmæssige årsager.
• Verify the compatibility of the headlight assembly with your specific Toyota Tacoma model year (2012-2015).
• Acquire the necessary H4 bulbs, as they are not included with the assembly.

4.2. Installationstrin (generel vejledning)

1. Carefully remove the old headlight assembly from your vehicle. Refer to your vehicle's service manual for specific removal instructions.
2. Install the H4 bulbs into the new AXLAHA Headlight Assembly.
3. Connect the wiring harness from the new assembly to your vehicle's electrical system. The plug-and-play design ensures a straightforward connection.
4. Mount the new headlight assembly securely into the vehicle's headlight housing.
5. Tilslut køretøjets batteri igen.
6. Test all lighting functions (high beam, low beam, turn signal, parking light) to ensure proper operation.
7. Adjust the headlight beam as necessary using the integrated adjuster.

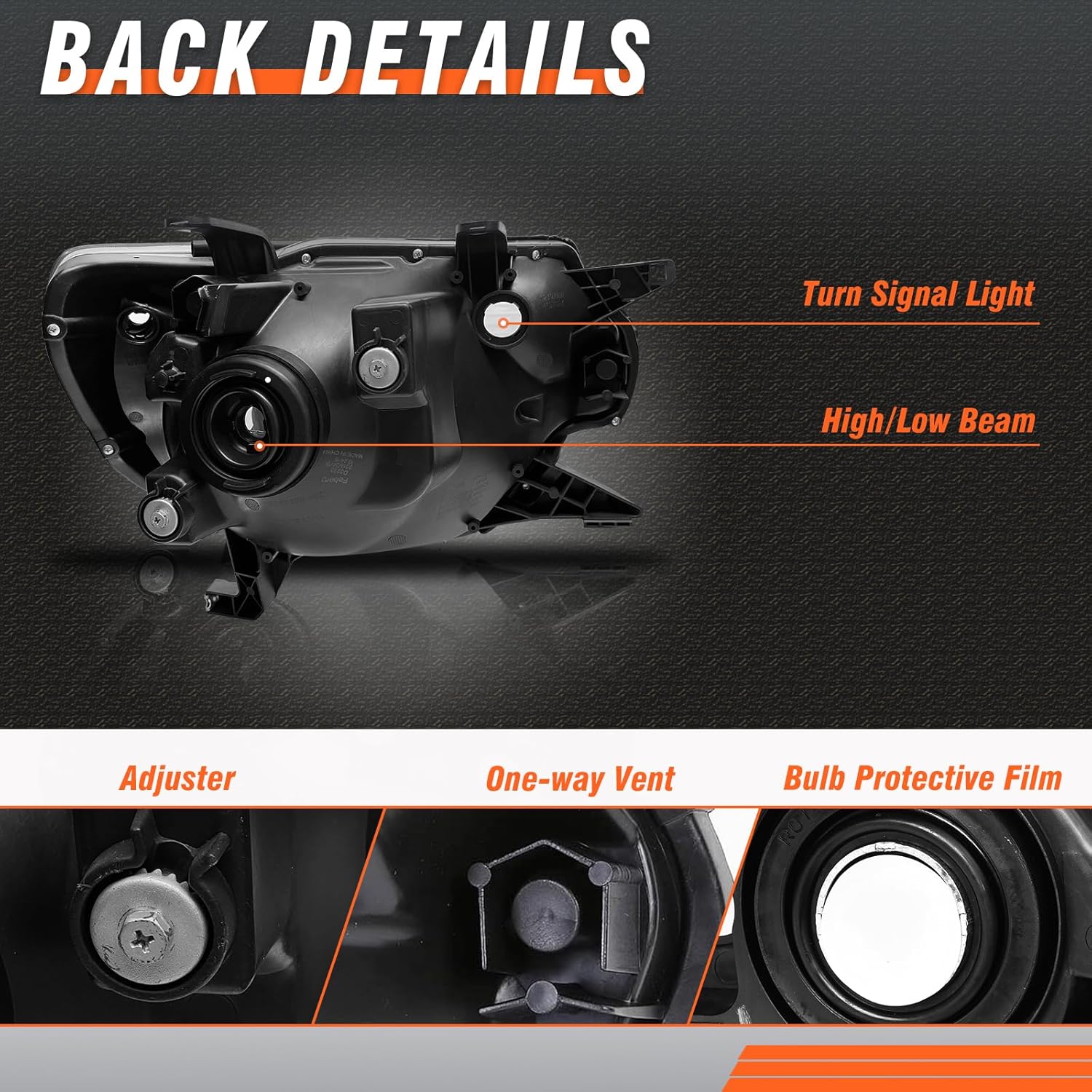

Billede 6: Bagside view of the headlight assembly, highlighting the adjuster for beam alignment.

4.3. Installation and Quality Overview Videoer

5. Betjeningsvejledning

Once installed, the headlight assembly operates in conjunction with your vehicle's existing lighting controls. Familiarize yourself with the functions of your vehicle's light switch.

• Nærlys: Provides standard illumination for general driving conditions.
• Fjernlys: Offers increased illumination for improved visibility on unlit roads. Use responsibly and dim for oncoming traffic.
• Blinklys: Activates the amber reflector for signaling turns or lane changes.
• Parkeringslys: Provides low-level illumination for parking or when stopped.

The integrated adjuster allows you to fine-tune the vertical aim of the headlight beam. This adjustment should be performed by a qualified technician or according to local regulations to ensure proper road illumination and avoid blinding other drivers.

Image 7: AXLAHA Headlight Assemblies installed on a Toyota Tacoma.

6. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your headlight assembly.

• Rensning: Regularly clean the clear lens with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or harsh chemicals that could damage the UV coating.
• Inspektion: Periodically inspect the headlight assembly for any signs of damage, cracks, or moisture intrusion. The IP70 waterproof design minimizes these risks, but regular checks are recommended.
• Udskiftning af pære: If a bulb fails, replace it with an H4 type bulb. Ensure the vehicle is off and the battery is disconnected before attempting bulb replacement.
• UV-belægning: The integrated UV coating helps protect against environmental degradation. Avoid using aftermarket lens restoration kits that may compromise this protective layer.

7. Fejlfinding

If you encounter issues with your headlight assembly, consider the following troubleshooting steps:

• Forlygte virker ikke: Check the bulb for filament breakage. Verify electrical connections are secure and free from corrosion. Inspect the vehicle's fuse box for a blown headlight fuse.
• Dæmpet belysning: Sørg for det korrekte wattage H4 bulbs are installed. Check for any loose connections or signs of voltage drop.
• Fugt inde i linsen: While the assembly is IP70 waterproof, minor condensation can occur due to temperature changes. This usually dissipates. If persistent moisture or water pooling is observed, check for proper sealing or damage.
• Improper Beam Aim: Use the integrated adjuster to correct the beam aim. If unable to achieve proper alignment, consult a professional technician.

For issues not resolved by these steps, please contact AXLAHA customer support.

8. Specifikationer

9. Garanti og support

Your AXLAHA Headlight Assembly comes with a 2 års garanti fra købsdatoen.

If you encounter any problems or have questions regarding your product, please do not hesitate to contact our dedicated after-sales service team. We are committed to assisting you promptly and effectively.

For support, please refer to the contact information provided with your purchase or visit the official AXLAHA webwebsted.
