Jimmy Mattress Vacuum Cleaner BX5 Pro-120V-Corded User Manual

1. Introduktion

Thank you for choosing the Jimmy Mattress Vacuum Cleaner BX5 Pro-120V-Corded. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and retain it for future reference.

2. Vigtige sikkerhedsoplysninger

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

• Læs alle instruktioner før brug af apparatet.
• Må ikke bruges udendørs eller på våde overflader.
• Må ikke bruges som legetøj. Omhyggelig opmærksomhed er nødvendig, når den bruges af eller i nærheden af ​​børn.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Må ikke bruges med beskadiget ledning eller stik. Hvis apparatet ikke fungerer, som det skal, er blevet tabt, beskadiget, efterladt udendørs eller tabt i vand, skal det returneres til et servicecenter.
• Undlad at trække eller bære i snoren, bruge snoren som håndtag, lukke en dør på snoren eller trække snoren rundt om skarpe kanter eller hjørner. Kør ikke apparatet over ledningen. Hold ledningen væk fra opvarmede overflader.
• Tag ikke stikket ud ved at trække i ledningen. For at tage stikket ud skal du tage fat i stikket, ikke i ledningen.
• Håndter ikke stikket eller apparatet med våde hænder.
• Stik ikke genstande ind i åbninger. Må ikke bruges med blokerede åbninger; holdes fri for støv, fnug, hår og alt, hvad der kan reducere luftstrømmen.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Sluk for alle knapper, før du trækker stikket ud.
• Vær ekstra forsigtig ved rengøring på trapper.
• Må ikke bruges til at opsamle brændbare eller brændbare væsker, såsom benzin, eller brug i områder, hvor de kan være til stede.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• The UV-C light is equipped with automatic safety sensors. It will deactivate when the device is tilted or lifted from the surface to prevent direct exposure. Do not attempt to bypass these safety features.
• Må ikke bruges uden støvkop og/eller filtre på plads.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Jimmy Mattress Vacuum Cleaner BX5 Pro-120V-Corded Main Unit
• Netledning (integreret)
• Brugermanual

4. Produktet er slutview

The Jimmy BX5 Pro is a powerful handheld mattress vacuum cleaner designed for deep cleaning of various upholstered surfaces. It combines strong suction with advanced UV-C light and ultrasonic technology for comprehensive allergen and dust removal.

Figur 4.1: The Jimmy BX5 Pro-120V-Corded Mattress Vacuum Cleaner, showcasing its ergonomic design and dust collection system.

Nøglefunktioner

• 500W Motor & 15Kpa Suction: Provides powerful deep cleaning for mattresses, sofas, and other fabrics.
• UV-C Light Technology: Eliminates up to 99.9% of harmful substances, including dust mites and bacteria.
• Ultralydsteknologi: Further enhances cleaning by breaking down stubborn dirt and debris.
• HEPA-filtreringssystem: Captures fine particles and allergens, releasing renere luft.
• Patented Composite Roller Brush: Designed for effective removal of dust, allergens, and pet hair.
• Patented Dual Cyclone Filtration: A 6-layer system that prevents clogging and maintains consistent suction.
• Automatisk sikkerhedsfunktion: UV-C light deactivates when tilted or lifted for user safety.
• Dual Mode Operation: Allows selection between different cleaning intensities.

Figur 4.2: Illustration of the vacuum's 500W motor providing strong suction to lift dust and debris from surfaces.

Figur 4.3: Depiction of the integrated UV-C light and ultrasonic waves working to sanitize and break down microscopic particles. The image also shows the safety mechanism where the UV light turns off when the unit is lifted.

Figur 4.4: Visual representation of the patented composite roller brush actively beating and sweeping the mattress surface to dislodge embedded dust and allergens.

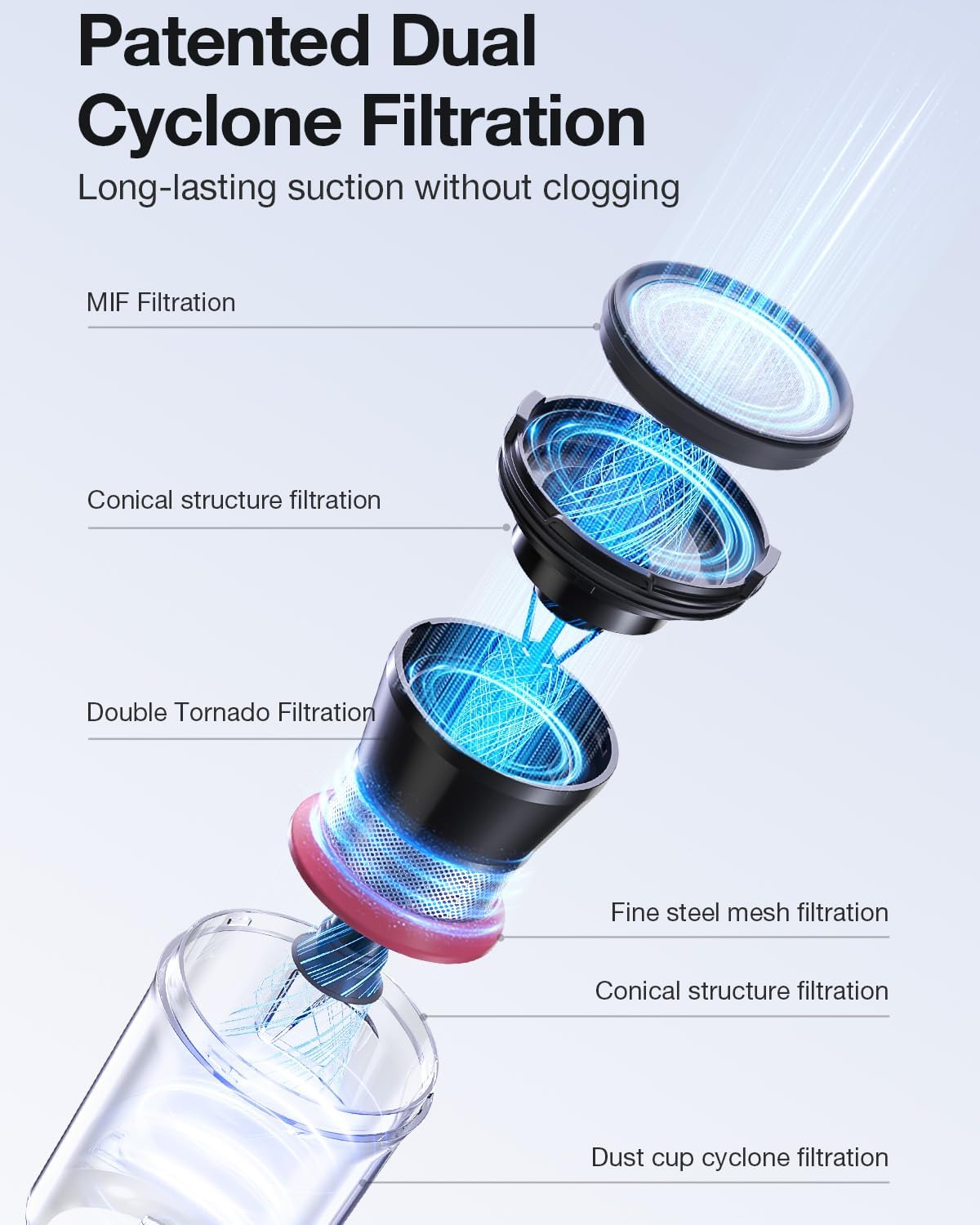

Figur 4.5: eksploderede view illustrating the multi-layer dual cyclone filtration system, including MIF, conical, double tornado, and fine steel mesh filters, designed to prevent clogging and ensure long-lasting suction.

5. Opsætning

The Jimmy BX5 Pro is designed for immediate use with minimal setup.

1. Pakker ud: Carefully remove the vacuum cleaner and all accessories from the packaging.
2. Inspicere: Check the unit for any signs of damage. If damaged, do not use and contact customer support.
3. Strømtilslutning: Ensure the power cord is fully extended and plug it into a standard 120V electrical outlet.
4. Dust Cup & Filter Check: Verify that the dust cup and all filters are correctly installed before operation. Refer to the 'Maintenance' section for details on filter installation.

6. Betjeningsvejledning

6.1 Grundlæggende betjening

1. Tænd: Press the power button located on the handle to turn on the vacuum cleaner. The default mode will activate.
2. Vælg tilstand: If your model features dual modes, press the mode selection button (if available) to switch between 'Soft' and 'Strong' suction settings. The UV-C light will activate automatically when the vacuum is placed on a flat surface.
3. Støvsugning: Move the vacuum cleaner slowly and steadily across the surface you wish to clean. Overlap passes to ensure thorough coverage.
4. Sluk: Press the power button again to turn off the appliance when finished.

6.2 Using UV-C Light and Ultrasonic Function

The UV-C light and ultrasonic functions are integrated into the cleaning head and activate automatically when the vacuum is in contact with a surface during operation. The UV-C light is designed to sanitize surfaces, while ultrasonic waves assist in dislodging microscopic particles.

• UV-C Safety: For your safety, the UV-C light will automatically turn off if the vacuum is lifted or tilted off the cleaning surface. This prevents direct exposure to the UV-C light.
• Effektiv brug: For optimal sanitization, ensure the vacuum head maintains consistent contact with the surface.

6.3 Anbefalede anvendelsesområder

The Jimmy BX5 Pro is ideal for deep cleaning various upholstered surfaces:

• Senge og madrasser
• Sofas and Upholstered Furniture
• Cribs and Baby Bedding
• Carpets and Rugs (for surface cleaning)

Figur 6.1: Examples of the vacuum cleaner being used on a bed, carpet, and sofa, demonstrating its versatility for various household surfaces.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid. Tag altid stikket ud af apparatet, før du udfører nogen form for vedligeholdelse.

7.1 Cleaning the Dust Cup

1. Fjern støvbeholder: Locate the dust cup release button and press it to detach the dust cup from the main unit.
2. Tomt indhold: Hold the dust cup over a trash bin and open the bottom lid to empty collected dust and debris.
3. Skylning (valgfrit): The dust cup can be rinsed with water if necessary. Ensure it is completely dry before reattaching.
4. Genmonter: Align the dust cup with the main unit and push until it clicks securely into place.

7.2 Rengøring af HEPA-filteret

The HEPA filter should be cleaned regularly, ideally after every few uses, or when suction power noticeably decreases.

1. Adgangsfilter: Remove the dust cup as described above. The HEPA filter is typically located inside the dust cup assembly. Twist or pull to remove it.
2. Rens filter: Tap the filter gently over a trash bin to remove loose dust. For a deeper clean, rinse the filter under cool running water until the water runs clear. Do not use detergents.
3. Tør helt: Allow the HEPA filter to air dry completely for at least 24 hours before reinstallation. Do not use a dryer or direct heat.
4. Geninstaller: Once dry, place the HEPA filter back into the dust cup assembly and reattach the dust cup to the main unit.

7.3 Rengøring af rullebørsten

Kontrollér regelmæssigt rullebørsten for filtret hår eller snavs.

1. Access Brush: Turn the vacuum cleaner over. Locate the brush cover on the bottom of the cleaning head. You may need to use a coin or screwdriver to unlock the cover.
2. Fjern børsten: Løft rullebørsten ud.
3. Rengør børste: Use scissors or a brush cleaning tool to cut and remove any tangled hair or fibers from the roller brush.
4. Geninstaller: Place the clean roller brush back into its housing and secure the brush cover.

8. Fejlfinding

Før du kontakter kundesupport, bedes du se følgende tabel for almindelige problemer og løsninger på disse.

9. Specifikationer

Technical specifications for the Jimmy Mattress Vacuum Cleaner BX5 Pro-120V-Corded:

10. Garanti og support

10.1 Garantioplysninger

Jimmy offers a warranty for this product. For any quality problems within one year of purchase, a new machine replacement or refund will be provided. If the issue occurs after one year, please contact customer support for assistance with replacing parts or repair services.

10.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Jimmy customer support through the retailer's platform or the official Jimmy website. Please have your model number (BX5 Pro) and purchase date available when contacting support.
