ATOMSTACK A6 Pro Lasergravør Brugermanual

1. Produktet er slutview

The ATOMSTACK A6 Pro is a versatile 2-in-1 laser engraving and cutting machine designed for both beginners and enthusiasts. Featuring a unibody frame, it requires no assembly, allowing for immediate use right out of the box. It boasts a 6000mW output laser power with advanced beam compression technology for stable cuts and precise engraving on a variety of materials.

Figure 1: ATOMSTACK A6 Pro Laser Engraver with various engraved samples.

2. Sikkerhedsoplysninger

Operating a laser engraver requires strict adherence to safety guidelines to prevent injury. The ATOMSTACK A6 Pro is a Laser Class 4 device. Always wear the provided UV-filtering eye protection during operation. Ensure the machine is placed on a stable, level surface. The integrated tilt detector will trigger an alarm if the machine is moved or tilted excessively during operation. An emergency stop button is provided for immediate shutdown in critical situations.

• Brug altid passende øjenbeskyttelse.
• Ensure proper ventilation to dissipate fumes and smoke.
• Efterlad ikke maskinen uden opsyn under drift.
• Hold brændbare materialer væk fra arbejdsområdet.
• Gør dig bekendt med nødstopproceduren.
• Keep children and pets away from the operating machine.

3. Pakkens indhold

The ATOMSTACK A6 Pro comes pre-assembled in a unibody frame, minimizing setup time. Upon unboxing, verify that all components are present and undamaged.

Figure 2: The ATOMSTACK A6 Pro is ready to use directly from its packaging.

Inkluderede varer:

• ATOMSTACK A6 Pro Laser Engraver (Unibody Frame)
• Laser Module (6000mW output)
• Strømadapter
• USB kabel
• UV-Filtering Eye Protection Goggles
• Brugervejledning (dette dokument)
• Basic Material Samples for Testing

4. Opsætning

The ATOMSTACK A6 Pro is designed for minimal setup. Its unibody frame means no complex assembly is required.

Indledende opsætningstrin:

1. Pakker ud: Carefully remove the engraver from its packaging.
2. Placering: Place the machine on a stable, flat, and heat-resistant surface in a well-ventilated area.
3. Tilslut strøm: Plug the power adapter into the machine and then into a suitable power outlet.
4. Connect to Computer (Optional): Connect the engraver to your computer using the provided USB cable if you plan to use PC software.
5. Install Software/App: Download and install the recommended software (AtomStack Studio, LightBurn, or LaserGRBL for PC) or the ATOMSTACK mobile app (for Android/iOS) on your control device.

Video 1: Unboxing and quick setup of the ATOMSTACK A6 Pro, demonstrating its no-assembly design.

5. Betjeningsvejledning

The ATOMSTACK A6 Pro offers multiple control methods for flexibility in your projects.

Figure 3: Diverse control methods for the ATOMSTACK A6 Pro.

Kontrolmetoder:

• PC-software: Use AtomStack Studio (exclusive, free), LightBurn, or LaserGRBL for detailed control and design.
• Smartphone app: Control the engraver via Wi-Fi using the ATOMSTACK mobile app (available on Android and Apple App Store).

Engraving and Cutting Process:

1. Design: Create or import your design using your chosen software/app.
2. Materiale placering: Place the material to be engraved or cut within the working area. The enlarged working area of 365x305mm (14.37x12 inches) allows for multitasking.
3. Fokusjustering: Utilize the fixed-focus design for rapid and precise focusing in approximately 10 seconds. The newly added cross laser positioning feature provides clear visibility of the laser's location for perfect alignment.
4. Indstillinger: Adjust laser power, speed, and passes according to the material type and desired effect. Refer to the material compatibility section for general guidelines.
5. Start drift: Initiate the engraving or cutting process from your control device.
6. Strømafbrydelsesgenopretning: The advanced automatic power failure recovery system memorizes the exact engraving position and resumes from the paused point, ensuring uninterrupted production and material saving.

Video 2: Demonstration of the ATOMSTACK A6 Pro's engraving and cutting capabilities on various materials.

6. Materials Compatibility

The ATOMSTACK A6 Pro is capable of engraving and cutting a wide range of materials due to its 6000mW output laser power and ultra-fine laser focus area (0.05x0.05mm).

Figure 4: Diverse materials compatible with the ATOMSTACK A6 Pro.

Engraving Capabilities:

• Directly engrave stainless steel, ceramics, and glass.
• Achieves clear effects on wood, leather, paper, acrylic, and more.

Cutting Capabilities:

• Cuts 3mm paulownia wood, 3mm black acrylic, and 3mm plywood in a single pass.
• Cuts 6mm thick plywood and 6mm black acrylic in multiple passes.
• Suitable for basswood, pine wood, bamboo, and leather.

Figure 5: The ATOMSTACK A6 Pro provides stable laser cuts on various materials.

7. Advanced Features and Technology

• Høj præcision: Mechanical precision can reach 0.02mm, benefiting from the unibody frame and modular assembly.
• Amazing Work Speed: Maximum engraving speed up to 600mm/s, significantly faster than traditional frame machines.
• 32-Bit Smart Motherboard: Features the ATOMSTACK self-developed ESP-32 built-in motherboard for intelligent and simple operation.
• 4-Way Limit Switches: Located on X and Y axes to prevent equipment collision with edges.
• Danger Alert System: Includes flame detector and gyroscope (tilt detector) to trigger emergency stops for safety.
• Tank Chain Design: New wiring harness design for aesthetics and extended machine lifespan.
• Sikkerhedslås: Prevents unauthorized use, especially by children, and deters theft.
• Dual-Axis Guideway: High-precision wear-resistant slide rails and 4-way hard limiters reduce wear and tear.
• Detachable Eye Protection: Laser shield with magnetic absorption protects eyes and prevents laser lenses from smoke and dust accumulation.

Figure 6: The ATOMSTACK A6 Pro offers significantly faster engraving speeds.

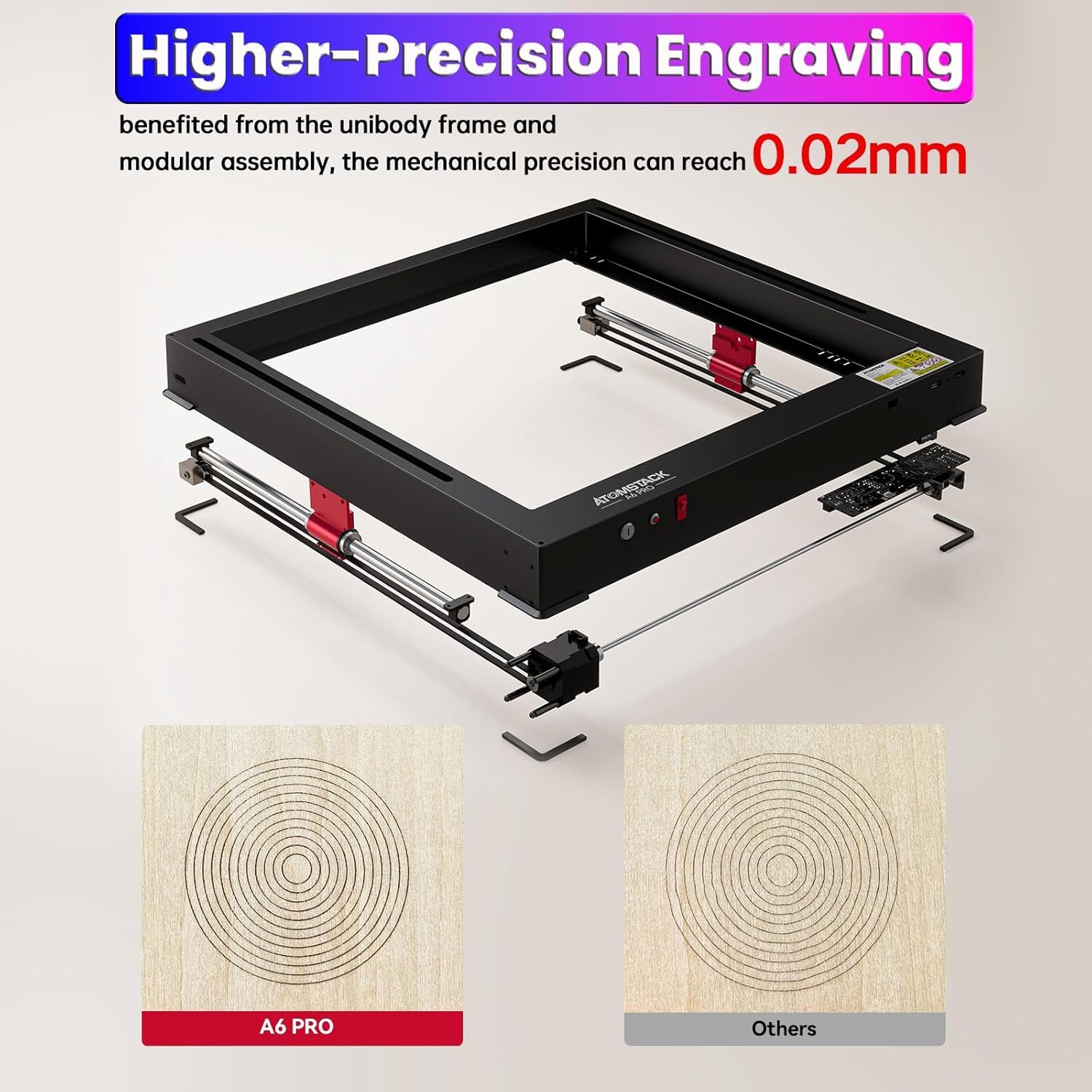

Figure 7: The ATOMSTACK A6 Pro provides higher precision engraving.

8. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din ATOMSTACK A6 Pros lange levetid og optimale ydeevne.

• Rensning: Regularly clean the laser lens and the working area to prevent dust and debris buildup, which can affect engraving quality. Use a soft, lint-free cloth.
• Smøring: Periodically check and lubricate the guide rails to ensure smooth movement of the laser module.
• Firmwareopdateringer: Tjek den officielle ATOMSTACK webwebstedet eller appen for at se, om der er tilgængelige firmwareopdateringer, for at sikre, at din maskine har de nyeste funktioner og forbedringer.
• Opbevaring: Når gravøren ikke er i brug, skal den opbevares et rent og tørt sted, væk fra direkte sollys og ekstreme temperaturer.

9. Fejlfinding

Dette afsnit indeholder generel vejledning til almindelige problemer. For detaljeret fejlfinding henvises til de officielle ATOMSTACK-supportressourcer.

10. Specifikationer

11. Garanti og support

The ATOMSTACK A6 Pro comes with a 1 års producentgaranti. For technical support, troubleshooting assistance, or warranty claims, please contact ATOMSTACK customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage.

Visit the official ATOMSTACK Store for additional accessories and product information: ATOMSTACK Officiel Butik
