BIC America SWA8 Powered Subwoofer

Indledning

Elevate your auditory experience with the Acoustech SWA8, a subwoofer designed to bring cinematic depth and musical precision to your home. As a cornerstone of Acoustech's esteemed audio equipment line, the SWA8 is not just a speaker—it's the pulse that brings your home theater and music to life.

Nøglefunktioner

• High Power, Deep Impact: Feel the impact of every scene and beat with a subwoofer that boasts up to 200 watts of maximum power, ensuring a bass that's both deep and defined.
• Sømløs integration: Designed to complement the BIC America range, this subwoofer fits perfectly into a 5.1.2 Dolby Atmos setup or any multi-channel configuration, offering flexibility and compatibility with your existing system.
• Intelligent design: The SWA8 isn't just about power; it's smart too. With auto on/off signal sensing, it knows when to spring into action or take a break, conserving energy without missing a beat.

Hvad er der i æsken

• Acoustech SWA8 Powered Subwoofer
• Strømforsyning
• Brugervejledning (dette dokument)

Produkt overview

Figur 1: Forside view of the Acoustech SWA8 Powered Subwoofer, showcasing the 8-inch poly-injected woofer.

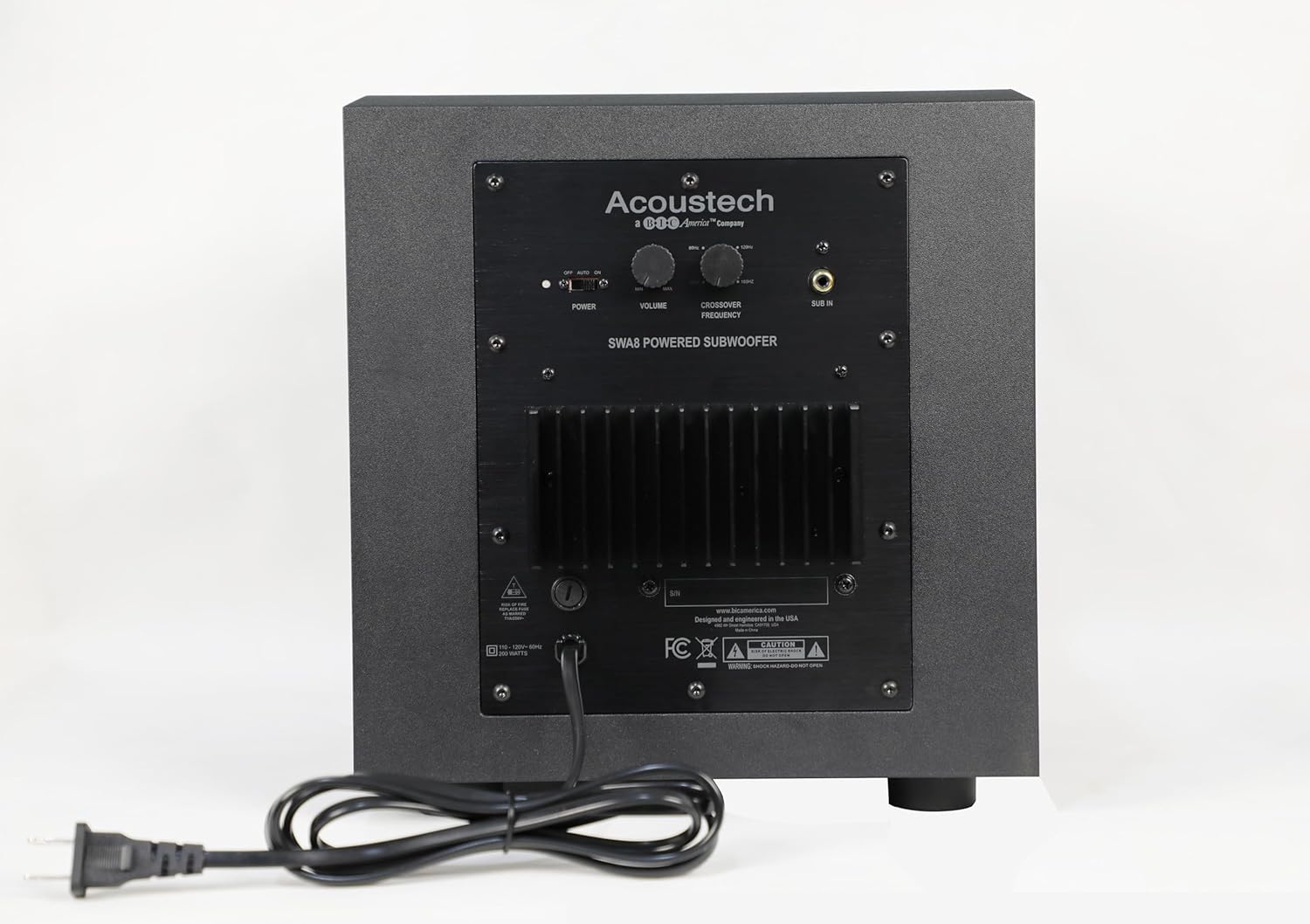

Figure 2: Rear panel of the Acoustech SWA8, featuring volume and crossover frequency controls, power switch, and RCA input.

Figur 3: Side view of the Acoustech SWA8, showing the front-firing port designed for enhanced bass precision.

Opsætning og installation

Follow these steps to properly set up your Acoustech SWA8 Powered Subwoofer:

1. Placering: Position the subwoofer in a corner of your room or along a wall for optimal bass response. Experiment with different locations to find the best sound for your listening environment.
2. Forbindelse: Tilslut subwooferen til din lydmodtager eller amplifier using an RCA cable. Use the "SUB IN" port on the subwoofer's rear panel (refer to Figure 2).
3. Magt: Plug the power supply into the subwoofer's power input and then into a standard electrical outlet.
4. Indledende indstillinger:
   • Indstil Bind knob to the minimum position ("MIN").
   • Indstil Crossover-frekvens knob to approximately 80Hz-100Hz as a starting point. This setting determines the highest frequency the subwoofer will reproduce.
   • Sørg for Magt switch is set to "AUTO" for automatic power on/off with signal detection, or "ON" for continuous operation.

Betjeningsvejledning

Once connected, follow these guidelines for optimal performance:

1. Tænd: If the power switch is set to "AUTO", the subwoofer will automatically turn on when it detects an audio signal from your receiver. If set to "ON", it will remain powered.
2. Lydstyrkejustering: Øg gradvist Bind knob on the subwoofer until the bass output blends seamlessly with your main speakers. Avoid setting the volume too high, which can lead to distorted sound.
3. Justering af delefrekvens: Juster Crossover-frekvens knob to fine-tune the blend between your subwoofer and main speakers.
   • For smaller main speakers, a higher crossover frequency (e.g., 100Hz-120Hz) may be appropriate.
   • For larger main speakers, a lower crossover frequency (e.g., 60Hz-80Hz) is often preferred.
4. Lyttetest: Play various types of audio content (music, movies) to assess the sound balance. Adjust volume and crossover as needed for your preferred sound.

Opretholdelse

To ensure the longevity and optimal performance of your subwoofer:

• Keep the subwoofer in a dry environment, away from direct sunlight and excessive heat.
• Clean the cabinet with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Do not block the rear heat sink or the front-firing port, as this can affect performance and lead to overheating.

Fejlfinding

Specifikationer

Garanti og support

The Acoustech SWA8 Powered Subwoofer comes with the following warranty:

• 4 år on woofer parts.
• 2 år on amplifier and associated electronics.

For technical support or warranty claims, please contact Acoustech customer service. Refer to the product packaging or the manufacturer's webwebsted for kontaktoplysninger.
