Indledning
Welcome to the user manual for your OVONIC 6S LiPo Battery. This guide provides essential information for the safe and effective use, maintenance, and storage of your new LiPo batteries. Please read it thoroughly before first use to ensure optimal performance and safety.
Sikkerhedsinstruktioner
WARNING: Lithium Polymer (LiPo) batteries are volatile. Failure to follow these instructions can result in fire, personal injury, and property damage.
- Opladning: Always use a LiPo compatible charger. Never leave charging batteries unattended. Charge in a fire-safe area, away from flammable materials. Do not overcharge or over-discharge.
- Opbevaring: Store batteries at room temperature (20-25°C / 68-77°F) in a fire-safe container, away from direct sunlight and heat sources. Store at a storage voltage (typically 3.8V-3.85V per cell).
- Håndtering: Do not puncture, drop, short-circuit, or disassemble the battery. If the battery swells, leaks, or gets damaged, discontinue use immediately and dispose of it properly.
- Bortskaffelse: Dispose of damaged or unusable LiPo batteries according to local regulations. Never dispose of them in regular trash.
- Temperatur: Do not operate batteries in extreme temperatures.
Produktegenskaber
The OVONIC 6S LiPo Battery offers high performance and reliability for your RC models.
- Høj kapacitet: 5000mAh for extended run times.
- Høj voltage: 22.2V (6S1P configuration).
- High Discharge Rate: 120C for powerful performance.
- Konnektor: Equipped with EC5 plug for secure connection.
- Avanceret teknologi: Utilizes stacking technology for improved energy density and cycle life.
Image: Comparison illustrating OVONIC's stacking technology (left) which offers higher energy density, longer running time, lower battery swelling, and lower internal resistance compared to traditional winding technology (right).
Image: Performance comparison chart showing OVONIC batteries excel in energy density, discharge capacity, cycle life, safety, and lower internal resistance compared to other brands.
Pakkens indhold
Your OVONIC 6S LiPo Battery package includes:
- 2 x OVONIC 22.2V 120C 5000mAh LiPo Batteries with EC5 Plug
- 1 x brugermanual
- 2 x Brand Stickers
- 1 x emballeringsboks
Billede: Detaljeret view of the package contents, showing two OVONIC 6S LiPo batteries, a user manual, brand stickers, and the product packaging box.
Opsætning og kompatibilitet
Before connecting the battery, ensure it is compatible with your RC model. Verify the voltage, dimensions, and connector type.

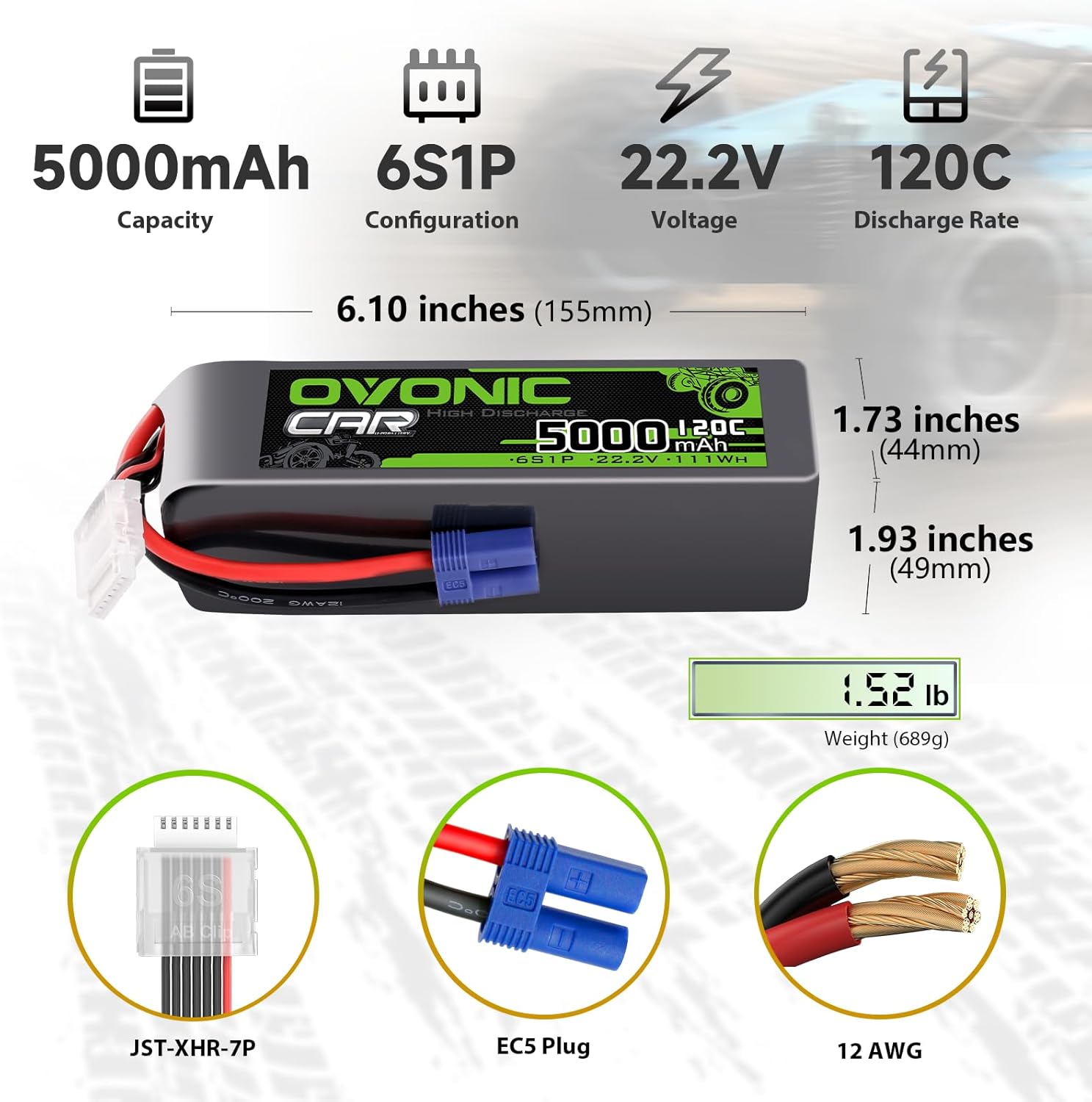

Image: Technical specifications and physical dimensions of the OVONIC 6S LiPo battery, highlighting its 5000mAh capacity, 6S1P configuration, 22.2V voltage, 120C discharge rate, and EC5 connector.
Billede: Visuelt eksempelamples of various RC vehicle types (cars, airplanes, helicopters, boats) that are compatible with this battery, emphasizing the need to match voltage, dimensions, and plug type.
Betjeningsvejledning
Opladning af batteriet:
- Connect the battery's main EC5 plug and balance plug to a compatible LiPo charger.
- Set the charger to the correct cell count (6S) and charging current (e.g., 1C for 5000mAh is 5A).
- Initiate the charging process. Monitor the battery and charger throughout the charging cycle.
- Disconnect the battery immediately once charging is complete.
Brug af batteriet:
- Ensure the battery is fully charged and at a safe operating temperature.
- Connect the battery to your RC model's ESC (Electronic Speed Controller) using the EC5 connector.
- Operate your RC model within its specified voltage og nuværende grænser.
- Avoid over-discharging the battery. Stop use when the voltage drops to approximately 3.7V per cell under load.
Vedligeholdelse og opbevaring
Pleje efter brug:
- Allow the battery to cool down after use before recharging or storing.
- Inspect the battery for any physical damage, swelling, or connector issues.
Langtidsopbevaring:
- For storage longer than 24 hours, discharge or charge the battery to a storage voltage of 3.8V-3.85V per cell.
- Store batteries in a cool, dry place, away from direct sunlight, heat, and flammable materials. A LiPo safe bag or container is highly recommended.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Batteriet oplades ikke | Incorrect charger settings, faulty charger, damaged battery. | Verify charger settings (cell count, current). Try a different charger. If battery is damaged (swollen, punctured), dispose of it safely. |
| Batteri hævelse | Overcharging, over-discharging, physical damage, internal short. | Immediately discontinue use and safely dispose of the battery. Swelling indicates a dangerous condition. |
| Kort løbetid | Battery not fully charged, aging battery, high power draw from model. | Ensure full charge. Check battery health. Reduce power demands if possible. |
Specifikationer
| Specifikation | Værdi |
|---|---|
| Batteritype | Litium Polymer (LiPo) |
| Kapacitet | 5000mAh |
| Voltage | 22.2V |
| Cellekonfiguration | 6S1P |
| Discharge Rate (C) | 120C |
| Connector Type | EC5 Plug |
| Dimensioner (L*B*H) | 6.14 x 1.73 x 1.83 tommer (ca.) |
| Vægt | 1.51 lb (ca.) |
Garanti og support
OVONIC is committed to customer satisfaction. For any issues or concerns regarding your battery, please contact OVONIC customer support.
Refer to the official OVONIC webwebstedet eller produktemballagen for specifikke garantioplysninger og kontaktoplysninger.
After-Sales Support: Rest assured that our commitment to your satisfaction extends long after your purchase. Our dedicated after-sales team is available to assist you with any issues or concerns, providing support whenever you need it.
