Indledning
Thank you for choosing the LEXIP Madara Design Headset. This manual provides detailed instructions for setting up, operating, and maintaining your headset. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

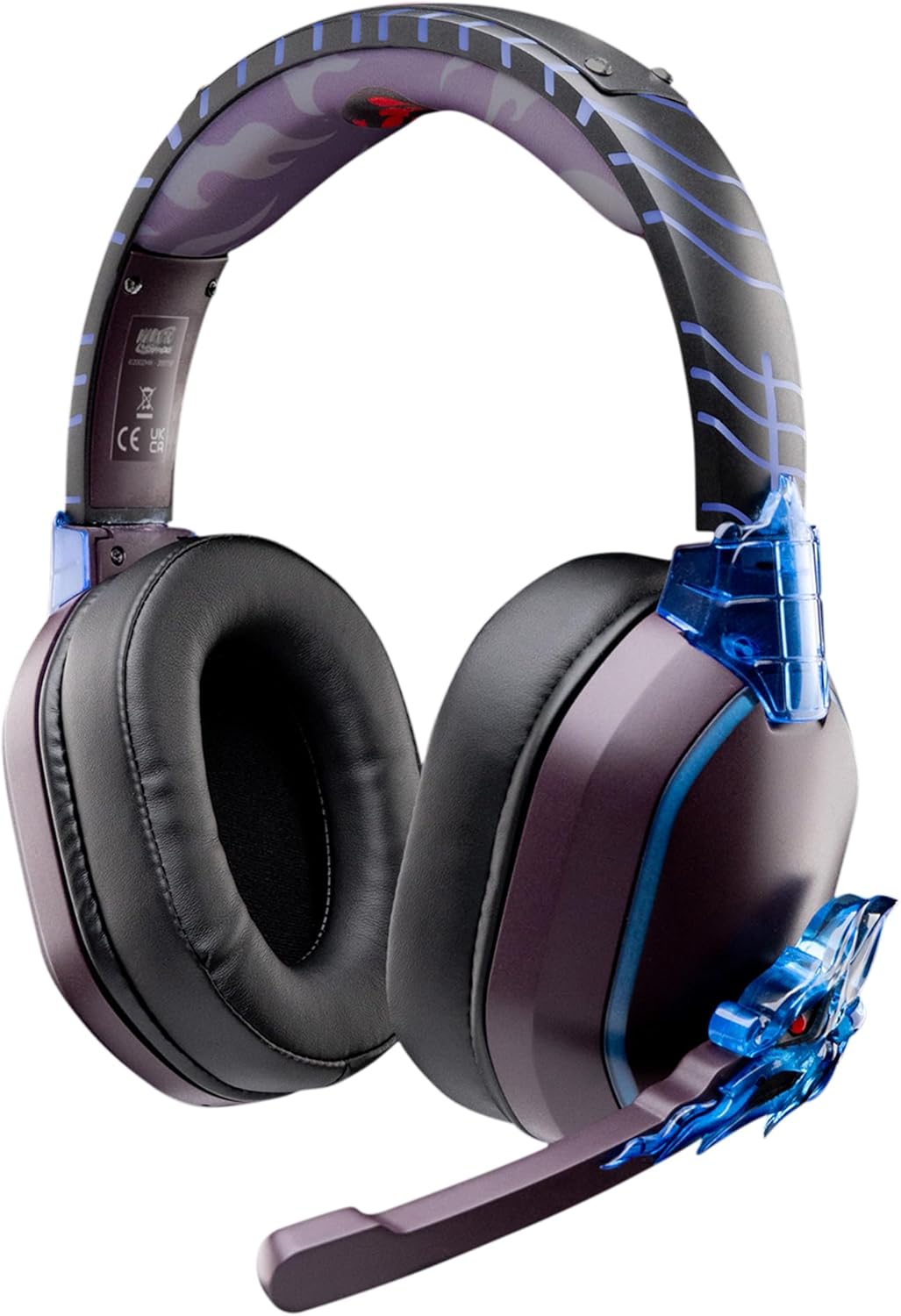

Image: The LEXIP Madara Design Headset, featuring a distinctive purple and blue color scheme with intricate design elements inspired by Madara.
Pakkens indhold
Sørg for at alle varer er til stede i pakken:
- LEXIP Madara Design Headset
- Aftagelig mikrofon
- 3.5 mm lydkabel
- USB opladningskabel
- Brugermanual
Produkt overview
Familiarize yourself with the components and design features of your headset.
Image: Close-up of the headset's ear cup, highlighting the intricate blue dragon design element.
Billede: View of the soft earcups and adjustable headband, designed for comfort during extended use.

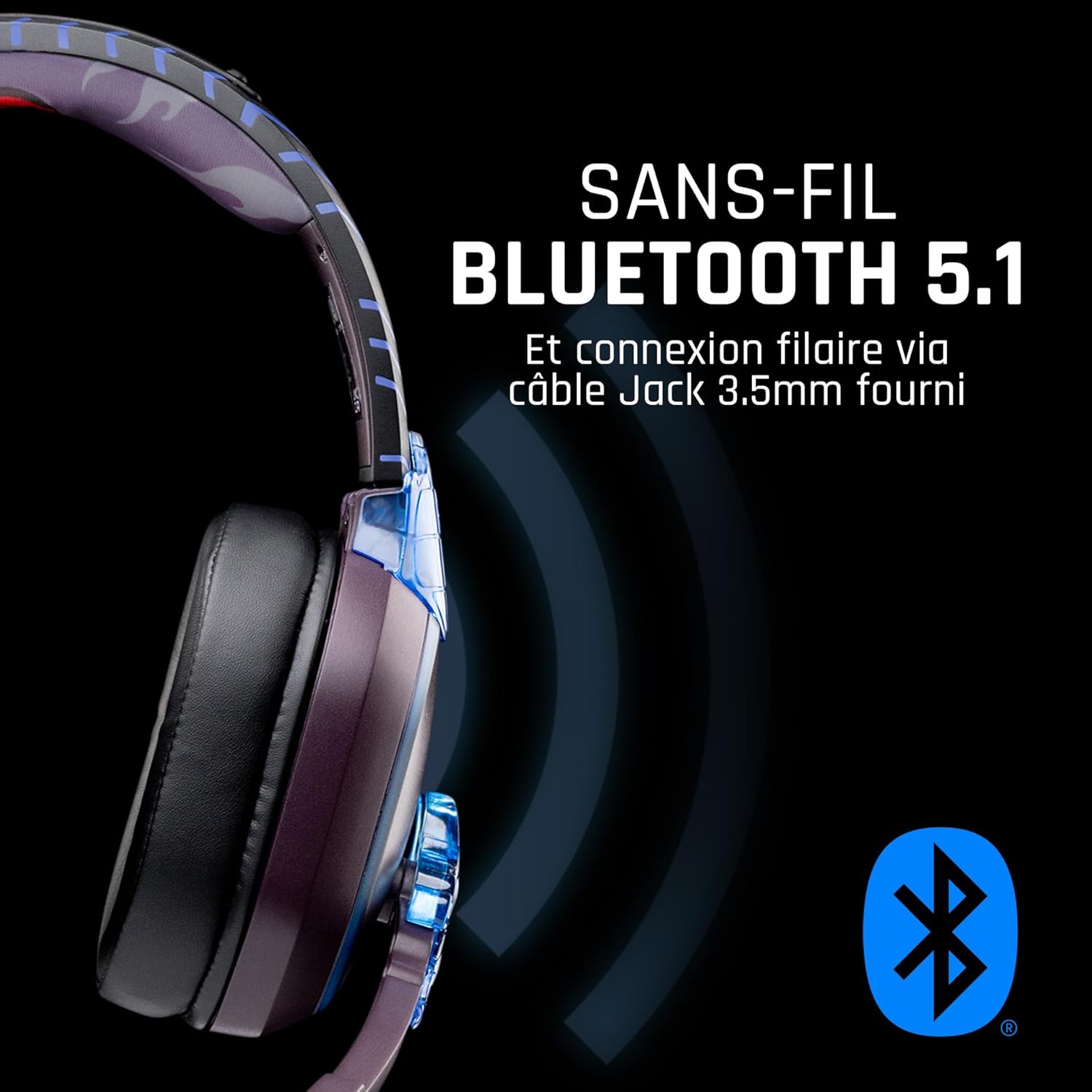

Billede: Side view of the headset, illustrating its wireless Bluetooth 5.1 capability and connection points.
Image: The headset displayed on a stand, alongside a matching game controller, showcasing its gaming application.
Nøglefunktioner:
- Trådløs Bluetooth 5.1: For seamless wireless audio.
- Kabelforbindelse: Via the included 3.5mm Jack cable.
- Aftagelig mikrofon: For clear communication and versatility.
- Lydstyrkekontrol: Integrated controls for easy audio adjustment.
- Støjisolering: Passive noise reduction for an immersive experience.
- Komfortabelt design: Adjustable headband and over-ear form factor.
Opsætning
1. Opladning af headsettet
- Connect the USB charging cable to the charging port on the headset.
- Tilslut den anden ende af USB-kablet til en kompatibel USB-strømkilde (f.eks. en computers USB-port eller en USB-vægadapter).
- The LED indicator on the headset will show the charging status. A full charge typically takes approximately 2-3 hours.
2. Montering af mikrofonen
- Locate the microphone input port on the headset, usually on the left earcup.
- Align the detachable microphone connector with the port and gently push it in until it clicks into place.
- Adjust the microphone's position for optimal voice pickup.
Betjeningsvejledning
1. Tænd/sluk
- For at tænde: Tryk på tænd/sluk-knappen og hold den nede i cirka 3 sekunder, indtil LED-indikatoren lyser.
- For at slukke: Tryk på tænd/sluk-knappen og hold den nede i cirka 5 sekunder, indtil LED-indikatoren slukker.
2. Bluetooth-parring (trådløs tilstand)
- Sørg for, at headsettet er slukket.
- Press and hold the Power button for approximately 5-7 seconds until the LED indicator flashes rapidly, indicating pairing mode.
- On your device (Windows 10/11, Mac, PS5, PS4, Xbox Series X/S, Xbox One, Nintendo Switch, Android, iOS, tablets), navigate to Bluetooth settings.
- Søg efter available devices and select "LEXIP Madara Headset" (or similar name).
- Når den er parret, holder LED-indikatoren op med at blinke og forbliver konstant blå.
3. Kablet forbindelse (3.5 mm jack)
- Insert one end of the 3.5mm audio cable into the headset's audio jack.
- Insert the other end into the 3.5mm audio port of your desired device.
- The headset will operate in passive wired mode, even if the power is off.
4. Lydstyrkekontrol
- Use the volume control dial or buttons located on the headset to adjust the audio level.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre headsettet. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Opbevar headsettet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: For optimal batterilevetid bør du undgå at aflade headsettet helt ofte. Oplad det regelmæssigt.
- Vandtæthed: The headset is not waterproof. Avoid exposure to liquids.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra headsettet | Headset not powered on; Volume too low; Not paired/connected; Incorrect audio output selected on device. | Ensure headset is powered on and charged. Increase volume. Re-pair Bluetooth or check 3.5mm cable connection. Select headset as audio output on your device. |
| Kan ikke parres via Bluetooth | Headset not in pairing mode; Device Bluetooth off; Too far from device; Interference. | Ensure headset is in pairing mode (flashing LED). Turn device Bluetooth off and on again. Move headset closer to device. Avoid strong Wi-Fi signals or other Bluetooth devices. |
| Mikrofon virker ikke | Microphone not properly attached; Muted on headset/device; Incorrect input selected on device. | Ensure microphone is securely attached. Check if microphone is muted. Select headset microphone as input device in your device's sound settings. |
| Kort batterilevetid | Headset not fully charged; Old battery. | Ensure headset is fully charged before use. Battery performance may degrade over time. |
Specifikationer
| Modelnummer | TSXLXHS0003 |
| Mærke | Lexip |
| Forbindelsesteknologi | Trådløs (Bluetooth 5.1), Kablet (3.5 mm jack) |
| Frekvensområde | 20 Hz - 20,000 Hz |
| Impedans | 3 ohm |
| Følsomhed | 116 dB |
| Støjisolering | Passiv støjreduktion |
| Mikrofon | Aftagelig |
| Kontrolelementer | Volume Control, Remote Control |
| Kompatible enheder | Windows 10/11, Mac, PS5, PS4, Xbox Series X/S, Xbox One, Nintendo Switch, Android, iOS, tablets |
| Formfaktor | Over-ear, Extra-aural |
| Materiale | Blandede materialer |
| Aldersinterval | Voksen |
| Vandmodstandsniveau | Ikke vandafvisende |
| Batteri | 1 non-standard battery (included) |
Garanti og support
The LEXIP Madara Design Headset comes with a 2 års producentgaranti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For warranty claims, technical support, or further assistance, please contact LEXIP customer service through their official website or the retailer where the product was purchased. Please have your proof of purchase and model number (TSXLXHS0003) ready when contacting support.
Bemærk: Oplysninger om tilgængelighed af reservedele og softwareopdateringer er ikke tilgængelige på nuværende tidspunkt.
