1. Introduktion
Thank you for choosing the Auxmir Rechargeable Wall Mounted Makeup Mirror. This manual provides detailed instructions for the safe and efficient use of your new mirror. This 8-inch double-sided mirror features 1X and 10X magnification, 3 color lighting modes, touch dimming, and a 360-degree swivel extendable arm for optimal viewing and convenience.
Image 1: Auxmir Rechargeable Wall Mounted Makeup Mirror, showcasing its design and illuminated surface.
2. Sikkerhedsoplysninger
- Keep the mirror fully charged to ensure consistent performance and avoid unexpected power interruptions.
- When utilizing the 10X magnifying side, position your face within 4 inches (10 cm) of the mirror to achieve the clearest image and prevent dizziness.
- The wall structure chosen for installation must be suitable and free of weak points. The entire mounting area must be flat, without projecting joints or tiles.
- The included screws and dowels are specifically designed for concrete walls. For other wall types, consult a professional or use appropriate mounting hardware.
- For any product inquiries or assistance, please contact Auxmir customer service.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Auxmir Wall Mounted Makeup Mirror
- USB Type-C opladerkabel
- Boreskabelon
- Mounting Hardware (Screws and Dowels)
4. Opsætning og installation
Follow these steps to securely mount your mirror:
- Vælg placering: Select a desired location on a suitable wall. Use the provided drilling template to mark two holes.
- Bore huller: Drill two holes at the marked positions on the wall.
- Indsæt dyvler: Insert the white expansion screws (dowels) into the drilled holes.
- Fastgør bundpladen: Position the base plate over the dowels and fix it securely with screws.
- Monteringsspejlstruktur: Mount the mirror structure onto the fixed base plate and install the screw caps.
- Bekræft sikkerhed: Ensure the mirror is firmly attached to the wall before use.
Vigtige bemærkninger til installation:
- The wall must be structurally sound and capable of supporting the mirror's weight.
- The mounting surface must be flat; avoid uneven areas or protruding elements.
- The included mounting hardware is intended for concrete walls. For other wall materials (e.g., drywall, wood studs), appropriate anchors and screws must be sourced separately.
Image 2: Visual guide illustrating the six steps for mounting the mirror to a wall.
5. Betjeningsvejledning
5.1 Strøm- og lysstyring
The mirror is equipped with 54 LED lights and features intelligent touch control for lighting functions.
- Tænd/sluk: Tap the touch sensor button on the mirror surface to turn the lights on or off.
- Skift lysfarve: Short press the touch sensor button to cycle through the 3 available light colors: Cool Light, Natural Light, and Warm Light.
- Juster lysstyrke: Long press the touch sensor button to steplessly adjust the brightness from 300 lux to 1100 lux. Release the button when the desired brightness is reached.
- Auto-sluk funktion: The mirror lights will automatically turn off after 30 minutes of inactivity to conserve energy.
Image 3: Depiction of the three distinct color lighting modes: Cool Light, Natural Light, and Warm Light.
Image 4: Illustration of the stepless dimming feature, allowing brightness adjustment from 300 to 1100 lux.

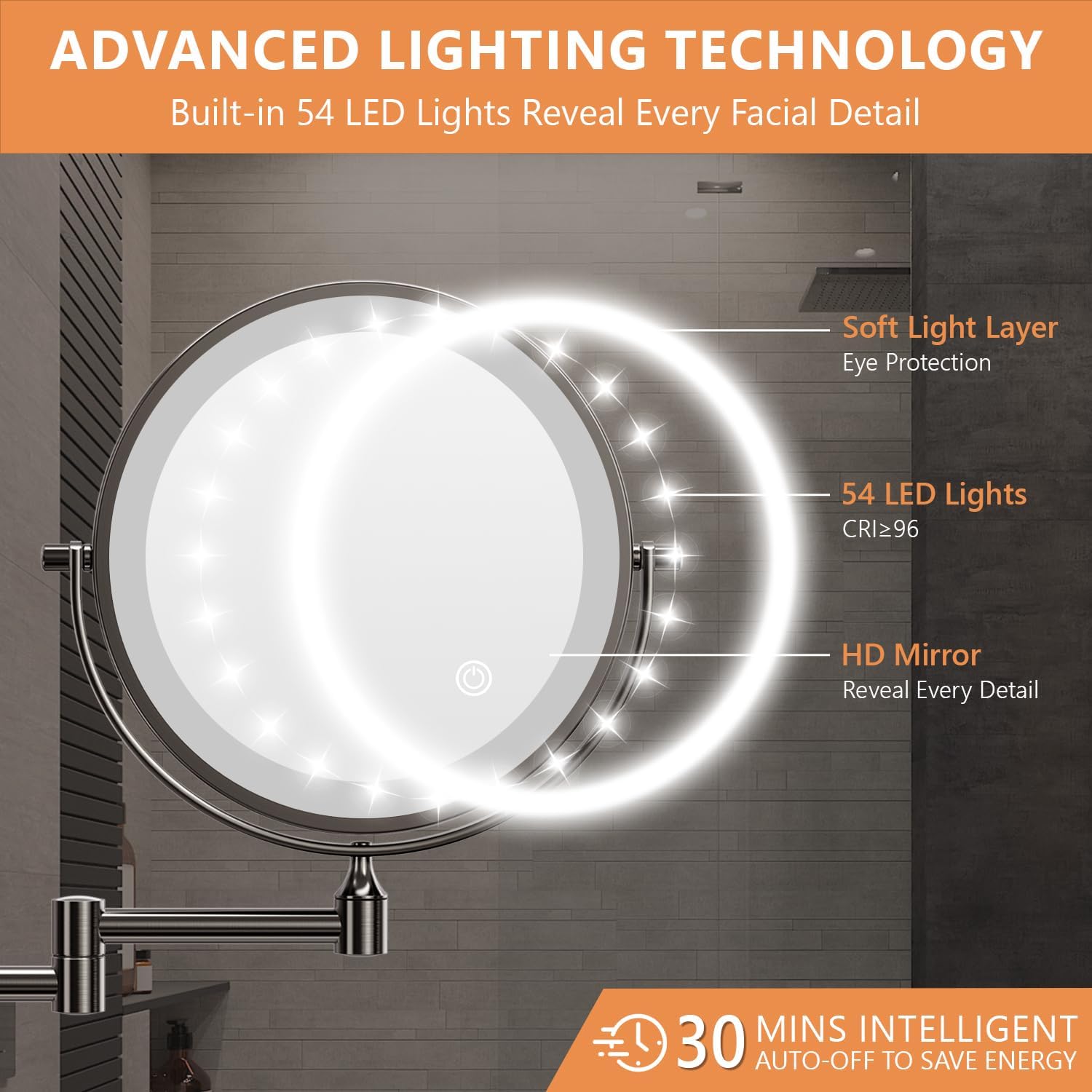

Billede 5: Detaljeret view of the mirror's advanced lighting technology, including 54 LED lights and the 30-minute auto-off function.
5.2 Forstørrelse
The mirror features a double-sided design with two magnification options:
- 1X Side: Ideal for general skincare routines and daily makeup application.
- 10X Side: Provides high magnification for precise tasks such as applying eyeliner, grooming eyebrows, or detailed skincare.
Tip for 10X Magnification:
For the clearest and most comfortable viewing experience on the 10X side, position your face within 4 inches (10 cm) of the mirror. Moving further away may result in a distorted or blurry image.
Image 6: Demonstration of the 1X and 10X magnification sides, emphasizing the recommended 4-inch distance for the 10X view.
5.3 Genopladning af batteriet
Your mirror is equipped with a built-in 3200mAh rechargeable lithium battery.
- Opladningsport: Locate the Type-C charging port on the side of the mirror.
- Tilslut oplader: Connect the provided USB Type-C cable to the mirror and a suitable USB power adapter (not included).
- Opladningsindikator: A red light indicates the mirror is charging. The light will turn green when fully charged.
- Opladningstid: En fuld opladning tager typisk cirka 3-4 timer.
- Første brug: It is recommended to fully charge the mirror before its initial use for optimal battery performance.
Image 7: Visual representation of the mirror's USB Type-C charging capability, 3200mAh battery, and the red (charging) and green (fully charged) indicator lights.
5.4 Adjusting the Mirror
The mirror is designed for flexible positioning:
- 360° drejning: The mirror head can rotate 360 degrees, allowing you to easily switch between the 1X and 10X sides and adjust the viewvinkel.
- Udtrækkelig arm: The extendable arm allows you to pull the mirror closer for use and push it back against the wall when not needed, saving space.
Image 8: Illustration of the mirror's extendable, foldable arm and its 360-degree rotation capability for flexible positioning and space-saving.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your mirror, follow these maintenance guidelines:
- Rensning: Clean the mirror surface and frame with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or mirror coating.
- Støvning: Regularly dust the mirror and arm with a dry, soft cloth to prevent buildup.
- Opbevaring: When not in use, especially for extended periods, ensure the mirror is fully charged and stored in a dry environment.
7. Fejlfinding
If you encounter any issues with your Auxmir mirror, refer to the following common solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lysene tænder ikke. | Batteriet er afladet. | Connect the mirror to a power source using the USB Type-C cable and allow it to fully charge. |
| Lysene er svage eller flimrer. | Lavt batteri eller forkert lysstyrkeindstilling. | Recharge the battery. Long press the touch sensor to increase brightness. |
| Image is blurry or distorted on 10X side. | Face is too far from the mirror. | Ensure your face is within 4 inches (10 cm) of the 10X magnifying surface. |
| Mirror arm is stiff or difficult to move. | Dust or debris in joints. | Gently clean the joints with a soft cloth. Avoid forcing movement. |
If the problem persists after attempting these solutions, please contact Auxmir customer service for further assistance.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Auxmir |
| Modelnummer | X-8CB |
| Farve | Sort |
| Spejldiameter | 8 tommer |
| Forstørrelse | 1X / 10X Dobbeltsidet |
| Batterikapacitet | 3200mAh Lithium genopladelig |
| Opladningstype | USB Type-C |
| LED lys | 54 lysdioder |
| Lystilstande | 3 (Cool, Natural, Warm) |
| Lysstyrkeområde | 300 - 1100 lux (Stepless Dimmable) |
| Særlige funktioner | 360 Degree Swivel, Extendable Arm, Touch Sensor, Auto-Off (30 mins), Rustproof |
| Materiale | Glas, rustfrit stål |
| Produktdimensioner | 31L x 24W centimeter |
| Varens vægt | 1.04 g |

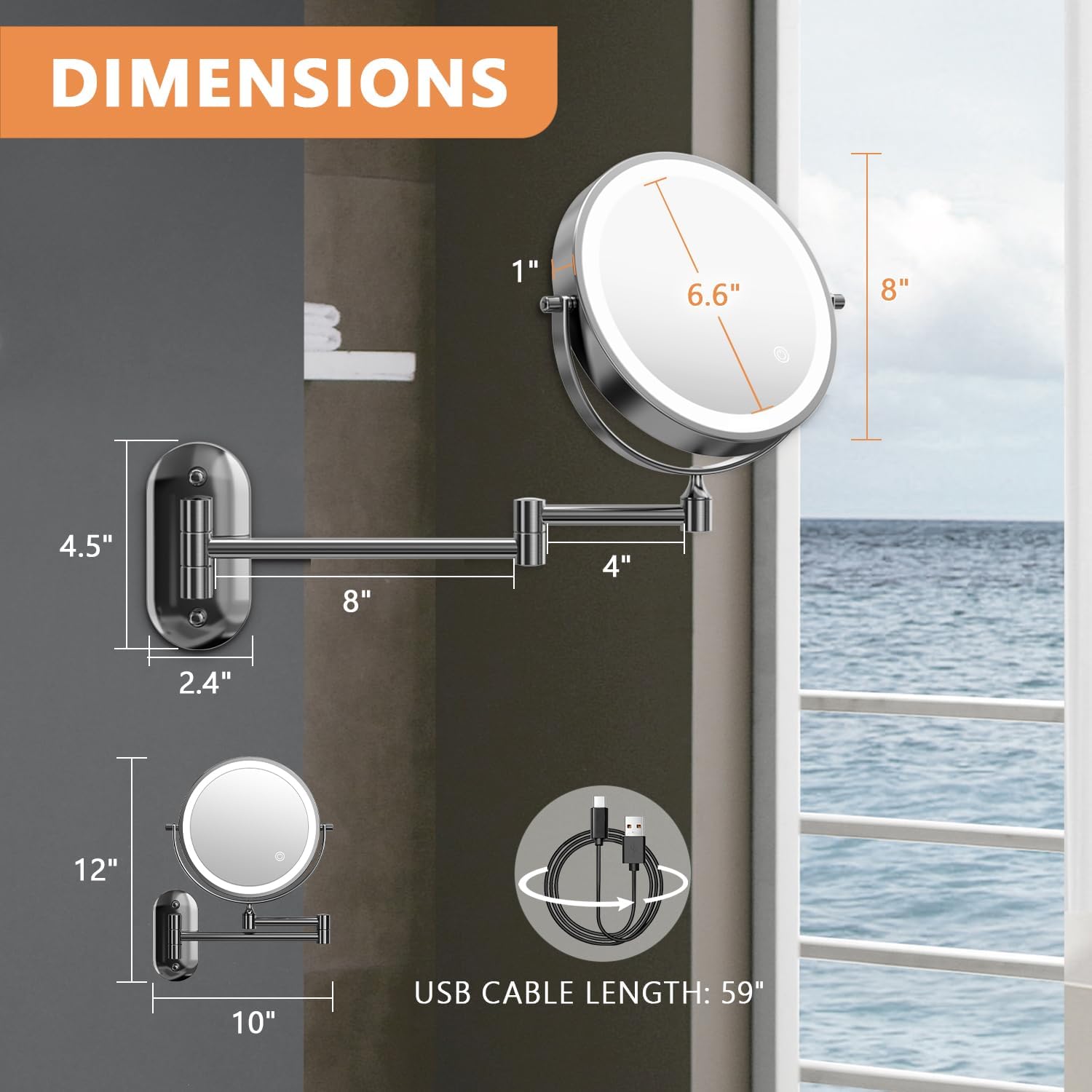

Image 9: Detailed diagram illustrating the physical dimensions of the mirror and its extendable arm.
9. Garanti og support
Auxmir tilbyder en 3 års garanti for this product, ensuring quality and reliability. Our professional customer service team is available to assist you with any questions or concerns you may have regarding your mirror.
For support, please visit the official Auxmir store or contact us directly through the retailer where you purchased the product.
