BENNING elektrisk kredsløbstester brugermanual

1. Introduktion

Thank you for choosing the BENNING Electrical Circuit Tester. This device is designed for precise and reliable electrical measurements, ensuring safety and accuracy in various applications. This manual provides essential information for the proper use, maintenance, and troubleshooting of your new circuit tester. Please read this manual thoroughly before operating the device and keep it for future reference.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden:

• Læs alle instruktioner: Before using the tester, read and understand all safety warnings and operating instructions.
• Kvalificeret personale: Only qualified and trained personnel should operate this device.
• Personligt beskyttelsesudstyr (PPE): Always wear appropriate PPE, such as insulated gloves and safety glasses, when working with electrical circuits.
• Inspect the device: Before each use, inspect the tester and its accessories for any signs of damage. Do not use if damaged.
• Voltage grænser: Overskrid ikke den maksimale volumentage-klassificeringer angivet for enheden.
• Live circuits: Exercise extreme caution when working on live circuits. Assume all circuits are live until proven otherwise.
• Batterisikkerhed: Ensure correct battery polarity and use only the specified battery type. Remove batteries if the device will not be used for an extended period.
• Miljøforhold: Do not use the device in wet or explosive atmospheres.

3. Pakkens indhold

Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede og ubeskadigede:

• BENNING Electrical Circuit Tester (Model 05042101 / 2826055)
• Testledninger (røde og sorte)
• Alligator klip
• USB kabel
• Bæretaske
• AA-batterier (6 medfølger)
• Brugervejledning (dette dokument)

Figure 3.1: The BENNING Electrical Circuit Tester shown with its complete set of accessories, including test leads, alligator clips, USB cable, and carrying bag.

4. Produktet er slutview

The BENNING Electrical Circuit Tester is a robust and versatile device designed for comprehensive electrical testing. It features a clear display and intuitive controls for ease of use.

Figur 4.1: Forside view of the BENNING Electrical Circuit Tester, highlighting the display and control buttons.

4.1 nøglekomponenter

• LCD-skærm: High-contrast screen for displaying measurement results and operational status.
• Funktionsknapper: Buttons for selecting measurement modes (e.g., RPE, Auto, VISO, NULL) and power control (ON/OFF).
• Indgangsterminaler: Ports for connecting test leads.
• USB-port: For data transfer to a computer.
• Batterirum: Located on the rear for battery installation.

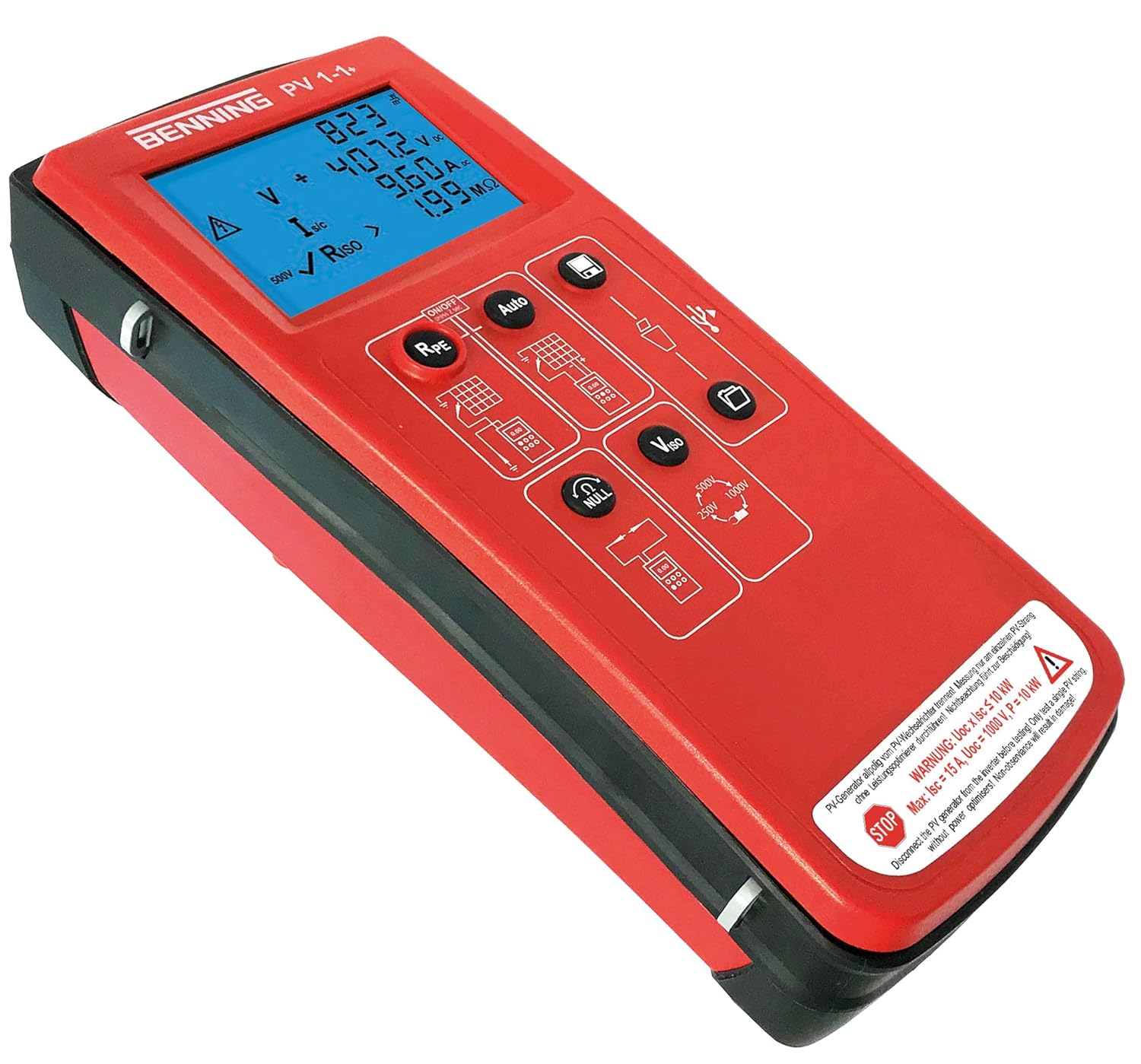

Figur 4.2: Vinklet view of the BENNING Electrical Circuit Tester, showing its ergonomic design and side profile.

5. Opsætning

5.1 Batteriinstallation

1. Find batteridækslet på bagsiden af ​​enheden.
2. Use a suitable tool (e.g., screwdriver) to open the compartment.
3. Isæt 6 AA-batterier, og sørg for at polerne vender korrekt som angivet i batterirummet.
4. Sæt dækslet til batterirummet på igen, og fastgør det godt.

5.2 Tilslutning af testledninger

1. Identificér de røde og sorte testledninger.
2. Connect the red test lead to the positive (+) input terminal on the tester.
3. Connect the black test lead to the negative (-) input terminal on the tester.
4. Ensure connections are secure before proceeding with any measurements.

6. Betjeningsvejledning

6.1 Tænd/sluk

• For at tænde enheden skal du trykke på ON/OFF knappen. Displayet lyser.
• For at slukke for enheden skal du trykke på og holde nede ON/OFF knappen, indtil displayet slukker.

6.2 Måletilstande

The BENNING Electrical Circuit Tester offers several measurement modes:

• RPE (Protective Earth Resistance): Used for measuring the resistance of protective earth conductors.
• Auto: Automatically detects the type of measurement required.
• VISO (Insulation Resistance): Measures insulation resistance at various test voltages (250V, 500V, 1000V).
• NULL: For nulling out lead resistance before measurements.

6.3 Udførelse af en måling

1. Tænd for enheden.
2. Select the desired measurement mode using the function buttons.
3. Connect the test leads to the circuit or component to be measured, ensuring proper contact and safety.
4. Aflæs måleværdien vist på LCD-skærmen.
5. Disconnect the test leads after the measurement is complete.

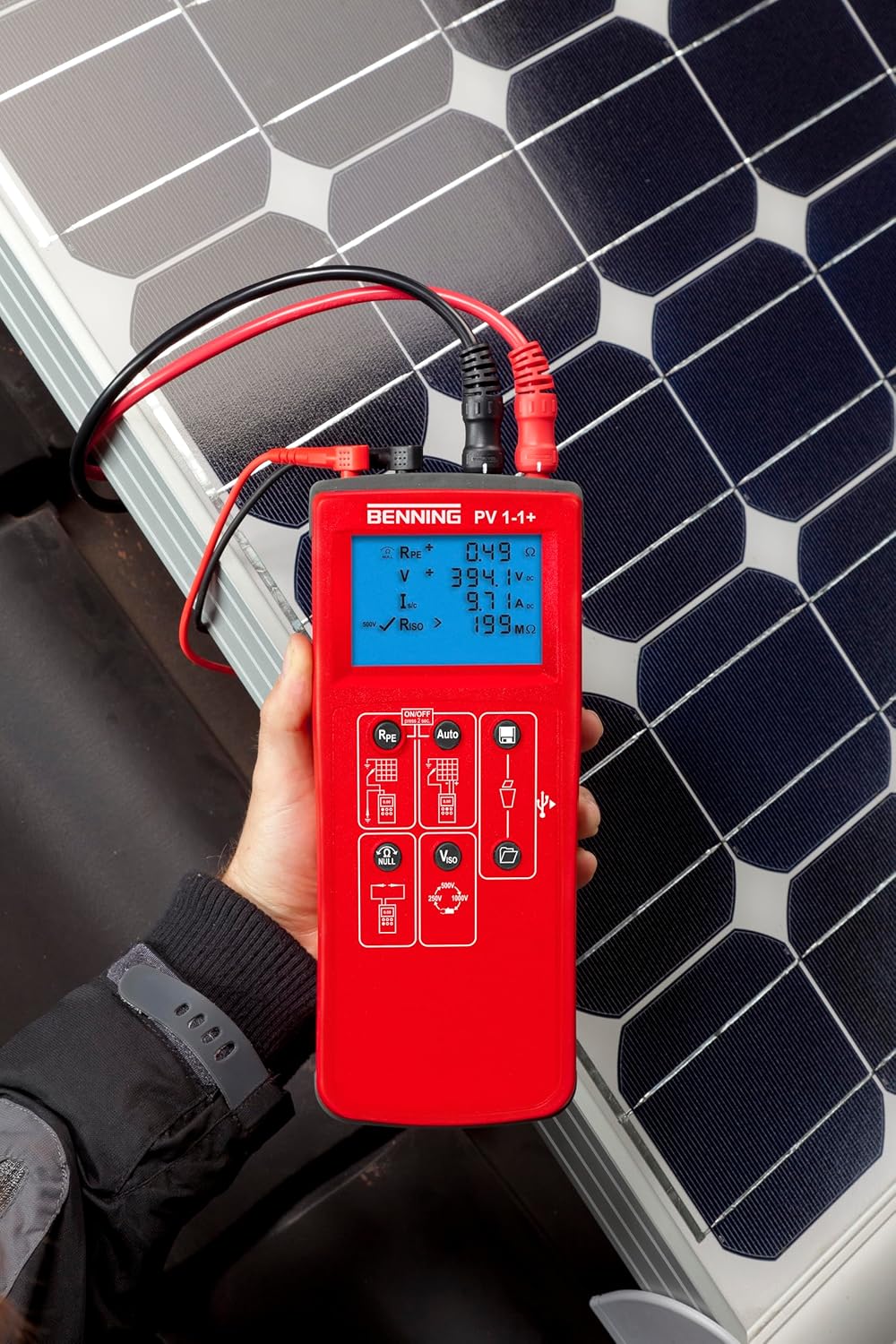

Figure 6.1: The circuit tester actively measuring parameters on a solar panel installation, demonstrating its application in renewable energy systems.

Figure 6.2: The device connected to electrical wiring, illustrating its use in checking circuit integrity and connections.

Figure 6.3: The circuit tester being used in conjunction with a clamp meter, showcasing its compatibility with other testing equipment for comprehensive diagnostics.

7. Vedligeholdelse

7.1 Rengøring

• Tør enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Sørg for, at enheden er helt tør før opbevaring eller næste brug.

7.2 Opbevaring

• Opbevar testeren et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Hvis produktet opbevares i længere tid, skal batterierne fjernes for at forhindre lækage.
• Use the provided carrying bag to protect the device and its accessories.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For warranty information and technical support, please refer to the official BENNING webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Fabrikant: Benning

Webwebsted: www.benning.de (Se venligst for regionale webwebsteder)
