1. Vigtige sikkerhedsoplysninger
Please read all instructions carefully before using your new Kismile chest freezer. Retain this manual for future reference.
- Elektrisk sikkerhed: Ensure the freezer is connected to a grounded electrical outlet with the correct voltage. Do not use extension cords or adapter plugs.
- Ventilation: Allow adequate space around the freezer for proper air circulation. Do not block ventilation openings.
- Brandfarlige materialer: Do not store explosive substances or flammable materials inside the freezer.
- Børns sikkerhed: Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed. Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
- Bortskaffelse: When disposing of the freezer, remove the door and leave shelves in place to prevent children from becoming trapped. Dispose of the appliance according to local regulations.
2. Produktet er slutview
The Kismile 1.8 Cu.ft Chest Freezer is designed for compact storage of frozen goods. It features an adjustable thermostat and a removable storage basket.
Billede 2.1: Samlet set view of the Kismile 1.8 Cu.ft Chest Freezer with the lid open, revealing stored items and the internal basket.
Billede 2.2: Nærbillede view of the removable wire storage basket, designed for organizing smaller items and allowing easy access.
Nøglekomponenter:
- Freezer Body: The main insulated cabinet.
- Top Open Door: Hinged lid for access to the freezer interior. Designed to remain open between 45 and 90 degrees.
- Aftagelig opbevaringskurv: For organizing smaller items.
- Justerbar termostatstyring: Located on the exterior for temperature adjustment.
- Power On Light (Red): Angiver, at enheden modtager strøm.
- Kørelys (grønt): Indicates the compressor is actively cooling.
- Afløbsport: Located at the bottom for manual defrosting and cleaning.
3. Opsætning og installation
3.1 Udpakning
- Fjern alle emballagematerialer, inklusive skum og tape.
- Carefully remove any protective film from the exterior surfaces of the freezer.
- Inspect the freezer for any shipping damage. If damage is found, do not operate the unit and contact customer service.
3.2 Placering
- Place the freezer on a firm, level surface away from direct sunlight and heat sources (e.g., stove, heater).
- Ensure there is at least 4 inches (10 cm) of space around the sides and back of the freezer for proper ventilation.
- For optimal performance, avoid placing the freezer in extremely cold or hot environments.
- Vigtig: After transportation, allow the freezer to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle.

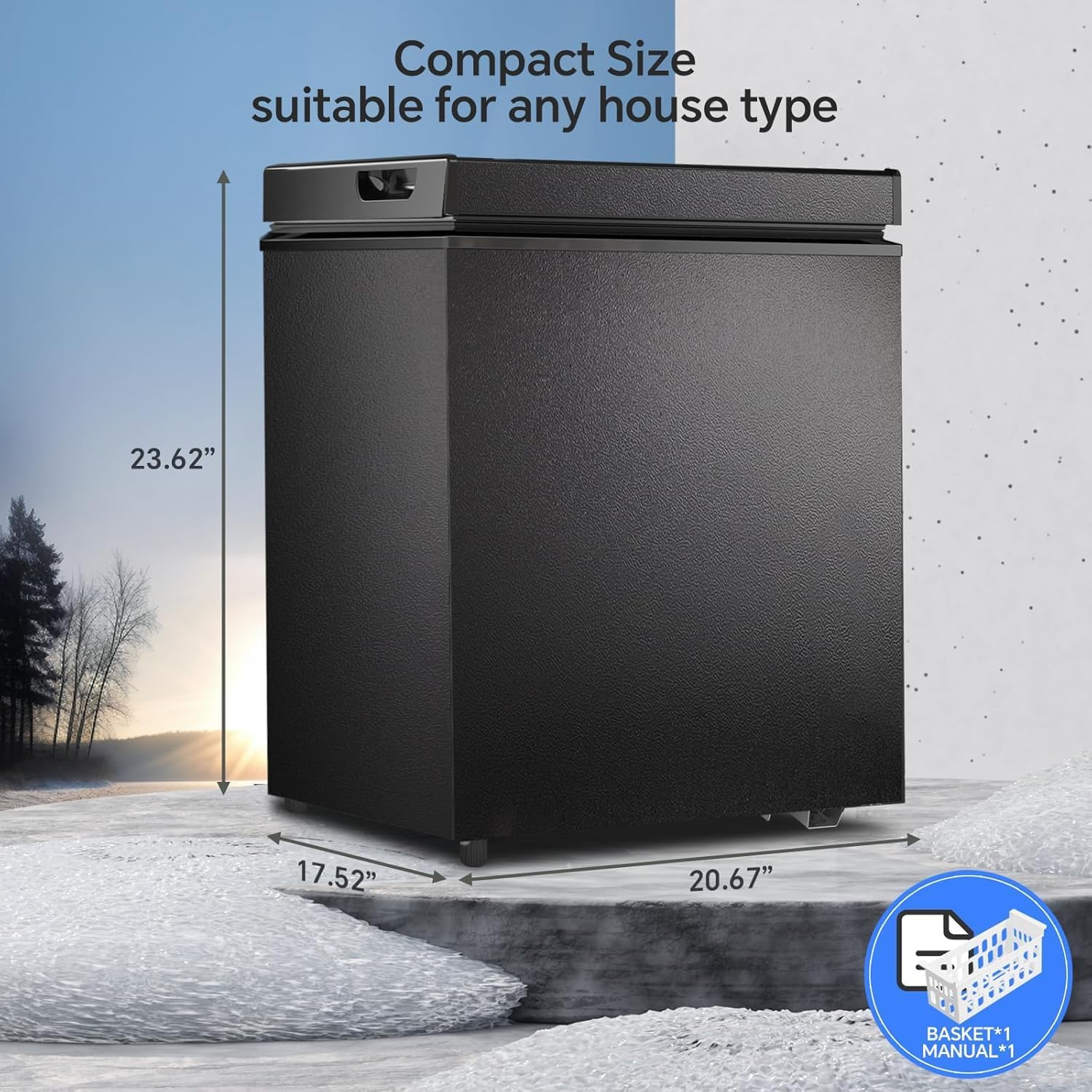

Image 3.1: Diagram illustrating the compact dimensions of the freezer: 20.67 inches (W), 17.52 inches (D), and 23.62 inches (H).
3.3 Elektrisk tilslutning
- Plug the freezer into a dedicated, grounded 115V/60Hz electrical outlet.
- Del ikke stikkontakten med andre apparater.
4. Betjeningsvejledning
4.1 Første opstart
After plugging in the freezer and allowing it to stand for 24 hours, the red 'Power On' light should illuminate. The green 'Run' light will illuminate when the compressor is active.
4.2 Temperaturkontrol
The freezer features a 7-grade adjustable thermostat control. The dial is typically located on the exterior of the unit.
- Setting '0': Turns off the cooling function.
- Setting '1': Warmest temperature setting.
- Setting '7': Coldest temperature setting.
The temperature range is approximately 6.8 ℉ to -7.6 ℉. Adjust the dial to your desired coldness. It may take several hours for the freezer to reach the set temperature.
Billede 4.1: Detaljeret view of the thermostat dial, showing settings from 0 to 7, and the red (power) and green (run) indicator lights.
4.3 Fyldning af fryseren
- Allow the freezer to cool for at least 4 hours before loading it with food.
- Do not overload the freezer. Leave some space between items for proper air circulation and efficient freezing.
- Use the removable basket for frequently accessed or smaller items.
5. Vedligeholdelse
5.1 Rengøring
- Ydre: Rengør de udvendige overflader med en blød klud og et mildt rengøringsmiddel. Undgå slibende rengøringsmidler.
- Indre: Clean the interior with a solution of baking soda and water (2 tablespoons baking soda to 1 quart water). Rinse thoroughly and dry.
- Dørpakning: Rengør dørpakningen regelmæssigt for at sikre en tæt forsegling.
5.2 Optøning
This chest freezer requires manual defrosting when ice buildup reaches approximately 1/4 inch (0.6 cm) thick.
- Tag fryseren ud af stikkontakten.
- Fjern alle madvarer og opbevar dem i en anden fryser eller køleboks.
- Open the drain port located at the bottom of the freezer. Place a shallow pan or towel underneath to collect the water.
- Lad låget være åbent, så isen kan smelte naturligt. Brug ikke skarpe genstande eller varmeapparater til at fremskynde optøningen.
- Når den er optøet, skal den rengøres og tørres grundigt indvendigt.
- Close the drain port, plug in the freezer, and allow it to cool for a few hours before returning food items.
Billede 5.1: Nærbillede view of the drain plug, used for convenient water drainage during manual defrosting.
6. Fejlfinding
Inden du kontakter kundeservice, vedrview følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Fryseren fungerer ikke. | Ingen strøm til enheden. | Check if the freezer is plugged in. Check the circuit breaker/fuse. |
| Fryseren er ikke kold nok. | Thermostat set too warm. Door not closed properly. Excessive ice buildup. | Adjust thermostat to a colder setting. Ensure door is fully closed. Defrost the freezer. |
| Overdreven støj. | Freezer not level. Objects vibrating against the unit. | Ensure the freezer is on a level surface. Move any objects away from the freezer. |
| Døren lukker ikke helt. | Food packages obstructing the door. Gasket is dirty or damaged. | Rearrange food items. Clean or inspect the door gasket. |
7. Specifikationer
Technical details for the Kismile 1.8 Cu.ft Chest Freezer (Model 50B).
- Mærke: Kismile
- Model: 50B
- Kapacitet: 1.8 Kubikfod
- Dimensioner (B x D x H): 20.67 cm x 17.52 cm x 23.62 cm
- Varens vægt: 39.6 pund
- Temperaturområde: 6.8 ℉ to -7.6 ℉
- Energiforbrug: Approximately 0.68 kWh per day
- Støjniveau: Under 40 dB
- Installationstype: Frit stående
- Inkluderede komponenter: 1 x Chest Freezer, 1 x Removable Basket
Image 7.1: The Kismile chest freezer positioned in a living space, emphasizing its low noise operation (38dB) and energy efficiency (0.66 kWh/day).
8. Garanti og kundesupport
For warranty information or technical assistance, please refer to the warranty card included with your product or contact Kismile customer support directly. Contact details can typically be found on the manufacturer's webwebstedet eller på produktemballagen.
When contacting support, please have your model number (50B) and purchase date available.
