Indledning
Thank you for choosing the HeaBoom Electric Spin Scrubber. This cordless cleaning tool is designed to simplify your household cleaning tasks, offering powerful and efficient cleaning for various surfaces without the need for strenuous bending or kneeling. Please read this manual carefully before use to ensure proper operation, maintenance, and safety.
Sikkerhedsoplysninger
- Do not immerse the main unit of the scrubber in water. The product has an IPX6 waterproof rating, meaning it is protected against powerful water jets, but it is not designed for submersion.
- Holde utilgængeligt for børn. Dette er ikke et legetøj.
- Brug kun det medfølgende ladekabel.
- Do not operate the scrubber if it is damaged or malfunctioning.
- Avoid using the scrubber on delicate surfaces that may be scratched by the brush heads. Test on an inconspicuous area first.
- Sørg for, at børstehovedet er sikkert fastgjort før brug.
- Forsøg ikke at skille eller reparere enheden selv. Kontakt kundesupport for at få hjælp.
Pakkens indhold
Kontroller venligst, at alle varer er inkluderet i din pakke:
- 1 x Electric Spin Scrubber Main Unit
- 1 x opladningskabel (Type-C)
- 6 x Replacement Brush Heads (various types)
- 1 x Brush Heads Base
- 1 x brugermanual
- 2 x Extension Arms (for adjustable length)
Image: The HeaBoom Electric Spin Scrubber main unit, two extension arms, charging cable, and the six included brush heads (flat brush, corner brush, cloth brush, sponge, black abrasive pad, blue microfiber pad) are displayed together.
Produkt overview
Familiarize yourself with the main components of your Electric Spin Scrubber:
- Hovedenhed: Indeholder motor, batteri og kontrolknapper.
- Brush Head Connector: Where different brush heads attach.
- Extension Arms: Used to adjust the length of the scrubber for extended reach.
- Power Button/Speed Selector: Controls power and switches between speeds.
- Opladningsport: Type-C port for recharging the battery.

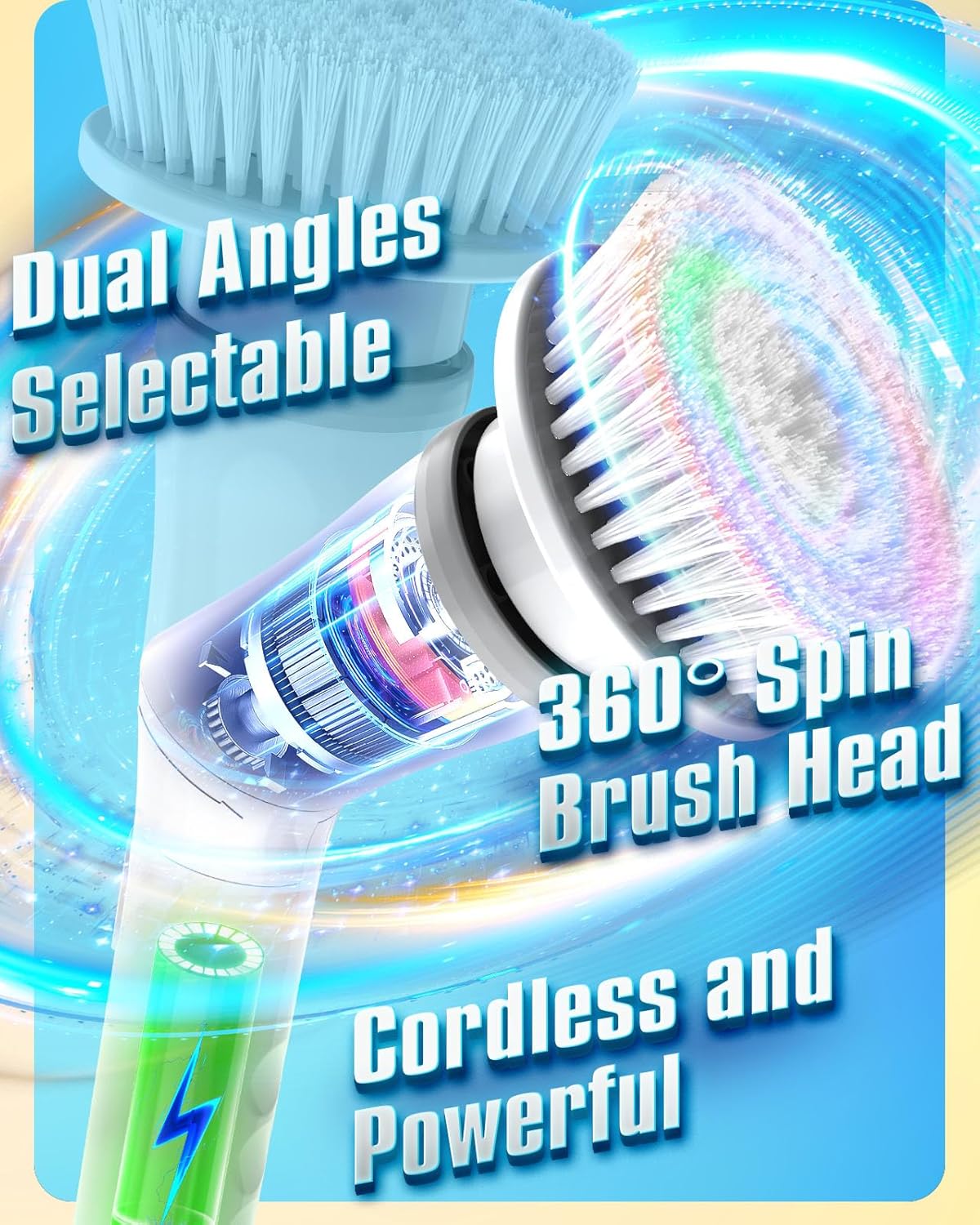

Billede: En detaljeret view of the scrubber's brush head mechanism, highlighting its ability to rotate 360 degrees and adjust to dual angles for versatile cleaning.
Opsætning
1. Montering
- Attach Extension Arms (Optional): To extend the scrubber's reach, connect one or both extension arms between the main unit and the brush head connector. Align the connectors and twist until they click securely into place. The scrubber can be used at 3 lengths: 13.7 inches (main unit only), 39.3 inches (main unit + one extension arm), and 49.2 inches (main unit + two extension arms).
- Fastgør børstehoved: Select the appropriate brush head for your cleaning task. Align the brush head with the connector on the main unit (or extension arm) and press firmly until it locks into place.
Image: The electric spin scrubber is shown in three different configurations, illustrating its adjustable length capabilities for various cleaning needs.
2. Opladning af batteriet
Before first use, fully charge the scrubber. A full charge takes approximately 3 hours.
- Locate the Type-C charging port on the main unit.
- Connect the provided charging cable to the scrubber and plug the other end into a standard USB power adapter (not included).
- Indikatorlampen viser opladningsstatus (f.eks. rød for opladning, grøn for fuldt opladet).
- Når det er fuldt opladet, skal du frakoble ladekablet.
Betjeningsvejledning
1. Selecting the Right Brush Head
The scrubber comes with 6 multifunctional brush heads, each designed for specific cleaning tasks:
- Flad børste: Ideal for large flat surfaces such as ceramic tile floors, walls, and bathtubs.
- Hjørnebørste: Perfect for cleaning grout lines, corners, faucets, and edges.
- Stofbørste: Suitable for cleaning wooden floors and furniture.
- Svamp: Can be used for cleaning windows, glass, and other delicate surfaces.
- Black Abrasive Pad: For tougher stains on durable surfaces.
- Blue Microfiber Pad: For polishing and waxing surfaces, including cars.
Image: A visual guide demonstrating the application of each of the six included brush heads for tasks such as cleaning tile grout, stovetops, and polishing car surfaces.
2. Powering On and Adjusting Speed
- Press the ON/OFF button once to power on the scrubber. It will start at the default low speed.
- Press the ON/OFF button again to switch to the high speed.
- Press the ON/OFF button a third time to power off the scrubber.
The scrubber offers two rotation speeds:
- Lav hastighed: 330 RPM (Rotationer pr. minut)
- Høj hastighed: 400 RPM (Rotationer pr. minut)
Image: An illustration detailing the two operational speeds of the scrubber, indicating 330 RPM for the first mode and 390 RPM for the second mode, along with a visual representation of cleaning power.
3. Rengøringstips
- Apply appropriate cleaning solution to the surface or directly to the brush head before operating.
- Gently guide the scrubber over the surface. Do not apply excessive pressure, as the motor is designed to do the work.
- For stubborn stains, allow the cleaning solution to soak for a few minutes before scrubbing.
- The adjustable head angle allows you to reach difficult areas like shower nozzles or faucet gaps.
Image: A user is depicted effortlessly cleaning a floor with the electric spin scrubber, emphasizing the product's design to minimize physical strain during cleaning tasks.
Opretholdelse
1. Cleaning the Scrubber
- After each use, remove the brush head.
- Rinse the brush heads under running water to remove dirt and debris. Allow them to air dry completely before storing.
- Wipe the main unit and extension arms with a damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke hovedenheden i vand.
2. Batteripleje og -opbevaring
- For at forlænge batteriets levetid, undgå at aflade batteriet helt før genopladning.
- Store the scrubber in a cool, dry place away from direct sunlight and extreme temperatures.
- If storing for an extended period, charge the battery to about 50% every 3 months to maintain battery health.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skrubberen tænder ikke. | Batteriet er afladet. | Charge the scrubber fully. |
| Scrubber stops during use. | Battery is low or depleted. / Excessive pressure applied. | Recharge the battery. / Reduce pressure; let the motor do the work. |
| Brush head does not spin or spins slowly. | Brush head not properly attached. / Obstruction in brush head. | Ensure brush head is securely clicked into place. / Remove any debris or hair from the brush head and connector. |
| Water enters the main unit. | Immersed in water or used improperly. | The unit is IPX6 rated, but not for submersion. Do not immerse. If water ingress occurs, discontinue use and allow to dry completely. Contact support if issues persist. |
Specifikationer
| Produktnavn | Elektrisk Spin Scrubber |
| Model | DS-258 |
| Vandtæt vurdering | IPX6 |
| Lithium batterikapacitet | 2000mAh |
| Bedømt arbejdsvolumentage | 3.7V |
| Nominel arbejdskraft | 10W |
| Vurderet input Voltage | 5V1A |
| Opladningstid | Ca. 3 timer |
| Driftstid | 90-120 minutes (depending on RPM) |
| Rotationshastigheder | Low: 330 RPM, High: 400 RPM |
| Justerbare længder | 13.7 in (35 cm), 39.3 in (100 cm), 49.2 in (125 cm) |
| Materiale | ABS, PP, TPE, Stainless steel |
| Varens vægt | 2.27 pund (ca. 1.03 kg) |
| UPC | 762221863535 |
Garanti og support
HeaBoom is committed to product quality and customer satisfaction. For any questions, concerns, or warranty claims, please contact our customer support team. Please have your model number (DS-258) and purchase information ready when contacting support.
Contact information (placeholder, as none provided in JSON):
- E-mail: support@heaboom.com
- Webwebsted: www.heaboom.com
Note: Warranty terms and conditions may vary. Please refer to the product packaging or contact customer support for detailed warranty information.
