1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your SCHOCK Lithos D200 kitchen sink. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
The SCHOCK Lithos D200 is a high-quality double bowl kitchen sink made from Cristalite®, a durable quartz composite material. It features a reversible design, allowing for flexible installation to suit your kitchen layout. The material is known for its robustness, natural antibacterial properties, and ease of cleaning.
Figure 1: SCHOCK Lithos D200 Kitchen Sink (Absolute Black)
This image displays the SCHOCK Lithos D200 kitchen sink from a top-down perspective. It features two distinct bowls and an integrated draining area, all in an absolute black finish. The design is sleek and functional, highlighting the sink's capacity for dual use and efficient water drainage.
2. Sikkerhedsoplysninger
- Brug altid passende personlige værnemidler (PPE) under installationen, herunder sikkerhedsbriller og handsker.
- Ensure the installation area is clean, dry, and well-lit.
- Handle the sink with care to prevent damage or injury due to its weight and size.
- Kontakt en kvalificeret fagmand, hvis du er usikker på nogen del af installationsprocessen.
- Do not use abrasive cleaners or harsh chemicals on the sink surface, as this may cause damage.
3. Installation (Opsætning)
The SCHOCK Lithos D200 sink is designed for easy installation. It is a reversible model, allowing you to choose the orientation of the draining area (left or right) to best suit your kitchen design.
3.1. Tjekliste før installation
- Verify all components are present: sink, mounting clips, drain assembly, and seals.
- Ensure countertop cutout dimensions match the sink specifications.
- Confirm adequate space for plumbing connections under the sink.
3.2. Countertop Cutout
The standard cutout dimensions for this sink are 1140 x 480 mm for top-mount installation. Refer to the provided diagram for precise measurements and corner radii.

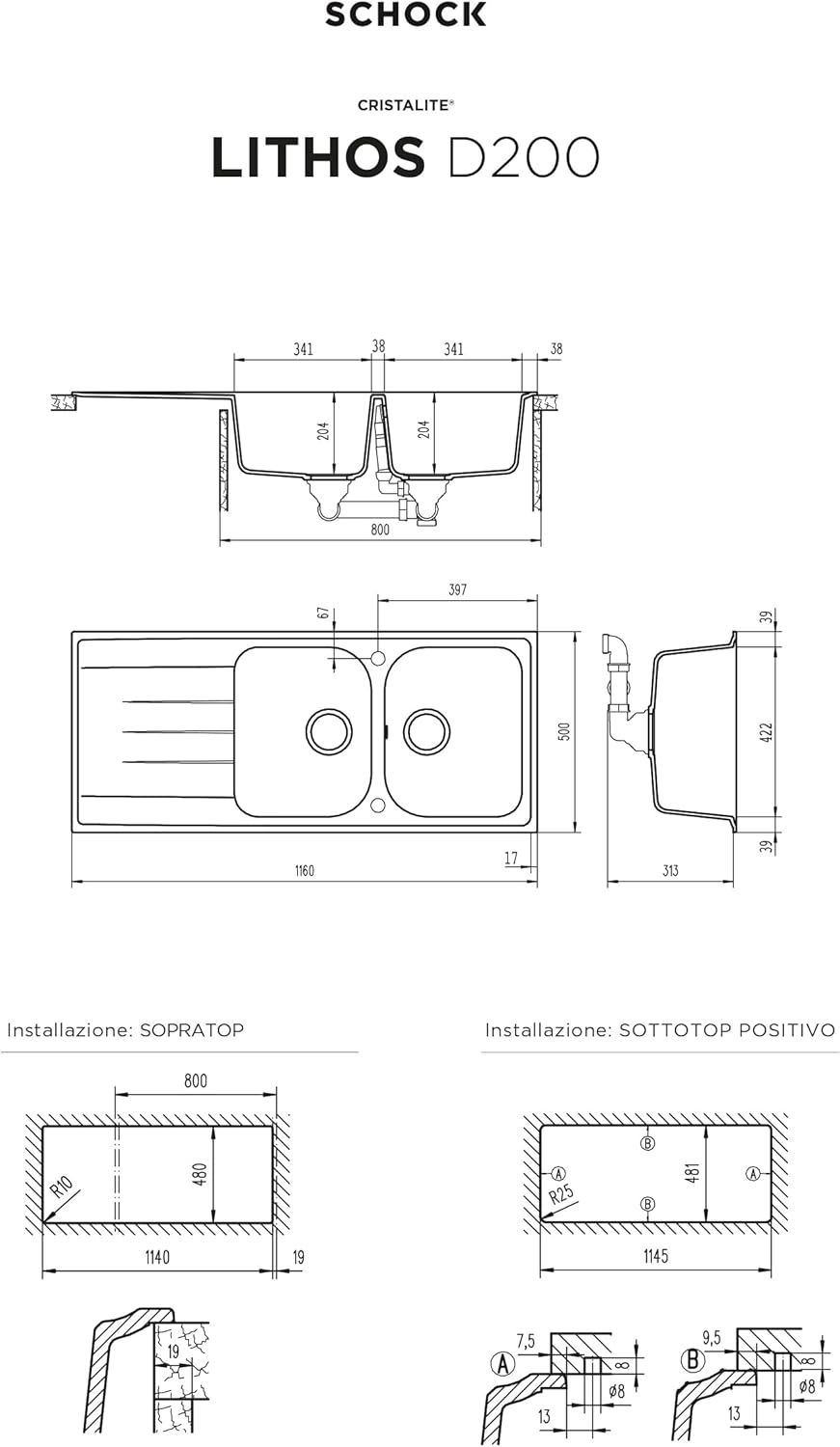

Figure 2: Sink Dimensions and Cutout Diagram
This technical drawing illustrates the precise dimensions of the SCHOCK Lithos D200 sink, including overall length (1160 mm), width (500 mm), and bowl depths (204 mm). It also provides detailed measurements for the countertop cutout (1140 x 480 mm) for a standard top-mount installation, along with corner radii and base cabinet requirements (800 mm minimum).
3.3. Installation Steps (Top-Mount)
- Place the sink upside down on a soft surface.
- Apply a bead of silicone sealant around the perimeter of the sink's edge that will contact the countertop.
- Carefully lower the sink into the countertop cutout, ensuring proper alignment.
- From underneath the countertop, attach the mounting clips to secure the sink. Tighten the clips evenly until the sink is firmly seated.
- Install the drain assemblies and connect plumbing according to local codes.
- Tør overskydende fugemasse af.
For detailed visual guidance on different installation methods (top-mount and undermount), refer to the installation diagrams below.
Figur 3: Installationsmetoder
This image presents two distinct installation diagrams. The "SOPRATOP" diagram shows a top-mount installation, where the sink rim rests on the countertop. The "SOTTOTOP POSITIVO" diagram illustrates an undermount installation, where the sink is mounted beneath the countertop, providing a seamless look. Both diagrams include cutout dimensions and cross-sectional views of the mounting process.
4. Betjeningsvejledning
Your SCHOCK Lithos D200 sink is designed for everyday kitchen tasks. Its two bowls allow for versatile use, such as washing dishes in one bowl while rinsing in the other, or preparing food. The integrated draining area is suitable for drying dishes or preparing ingredients.
- Vandtemperatur: The Cristalite® material is resistant to high temperatures, but avoid sudden extreme temperature changes.
- Dræning: Ensure the drain stoppers are properly seated to hold water and removed for efficient drainage.
- Madlavning: The surface is food-safe and naturally antibacterial, making it ideal for food preparation.
5. Vedligeholdelse
Proper care will ensure your SCHOCK Cristalite® sink maintains its appearance and functionality for many years. The Cristalite® material is robust, naturally antibacterial, and easy to clean.
5.1. Daglig rengøring
- Wipe the sink clean with a soft cloth or sponge and warm soapy water after each use.
- Skyl grundigt med rent vand for at fjerne alle sæberester.
- Dry the sink with a soft cloth to prevent water spots, especially in hard water areas.
5.2. Stain Removal
- For stubborn stains, use a non-abrasive liquid cleaner specifically designed for quartz or composite sinks.
- Apply the cleaner with a soft sponge, gently scrub the stained area, and rinse thoroughly.
- Avoid leaving acidic or highly pigmented substances (e.g., coffee, red wine, beet juice) on the sink surface for extended periods. If spills occur, clean them immediately.
5.3. What to Avoid
- Do not use abrasive pads, steel wool, or harsh chemical cleaners (e.g., oven cleaner, drain cleaner, paint stripper).
- Avoid dropping heavy or sharp objects into the sink, which could cause chipping or cracking.
- Do not place hot pots or pans directly onto the sink surface without protection, although the material is heat resistant, extreme thermal shock should be avoided.
6. Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Water spots/Limescale buildup | Hard water residue, insufficient drying. | Regularly dry the sink after use. Use a diluted vinegar solution or limescale remover for stubborn deposits, then rinse thoroughly. |
| Fading color/Dull appearance | Accumulation of soap film or mineral deposits. | Clean with a specialized composite sink cleaner. Ensure thorough rinsing and drying. Avoid harsh chemicals. |
| Langsom dræning | Clogged drain. | Clear the drain trap. Use a non-corrosive drain cleaner if necessary, following product instructions carefully. |
| Sink appears scratched | Metal marks from pots/pans or cutlery. | These are often metal deposits, not scratches. Use a non-abrasive cleaner and a soft cloth to gently rub away the marks. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | SCHOCK |
| Modelnummer | LITD200A13N |
| Overall Sink Dimensions (L x W) | 1160 x 500 mm (116 x 50 cm) |
| Bowl Dimensions (L x W x D) | 2 x 341 x 422 x 204 mm (each bowl) |
| Materiale | Cristalite® Quartz Composite (Granite Resin Stone) |
| Farve | Absolute Black |
| Installationstype | Top-mount (Encastré) |
| Antal skåle | 2 |
| Vendbar | Ja |
| Minimumsstørrelse på underskabet | 800 mm |
| Standard Cutout Dimensions | 1140 x 480 mm |
| Produktets vægt | 23.5 kg |
| Komponenter inkluderet | Sink and mounting accessories |
8. Garantioplysninger
SCHOCK Cristalite® sinks are covered by a 5 års garanti from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and maintenance conditions.
To make a warranty claim, please retain your proof of purchase (receipt or invoice). The warranty does not cover damage resulting from improper installation, misuse, abuse, neglect, accidents, or the use of abrasive/harsh cleaning agents.
For full warranty terms and conditions, please refer to the official SCHOCK webwebsted eller kontakt kundesupport.
9. Support
If you have any questions regarding your SCHOCK Lithos D200 kitchen sink, require technical assistance, or need to report an issue, please contact SCHOCK customer support.
Please have your model number (LITD200A13N) and proof of purchase ready when contacting support to facilitate a quicker resolution.
For further information and resources, visit the official SCHOCK webwebsted: www.schock.de
