Total Electric Soldering Iron 60W TET160831

Indledning

This manual provides essential instructions for the safe and effective use of your Total TET160831 60W Electric Soldering Iron. Please read this manual thoroughly before operation and retain it for future reference. This soldering iron is designed for various soldering applications, including electronics, jewelry, and crafts.

Nøglefunktioner omfatter:

• Versatile electric soldering iron suitable for electronics, jewelry, and crafts.
• Equipped with a temperature-controlled heating element for precise temperature adjustment.
• Features a durable soldering tip for efficient heat transfer and reliable solder joints.

Sikkerhedsoplysninger

Overhold altid grundlæggende sikkerhedsforanstaltninger ved brug af elektrisk værktøj for at reducere risikoen for brand, elektrisk stød og personskade.

• Varmefare: Loddespidsen kan nå meget høje temperaturer. Undgå direkte kontakt med hud eller brandfarlige materialer.
• Ventilation: Use in a well-ventilated area to avoid inhaling fumes from solder and flux.
• Strømforsyning: Ensure the power supply matches the specifications (220-240V/50/60Hz).
• Opbevaring: Allow the iron to cool completely before storing. Store in a safe, dry place out of reach of children.
• Inspektion: Regularly inspect the power cord and soldering iron for damage. Do not use if damaged.

Opsætning

1. Udpakning: Carefully remove the soldering iron from its packaging. Verify all components are present (1 x Total TET160831 60W Solder Iron).
2. Placering: Place the soldering iron on a stable, heat-resistant surface, preferably using a dedicated soldering stand (not included). Ensure adequate workspace and ventilation.
3. Strømtilslutning: Connect the power plug to a suitable 220-240V/50/60Hz electrical outlet.
4. Temperaturjustering: The soldering iron features a rotational temperature adjustment. Turn the dial on the handle to set the desired temperature.

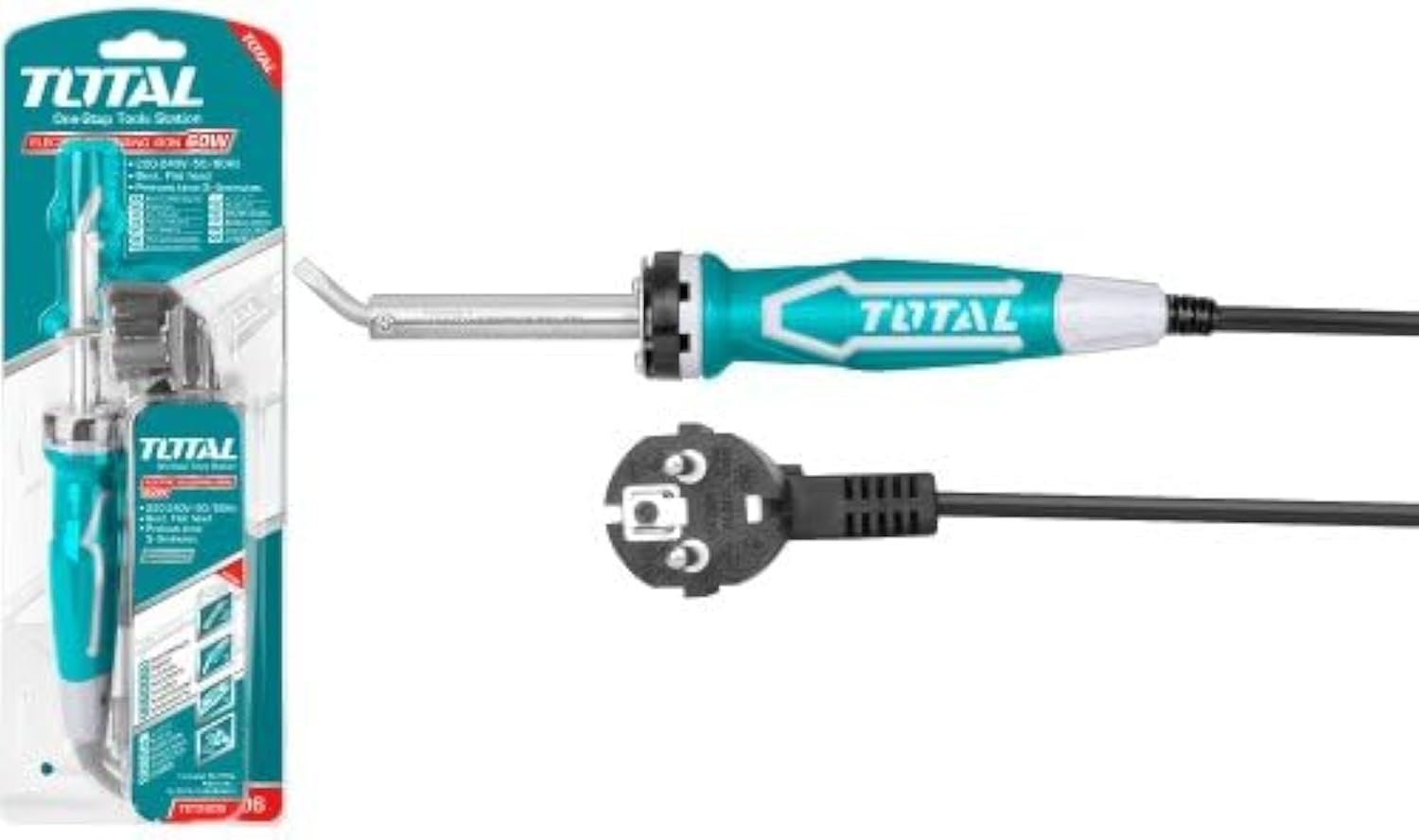

Image: Total TET160831 60W Electric Soldering Iron. The image shows the soldering iron with its teal and white handle, metal shaft, and bent tip, connected to a European-style power plug. The product is also displayed in its retail packaging.

Betjeningsvejledning

1. Forvarmning: After plugging in and setting the temperature, allow the soldering iron to preheat for approximately 1-2 minutes. The built-in ceramic heating element ensures fast and stable heating.
2. Fortinning af tippet: Before first use and periodically during operation, tin the tip by applying a small amount of solder to the heated tip. This helps prevent oxidation and improves heat transfer.
3. Loddeproces:
   • Clean the surfaces to be soldered.
   • Apply the hot soldering iron tip to both the component lead and the PCB pad simultaneously.
   • Feed solder onto the joint, not directly onto the iron tip. Allow the solder to flow evenly.
   • Remove the solder, then remove the iron. Allow the joint to cool undisturbed.
4. Køl ned: After use, unplug the soldering iron and place it safely in a heat-resistant stand. Allow it to cool completely before handling or storing.

Opretholdelse

• Tip rengøring: Regularly wipe the soldering tip on a damp svamp eller messinguld til at fjerne overskydende loddetin og oxidation. En ren spids sikrer effektiv varmeoverførsel.
• Udskiftning af spids: The soldering iron features a long-lasting replaceable tip. To replace, ensure the iron is unplugged and cool. Unscrew the retaining collar, remove the old tip, insert the new tip, and secure the collar.
• Generel rengøring: Keep the handle and body of the soldering iron clean and free from debris. Do not use abrasive cleaners or solvents.

Fejlfinding

• Strygejern varmer ikke op:
  • Kontroller, om netledningen er sat ordentligt i en fungerende stikkontakt.
  • Bekræft strømforsyningen voltage matches the iron's requirements.
  • Ensure the temperature adjustment dial is set correctly.
• Dårlige loddeforbindelser:
  • Ensure the soldering tip is clean and properly tinned.
  • Check if the temperature setting is appropriate for the solder and components being used.
  • Verify that the surfaces to be soldered are clean and free of oxidation.
• Overdreven røg/dampe:
  • Ensure adequate ventilation in your workspace.
  • Use lead-free solder if possible, which generally produces fewer fumes.

If issues persist, discontinue use and contact customer support.

Specifikationer

Garantioplysninger

Specific warranty details for the Total TET160831 60W Electric Soldering Iron are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging, contact your retailer, or visit the official Total brand webwebsted.

Kundesupport

If you have any questions, require technical assistance, or need to report an issue with your Total TET160831 60W Electric Soldering Iron, please contact the retailer from whom you purchased the product or refer to the official Total brand support channels for assistance.
