1. Introduktion
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Defy 600 Series 4 Solid Plate Stove with Electric Oven and Warmer Drawer, Model DSS693. Please read these instructions carefully before using the appliance and retain them for future reference. Proper use and care will ensure optimal performance and extend the lifespan of your stove.
2. Sikkerhedsinstruktioner
Your safety and the safety of others are paramount. Always adhere to the following safety precautions:
- Elektrisk sikkerhed: Ensure the appliance is correctly installed by a qualified electrician and connected to a properly earthed power supply. Do not use extension cords or adapters.
- Forbrændingsfare: Cooking surfaces and oven interior become hot during use. Always use oven mitts and exercise caution. Keep children away from the appliance.
- Brandfare: Never leave cooking unattended. Do not store flammable materials in or near the oven or warmer drawer. Clean grease build-up regularly.
- Ventilation: Sørg for tilstrækkelig ventilation i køkkenområdet under drift.
- Rensning: Disconnect the appliance from the power supply before cleaning. Allow surfaces to cool completely.
- Skade: Do not operate the appliance if it is damaged. Contact Defy service for repairs.
3. Produktet er slutview
The Defy 600 Series 4 Solid Plate Stove DSS693 features four solid electric cooking plates, a spacious electric oven, and a convenient warmer drawer. The control panel is located at the rear of the cooktop for easy access.

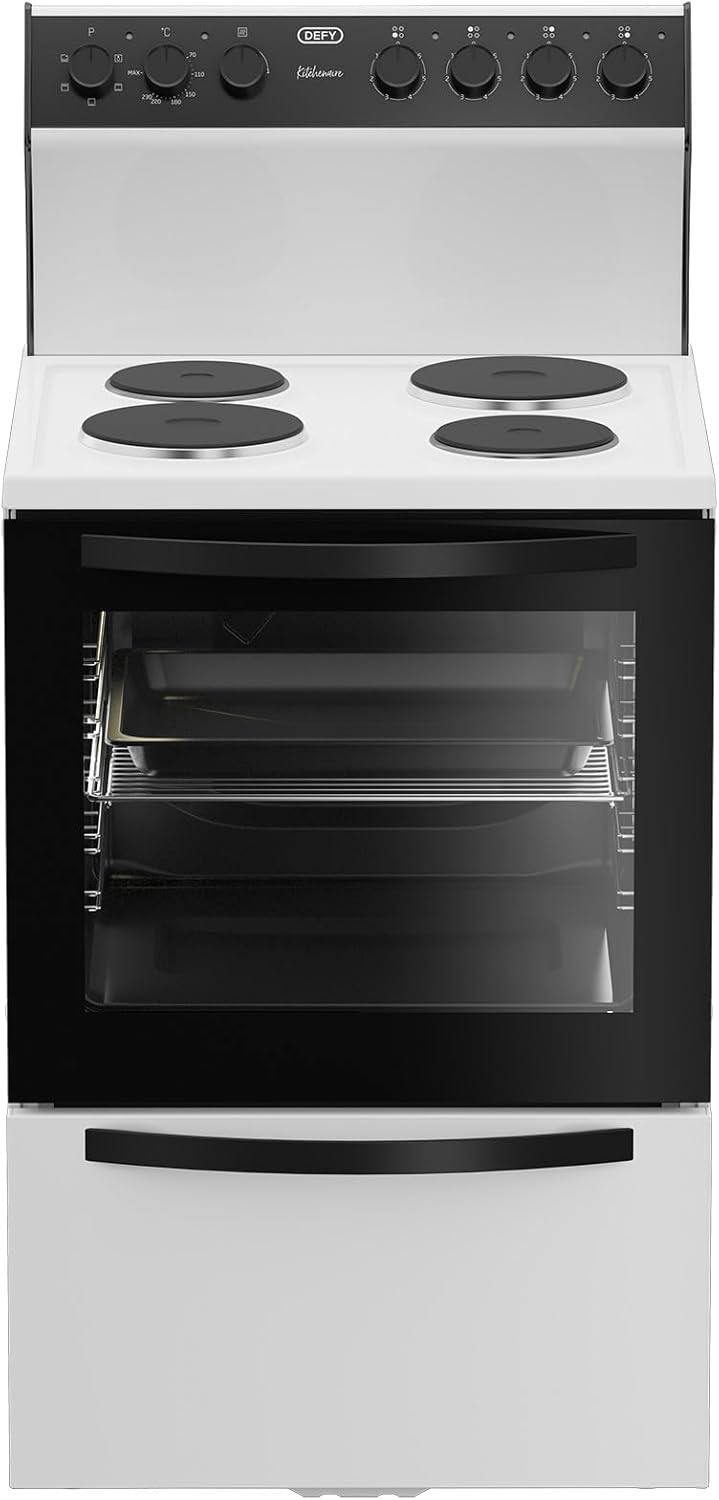

Figur 3.1: Front view of the Defy 600 Series 4 Solid Plate Stove, showing the cooktop, oven door, and warmer drawer.
Figur 3.2: Vinklet view of the stove, highlighting its compact design and integrated control panel.
3.1 Kontrolpanel
The control panel consists of heat switches for each solid plate and a function selector for the electric oven, along with plate indicator lights.
Figur 3.3: Close-up of the control panel, showing the heat switches for the solid plates and the oven function selector.
3.2 kogeplader
The cooktop features four solid electric plates, each controlled by a dedicated heat switch. Plate indicator lights illuminate when a plate is active.
Figur 3.4: Top view of the cooktop with four solid electric plates.
3.3 El-ovn
The electric oven includes multiple rack positions, a roast pan, and a chrome shelf for versatile cooking. The inner glass is removable for easy cleaning.
Figur 3.5: Indre view of the electric oven, showing the roast pan and chrome shelf on adjustable racks.
Figur 3.6: The oven with its door open, providing a clear view of the interior and rack supports.
3.4 Warmer Drawer
Located beneath the oven, the warmer drawer is designed to keep cooked food warm before serving.
4. Opsætning og installation
For safety and optimal performance, the installation of your Defy stove must be carried out by a qualified and authorized technician in accordance with local electrical codes and regulations.
- Udpakning: Carefully remove all packaging materials. Inspect the appliance for any damage incurred during transit.
- Placering: Place the stove on a level, stable surface. Ensure adequate clearance from adjacent cabinets and walls as specified in the installation guide provided with the appliance.
- Elektrisk tilslutning: The stove requires a dedicated electrical circuit. The technician will connect the appliance to the mains power supply, ensuring proper earthing.
- Første brug: Inden første brug skal alle overflader tørres af med annonceamp cloth. Run the oven empty at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. This may produce a slight odor. Ensure the kitchen is well-ventilated during this process.
5. Betjeningsvejledning
5.1 Using the Solid Plates
Each solid plate is controlled by a dedicated heat switch on the control panel. The plate indicator light will illuminate when the plate is active.
- Selecting Heat: Turn the corresponding heat switch clockwise to select the desired heat level (typically from 1 to 6, or a similar scale).
- Gryder: Use flat-bottomed pots and pans that match the size of the solid plate for efficient heat transfer.
- Efter brug: Turn the heat switch back to the '0' position after cooking. The plate will remain hot for some time.
Figur 5.1: Example of appropriate cookware on the solid electric plates.
5.2 Using the Electric Oven
The electric oven offers various cooking functions and temperature control.
- Funktionsvælger: Turn the oven function selector to choose the desired cooking mode (e.g., Bake, Grill, Fan Assist).
- Temperaturkontrol: Turn the temperature knob to set the desired oven temperature. The oven indicator light will illuminate when the oven is heating and turn off when the set temperature is reached.
- Forvarmning: For at opnå de bedste resultater skal ovnen forvarmes til den ønskede temperatur, inden maden lægges i.
- Rack positioner: Utilize the multiple rack positions to optimize cooking for different dishes.
5.3 Using the Warmer Drawer
The warmer drawer is designed to keep cooked food warm at a serving temperature. It is not intended for cooking or reheating cold food.
- Aktivering: The warmer drawer typically operates when the oven is in use or has a separate control. Refer to the specific markings on your appliance's control panel.
- Placering: Place heat-safe dishes with cooked food into the drawer.
- Forsigtighed: Do not place plastic containers or flammable items in the warmer drawer.
6. Vedligeholdelse og rengøring
Regular cleaning and maintenance will keep your stove in excellent condition.
- Før rengøring: Always ensure the appliance is switched off at the mains power supply and has cooled down completely.
- Udvendige overflader: Tør af med en blød klud dampened with warm soapy water. Avoid abrasive cleaners or scouring pads.
- Solid Plates: Clean spills immediately after the plate has cooled. Use a damp cloth and mild detergent. For stubborn stains, specialized solid plate cleaners can be used.
- Ovn interiør: For light soiling, wipe with warm soapy water. For heavier grease, use an oven cleaner suitable for electric ovens, following the product instructions carefully.
- Removable Inner Glass: The oven's inner glass can be removed for thorough cleaning. Consult the detailed instructions in the full product manual for the specific removal procedure. Clean with glass cleaner or soapy water.
- Roast Pan and Chrome Shelf: These can be washed in warm soapy water or in a dishwasher.
7. Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stove not turning on | No power supply; circuit breaker tripped | Kontroller strømforbindelsen; nulstil afbryderen. |
| Ovnen varmer ikke | Incorrect function/temperature setting; faulty element | Verify settings; if problem persists, contact service. |
| Solid plate not heating | Incorrect heat switch setting; faulty element | Ensure switch is turned on; if problem persists, contact service. |
| Excessive smoke during first use | Manufacturing residues burning off | Normal for first use. Ensure good ventilation. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Defy customer service or an authorized service agent.
8. Specifikationer
Key specifications for the Defy 600 Series 4 Solid Plate Stove DSS693:
| Feature | Detalje |
|---|---|
| Mærke | Trods |
| Modelnummer | DSS693 |
| Farve | Hvid |
| Type | 4 Solid Plate Electric Stove with Electric Oven and Warmer Drawer |
| Pakkedimensioner | 92.5 x 67 x 55 cm |
| Varens vægt | 40.1 kg |
| Ovn funktioner | Removable inner glass, Roast pan, Chrome shelf |
| Sikkerhedsfunktioner | Plate indicator lights, 1 Thermal protection plate |
9. Garanti og support
Your Defy appliance is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details. Keep your proof of purchase for warranty claims.
For technical assistance, spare parts, or to schedule a service appointment, please contact Defy customer support. Contact information can typically be found on the Defy webwebstedet eller i den dokumentation, der fulgte med dit apparat.
