Defy Multimode kummefryser brugermanual

1. Introduktion

Welcome to the user manual for your new Defy Multimode Chest Freezer with Chill-In Technology. This appliance is designed to provide reliable and energy-efficient food storage, offering flexibility with its multi-mode operation. Please read this manual thoroughly before operating your freezer to ensure safe and efficient use.

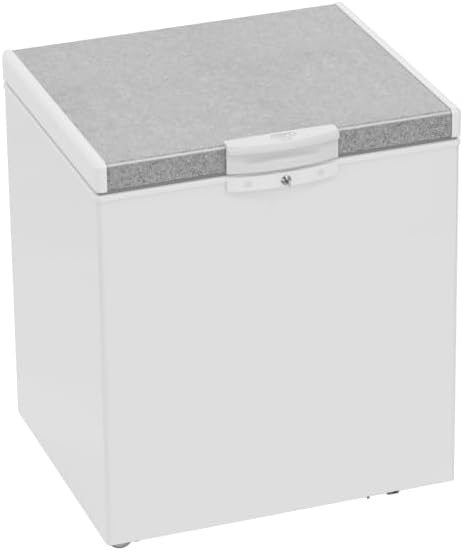

Figur 1.1: Forside view of the Defy Multimode Chest Freezer, closed.

2. Vigtige sikkerhedsinstruktioner

Følg disse grundlæggende forholdsregler for at reducere risikoen for brand, elektrisk stød eller skade, når du bruger dit apparat:

• Elektrisk sikkerhed: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords or ungrounded adapters.
• Ventilation: Maintain adequate space around the freezer for proper air circulation. Do not block ventilation openings.
• Børnesikkerhed: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities. Supervise children to ensure they do not play with the appliance.
• Håndtering: Always use two or more people to move and install the freezer to prevent injury. Avoid tilting the appliance more than 45 degrees during transport.
• Brandfarlige materialer: Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.

3. Produktfunktioner

Your Defy Multimode Chest Freezer comes equipped with several features designed for convenience and efficiency:

• Multimode Control Panel: Easily switch between Freezer, Chiller, or Fridge modes to suit your storage needs.
• Chill-In Technology: Designed to keep items frozen for up to 140 hours during power outages, ensuring food preservation.
• Movable Basket: Provides efficient organization and easy access to frequently used items.
• Integrated Handle and Lock: For convenient opening and secure storage.
• Stille drift: Engineered for a non-disruptive presence in your home.

Figur 3.1: Interiør view of the Defy Multimode Chest Freezer with the lid open, highlighting the movable basket.

4. Opsætning og installation

4.1 Udpakning

Remove all packaging materials, including foam and adhesive tape. Inspect the freezer for any shipping damage. Report any damage to your retailer immediately.

4.2 Placering

Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stove, radiator). Ensure there is at least 10 cm (4 inches) of space around the sides and back of the freezer for proper air circulation. The floor must be strong enough to support the freezer when fully loaded.

Figur 4.1: Bagside view of the freezer, illustrating the area where ventilation is crucial.

4.3 Elektrisk tilslutning

Before plugging in, allow the freezer to stand upright for at least 2-4 hours. This allows the refrigerant to settle. Connect the freezer to a dedicated, grounded electrical outlet with the correct voltage as specified on the rating label. Do not use multi-plugs or extension cords.

4.4 Indledende rengøring

Before first use, wipe the interior of the freezer with a damp klud og et mildt rengøringsmiddel. Tør grundigt.

5. Operating Your Chest Freezer

5.1 Control Panel and Mode Selection

Your Defy Multimode Chest Freezer features an intuitive control panel allowing you to switch between three modes: Freezer, Chiller, and Fridge. Locate the control panel, typically on the lower front or side of the unit.

• Fryser tilstand: For long-term storage of frozen foods (typically -18°C to -24°C).
• Chiller Mode: Ideal for keeping beverages or fresh produce very cold, but not frozen (typically 0°C to 4°C).
• Køleskabstilstand: For general refrigeration of fresh foods (typically 2°C to 8°C).

Refer to the markings on your specific control panel to select the desired mode and temperature setting.

5.2 Temperaturkontrol

Adjust the thermostat dial or digital controls to your desired temperature. For initial use, set to the coldest setting for 24 hours before loading food.

5.3 Fyldning af fryseren

Do not overload the freezer. Allow space for air to circulate around items for efficient cooling. For best results, pre-cool the freezer for several hours before adding large quantities of food.

Figur 5.1: Interiør view of the freezer with the lid open, demonstrating storage capacity with items in the movable basket.

6. Pleje og vedligeholdelse

6.1 Optøning

Defrost the freezer when the frost layer reaches about 0.5 cm (1/4 inch) thick. Turn off the freezer and unplug it. Remove all food items and place them in a cooler. Open the lid and allow the frost to melt naturally. Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice.

6.2 Rengøring af indersiden

After defrosting, clean the interior with a solution of mild detergent and warm water. Rinse thoroughly and dry completely before restarting the freezer.

6.3 Rengøring af ydersiden

Tør de udvendige overflader af med en blød, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Keep the condenser coils at the back clean by gently vacuuming them periodically to ensure efficient operation.

6.4 Power Outage Retningslinjer

Thanks to Chill-In Technology, your freezer can maintain temperature for up to 140 hours during a power outage. Keep the lid closed as much as possible to retain cold air. Do not open the lid unnecessarily.

7. Fejlfindingsvejledning

Før du kontakter kundeservice, bedes du se følgende tabel for almindelige problemer og løsninger på disse:

8. Tekniske specifikationer

Below are the key specifications for your Defy Multimode Chest Freezer, Model DMF470:

9. Garanti og kundesupport

Your Defy Multimode Chest Freezer is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details. Keep your proof of purchase for warranty claims.

For technical assistance, spare parts, or to schedule a service appointment, please contact Defy Customer Service. You can find contact information on the Defy official webwebstedet eller i din garantidokumentation.

Defy Official Webwebsted: www.defy.co.za
