Indledning
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Commercial Electric 3-Light LED Puck Light Kit. Please read all instructions carefully before installation and retain this manual for future reference.
Sikkerhedsoplysninger
- Always disconnect power before installing, servicing, or cleaning this product.
- Do not install near heat sources or in damp steder. Dette produkt er kun til indendørs brug.
- Sørg for, at alle forbindelser er sikre og korrekte for at forhindre elektriske farer.
- Do not attempt to modify or repair the unit. Refer servicing to qualified personnel.
Pakkens indhold
Verify that all components listed below are included in your package. If any parts are missing or damaged, contact customer service before proceeding with installation.

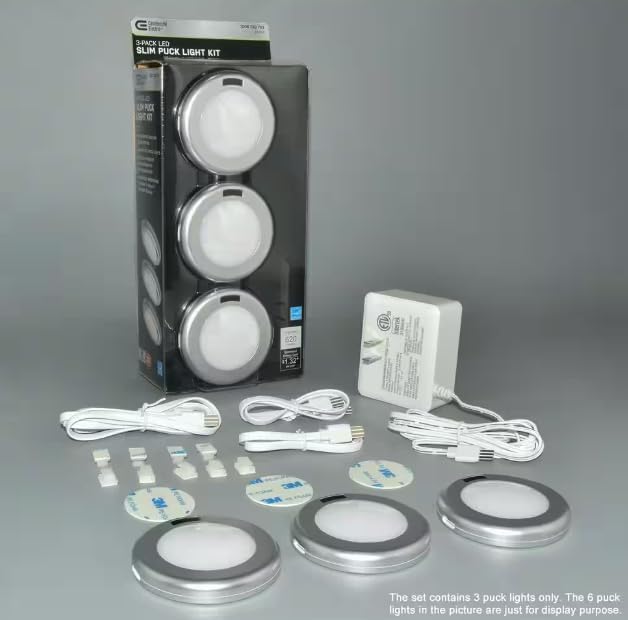

Image: All components of the 3-Light LED Puck Light Kit, including the three puck lights, power adapter, various connecting cables, and adhesive mounting pads, are displayed on a flat surface.
- 3 x LED-pucklys
- 1 x strømadapter
- Tilslutningskabler
- Klæbende monteringspuder
- Remote Control (if included with your specific model)
Opsætning og installation
Follow these steps for proper installation of your LED puck light kit. This kit is designed for easy installation under cabinets or shelves.
- Planplacering: Determine the desired locations for each puck light. Ensure the power adapter can reach an outlet and the connecting cables can span between lights.
- Ren overflade: Clean the mounting surface thoroughly to ensure proper adhesion of the mounting pads.
- Mount Puck-lys: Peel the backing from the adhesive mounting pads and firmly press each puck light into its desired position. Hold for 30 seconds to ensure a strong bond.
- Tilslut kabler: Connect the puck lights to each other using the provided connecting cables. Ensure a secure connection at each light.
- Tilslut strømadapter: Plug the main connecting cable into the power adapter, then plug the power adapter into a standard electrical outlet.
Image: Three LED puck lights are installed neatly under a wooden cabinet, with a hand reaching to interact with one of the lights, illustrating typical under-cabinet placement.
Betjeningsvejledning
Your Commercial Electric LED Puck Light Kit offers multiple control options.
Tryk på kontrol
- Sådan tænder/slukker du: Gently touch the designated touch sensor area on any puck light.
- Sådan justerer du lysstyrken: Hold your finger on the touch sensor to cycle through brightness levels. Release when the desired brightness is achieved.
Bevægelsessensor
The integrated motion sensor will automatically turn the lights on when motion is detected within its range and turn them off after a period of inactivity. Refer to the product packaging or specific model details for motion sensor range and duration.
Fjernbetjening (hvis relevant)
If your kit includes a remote control, refer to its separate instructions for pairing and operation. Typically, the remote allows for power on/off, brightness adjustment, and potentially mode selection.
Opretholdelse
Proper maintenance ensures the longevity and optimal performance of your LED puck lights.
Rensning
- Ensure the lights are off and unplugged before cleaning.
- Tør overfladerne af med en blød, tør eller let fugtig klud.amp klæde.
- Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de elektroniske komponenter.
LED lyskilde
The LED light source in this product is designed for long-term use and is generally not user-replaceable. If the LEDs fail, the entire puck light unit may need replacement.
Fejlfinding
If you encounter issues with your LED puck light kit, consult the following table for common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lysene tænder ikke. | Ingen strøm, løs forbindelse, defekt stikkontakt. | Check power adapter connection. Ensure outlet is functional. Verify all cables are securely connected. |
| Lysene flimrer eller dæmpes uventet. | Loose connection, power fluctuation, faulty unit. | Check all cable connections. Try plugging into a different outlet. If problem persists, contact customer support. |
| Bevægelsessensoren virker ikke. | Sensor obstructed, incorrect setting, insufficient motion. | Ensure sensor is clear of obstructions. Verify motion sensor mode is active (if selectable). Test with clear, deliberate motion. |
| Touch control unresponsive. | Dirty sensor, electrical interference. | Clean the touch sensor area. Ensure no other electrical devices are causing interference. |
Specifikationer
Key technical specifications for the Commercial Electric 3-Light LED Puck Light Kit.
| Feature | Specifikation |
|---|---|
| Mærke | Kommerciel elektrisk |
| Modelnummer | 810029680073 |
| Lyskildetype | LED |
| Antal lyskilder | 3 |
| Lysstyrke | 1500 lumen (i alt) |
| Kontrolmetode | Touch, Motion Sensor, Remote Control |
| Indendørs/Udendørs brug | Indendørs |
| Strømkilde | Elektrisk med ledning |
| Materiale | Acrylonitrile Butadiene Styrene, Crystal (Shade) |
| Farve | Sølv |
| Montering påkrævet | Ja |
| UPC | 810029680073 |
Garanti og support
For warranty information or technical support, please refer to the documentation included with your product or contact Commercial Electric customer service directly. Keep your purchase receipt as proof of purchase.
