maXpeedingrods Coilovers Instruktionsmanual

1. Introduktion

This manual provides essential information for the proper installation, adjustment, maintenance, and safe operation of your maXpeedingrods Coilovers. These coilovers are designed to enhance vehicle handling and allow for adjustable ride height. Please read this manual thoroughly before attempting any installation or adjustment.

Produktkompatibilitet:

• For Volkswagen Golf MK7 (2015-2019) - Note: Only compatible with Torsion Rear Suspension. Not suitable for Multilink Rear Suspension.
• For Audi A3/S3 (8V) MK3 (2015-2019)
• For Seat Leon MK3 (2012-2019)
• For Skoda Octavia MK3 (2012-2019)

2. Sikkerhedsoplysninger

Working with vehicle suspension systems can be dangerous. Improper installation or adjustment can lead to serious injury or vehicle damage. Always follow these safety guidelines:

• Professionel installation anbefales: It is highly recommended that installation be performed by a qualified automotive technician.
• Brug de rigtige værktøjer: Ensure you have all necessary tools and equipment, including jack stands, torque wrenches, and spring compressors.
• Køretøjsstøtte: Always support the vehicle securely on jack stands before working underneath it. Never rely solely on a jack.
• Bær sikkerhedsudstyr: Brug passende personlige værnemidler, herunder sikkerhedsbriller og handsker.
• Follow Torque Specifications: Adhere to the vehicle manufacturer's torque specifications for all fasteners.
• Hjuljustering: After installation, a professional wheel alignment is mandatory to ensure proper vehicle handling and tire wear.
• Testkørsel: Perform a cautious test drive in a safe area after installation and adjustments to check for proper function and any unusual noises.

3. Pakkens indhold

Verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, contact customer support immediately.

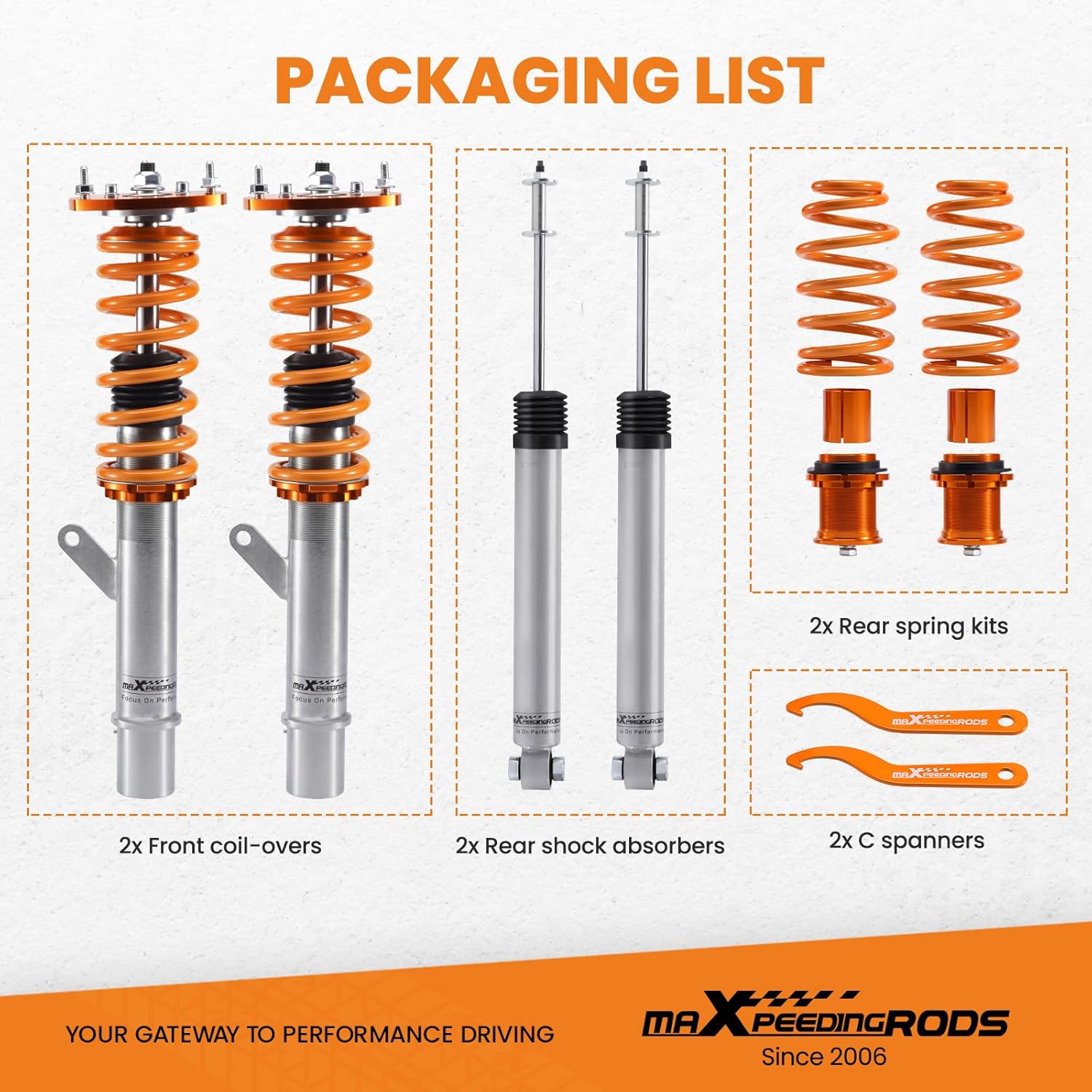

Image 3.1: Packaging list showing all included components.

Pakken indeholder typisk:

• 2x Front Coil-overs (complete with springs and top mounts)
• 2x Rear Shock Absorbers
• 2x Rear Spring Kits (including springs and adjustable perches)
• 2x C Spanners (for height adjustment)

4. Produktfunktioner og design

The maXpeedingrods Coilovers are engineered with specific features for performance and durability:

• Springrate: Front: 7 kg/mm (392 in/lbs), Rear: 5 kg/mm (280 in/lbs). Springs undergo extensive testing to ensure minimal distortion.
• Justerbar højde: Allows for lowering the vehicle by 35mm-75mm, providing a customizable stance while retaining original comfort.
• Dobbeltrørsstruktur: Offers a longer stroke and higher height adjustability compared to mono-tube designs, contributing to a more comfortable ride by reducing joint pressure.
• Materiale: Constructed from 6061 aluminum alloy with T6 for increased hardness, high strength, and durability. Features high-quality precision parts.
• 55CrSi Steel Springs: Made from alloy steel using a cold winding technique for sag-free performance.
• Durable Rubber TPV Dust Boots: Protect piston shafts from dirt and debris, extending component life.
• Sturdy Lower Brackets: Manufactured from carbon steel to withstand heavy loads without bending, deforming, or breaking.
• Solid Rubber Bump Stops: Integrated to prevent harsh bottoming out.
• Anti-rust Perches and Locking Rings: Designed for durability and lightweight performance.
• Heavy-duty Lower Mount: Anti-rust and robust construction.

Billede 4.1: Overview of the maXpeedingrods Coilover set.

Image 4.2: Diagram illustrating the internal components of a twin-tube damper, including cylinder, shellcase, piston valve, oil chamber, and base valve.

Image 4.3: Close-up of key coilover components, highlighting the 55CrSi steel springs, durable TPV dust boots, and sturdy lower brackets.

5. Installation

Installation of coilovers requires mechanical expertise and specialized tools. If you are not confident in your ability to perform this installation safely and correctly, seek assistance from a professional mechanic.

General Installation Steps (Consult a service manual for your specific vehicle for detailed instructions):

1. Klargør køretøjet: Park the vehicle on a level surface, engage the parking brake, and loosen the lug nuts on the wheels. Jack up the vehicle and secure it with jack stands. Remove the wheels.
2. Remove OEM Suspension: Disconnect any brake lines, ABS sensors, or sway bar links attached to the existing strut/shock assembly. Unbolt the lower mounting points and the upper strut/shock mounts. Carefully remove the old suspension components.
3. Prepare New Coilovers: For front coilovers, you may need to transfer the OEM top hat (upper mount) to the new coilover assembly if not pre-assembled. Ensure all collars are loose for initial height adjustment.
4. Install New Coilovers: Install the new coilover assemblies, securing the upper mounts first, then the lower mounting points. Reattach any disconnected lines or links.
5. Initial Height Adjustment: Before fully tightening, set an approximate ride height. Refer to Section 6 for detailed adjustment procedures.
6. Spænd alle fastgørelseselementer: Torque all bolts and nuts to the vehicle manufacturer's specifications.
7. Reinstall Wheels: Mount the wheels and hand-tighten lug nuts. Lower the vehicle to the ground and torque lug nuts to specification.
8. Kontrol efter installation: Bounce the vehicle to settle the suspension. Check for any clearance issues or loose components.
9. Hjuljustering: A professional wheel alignment is crucial after any suspension component replacement or adjustment.

Image 5.1: Illustration of coilovers installed on a vehicle chassis, demonstrating ease of installation and adjustment.

6. Højdejustering

The coilovers allow for precise ride height adjustment. Always adjust both sides of the vehicle (front or rear) equally to maintain balance.

Image 6.1: Diagram illustrating the height adjustment mechanism of the coilovers.

Procedure:

1. Løftekøretøj: Safely lift the vehicle so the wheels are off the ground and the suspension is unloaded.
2. Loosen Locking Collars: Use the provided C spanners to loosen the locking collars on the coilover body.
3. Juster højden: Rotate the main adjustment collar to raise or lower the vehicle. Turning clockwise typically lowers the vehicle, while counter-clockwise raises it. Make small, incremental adjustments.
4. Secure Locking Collars: Once the desired height is achieved, tighten the locking collars firmly against the adjustment collar to prevent movement.
5. Gentag for den anden side: Ensure the corresponding coilover on the opposite side is adjusted to the exact same height.
6. Lower Vehicle and Settle: Lower the vehicle to the ground and drive a short distance or bounce the suspension to allow it to settle. Re-measure the ride height and make further fine adjustments if necessary.
7. Endelig justering: After all height adjustments are finalized, a professional wheel alignment is essential.

7. Driftsmæssige overvejelser

After installing coilovers, your vehicle's driving characteristics will change. Be aware of the following:

• Improved Handling: The coilovers are designed to provide improved handling and a more responsive feel, especially for street use.
• Ride Comfort: While designed for comfort, a lowered vehicle with performance suspension may have a firmer ride than stock.
• Klarering: Be mindful of reduced ground clearance, especially over speed bumps, potholes, and steep driveways, to avoid damage to the vehicle's undercarriage or suspension components.
• Kørestil: Adapt your driving style to the new suspension setup.

Image 7.1: Coilovers designed for improved handling and comfortable street use.

8. Vedligeholdelse

Regular inspection and maintenance will ensure the longevity and performance of your coilovers.

• Regelmæssig inspektion: Periodically inspect the coilovers for any signs of damage, leaks, corrosion, or loose components. Check the dust boots for tears.
• Renhed: Keep the coilover bodies and threads clean, especially after driving in harsh conditions (e.g., snow, salt, dirt). This prevents corrosion and ensures smooth adjustment.
• Smøring: Apply a thin layer of anti-seize grease to the adjustment threads if they become stiff or difficult to turn.
• Momentkontrol: Re-check the torque on all mounting bolts and nuts after the first 500 miles and periodically thereafter.
• Hjuljustering: If you notice uneven tire wear or changes in handling, have your wheel alignment checked.

9. Fejlfinding

If you experience issues with your coilovers, consult this section for common problems and solutions.

Image 9.1: Visual indicators for when suspension struts may need attention, including difficult steering control, uneven tire wear, rattling or clunking noises, and uncomfortable driving.

10. Specifikationer

11. Garanti og support

maXpeedingrods is committed to providing quality products and customer satisfaction.

• Kundesupport: For any questions regarding installation, operation, or troubleshooting, please contact maXpeedingrods customer support.
• Ekspert assistance: Rely on the maXpeedingrods engineering team for expert assistance and guidance.
• Returnerer: This product is returnable until January 31, 2026. Please refer to the retailer's return policy for specific terms and conditions.

Image 11.1: Emphasizing easy installation, expert support, and customer-centric service provided by maXpeedingrods.
