1. Introduktion
Thank you for choosing the PPLEE CR1023i Vibrating Digital Alarm Clock. This device is designed to provide a reliable and versatile wake-up experience, especially for heavy sleepers and individuals with hearing impairments. It features a large, dimmable LED display, dual alarms, multiple wake-up modes including a powerful bed shaker, a night light, and a convenient USB charging port.
Image 1.1: The PPLEE CR1023i alarm clock, bed shaker, and a smartphone connected for charging.
2. Pakkens indhold
Tjek venligst pakken for følgende varer:
- 1 x PPLEE CR1023i Digital Alarm Clock
- 1 x Wired Bed Shaker
- 1 x strømadapter
- 1 x strømkabel
- 1 x brugermanual
Image 2.1: All components included in the PPLEE CR1023i alarm clock package.
3. Produktet er slutview
The PPLEE CR1023i features a clear digital display and intuitive controls for easy operation.
3.1. Betjeningselementer og display
Familiarize yourself with the buttons and display indicators on your alarm clock. The large LED digits show the current time, and indicators for AM/PM, Alarm 1, and Alarm 2 are present.
Image 3.1: Key features and components of the PPLEE CR1023i alarm clock.
4. Indledende opsætning
- Strømtilslutning: Connect the power cable to the alarm clock and plug the power adapter into a standard electrical outlet. The display will light up.
- Bed Shaker Connection: Plug the wired bed shaker into the designated port on the back of the alarm clock.
- Batteribackup (valgfrit): Til backup under strøm outages, insert 2 AAA batteries (not included) into the battery compartment. Note that the battery backup only maintains time settings and alarm functions; the display will not be active.
5. Indstillinger for tid og dato
5.1. Indstilling af tid
- Tryk og hold på TIDSINDSTILLING button (usually located on the back or top) until the hour digits begin to flash.
- Brug TIME og MINUT buttons (or +/- buttons) to adjust the hour and minute. Pay attention to the AM/PM indicator.
- Trykke TIDSINDSTILLING igen for at bekræfte og afslutte tidsindstillingstilstanden.
5.2. 12H/24H Format and DST
The clock supports both 12-hour and 24-hour time formats, as well as Daylight Saving Time (DST) adjustments.
- To switch between 12H/24H: I normal tidsvisningstilstand skal du trykke på 12/24H button (or a dedicated button, refer to the clock's labels) to toggle between the formats.
- To activate/deactivate DST: I normal tidsvisningstilstand skal du trykke på og holde nede DST button (or a dedicated button) to adjust the time by one hour forward or backward.
Billede 5.1: Eks.amples of 12H, 24H, and DST time display options.
6. Alarmindstillinger
The PPLEE CR1023i features dual alarms and multiple wake-up modes.
6.1. Indstilling af dobbeltalarmer
- Tryk og hold på ALARM 1 button until the hour digits for Alarm 1 begin to flash.
- Brug TIME og MINUT buttons (or +/- buttons) to set the desired alarm time.
- Trykke ALARM 1 igen for at bekræfte tidspunktet.
- Gentag trin 1-3 for ALARM 2 if a second alarm is needed.

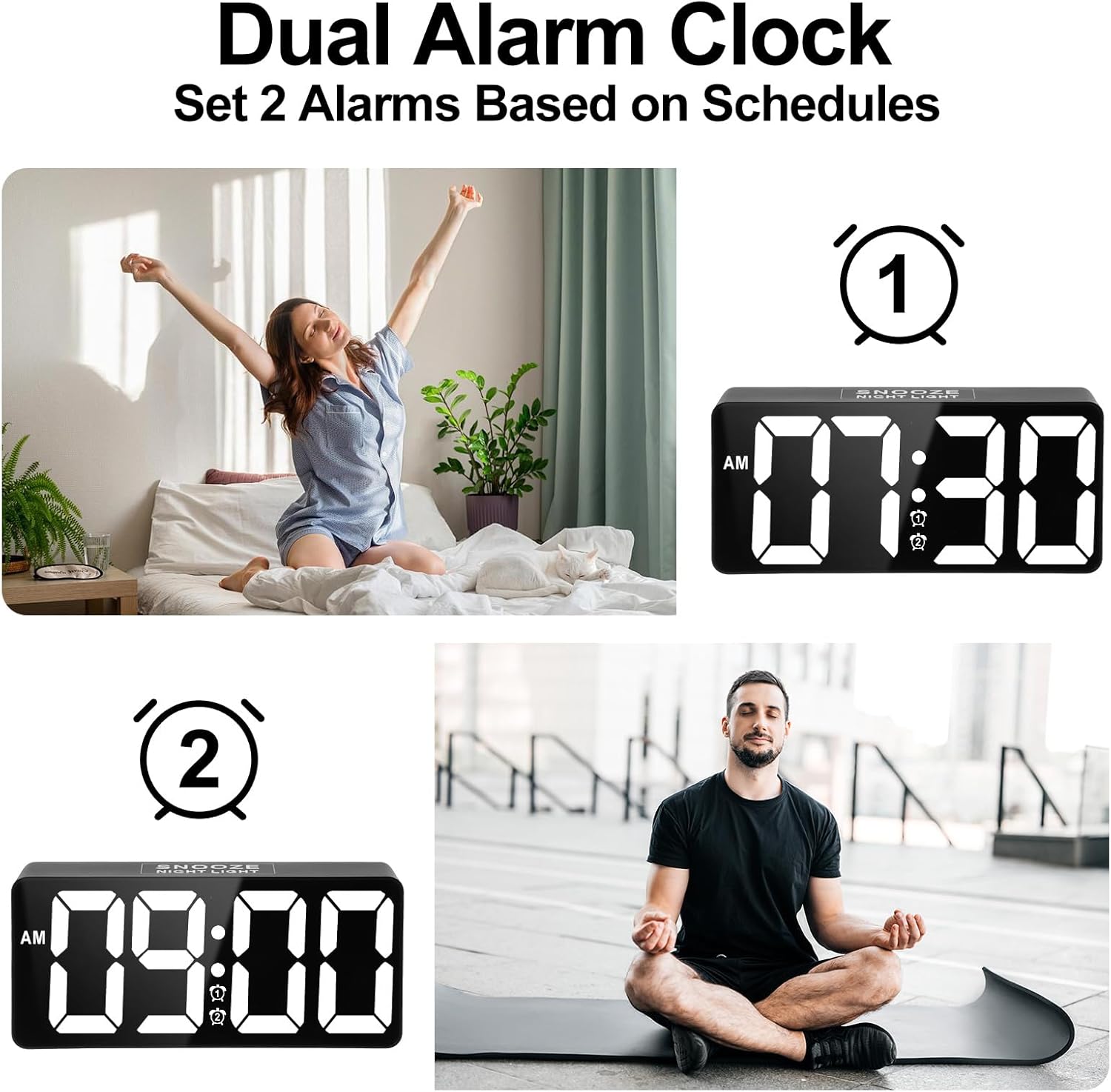

Image 6.1: Setting up two independent alarms for different schedules.
6.2. Wake-up Modes
Choose from three wake-up modes: Sound Only, Vibration Only, or Sound + Vibration.
- After setting an alarm time, press the ALARM 1/2 button repeatedly to cycle through the wake-up modes. The display will show corresponding icons (bell for sound, wavy lines for vibration, or both).
- Vælg din foretrukne tilstand.
Image 6.2: The three available wake-up solutions: sound, vibration, or both.
6.3. Alarm Volume Adjustment
The alarm volume can be adjusted to 7 levels, from 50dB to 120dB.
- While the alarm is sounding, or during alarm setup, use the BIND button (or +/- buttons) to adjust the sound level.
- The display will indicate the current volume level (e.g., U01 for lowest, U07 for highest).
Image 6.3: Visual representation of the 7-level volume adjustment for the alarm.
6.4. Disabling an Alarm
For at slukke en lydalarm skal du trykke på ALARM SLUKKET button. To disable an alarm completely, press the corresponding ALARM 1/2 knappen, indtil alarmikonet forsvinder fra displayet.
7. Snooze-funktion
When an alarm sounds, gently tap the large SLUM button on the top of the clock to activate the snooze function. The alarm will pause for 9 minutes and then sound again. You can repeat this process.
Image 7.1: Activating the 9-minute snooze by touching the top button.
8. Justering af lysstyrke
The large LED display features a 0-100% dimmable brightness control.
- Find rotary stepless switch (often on the side or back of the clock).
- Rotate the switch to adjust the display brightness to your desired level, from completely off to maximum brightness.

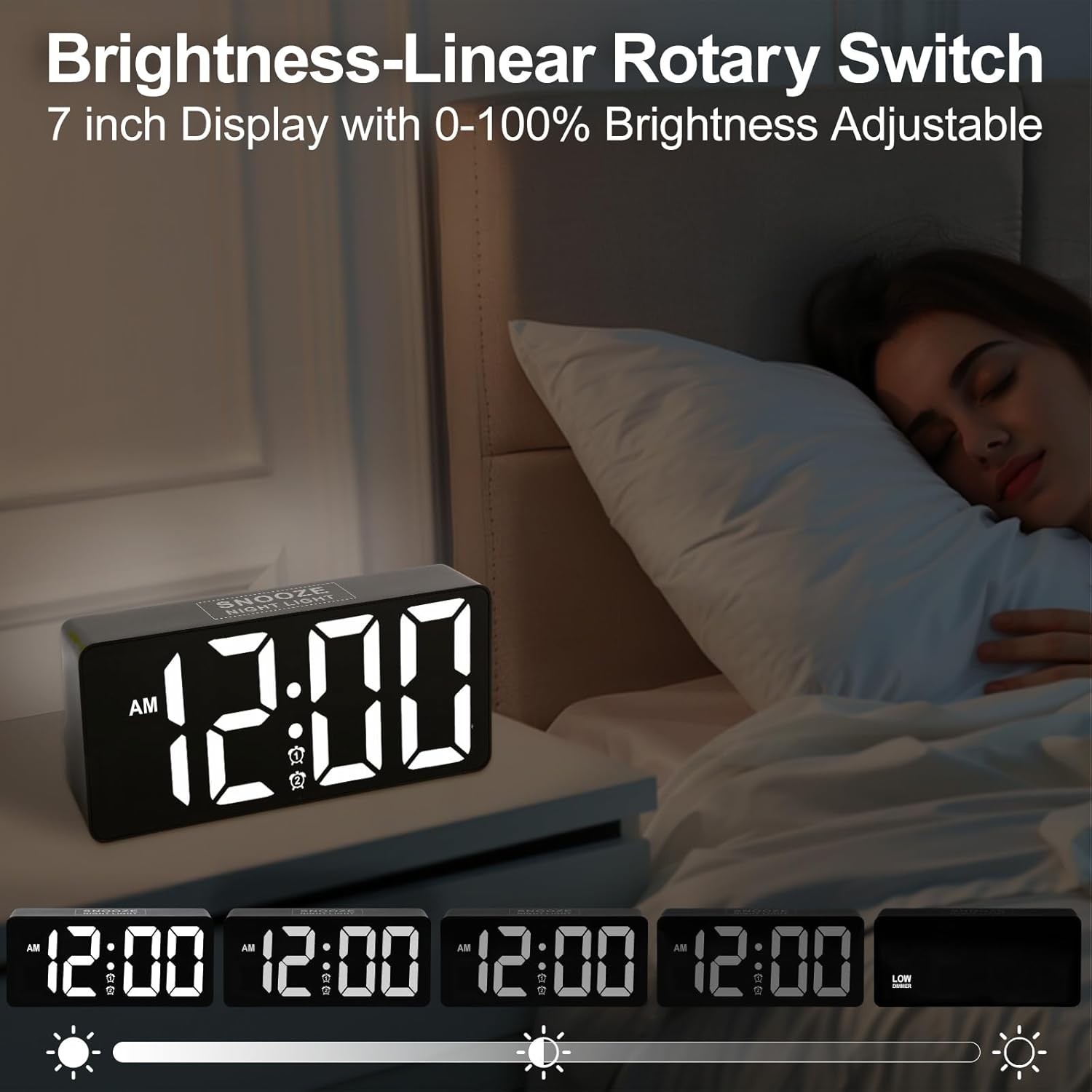

Image 8.1: Demonstrating the range of display brightness settings.
9. Natlys funktion
The alarm clock includes a soft rear night light, providing a gentle illumination.
- To turn the night light on or off, tap the SLUM knap.
- The night light offers a warm and relaxed ambiance, ideal for pre-bedtime or as a subtle light source during the night.
Image 9.1: The night light feature providing soft illumination.
10. USB -opladningsport
A built-in USB charging port allows you to charge your devices conveniently while you sleep.
- Locate the USB port on the side or back of the alarm clock.
- Tilslut din enheds USB-opladerkabel til denne port.
- The charging function operates independently of the alarm clock's other settings.
11. Bed Shaker Placement
The wired bed shaker is designed to be placed in various locations to effectively wake heavy sleepers.
- Under Pillow: Place the shaker directly under your pillow for direct vibration.
- Under Fitted Sheet: Position the shaker under your fitted sheet, near your head or torso.
- Between Mattress and Box Spring: For a more subtle but still effective vibration, place it between the mattress and box spring.
Image 11.1: Recommended placements for the bed shaker.
12. Pleje og vedligeholdelse
- Rensning: Tør uret og sengevibratoren af med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Placering: Place the clock on a stable, flat surface. Avoid direct sunlight, extreme temperatures, and high humidity.
- Magt: Ensure the power adapter and cable are not damaged. Disconnect from power during electrical storms or when not in use for extended periods.
13. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Urvisningen er slukket. | Ingen strøm, strøm udtage, or brightness set to minimum. | Check power connection. If using battery backup, display will not show. Adjust brightness. |
| Alarmen lyder/vibrerer ikke. | Alarm not activated, incorrect mode selected, or volume too low. | Ensure alarm is set and activated (icon visible). Verify wake-up mode (sound/vibration). Adjust volume. Check bed shaker connection. |
| Tidspunktet er forkert. | Time not set correctly, or DST needs adjustment. | Re-set the time. Check 12H/24H format. Adjust DST if applicable. |
| USB-opladning virker ikke. | Cable issue, device not compatible, or power issue. | Try a different USB cable. Ensure the clock is powered. Check device compatibility. |
14. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | PPLE |
| Modelnummer | CR1023i |
| Display Type | Digital LED |
| Skærmstørrelse | 7 tommer |
| Wake-up Modes | Sound, Vibration, Sound + Vibration |
| Alarmvolumen | 7 niveauer (50dB til 120dB) |
| Snooze-varighed | 9 minutter |
| Lysstyrkekontrol | 0-100% Dimmable (Rotary Switch) |
| Natlys | Yes (Soft rear light) |
| USB-opladningsport | Yes (for external devices) |
| Strømkilde | Elektrisk med ledning |
| Batteri backup | Yes (2x AAA, not included; for time/alarm memory only) |
| Produktdimensioner | 1.77"W x 3.03"H (Clock unit) |
| Varens vægt | 13.7 ounce |
| Materiale | Plast, Acrylonitril Butadien Styren |
15. Garantioplysninger
This product comes with an extended warranty. For specific details regarding warranty coverage and duration, please refer to the warranty card included in your package or contact customer support.
16. Kundesupport
If you encounter any issues or have questions regarding your PPLEE CR1023i alarm clock, please contact our customer support team. You can typically find contact information on the product packaging, the warranty card, or by visiting the official PPLEE store on Amazon: PPLEE Store.
