TouchWo 75-inch 4K Interactive Smart Board User Manual

1. Introduktion

This manual provides comprehensive instructions for the setup, operation, and maintenance of your TouchWo 75-inch 4K Interactive Smart Board (Model: JPRZB75WA). This device is designed to enhance interactive presentations, collaborative work, and digital display applications in various environments, including offices and classrooms. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

The TouchWo 75-inch Interactive Smart Board, shown here mounted on its portable stand, features a 4K display and a user-friendly interface for quick access to functions.

2. Nøglefunktioner

• 20-Point Touch Screen: Supports multi-finger gestures for zooming, drawing, and annotation. Includes a stylus for precise input. Operates with gloves and offers a response time within 5ms.
• Dual Operating System: Equipped with both Android 13 (RAM 4GB + ROM 32GB) and Windows 10 (Core i5, RAM 4GB + SSD 256GB) for versatile application use. Systems can be switched as needed.
• 4K Display & Multi-Interface: Features a 4K screen and integrates multiple connectivity options including HDMI, USB, VGA, RJ45, Wi-Fi, and Bluetooth 5.0. Built-in speakers are included. HDMI IN and USB OTG ports enable screen casting from external devices with touch functionality.
• Screen Mirroring & Digital Signage: Supports wireless screen mirroring from smartphones, laptops, and tablets. Teachers can annotate on an infinite canvas. The display supports horizontal and vertical placement for smart TV playback and digital signage. Connect an external camera and microphone for video conferencing.

This image demonstrates the 20-point touch capability of the smart board, allowing for precise and multi-user interaction through various finger gestures.

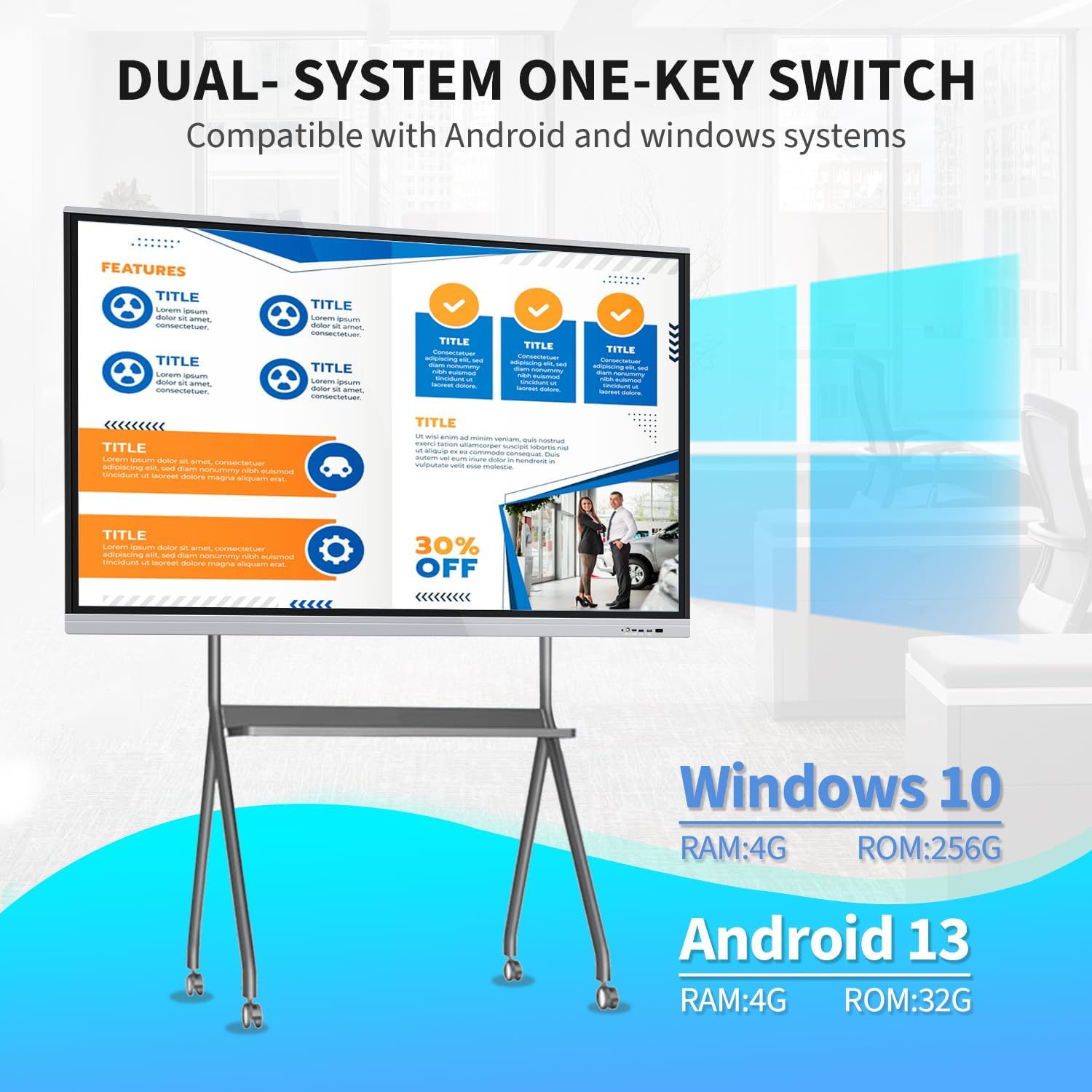

The smart board supports a dual operating system setup, allowing users to switch between Windows 10 (Core i5, 4GB RAM, 256GB SSD) and Android 13 (4GB RAM, 32GB ROM) as needed for different applications.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1 x Smart Whiteboard
• 1 x strømledning
• 1 x Presenter Pen
• 1 x bærbar stativ
• 1 x WiFi-antenne
• 1 x Capacitive Stylus (as per feature bullets)
• 1 x Screen Mirroring Device (as per feature bullets)

The smart board offers flexible installation with both a mobile stand for portability and a wall mount bracket for fixed setups. Essential accessories such as a power line, WiFi antenna, capacitive stylus, presenter pen, and screen mirroring device are included.

4. Opsætningsvejledning

4.1. Monteringsmuligheder

The TouchWo Smart Board can be installed using two methods:

1. Mobile Stand Installation: Assemble the portable stand according to its separate instructions. Securely attach the smart board to the stand. This option provides flexibility for moving the board between locations.
2. Vægmontering: Use the provided wall mount bracket to fix the smart board to a sturdy wall. Ensure the wall can support the weight of the unit (approximately 94.6 pounds or 43 kg). Professional installation is recommended for wall mounting.

4.2. Første tilslutning

1. Strømtilslutning: Connect the power line to the smart board and then to a standard 110V AC power outlet.
2. WiFi-antenne: Attach the WiFi antenna to the designated port on the smart board to enable wireless network connectivity.
3. Periferiudstyr: Connect any desired external devices such as a keyboard, mouse, or external storage via the available USB ports.
4. Tænd: Press the power button located on the smart board. The system will boot up, typically starting with the Android operating system.

5. Betjeningsvejledning

5.1. System Switching (Android/Windows)

The smart board features a dual operating system. To switch between Android and Windows 10:

• Locate the system switch option on the main interface or through the quick settings menu.
• Select the desired operating system (Android or Windows) to initiate the switch. The board will restart into the selected OS.

5.2. Touchskærmens funktionalitet

The 20-point touch screen allows for intuitive interaction:

• Grundlæggende bevægelser: Use single tap for selection, double tap for opening, and press and hold for context menus.
• Multi touch: Utilize two fingers for zooming in/out of images or documents, and for other multi-touch commands.
• Brug af stylus: The included capacitive stylus can be used for precise writing, drawing, and annotation directly on the screen. No driver installation is required.

5.3. Skærmspejling

To mirror content from your devices:

• Ensure your smartphone, laptop, or tablet is connected to the same Wi-Fi network as the smart board.
• Use the included screen mirroring device or the built-in screen mirroring application on the smart board to connect your device.
• Follow the on-screen prompts to establish the connection and display your device's content on the smart board.

5.4. Digital Signage Mode

The smart board can function as a digital signage display:

• Content can be displayed in both horizontal and vertical orientations.
• Utilize the Android system to run digital signage applications or display media files.

5.5. Brug af tilbehør

• Presenter Pen: Use the presenter pen for navigating presentations (e.g., PowerPoint) wirelessly. Refer to the presenter pen's specific instructions for pairing and function.
• Stylus: The capacitive stylus is for direct interaction with the touchscreen, ideal for writing and drawing.

5.6. Forbindelse

The smart board offers various ports for external connections:

• HDMI IN: Connect external video sources (e.g., laptops, media players) to display content on the smart board. Touch functionality can be enabled for connected devices via USB OTG.
• USB-porte: For connecting USB drives, keyboards, mice, and other peripherals.
• VGA: Connect older video sources.
• RJ45: Til kabelbaseret netværksforbindelse.
• Wi-Fi og Bluetooth: For wireless network access and connecting Bluetooth devices.

6. Vedligeholdelse

• Rengøring af skærmen: Brug en blød, fnugfri klud, der er specielt designet til elektroniske skærme.ampRengør kluden let med vand eller en skærmrengøringsopløsning. Undgå skrappe kemikalier eller slibende materialer.
• Generel rengøring: Wipe the exterior surfaces with a dry, soft cloth. Ensure all vents are clear of dust and debris to prevent overheating.
• Opbevaring: If storing the smart board for an extended period, ensure it is powered off and disconnected from the power source. Store in a cool, dry place.
• Softwareopdateringer: Periodically check for and install system updates for both Android and Windows to ensure optimal performance and security.

7. Fejlfinding

8. Tekniske specifikationer

This diagram provides key technical specifications for the 75-inch smart board, including its physical dimensions (170.7 cm width, 101.3 cm height, 8.3 cm depth), 4K (3840x2160) resolution, 350 cd/m2 brightness, 16:9 aspect ratio, and 43 kg weight.

9. Support og garanti

For technical assistance, warranty inquiries, or any other support needs, please contact TouchWo customer service:

• Officiel e-mail: touchwoamz@outlook.com
• Seller Page: Besøg TouchWo seller page on Amazon for mere information.

The manufacturer aims to respond to inquiries within 24 hours. Please retain your proof of purchase for warranty claims.

For any assistance, users can contact support via the official email address provided or scan the QR code for more information. The manufacturer aims to respond within 24 hours.
