Lindy 3m USB 3.2 Gen2 Type-C Aktivt Kabel Brugermanual

1. Produktet er slutview

The Lindy 3m USB 3.2 Gen2 Type-C Active Cable (Model Number: 43348) is designed for high-performance data transfer, video transmission, and charging. This active cable ensures reliable signal integrity over longer distances, making it ideal for connecting various USB-C enabled devices.

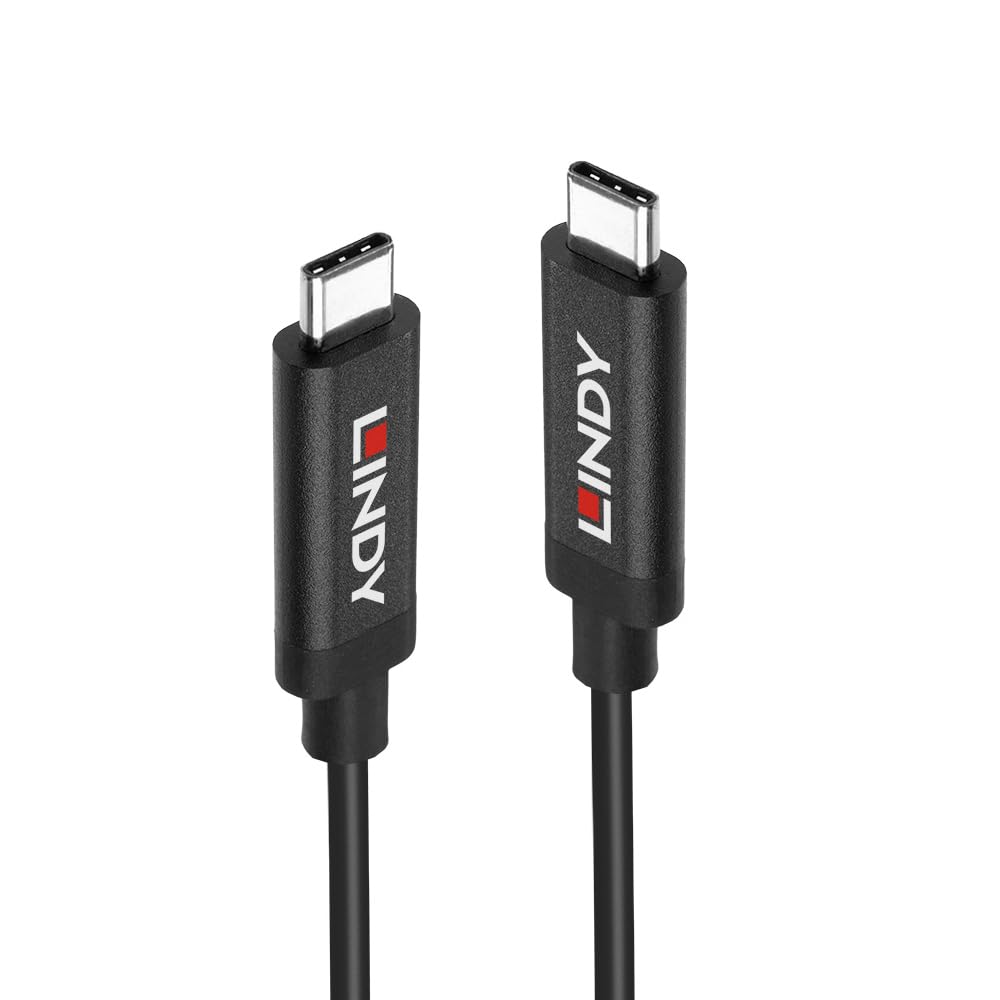

Figure 1.1: The Lindy 3m USB 3.2 Gen2 Type-C Active Cable, showcasing both ends of the cable with their reversible USB-C connectors and Lindy branding.

Nøglefunktioner:

• Supports USB 3.2 Gen 2 (10Gbps) transmission and charging standards.
• Supports DisplayPort 1.4 Alternate Mode for audio and video transmission.
• Supports high resolution 8K@60Hz, high definition audio and video transmission.
• Enhanced Active IC Signal Adjustment, providing longer transmission distance.
• Type-C connector is reversible, allowing connection without checking orientation.

2. Opsætning

Setting up the Lindy USB 3.2 Gen2 Type-C Active Cable is straightforward due to its plug-and-play design. No additional drivers or software are typically required for basic functionality.

Tilslutningstrin:

1. Identify the USB-C ports on your source device (e.g., laptop, tablet, docking station) and your target device (e.g., monitor, external hard drive, USB-C hub).
2. Gently insert one end of the Lindy USB-C Active Cable into the USB-C port of your source device. The Type-C connector is reversible, so there is no incorrect way to insert it.
3. Insert the other end of the Lindy USB-C Active Cable into the USB-C port of your target device.
4. Ensure both connections are firm and secure. The cable will automatically establish the necessary data, video, or power connection.

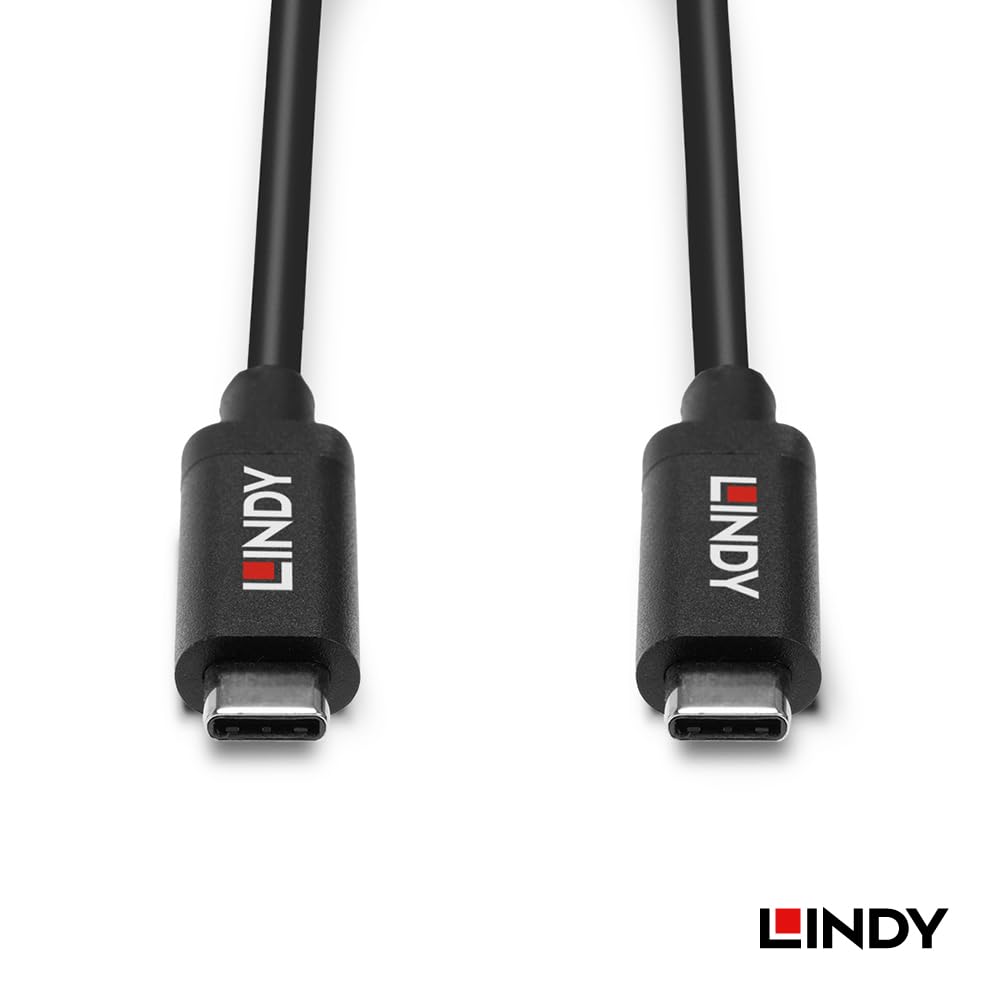

Figur 2.1: En detaljeret view of the Lindy USB-C connectors, highlighting their design for easy and reversible connection.

3. Betjeningsvejledning

Once connected, the Lindy USB 3.2 Gen2 Type-C Active Cable operates automatically, facilitating various functions depending on the capabilities of your connected devices.

Dataoverførsel:

The cable supports USB 3.2 Gen 2 speeds, allowing for data transfer rates up to 10 Gigabits per second (Gbps). This is suitable for transferring large files quickly between compatible devices such as external SSDs, hard drives, and computers.

Video Output (DisplayPort Alternate Mode):

For devices that support DisplayPort Alternate Mode (DP Alt Mode) over USB-C, this cable can transmit high-resolution video and audio. It supports resolutions up to 8K at 60Hz, providing a clear and vibrant display experience on compatible monitors or televisions.

Power Delivery/Charging:

The cable also supports power delivery, enabling charging of compatible devices. The actual charging speed and power output will depend on the power source and the connected device's power requirements.

Active IC Signal Adjustment:

The integrated active IC (Integrated Circuit) within the cable enhances signal integrity, allowing for stable and reliable performance over its 3-meter length. This is particularly beneficial for maintaining high data and video quality over longer cable runs.

4. Vedligeholdelse

Proper care and maintenance will extend the lifespan of your Lindy USB 3.2 Gen2 Type-C Active Cable.

• Opbevaring: When not in use, coil the cable loosely. Avoid tight coiling or sharp bends, as this can damage the internal wires and active components.
• Rensning: Use a soft, dry, lint-free cloth to clean the cable and its connectors. Do not use liquid cleaners or solvents, as they may damage the cable's insulation or internal electronics.
• Håndtering: Tag altid fat i stikket, når du tilslutter eller frakobler kablet. Undgå at trække direkte i selve kablet, da dette kan belaste forbindelsespunkterne og føre til skader.
• Miljø: Keep the cable away from extreme temperatures, direct sunlight, and excessive moisture.

5. Fejlfinding

If you encounter issues with your Lindy USB 3.2 Gen2 Type-C Active Cable, consider the following troubleshooting steps:

No Signal or Intermittent Connection:

• Tjek forbindelser: Ensure both ends of the cable are fully and securely inserted into the respective ports on your devices.
• Test Different Ports: Try connecting the cable to a different USB-C port on both your source and target devices, if available.
• Genstart enheder: Sometimes, a simple restart of the connected devices can resolve connectivity issues.
• Bekræft enhedskompatibilitet: Ensure that both your source and target devices support the functions you are trying to use (e.g., USB 3.2 Gen 2 for 10Gbps data, DisplayPort Alt Mode for video output). Not all USB-C ports support all functionalities.
• Test with Another Cable/Device: If possible, test your devices with a different known-working USB-C cable, or test the Lindy cable with different compatible devices to isolate the problem.

Langsom dataoverførselshastighed:

• Verify USB 3.2 Gen 2 Support: Ensure both connected devices (source and target) support USB 3.2 Gen 2 (10Gbps) speeds. If either device only supports an older USB standard (e.g., USB 2.0 or USB 3.0/3.1 Gen 1), the transfer speed will be limited to the lowest common denominator.
• Check Device Performance: The speed of your storage device (e.g., SSD, HDD) can also be a bottleneck. Ensure your storage device is capable of the desired transfer speeds.

No Video Output or Low Resolution:

• DisplayPort Alt Mode Support: Confirm that your source device's USB-C port supports DisplayPort Alternate Mode. Not all USB-C ports are capable of video output.
• Monitorinput: Ensure your monitor is set to the correct input source (e.g., USB-C, DisplayPort).
• Opløsningsindstillinger: Check your computer's display settings to ensure the desired resolution and refresh rate are selected and supported by both your device and monitor.

6. Specifikationer

Detailed technical specifications for the Lindy 3m USB 3.2 Gen2 Type-C Active Cable (Model Number: 43348):

7. Garanti og support

Lindy products are designed for reliability and performance. For specific warranty information regarding your Lindy 3m USB 3.2 Gen2 Type-C Active Cable (Model Number: 43348), please refer to the warranty card included with your purchase or visit the official Lindy webwebsted.

For technical support, product inquiries, or assistance with troubleshooting beyond the scope of this manual, please contact Lindy customer service through their official channels. Contact information can typically be found on the Lindy webwebstedet eller på din produktemballage.

Online ressourcer:

• Official Lindy Webwebsted: www.lindy.com (Bemærk venligst: Dette er en pladsholder URL. Refer to actual product documentation for correct URL.)
