1. Introduktion
Thank you for choosing the SBS 30000 mAh Power Bank. This portable charger is designed to provide reliable and fast power to your electronic devices on the go. Featuring multiple charging ports and high capacity, it ensures your devices remain powered throughout your day. This manual provides essential information for the safe and efficient use of your power bank.
Image 1.1: The SBS 30000 mAh Power Bank, a portable charging device.
2. Sikkerhedsoplysninger
- Udsæt ikke powerbanken for ekstreme temperaturer (over 45 °C eller under 0 °C), direkte sollys eller høj luftfugtighed.
- Avoid dropping, disassembling, or attempting to repair the device yourself. This may void the warranty and pose safety risks.
- Hold powerbanken væk fra vand og andre væsker.
- Brug kun certificerede opladningskabler og adaptere.
- Opbevares utilgængeligt for børn.
- Bortskaf powerbanken ansvarligt i henhold til lokale regler.
- This power bank is designed to be airline portable, adhering to common regulations for carry-on luggage.
Image 2.1: The power bank is suitable for air travel as carry-on luggage.
3. Pakkens indhold
Pakken indeholder typisk:
- SBS 30000 mAh Power Bank
- USB opladningskabel
- Brugervejledning (dette dokument)
4. Produktet er slutview
The SBS 30000 mAh Power Bank features multiple ports for versatile charging and LED indicators to show battery status.
4.1 Porte og indikatorer
- USB-C 1 Input/Output (PD 20W): This port can be used to recharge the power bank or to charge compatible devices with Power Delivery.
- USB-C 2 Output (PD 20W): Dedicated output port for fast charging devices with Power Delivery.
- USB-A 1 Output (AFC 18W): Output port for charging devices with Adaptive Fast Charge.
- USB-A 2 Output (AFC 18W): Output port for charging devices with Adaptive Fast Charge.
- ON/OFF knap: Activates the power bank and checks the battery level.
- LED-indikatorer: Four LED lights indicate the remaining battery charge level.
Image 4.1: Technical diagram illustrating the ON/OFF button, LED indicators, and the four charging ports (2x USB-C, 2x USB-A) with their respective power outputs.
Image 4.2: Visual representation of the power bank's ports, including two USB-A ports (18W Adaptive Fast Charge) and two USB-C ports (one 20W Power Delivery output, one Type-C input).
5. Opsætning
5.1 Førstegangsbrug
The power bank is pre-charged upon delivery and ready for immediate use. For optimal performance and to ensure full capacity, it is recommended to fully charge the power bank before its first extensive use.
6. Betjeningsvejledning
6.1 Genopladning af powerbanken
- Connect the included USB charging cable to the USB-C 1 Input/Output port on the power bank.
- Connect the other end of the cable to a compatible USB wall adapter (not included) or a computer's USB port.
- The LED indicators will flash to show the charging progress. All four LEDs will be solid when the power bank is fully charged.
6.2 Opladning af dine enheder
The power bank can charge up to four devices simultaneously, including smartphones, tablets, speakers, TWS earphones, and e-readers.
- Connect your device's charging cable to one of the available output ports (USB-C 1, USB-C 2, USB-A 1, or USB-A 2) on the power bank.
- Tilslut den anden ende af kablet til din enhed.
- The power bank will automatically begin charging your device. If not, press the ON/OFF button once.
- The USB-C ports offer 20W Power Delivery for ultra-fast charging of compatible devices.
- The USB-A ports provide 18W Adaptive Fast Charge for devices not compatible with Power Delivery.
Image 6.1: The power bank is capable of charging multiple devices at the same time, even while it is being recharged itself, thanks to Dual Charge technology.

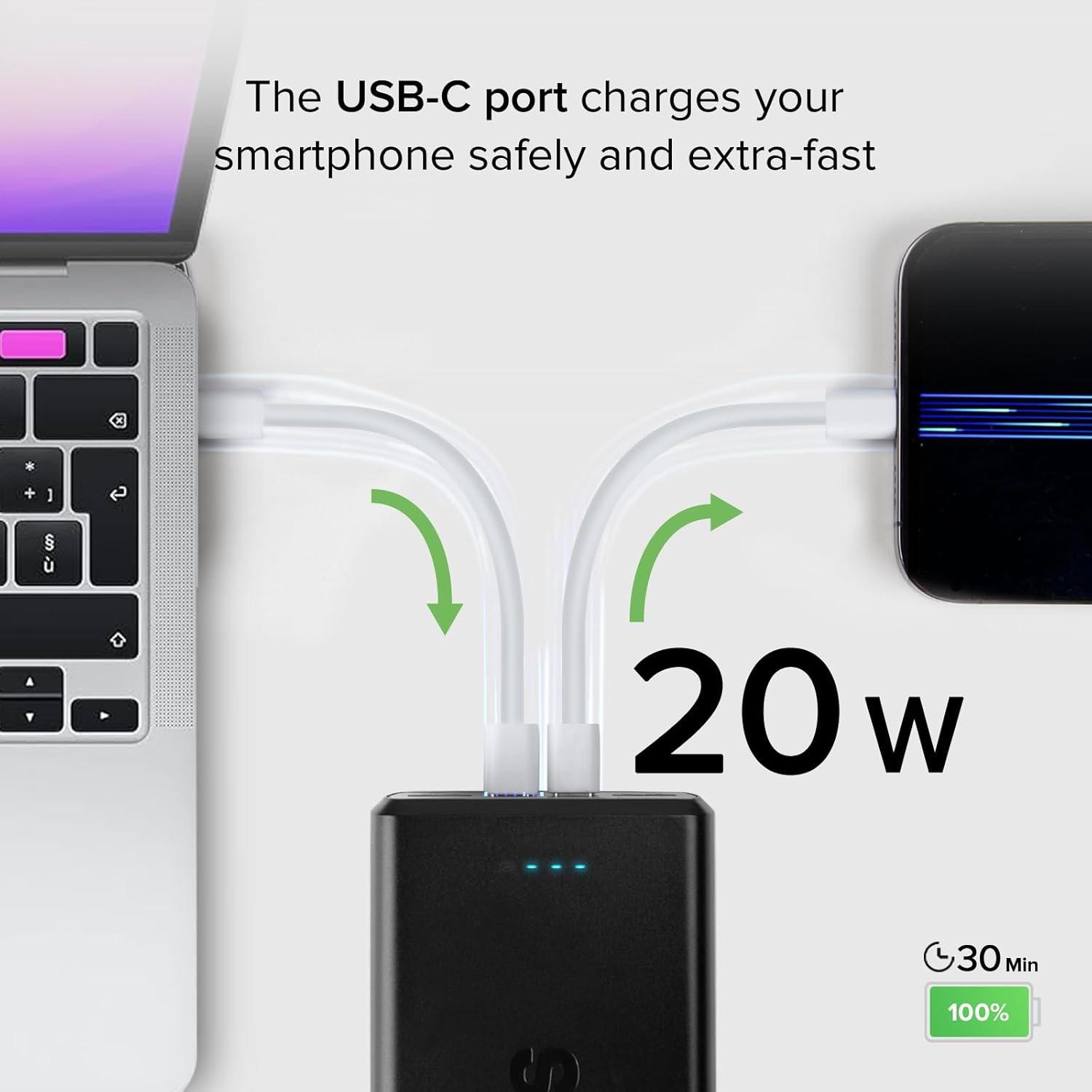

Image 6.2: A USB-C port delivering 20W of power to rapidly charge a smartphone, reaching 100% in approximately 30 minutes.
Image 6.3: A USB-A port providing 18W Adaptive Fast Charge, capable of fully charging a smartphone in about 45 minutes.
6.3 Kontrol af batteriniveau
Tryk én gang på ON/OFF-knappen for at view the current battery charge level indicated by the four LED lights.
- 4 lysdioder: 75-100% opladning
- 3 lysdioder: 50-75% opladning
- 2 lysdioder: 25-50% opladning
- 1 lysdioder: 0-25% opladning

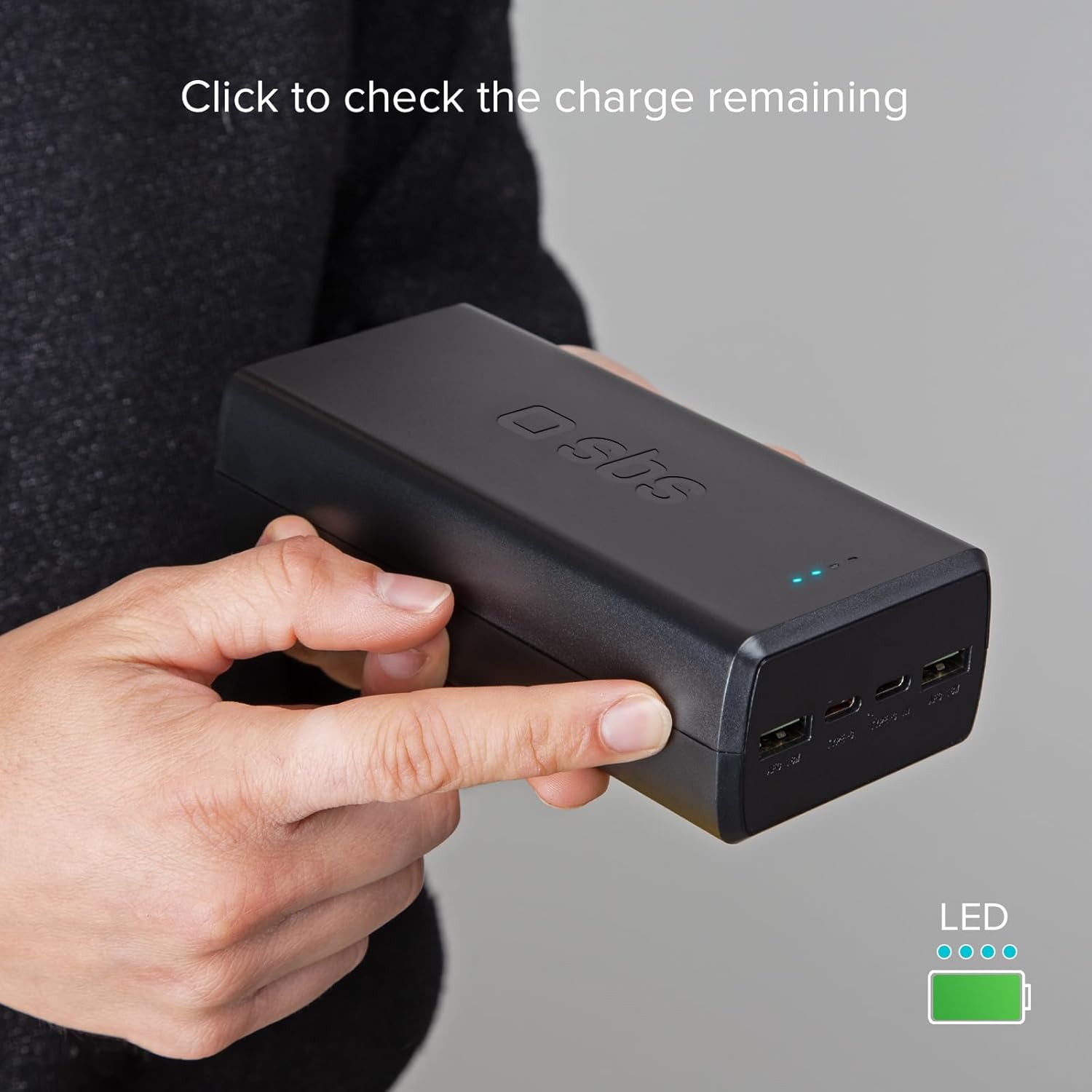

Image 6.4: A user pressing the side button to activate the LED indicators and check the remaining charge of the power bank.
7. Vedligeholdelse
- Rengør powerbanken med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
- Opbevar powerbanken på et køligt, tørt sted, når den ikke er i brug.
- If storing for an extended period, recharge the power bank every 3-6 months to maintain battery health.
8. Fejlfinding
8.1 Powerbanken oplader ikke
- Ensure the charging cable is securely connected to both the power bank's USB-C input port and the power source.
- Verify that the wall adapter or USB port is functional. Try a different adapter or port.
- Kontroller om opladningskablet er beskadiget. Prøv at bruge et andet kabel.
8.2 Enhed oplades ikke fra powerbank
- Sørg for, at powerbanken har tilstrækkelig opladning (tjek LED-indikatorerne).
- Press the ON/OFF button to activate the power bank.
- Verify that the charging cable is securely connected to both the power bank's output port and your device.
- Prøv en anden udgangsport på powerbanken.
- Check if your device's charging cable is damaged. Try a different cable.
- Some devices may require specific charging protocols. Ensure compatibility.
8.3 Langsom opladning
- Ensure you are using a fast-charging compatible cable and adapter for recharging the power bank or charging your devices.
- Verify that your device supports Power Delivery (PD) or Adaptive Fast Charge (AFC) for optimal speeds.
- Charging multiple devices simultaneously may distribute power, potentially reducing individual charging speeds.
9. Specifikationer
| Mærke | SBS |
| Model | 30000 mAh |
| Batterisammensætning | Lithium-polymer |
| Kapacitet | 30000 mAh |
| Input (USB Type-C 1) | 5V D.C. 3A, 9V D.C. 2.22A, 12V D.C. 1.67A (PD 20W) |
| Output (USB Type-C 1) | 5V D.C. 3A, 9V D.C. 2.22A, 12V D.C. 1.67A (PD 20W) |
| Output (USB Type-C 2) | 5V D.C. 3A, 9V D.C. 2.22A, 12V D.C. 1.67A (PD 20W) |
| Output (USB-A 1 & 2) | 5V D.C. 3A, 9V D.C. 2A, 12V D.C. 1.5A (18W) |
| Særlige funktioner | Fast Charge, Short Circuit Protection, Discharge Protection, LED Indicator |
| Farve | Sort |
| Produktdimensioner | 14L x 6.7W x 4H centimeter |
10. Garantioplysninger
This SBS Power Bank is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official SBS website for detailed terms and conditions regarding warranty coverage and claims.
11. Support
For technical assistance, product inquiries, or customer service, please visit the official SBS website or contact their customer support team through the contact information provided on their webwebsted. Hav venligst din produktmodel og købsoplysninger klar, når du kontakter support.
