GIMA SP80B Bærbart Spirometer Instruktionsmanual

1. Introduktion

The GIMA SP80B Portable Spirometer is a compact and professional medical device designed for examining pulmonary function. It provides high accuracy and repeatability, making it suitable for use in hospitals, clinics, and for routine home monitoring. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your SP80B Spirometer.

The device features a high-definition screen that directly displays measured parameters, offering clear visualization of flow-volume and volume-time graphs, as well as trend charts. It also includes patient information management capabilities (height, age, sex, etc.) and a health status indicator with a calibration function.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before using the GIMA SP80B Spirometer. Failure to follow these instructions may result in inaccurate readings or device malfunction.

• Brug kun enheden som beskrevet i denne vejledning.
• Forsøg ikke selv at skille enheden ad eller reparere den. Overlad al service til kvalificeret personale.
• Hold enheden væk fra vand og andre væsker.
• Undgå at udsætte enheden for ekstreme temperaturer, fugt eller direkte sollys.
• Ensure the device is calibrated regularly as per the maintenance section to maintain accuracy.
• Consult a medical professional for interpretation of results and any health concerns. This device is for monitoring purposes and does not replace professional medical diagnosis.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Spirometer (GIMA SP80B)
• Brugermanual
• Mouthpiece (if included, typically disposable)
• USB Cable (for data transfer/charging, if applicable)
• Software CD/Download Link (if applicable)

4. Produktet er slutview

The GIMA SP80B Spirometer is designed for ease of use and portability. Familiarize yourself with its components:

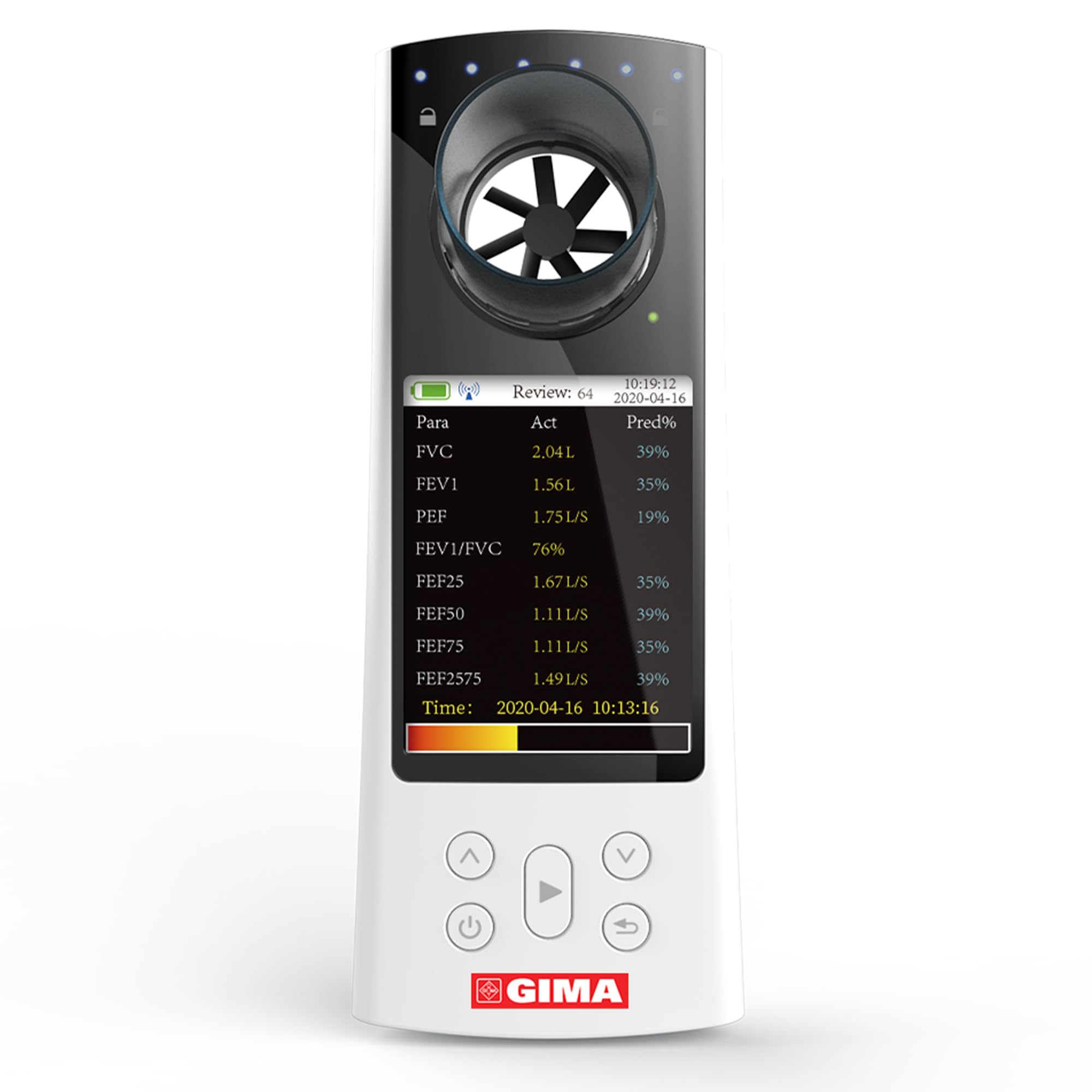

Figure 4.1: GIMA SP80B Portable Spirometer. This image shows the complete device with the mouthpiece inserted, displaying the screen and the control buttons at the bottom.

• Mundstykkeport: Where the disposable mouthpiece is attached for testing.
• Skærm: High-definition screen showing measurement parameters, graphs, and device status.
• Kontrolknapper: Power button, navigation buttons (up/down), select/start button, and back/return button.
• Sensor/Turbine: Internal component that measures airflow.

Figure 4.2: Close-up of the Spirometer's Turbine Sensor. This image highlights the internal turbine mechanism responsible for measuring airflow during a test.

Figure 4.3: Spirometer Display Screen. This image illustrates the high-definition display showing key pulmonary function parameters and their corresponding values.

Figure 4.4: Control Buttons. This image provides a detailed view of the device's control buttons, including power, navigation, and selection functions.

5. Opsætning

1. Udpakning: Carefully remove the spirometer and all accessories from the packaging. Inspect for any damage.
2. Batteriinstallation/opladning:

   If the device uses replaceable batteries, insert them according to the polarity markings. If it has a rechargeable battery, connect the USB cable to the device and a power source to charge it fully before first use. The battery indicator on the screen will show charging status.

3. Tænd: Tryk og hold tænd/sluk-knappen (⏻) indtil skærmen lyser op.
4. Indledende indstillinger:

   Upon first power-on, you may be prompted to set the date, time, and language. Use the navigation buttons (⌃ og ⌄) to select options and the select button (▶) at bekræfte.
5. Patient Information Setup:

   Before performing a test, it is crucial to input patient information such as height, age, and sex. This data is used to calculate predicted values for pulmonary function parameters. Navigate to the patient management section using the control buttons and enter the required details.

6. Betjeningsvejledning

Follow these steps to perform a pulmonary function test:

1. Forbered enheden:
   • Ensure the device is powered on and fully charged or has sufficient battery.
   • Attach a clean, disposable mouthpiece securely to the mouthpiece port.
2. Patientpositionering:

   Instruct the patient to sit upright comfortably. Ensure they understand the breathing maneuvers required for the test.

3. Udførelse af testen:
   • Select the desired test mode (e.g., FVC - Forced Vital Capacity) from the device menu.
   • Instruct the patient to take a deep breath, filling their lungs completely.
   • Place the mouthpiece in their mouth, sealing their lips tightly around it.
   • Instruct the patient to exhale as hard and fast as possible, emptying their lungs completely. This exhalation should be sustained for at least 6 seconds (or as instructed by a medical professional).
   • Repeat the test as necessary, typically three times, to ensure reproducible results.
4. Viewing resultater:

   After each test, the device will display the measured parameters (e.g., FVC, FEV1, PEF) and their predicted percentage values on the high-definition screen. You can navigate through different views, including flow-volume graphs, volume-time graphs, and trend charts, using the navigation buttons.

5. Datastyring:

   The device allows for the management of patient information and test results. You can review past tests, compare results, and potentially transfer data to a computer via USB for further analysis and record-keeping.

7. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your GIMA SP80B Spirometer.

• Rensning:
  • After each use, dispose of the mouthpiece properly.
  • Tør ydersiden af ​​enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller nedsænk enheden i vand.
  • Ensure the mouthpiece port and sensor area are free from debris.
• Kalibrering:

  The spirometer includes a calibration function to maintain accuracy. Refer to the device's menu for calibration procedures. Regular calibration, as recommended by GIMA or your medical institution, is essential.
• Opbevaring:

  Store the device in a clean, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.

8. Fejlfinding

If you encounter issues with your GIMA SP80B Spirometer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact GIMA customer support for further assistance.

9. Specifikationer

10. Garantioplysninger

GIMA products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official GIMA webwebsted. Gem din købsbevis til garantikrav.

11. Support og kontaktoplysninger

For technical support, service, or inquiries regarding your GIMA SP80B Spirometer, please contact GIMA customer service:

• Webwebsted: www.gimaitaly.com (or refer to your product documentation for specific regional contact details)
• E-mail: Henvis til embedsmanden webwebsted for kontakt-e-mail.
• Telefon: Henvis til embedsmanden webhjemmeside for kontakttelefonnumre.

When contacting support, please have your product model (SP80B) and article number (33551) ready.
