HAIBOXING 3100A 1:14 Skala 4WD Børsteløs RC Kortbane Lastbil Instruktionsmanual

1. Introduktion

This manual provides essential information for the safe and effective operation and maintenance of your HAIBOXING 3100A 1:14 Scale 4WD Brushless RC Short-Course Truck. This high-performance remote control vehicle is designed for off-road enthusiasts, featuring a powerful brushless motor, durable components, and versatile terrain capabilities. Please read this manual thoroughly before operating the vehicle.

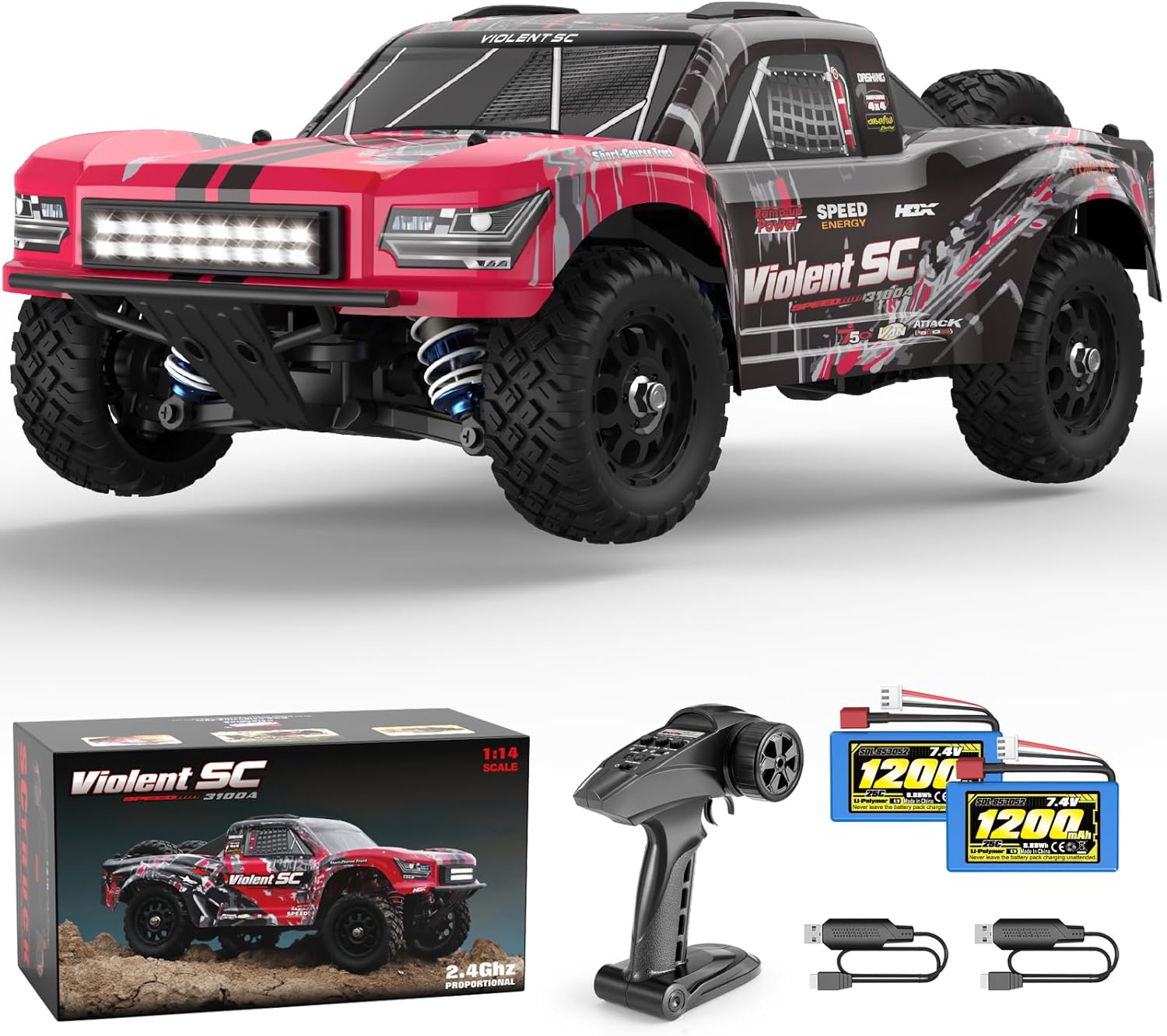

Image 1.1: The HAIBOXING 3100A RC Short-Course Truck, including the remote control and two Li-Po batteries.

2. Sikkerhedsoplysninger

To ensure safe operation and prolong the life of your RC truck, observe the following safety guidelines:

• Always disconnect and remove the battery pack from the vehicle when not in use to prevent damage from battery discharge or leakage.
• Avoid completely draining the battery pack during use, as this can shorten its lifespan.
• Oplad batteripakken helt før hver brug.
• Lad ikke batteripakken være uopladet i længere perioder.
• Opbevar batteripakken et tørt, rent og køligt sted.
• This product is recommended for RC players aged 14 or above.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Fjernbetjeningssender
• HAIBOXING 3100A RC Short-Course Truck
• Two 7.4V 1200mAh Li-Po Batteries (one installed, one spare)
• Two USB Charging Cables
• Skruetrækker
• Instruktionsmanual

4. Produktet er slutview

The HAIBOXING 3100A is engineered for robust off-road performance. Key features include:

• Brushless Motor System: Equipped with a 2840 KV3800 brushless motor and a Hobbywing Brushless ESC for high speed and efficiency.
• Holdbar konstruktion: Features powdered metallurgy gears, metal drive shafts, and aluminum oil shocks for enhanced durability across various terrains.
• Avanceret affjedring: Traditional short-course truck structural design with front independent suspension and a rear axle, complemented by an anti-roll sway bar for stability.
• Realistisk design: Full rear roll cage with two authentic spare tires and illuminating front and taillights for a realistic appearance and nighttime visibility.
• High-Grip Tires: Off-road tires with foam sponges inserted, paired with a thickened PVC truck body for aggressive driving.

Billede 4.1: Detaljeret view of the truck's chassis, highlighting the brushless motor, ESC, aluminum oil shocks, and high-grip tires.

Billede 4.2: Side profile of the HAIBOXING 3100A, illustrating its dimensions, rear roll cage with spare tires, and aluminum oil shocks.

5. Opsætning

5.1 Batteriopladning

The HAIBOXING 3100A includes two 7.4V 1200mAh Li-Po batteries and two USB charging cables. Use a smartphone adapter (rated at 5V, 2A or lower) to charge the batteries. The charging process allows for simultaneous charging of both batteries.

1. Connect the USB charging cable to a compatible USB power source.
2. Tilslut batteriet til ladekablet.
3. The indicator light on the USB cable will show the charging status. Refer to the charger's instructions for specific light indications (e.g., red for charging, green for fully charged).

5.2 Batteriinstallation

For køretøjet:

1. Remove the body clips and lift the truck body to access the battery compartment.
2. Place a charged 7.4V 1200mAh Li-Po battery into the enlarged battery compartment.
3. Secure the battery and reattach the truck body with the body clips.

For the Remote Control Transmitter:

1. Åbn batteridækslet på bagsiden af ​​senderen.
2. Insert the required batteries (typically AA, not included) according to the polarity markings.
3. Luk batterirummets dæksel.

5.3 Sender overview and Binding

The 2.4GHz remote control system provides a range of up to 330 feet.

Image 5.1: The 2.4GHz transmitter with labeled components including steering wheel, throttle trigger, and various trim/D/R adjustments.

Senderkontrol:

• Rat: Controls left and right steering.
• Gashåndtag: Controls forward, brake, and reverse.
• Styring Trim (ST.TRIM): Adjusts the neutral steering position.
• Steering D/R (ST.D/R): Adjusts the maximum steering angle.
• Gashåndtag Trim (TH.TRIM): Adjusts the neutral throttle position.
• Throttle Reverse (TH.REV): Reverses throttle direction.
• Strømindikator: Shows battery status (low power indicated by blinking).
• TIL/FRA-knap: Turns the transmitter on or off.

Bindende procedure:

Typically, the truck and transmitter come pre-bound. If re-binding is necessary:

1. Ensure both the truck and transmitter are powered off.
2. Tænd for senderen.
3. Turn on the truck. The indicator lights on both devices should show a successful connection (refer to the specific manual for light patterns).
4. If binding fails, repeat the steps or consult the detailed instruction manual for your specific model.

6. Betjening

6.1 Grundlæggende kontroller

• Frem/bremse/baglæns: Pull the throttle trigger towards you to accelerate forward. Push it away from you for braking, and push it again for reverse.
• Styretøj: Turn the steering wheel left or right to control the direction of the truck.

6.2 Køretips

The HAIBOXING 3100A is designed for versatile off-road performance:

• Off-Road Terrain: The robust suspension and high-grip tires make it suitable for sandy areas, off-road gravel, and even cement roads.
• Hastighed: Achieve speeds of 38mph (60km/h) with a compatible 3S Li-Po battery pack. With the included 2S battery, it reaches 42 km/h.
• Night Driving: Utilize the illuminating front and taillights for visibility during low-light conditions.

Image 6.1: The HAIBOXING 3100A demonstrating its off-road capability on a sandy terrain.

Image 6.2: The HAIBOXING 3100A navigating through shallow water, highlighting its splash-waterproof electronics.

6.3 Officielle produktvideoer

7. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your HAIBOXING 3100A:

• Rensning: After each use, especially after driving in dirt or wet conditions, clean the truck to remove debris. Use a soft brush or compressed air.
• Komponentkontrol: Periodically inspect the metal drive shafts, powdered metallurgy gears, and aluminum oil shocks for any signs of wear or damage. Ensure all screws are tight.
• Batteripleje: Follow the safety guidelines in Section 2 for proper battery handling, charging, and storage.

8. Fejlfinding

If you encounter issues with your HAIBOXING 3100A, consider the following:

• No Power/Unresponsive:
  • Ensure both the vehicle and transmitter batteries are fully charged and correctly installed.
  • Verify the truck and transmitter are properly bound (refer to Section 5.3).
• Begrænset rækkevidde:
  • Kontroller for interferens fra andre 2.4 GHz-enheder.
  • Ensure the transmitter's power indicator is not blinking, indicating low battery.
• Motorproblemer:
  • The Hobbywing brushless ESC includes motor anti-jam safeguards. If the motor stops, check for obstructions or overheating.
• Lav voltage advarsel:
  • If the truck exhibits a low voltage alert indication, immediately stop operation and charge the battery.
• Fysisk skade:
  • Collisions can occasionally lead to unexpected damage. For technical support regarding repairs or replacement parts, please contact the seller.

9. Specifikationer

10. Garanti og support

For technical assistance, warranty claims, or inquiries regarding replacement parts, please contact the seller directly. Provide your product model number (3100A) and a detailed description of the issue to facilitate support.
