VOKSUN Outdoor Weather Station Sensor User Manual

Indledning

This manual provides detailed instructions for the VOKSUN Outdoor Weather Station Sensor. This sensor is designed to accurately measure outdoor temperature and humidity, transmitting data wirelessly to compatible VOKSUN weather stations. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

Sikkerhedsoplysninger

• Do not expose the sensor to extreme temperatures outside its operating range.
• Avoid direct exposure to water or heavy rain. While designed for outdoor use, prolonged submersion or direct water jets may cause damage.
• Use only the specified battery type (2 x AA batteries). Do not mix old and new batteries or different battery types.
• Opbevares utilgængeligt for børn.
• Bortskaf brugte batterier ansvarligt i henhold til lokale regler.

Produkt overview

The VOKSUN Outdoor Sensor is a compact device designed for reliable outdoor environmental monitoring. It features a clear display for local readings and a wireless transmitter for sending data to your main weather station unit.

Figur 1: Forside view of the VOKSUN Wireless Outdoor Sensor. The display shows "WIRELESS SENSOR" at the top, with temperature (e.g., 30.5°C) and humidity (e.g., 48%) readings below it, along with a channel indicator (CH1).

Nøglefunktioner:

• Trådløs transmission af udendørs temperatur og luftfugtighed.
• Maximum transmission distance of 60 meters (open area).
• Manual switching between Celsius (°C) and Fahrenheit (°F).
• Integrated hanging hole and mounting bracket for flexible placement.
• Kompakt og let design.

Figure 2: Dimensions of the VOKSUN Wireless Outdoor Sensor. The sensor measures 9.6 cm in height, 4.5 cm in width, and 3 cm in depth.

Opsætning

1. Batteriinstallation

1. Find batterirummet på bagsiden af ​​sensoren.
2. Skub batteridækslet op.
3. Insert 2 x AA batteries (not included) according to the polarity indicators (+ and -) inside the compartment.
4. Luk batteridækslet forsvarligt.

Figure 3: Battery installation in the VOKSUN Wireless Outdoor Sensor. The back cover is removed, revealing slots for two AA batteries. A switch for channel selection (CH1-CH2-CH3) is also visible.

2. Montering af sensoren

The sensor can be mounted in various locations using its integrated hanging hole or mounting bracket.

• Valg af sted: Choose a location outdoors that is protected from direct sunlight and heavy precipitation for accurate readings. Ensure it is within 60 meters of your main weather station unit.
• Hængende: Use a screw or nail (not included) to hang the sensor via the hole on its back.
• Montering af beslag: Utilize the bracket on the bottom to secure it to a flat surface or pole.

3. Parring med vejrstation

Once batteries are installed, the sensor will automatically begin transmitting data. Refer to your main VOKSUN weather station's manual for specific instructions on how to pair and receive data from the outdoor sensor. Ensure both devices are within the 60-meter transmission range.

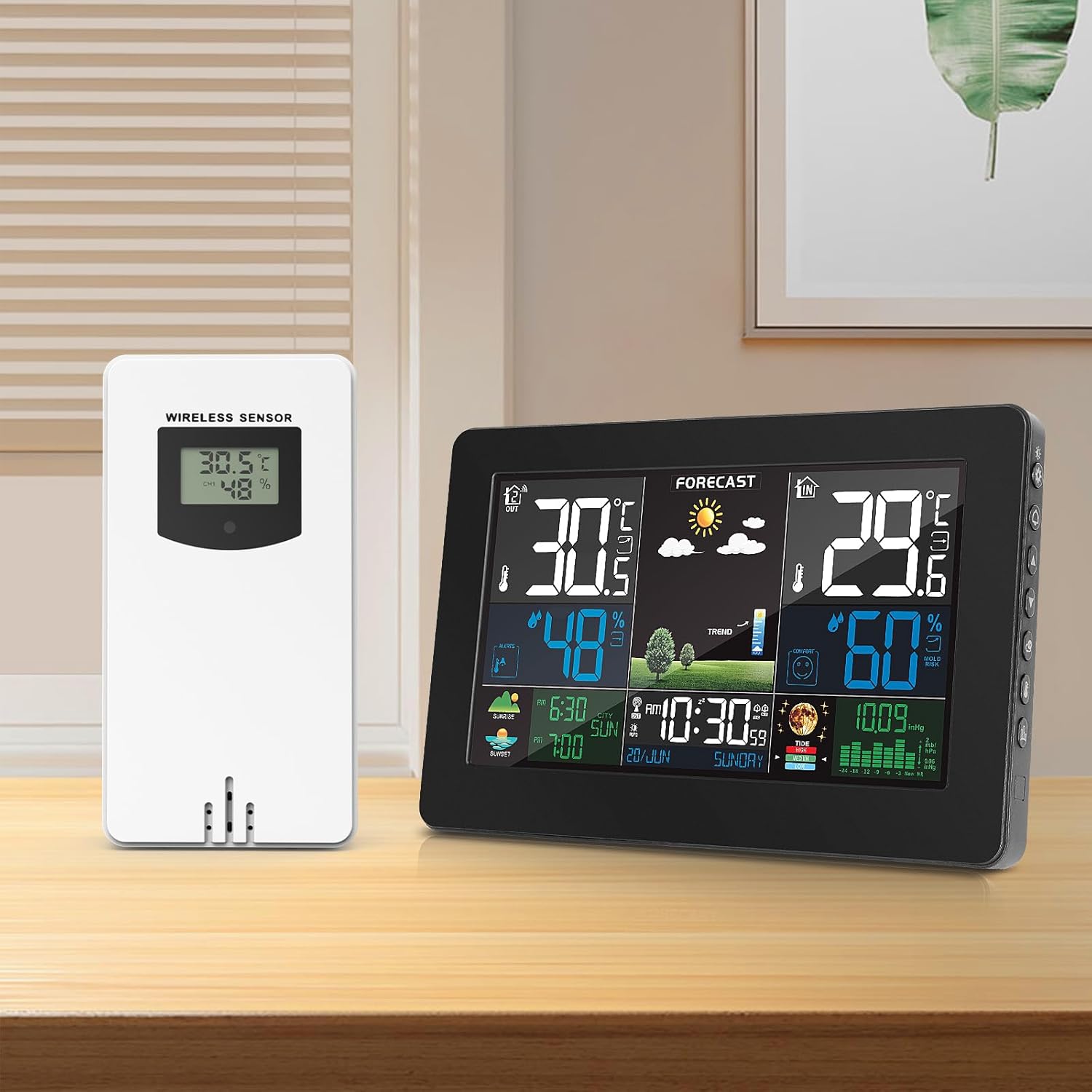

Figure 4: The VOKSUN Wireless Outdoor Sensor positioned alongside a compatible VOKSUN Weather Station display unit, illustrating their intended use together.

Operation

Visning af temperatur og fugtighed

The sensor's built-in display shows the current outdoor temperature and humidity readings directly. These readings are also transmitted wirelessly to your compatible weather station.

Skifter °C/°F

On the back of the sensor, usually within the battery compartment or near it, there is a small button or switch to toggle between Celsius (°C) and Fahrenheit (°F) temperature units. Press or slide this control to select your preferred unit.

Opretholdelse

Udskiftning af batteri

When the display on the sensor or your main weather station indicates low battery, replace both AA batteries following the "Battery Installation" steps in the Setup section. Always replace both batteries at the same time with new ones.

Rensning

Tør sensorens yderside af med en blød kludamp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige casing or display. Ensure the sensor is dry before re-exposing it to outdoor elements.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the documentation provided with your main VOKSUN weather station unit or visit the official VOKSUN webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
