Amazon Basics NiMH Rechargeable Batteries and 4-Slot Charger User Manual

1. Introduktion

This manual provides instructions for the Amazon Basics NiMH Rechargeable Battery Kit, which includes a 4-slot battery charger, four AA 2000mAh NiMH rechargeable batteries, and four AAA 800mAh NiMH rechargeable batteries. Please read this manual carefully before using the product to ensure safe and optimal performance.

Image 1.1: The Amazon Basics 4-slot battery charger shown with a set of AA and AAA rechargeable batteries.

2. Sikkerhedsoplysninger

Overhold følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:

• Use this charger exclusively for NiMH rechargeable batteries. Do not attempt to charge alkaline, NiCd, or Li-ion batteries, as this may cause damage, leakage, or explosion.
• Ensure batteries are inserted with correct polarity (+/-) as indicated on the charger and batteries. Incorrect insertion can lead to damage.
• Opladeren eller batterierne må ikke skilles ad, ændres eller kortsluttes.
• Avoid exposing the charger or batteries to water, fire, extreme temperatures, or direct sunlight.
• Opbevares utilgængeligt for børn.
• If a battery shows signs of leakage, discoloration, deformation, or any other abnormality, discontinue use immediately.
• Always replace all batteries in a device simultaneously. Mixing old and new batteries, or different types of batteries, can reduce performance and potentially cause leakage.
• Consult your device's manual for specific battery requirements and compatibility with 1.2V NiMH batteries. Note that 1.2V NiMH batteries may have a shorter runtime than 1.5V alkaline batteries in some devices.
• NiMH batteries are slightly larger than alkaline batteries to meet IEC standards. Verify proper fit in your device.

3. Pakkens indhold

The Amazon Basics NiMH Rechargeable Battery Kit includes:

• 1 x 4-Slot NiMH Battery Charger (European plug)
• 4 x AA 2000mAh NiMH genopladelige batterier
• 4 x AAA 800mAh NiMH Rechargeable Batteries

Note: This kit includes a charger with a European plug. No separate cable is required.

4. Opsætning

1. Pak komponenterne ud: Carefully remove the charger and batteries from their packaging.
2. Undersøg for skader: Before first use, inspect the charger and batteries for any visible damage. Do not use if damaged.
3. Tilslut opladeren: Insert the charger directly into a standard European wall outlet. Upon plugging in, all LED indicators will briefly light up and then turn off, indicating a quick startup diagnostic.
4. Indsæt batterier: Insert NiMH AA or AAA rechargeable batteries into the charging slots. Ensure correct polarity by matching the '+' and '-' symbols on the battery with those on the charger. The charger can charge 1 to 4 batteries simultaneously, in any combination of AA and AAA.

Image 4.1: The charger connected to a power outlet with batteries inserted for charging.

5. Betjeningsvejledning

5.1 Opladningsproces

Once batteries are correctly inserted and the charger is plugged in, the charging process begins automatically. Each battery slot charges independently.

Image 5.1: Illustration of the charger's intelligent design, highlighting individual charging, overheat prevention, and incorrect polarity detection.

5.2 LED-indikatorvejledning

The charger features LED indicators for each slot to display the charging status:

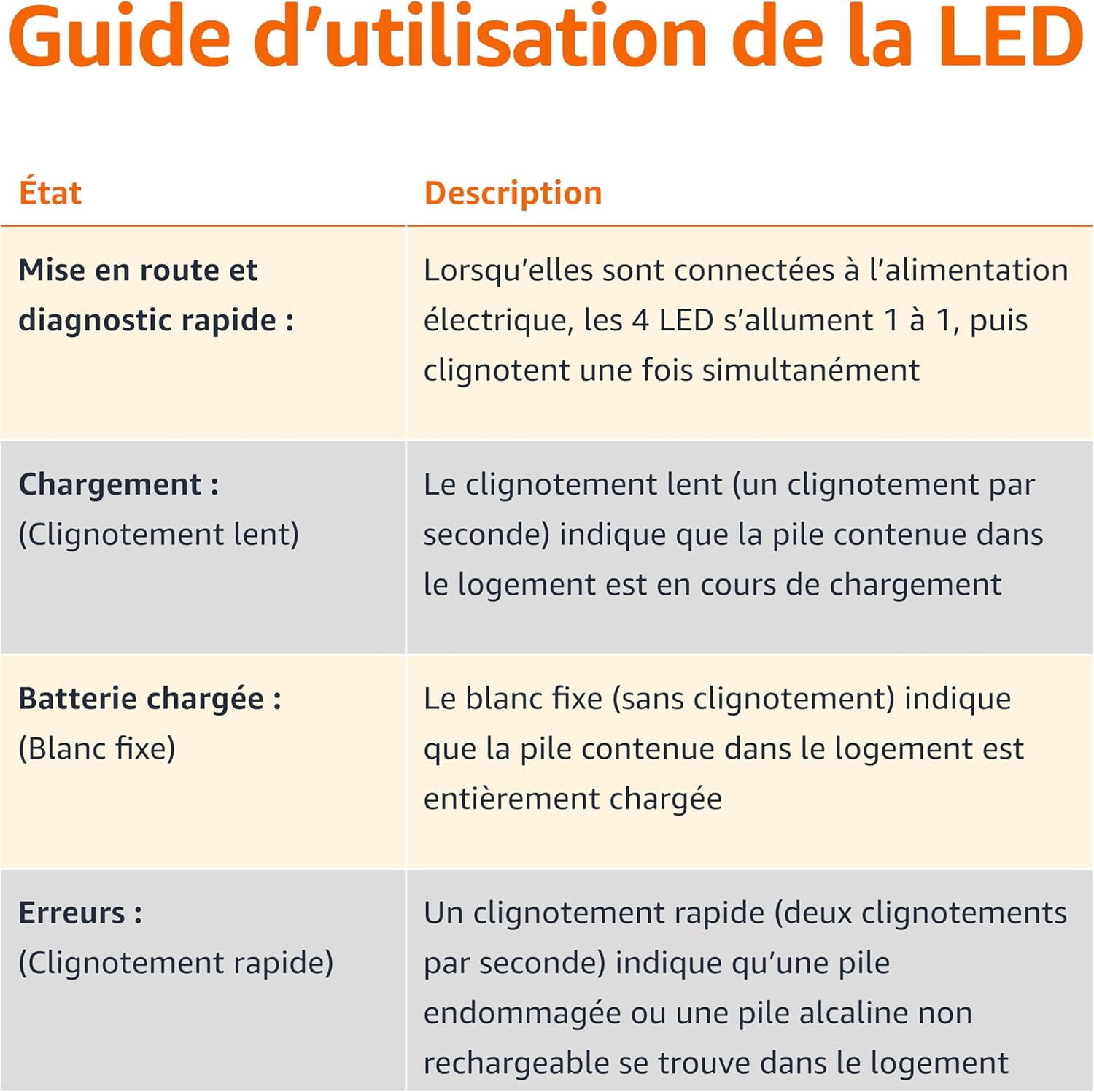

Image 5.2: Visual guide to the LED indicators on the charger.

5.3 Approximate Charging Times

• AA batterier:
  • 2 AA batteries: Approximately 3.5 hours
  • 4 AA batteries: Approximately 7 hours
• AAA batterier:
  • 2 AAA batteries: Approximately 2 hours
  • 4 AAA batteries: Approximately 4 hours

6. Vedligeholdelse

• Batterilevetid: The included rechargeable batteries are designed to withstand up to 1000 recharges, providing long-term use.
• Lav selvafladning: These batteries retain approximately 80% of their capacity for up to 12 months when stored.
• Rensning: Clean the charger and battery contacts with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Opbevaring: Store the charger and batteries in a cool, dry place away from direct sunlight and extreme temperatures.

Image 6.1: Features of the rechargeable batteries, including low self-discharge and long lifespan.

7. Fejlfinding

If you encounter issues with your charger or batteries, refer to the following:

• Batteries not charging (Rapid Flashing LED):
  • Ensure the battery is a NiMH rechargeable type. The charger is not compatible with alkaline or other battery chemistries.
  • Check for correct battery polarity. Reinsert the battery, ensuring the '+' and '-' terminals align with the charger's markings.
  • The battery may be defective. Try charging a different NiMH battery to confirm charger functionality.
• Slow charging or reduced battery life:
  • Ensure the charger is plugged directly into a functional wall outlet.
  • Batteries have a limited number of charge cycles. If batteries are very old or have been recharged many times, their capacity may naturally decrease.
  • Ensure the batteries are fully discharged before recharging for optimal performance, though NiMH batteries do not suffer from a "memory effect" as severely as NiCd.
• Opladeren tænder ikke:
  • Kontroller, at stikkontakten fungerer ved at tilslutte en anden enhed.
  • Sørg for, at opladeren er tilsluttet korrekt til stikkontakten.

8. Specifikationer

9. Garanti og support

This Amazon Basics product is covered by a 1 års begrænset garanti from the date of purchase. For warranty claims or technical support, please contact Amazon customer service or visit the Amazon Basics official webwebsted.

Gem venligst din købsbevis af garantihensyn.
