UrbanX M190 Bluetooth-højttaler brugermanual

1. Introduktion

Thank you for choosing the UrbanX M190 Bluetooth Speaker. This manual provides essential information for the proper setup, operation, and maintenance of your device. The UrbanX M190 is designed to deliver powerful stereo sound with features like IPX7 waterproofing, True Wireless Stereo (TWS) pairing, and a portable design, making it suitable for various environments.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• UrbanX M190 Bluetooth Speaker
• USB Type-C opladerkabel
• Brugervejledning (dette dokument)

3. Opsætning

3.1 Opladning af højttaleren

Before initial use, fully charge the speaker. Connect the provided USB Type-C charging cable to the speaker's charging port and a compatible USB power adapter (not included). The charging indicator will illuminate during charging and turn off when fully charged. A full charge typically takes 3-4 hours.

3.2 Tænd/sluk

• To power on: Press and hold the power button for approximately 3 seconds.
• To power off: Press and hold the power button for approximately 3 seconds.

3.3 Bluetooth -parring

1. Sørg for, at højttaleren er tændt og i Bluetooth-parringstilstand (indikeret med en blinkende LED).
2. Aktiver Bluetooth på din enhed (smartphone, tablet osv.) og søg efter tilgængelige enheder.
3. Select "UrbanX M190" from the list of devices.
4. Once connected, the speaker will emit an audible confirmation, and the LED indicator will stop flashing.

3.4 Ægte trådløs stereo (TWS) parring

To achieve surround sound, you can pair two UrbanX M190 speakers together:

1. Ensure both UrbanX M190 speakers are powered on and not connected to any other Bluetooth device.
2. On one speaker, press and hold the TWS pairing button (refer to button layout in Section 4.1) for 2-3 seconds. It will enter TWS pairing mode.
3. The two speakers will automatically connect to each other. An audible tone will confirm successful TWS pairing.
4. Once TWS paired, connect your device to one of the speakers via Bluetooth as described in Section 3.3. Both speakers will now play audio simultaneously.

4. Betjening af højttaleren

4.1 Knapfunktioner

The UrbanX M190 features intuitive controls for easy operation:

• Power knap: Tryk og hold nede for at tænde/slukke. Tryk kort for at afspille/sætte musik på pause.
• Lydstyrke op (+): Kort tryk for at øge lydstyrken. Langt tryk for næste nummer.
• Skrue ned for lyden (-): Kort tryk for at sænke lydstyrken. Langt tryk for forrige nummer.
• Call Button (if applicable): Short press to answer/end calls. Long press to reject calls.
• TWS knap: Press and hold to initiate TWS pairing (refer to Section 3.4).

4.2 Medieafspilning

• Bluetooth-afspilning: Efter vellykket Bluetooth-parring afspilles lyd fra din tilsluttede enhed gennem højttaleren.
• SD/TF Card Playback: Insert a microSD (TF) card (up to 32GB) with audio files into the designated slot. The speaker will automatically switch to card playback.
• AUX-indgang: Connect an audio device using a 3.5mm AUX cable (not included) to the AUX port. The speaker will automatically switch to AUX mode.

4.3 Håndfri opkald

When connected via Bluetooth, the built-in microphone allows for hands-free calls. Use the call button to manage incoming calls.

5. Nøglefunktioner

• IPX7 Vandtæt: The speaker is designed to withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor and wet environments.
• True Wireless Stereo (TWS): Connect two UrbanX M190 speakers for an enhanced stereo sound experience.
• Kraftig lyd: Features a 1.69-inch driver and BASSBOOST technology for clear and robust sound.
• Lang batterilevetid: Up to 20 hours of continuous playback on a single charge with its 1800mAh rechargeable lithium-ion battery.
• Flere afspilningstilstande: Supports Bluetooth V5.2, SD/TF card, and AUX input.
• Bærbart design: Compact and lightweight with a fixed loop for easy carrying.

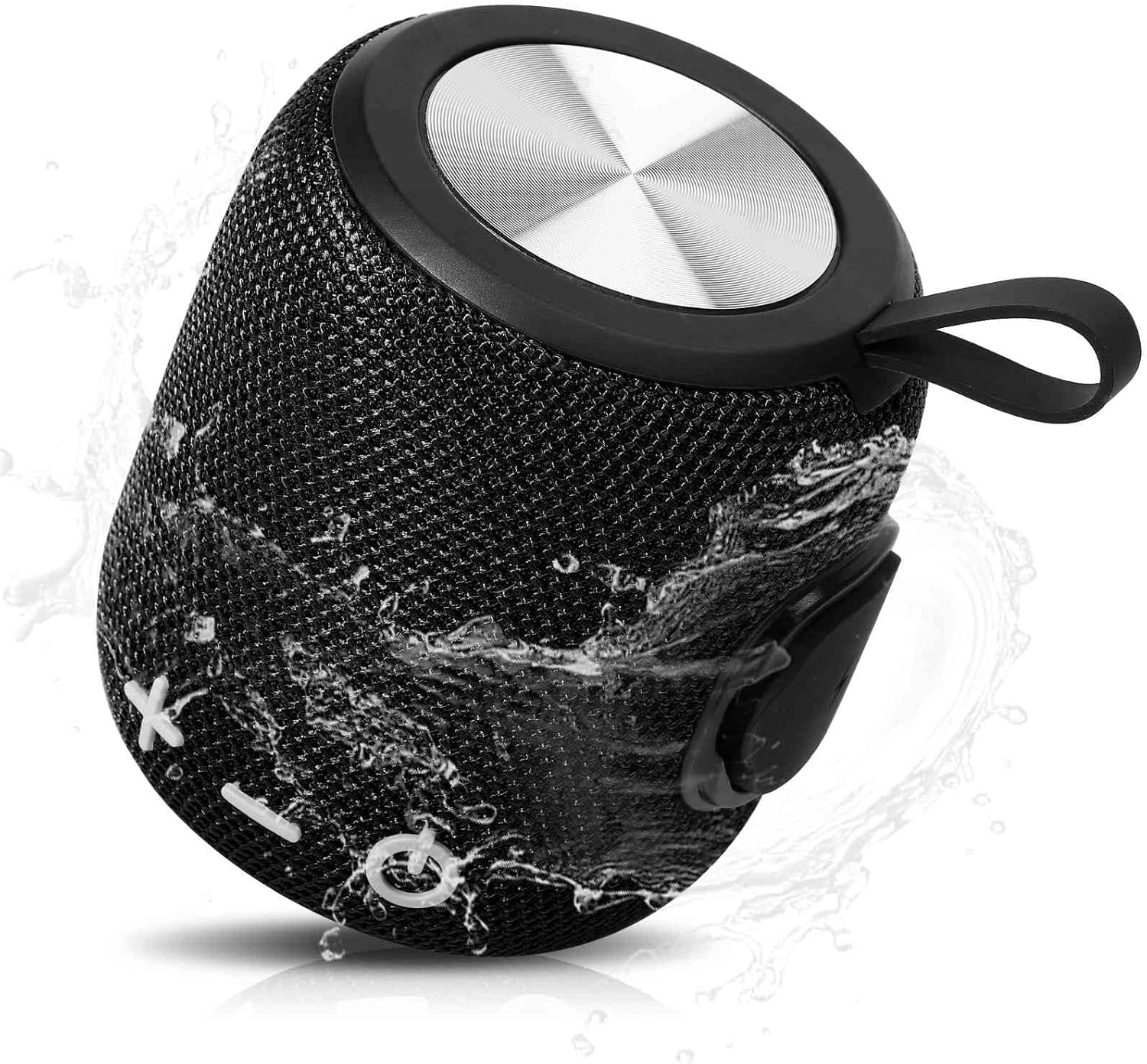

Image: The UrbanX M190 Bluetooth Speaker, showcasing its compact design and water-resistant capabilities with water splashing across its mesh exterior.

Image: An illustration highlighting the speaker's internal driver and bass boost technology, emphasizing its powerful audio output.

Image: The UrbanX M190 Bluetooth Speaker partially submerged in water, demonstrating its IPX7 waterproof rating in a natural outdoor setting.

Image: Two UrbanX M190 speakers, one black and one blue, wirelessly paired and emitting sound waves, illustrating the True Wireless Stereo (TWS) feature for a surround sound experience.

Image: A person riding a scooter with the UrbanX M190 speaker attached, highlighting its ultra-compact and lightweight design for portability during outdoor activities.

Image: The UrbanX M190 speaker attached to a bicycle, demonstrating its slim and light design for convenient transport while on the go.

Image: The UrbanX M190 speaker placed on a beach blanket next to a picnic basket, illustrating its compact size and suitability for beach outings.

6. Vedligeholdelse

6.1 Rengøring

Tør højttaleren af ​​med en blød, damp klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Sørg for, at dækslet til opladningsporten er forsvarligt lukket, før du rengør den eller udsætter den for vand.

6.2 Opbevaring

Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer. Hvis den opbevares i en længere periode, skal batteriet oplades til ca. 50% hver par måneder for at bevare batteriets tilstand.

6.3 Pleje af batterier

To prolong battery life, avoid fully discharging the speaker frequently. Charge the speaker regularly, even if not in use.

7. Fejlfinding

• Højttaleren tændes ikke: Sørg for, at batteriet er opladet. Tilslut til en strømkilde, og prøv igen.
• Kan ikke parres via Bluetooth:
  • Sørg for, at højttaleren er i parringstilstand (blinkende LED).
  • Sørg for, at Bluetooth er aktiveret på din enhed.
  • Flyt højttaleren tættere på din enhed (inden for 10 meter).
  • Glem højttaleren fra din enheds Bluetooth-liste, og prøv at parre igen.
  • Genstart både højttaleren og din enhed.
• Ingen lyd:
  • Kontroller lydstyrkeniveauet på både højttaleren og din tilsluttede enhed.
  • Ensure the speaker is correctly paired via Bluetooth or the correct input mode (SD/TF, AUX) is selected.
  • If using TWS, ensure both speakers are properly paired to each other and then to your device.
• Dårlig lydkvalitet:
  • Flyt højttaleren tættere på din enhed for at undgå interferens.
  • Sørg for, at der ikke er nogen forhindringer mellem højttaleren og din enhed.
  • Kontroller lydkildens kvalitet.

8. Specifikationer

9. Garanti og support

UrbanX products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official UrbanX webwebsted. Gem venligst din købsbevis til garantikrav.
