1. Produktet er slutview
The Lucci Air Atlanta 72-inch Indoor/Outdoor Ceiling Fan is an energy-efficient DC motor fan designed for both indoor and outdoor use. It features a 6-speed remote control for convenient operation and includes an integrated 12-watt GX53 LED bulb with 3-step dimming, providing 1100 lumens of light. The DC motor technology ensures silent operation and up to 65% energy savings compared to traditional AC motors, contributing to a cooler motor temperature and extended product longevity.
- Bladspændvidde: 72 tommer
- Motorstørrelse: D153x8mm
- Integreret LED lys: 12 Watt GX53, 3-step dimmable, 1100 lumens
- Kontrollere: 6-trins fjernbetjening
- Anvendelse: Indoor and Outdoor rated

Figur 1.1: Hoved view of the Lucci Air Atlanta 72-inch Ceiling Fan in black finish.
2. Sikkerhedsoplysninger
Læs og forstå alle instruktioner, inden installationen påbegyndes. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller personskade.
- Sørg for, at strømforsyningen er afbrudt ved afbryderen før installation eller vedligeholdelse.
- All electrical connections must be performed by a qualified electrician and comply with local codes and ordinances.
- Monteringsstrukturen skal kunne bære ventilatorens vægt (ca. 20.9 pund).
- Brug ikke ventilatoren med beskadigede vinger eller kabinet.
- Hold en minimumsafstand på 7 meter fra gulvet til bunden af ventilatorbladene.
- Indsæt ikke genstande i ventilatorbladenes bane.
- This fan is suitable for indoor and outdoor (damp location) use. Ensure proper weather protection for outdoor installations.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter installationen. Hvis der mangler eller er beskadigede dele, skal du kontakte kundesupport.
- Motorhussamling
- Ventilatorblade (7 blade)
- Downrod (6 inches)
- Baldakin og monteringsbeslag
- Remote Control with Wall Mount Holster
- 2 x AAA Batteries (for remote)
- Integreret LED-lyssæt
- Hardwarepakke (skruer, skiver, trådmøtrikker)
- Instruktionsmanual
4. Opsætning og installation
Installation should be performed by a qualified individual. Follow these general steps for safe and proper installation.
- Forbered monteringsstedet: Ensure the electrical box is securely mounted to the building structure and can support the fan's weight. Run electrical wiring to the box.
- Monter monteringsbeslag: Attach the mounting bracket to the electrical box using the provided screws and washers.
- Saml nedstang og motor: Før de elektriske ledninger fra motoren gennem nedstangen. Fastgør nedstangen til motorhuset.
- Hæng ventilatoren: Carefully lift the fan assembly and hang it on the mounting bracket hook.
- Foretag elektriske forbindelser: Tilslut ventilatorens elektriske ledninger til husholdningsinstallationerne i henhold til ledningsdiagrammet i den komplette manual. Sørg for, at alle forbindelser er fastgjort med møtrikker.
- Sikker baldakin: Slide the canopy up to cover the mounting bracket and electrical connections, then secure it with screws.
- Fastgør knive: Securely attach each of the seven fan blades to the motor housing using the provided screws.
- Installer lyssæt: Connect the light kit wiring and secure the light kit to the bottom of the fan motor housing.

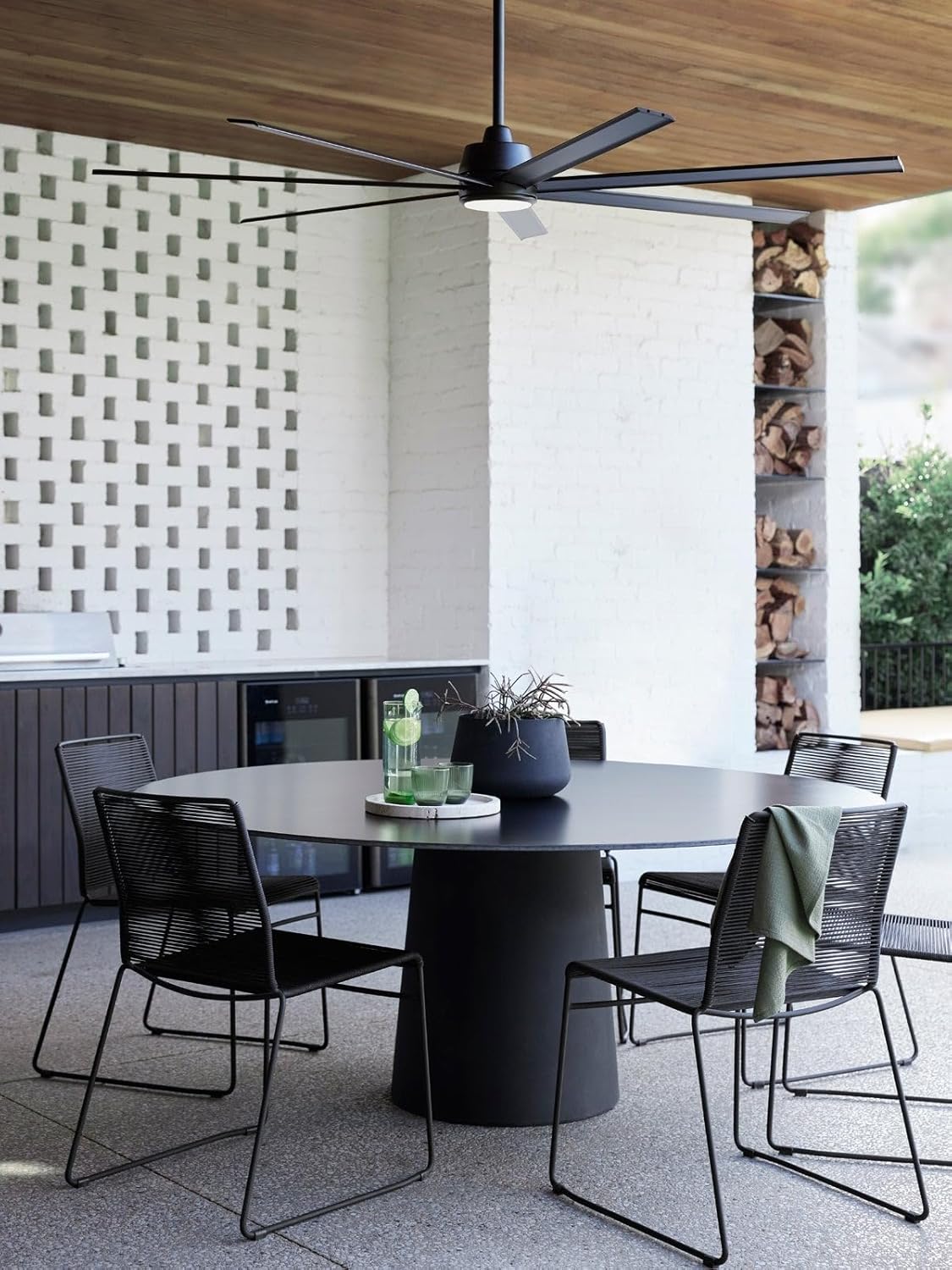

Figure 4.1: The Lucci Air Atlanta fan installed in an outdoor setting, demonstrating its indoor/outdoor capability.

Figure 4.2: Dimensional drawing showing the fan's 72-inch diameter and 13.5-inch height.
5. Betjeningsvejledning
The Lucci Air Atlanta fan is operated using the included remote control. Install the two AAA batteries into the remote control before use.

Figur 5.1: Overview of the remote control and its functions.
- Tænd/sluk: Press the power button to turn the fan on or off. Settings are saved for future use.
- Blæserhastighedskontrol: Use the numbered buttons (1-6) to select desired fan speed.
- Omvendt kontakt: Press the reverse button to change the direction of blade rotation, useful for seasonal air circulation.
- Lys til/fra/dæmpning: Press the light button to turn the light on or off. Hold the button to dim the light.
- Timing kontrol: Set the fan to turn off after 1 hour (1H), 4 hours (4H), or 8 hours (8H).
- Natural Wind/Anti-theft Function: Refer to the detailed manual for specific instructions on these advanced features.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.
- Rensning: Tør ventilatorbladene og motorhuset regelmæssigt af med en blød klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Blade Fasteners: Check all blade attachment screws annually to ensure they are tight. Loose screws can cause noise and wobble.
- Udskiftning af pære: The integrated LED light is designed for long life. If replacement is necessary, contact a qualified electrician or customer support.
- Motor smøring: DC-motoren er permanent smurt og kræver ikke yderligere smøring.
7. Fejlfinding
Hvis du oplever problemer med din ventilator, kan du følge disse almindelige fejlfindingstrin:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | Ingen strøm til ventilatoren; Fjernbetjeningens batterier er døde; Forkert ledningsføring. | Kontroller afbryderen; Udskift fjernbetjeningens batterier; Verificer ledningsforbindelser. |
| Blæseren slingrer | Løse knivskruer; Ubalancerede knive; Løst monteringsbeslag. | Spænd alle knivskruer; Brug et afbalanceringssæt (medfølger ikke); Sørg for, at monteringsbeslaget er sikkert fastgjort. |
| Lys virker ikke | Loose wire connection; Faulty LED driver. | Check light kit wiring; Contact customer support for LED driver issues. |
| Fjernbetjening virker ikke | Dead batteries; Remote not paired with fan. | Udskift batterierne; Se den fulde manual for instruktioner om parring af fjernbetjeningen. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Lucci Air |
| Modelnavn | Atlanta |
| Varemodelnummer | 21610801-forælder |
| Farve | Sort |
| Produktdimensioner | 72" D x 72" B x 13.5" H |
| Varens vægt | 20.9 pund |
| Strømkilde | DC motor |
| Wattage | 41 watt |
| Voltage | 120 volt |
| Antal blade | 7 |
| Bladlængde | 33.26 tommer |
| Luftmængde kapacitet | 8923 kubikfod i minuttet |
| Hastighed | 125 omdr./min. (maks.) |
| Kontrolmetode | Remote Control (6 Power Levels) |
| Indendørs/Udendørs brug | Indendørs, Udendørs (Damp Placering bedømt) |
| Inkluderede komponenter | Remote, 2 AAA batteries |
| Certificeringer | CETL, ETL |
| UPC | 811769033426 |
9. Garanti og support
For warranty information, technical support, or to purchase replacement parts, please visit the official Lucci Air webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
Du kan finde mere information og kontaktoplysninger på Lucci Air Store på Amazon.
