Indledning
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Lazmin112 KX-T887 wired desk phone. Please read this manual carefully before using the product to ensure proper functionality and longevity.
Produktegenskaber
- Klar lyd: Integrated noise reduction for clear communication and hands-free calling.
- LCD-skærm: Shows real-time date, call duration, and incoming call numbers.
- Distraction-Free Mode: Supports 1 to 99 hours of distraction-free operation.
- Strømforsyning: Powered directly by the telephone line; no external power adapter required.
- Alarm funktion: Three group alarms with distinct tones.
- Caller ID Systems: Compatible with DTMF and FSK systems.
- Local Code Filtering: Automatic filtering of up to 8 local codes.
- Hurtigopkald: Ability to store frequently used numbers.

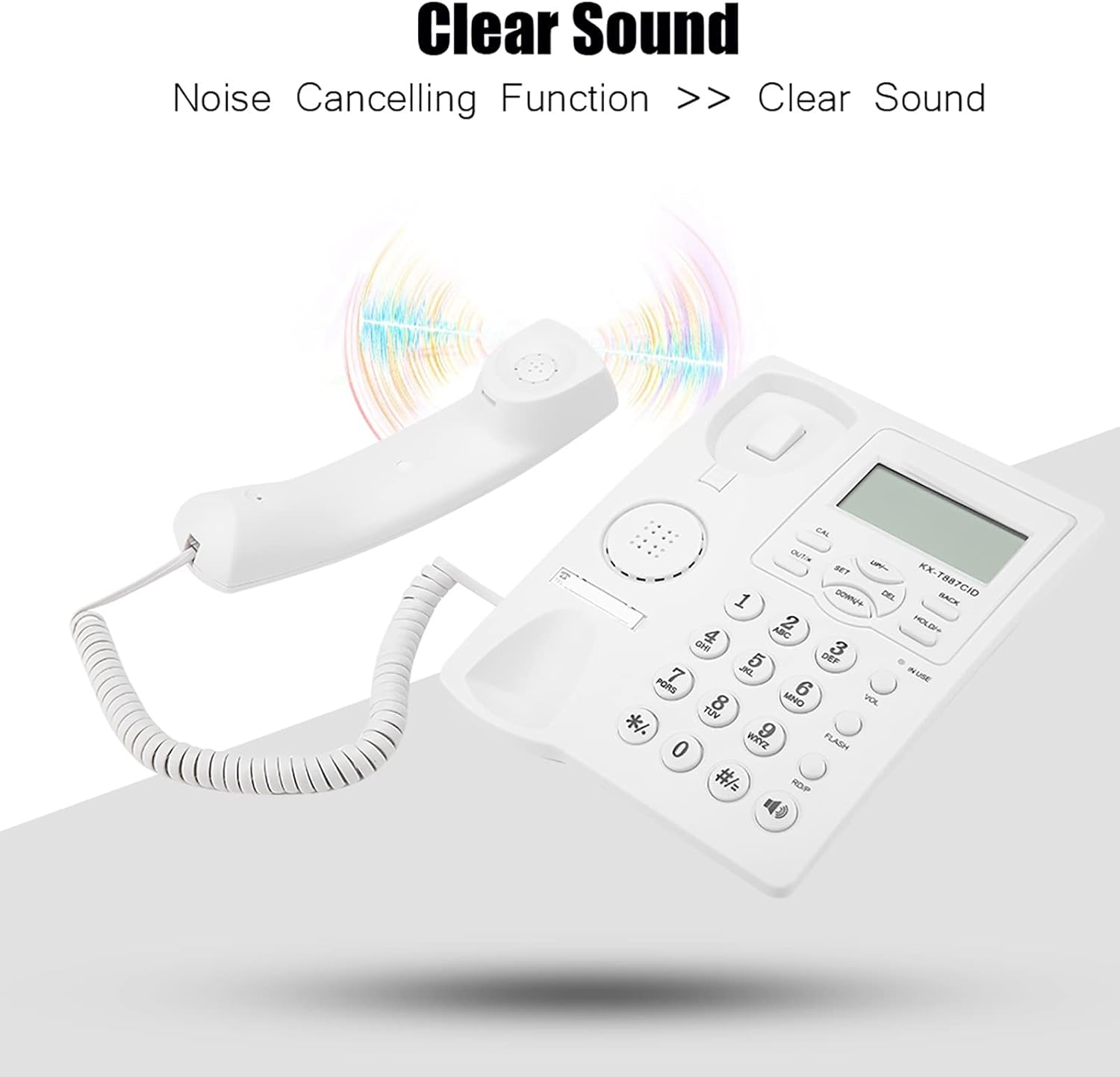

Billede: A visual representation highlighting the clear sound quality and noise cancellation feature of the phone.
Pakkens indhold
Kontroller venligst, at alle varer er til stede og i god stand:
- 1 x Telephone Unit (Base)
- 1 x håndsæt
- 1 x Coiled Handset Cord
- 1 x telefonledning
Billede: The Lazmin112 KX-T887 wired desk phone shown with its handset and the included telephone line cord.
Opsætning
- Tilslut håndsættet: Plug one end of the coiled handset cord into the handset and the other end into the port labeled with a handset icon on the side of the telephone base.
- Tilslut telefonlinjen: Plug one end of the telephone line cord into the LINE port on the back of the telephone base. Plug the other end into your wall telephone jack.
- Placering: Place the phone on a flat surface or mount it on a wall using the integrated wall-mount holes.

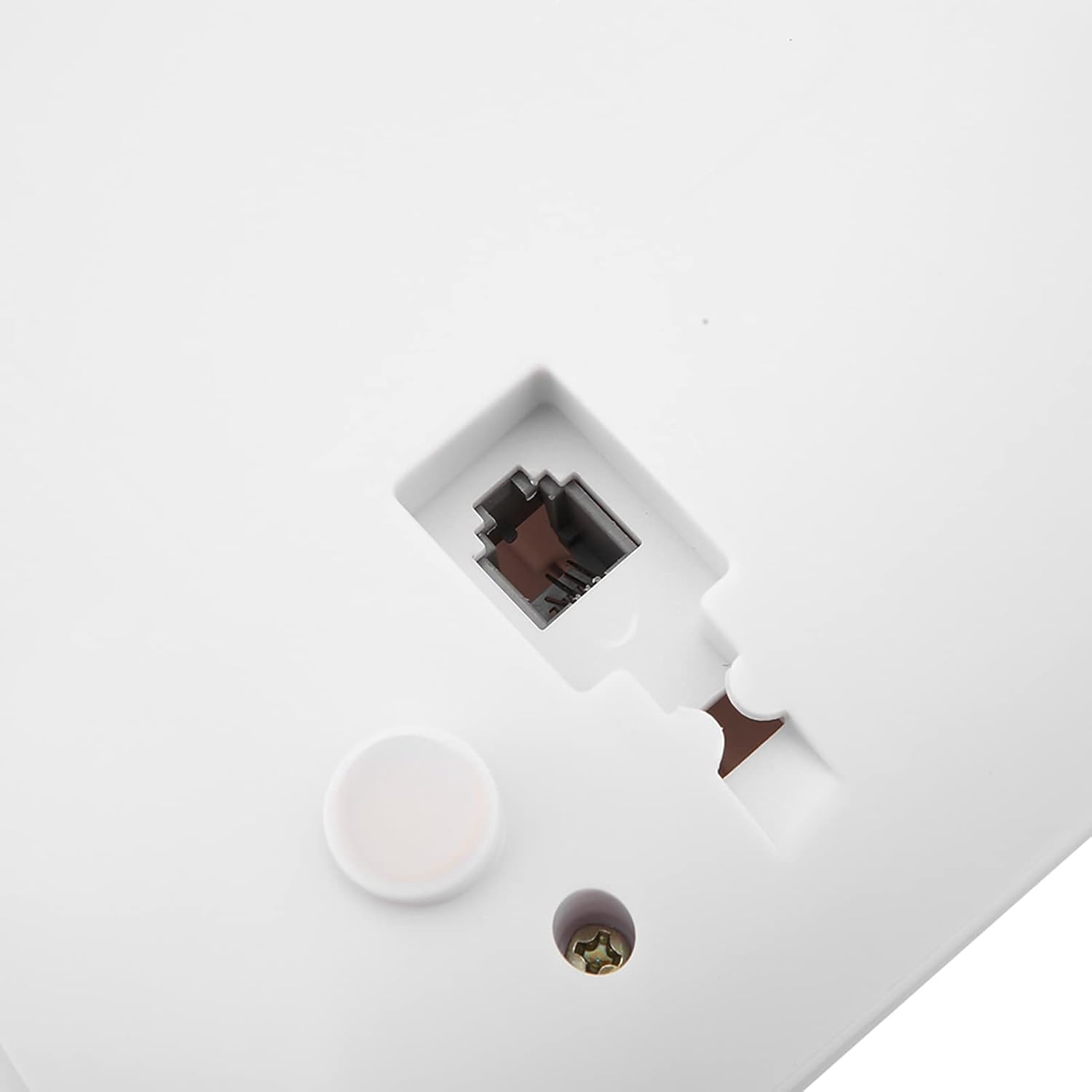

Billede: Detail of the telephone line (RJ11) port located on the rear of the phone unit for connecting to the wall jack.
Billede: Bag view of the phone, illustrating the wall mounting slots and connection ports for flexible placement options.
Betjeningsvejledning
Foretage og modtage opkald
- Sådan foretager du et opkald: Løft røret eller tryk på HÅNDFRI button, then dial the desired number.
- Sådan modtager du et opkald: Løft røret eller tryk på HÅNDFRI knappen, når telefonen ringer.
- Håndfri opkald: Tryk på HÅNDFRI button to activate speakerphone mode. Press it again to end the call or lift the handset to switch to private mode.
LCD display funktioner
The LCD displays important information such as the current date and time, call duration, and incoming caller ID (if subscribed to caller ID service).
Billede: En detaljeret view of the phone's keypad and the LCD screen, which displays call information and settings.
Indstilling af alarmer
The phone supports up to three distinct alarms. Refer to the on-screen menu using the SÆT og OP/NED buttons to configure alarm times and tones.
Hurtigopkald
Store frequently called numbers for quick access. Consult the menu for instructions on programming speed dial entries.
Billede: Visual representation of the phone's capability to store and utilize 5-group speed dial numbers for convenience.
Opretholdelse
- Rensning: Tør telefonen af med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Undgå væsker: Hold telefonen væk fra vand og andre væsker.
- Temperatur: Operate and store the phone in a moderate temperature environment.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen klartone | Telefonledningen er ikke tilsluttet korrekt. | Sørg for, at telefonledningen er korrekt tilsluttet både telefonen og vægstikket. |
| LCD-skærmen er tom | No power from the telephone line. | Check the telephone line connection. If the issue persists, contact your telephone service provider. |
| Kan ikke høre den, der ringer op / Den, der ringer op, kan ikke høre mig | Handset or hands-free volume is too low; faulty cord. | Adjust the volume. Check handset cord connection. If using hands-free, ensure you are close to the microphone. |
| Caller ID not displayed | Not subscribed to Caller ID service; service issue. | Contact your telephone service provider to ensure Caller ID service is active. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Lazmin112 |
| Modelnummer | Lazmin1125qya6v9czt-02 (KX-T887) |
| Farve | Hvid |
| Produkttype | Wired Desk Phone |
| Strømkilde | Telefonlinje drevet |
| Opkaldstype | Enkelt tastatur |
| Flerlinjedrift | Enkeltlinjedrift |
| Standby Time (Distraction-Free) | Op til 99 timer |
| Vis nummer | Ja |
| Oprindelse | Kina |
Garanti og support
For garantioplysninger eller teknisk support henvises til de kontaktoplysninger, der fulgte med dit køb, eller besøg producentens officielle webwebsted. Gem din købsbevis til garantikrav.
