Takstar MS-189 Bordkonferencemikrofon Brugermanual

1. Introduktion

Thank you for choosing the Takstar MS-189 Table Conference Microphone. This manual provides detailed instructions for the proper setup, operation, and maintenance of your microphone. The MS-189 is a unidirectional condenser microphone designed for clear vocal pickup in conference settings, computer use, and other desktop applications. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

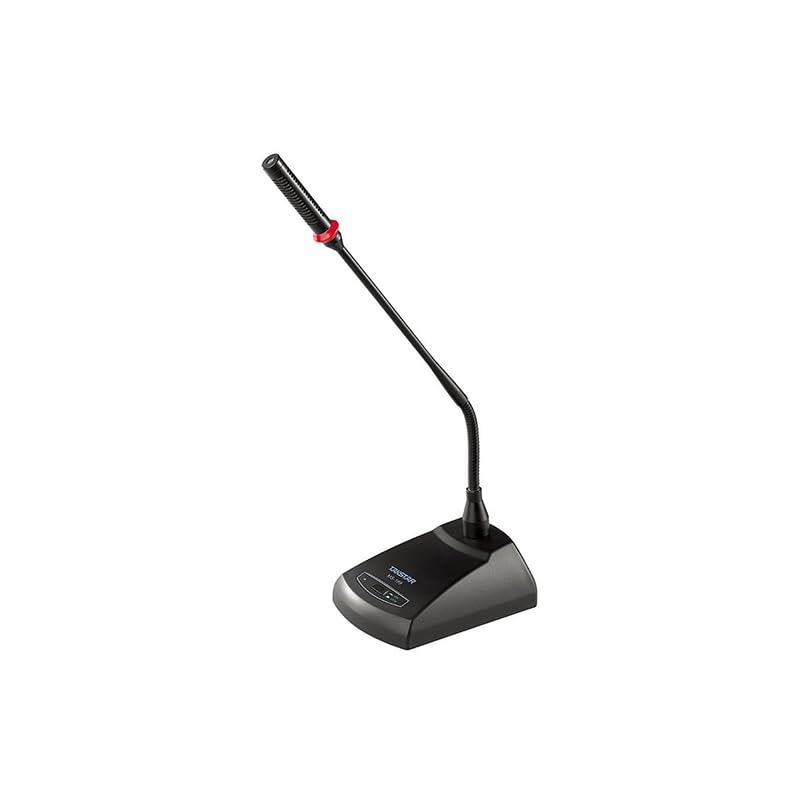

Billede 1.1: The Takstar MS-189 Table Conference Microphone. This image displays the microphone with its gooseneck design and base unit, ready for desktop placement.

2. Produktfunktioner

Back Electret Condenser Transducer: Ensures high-quality audio capture.
High Sensitivity and Low Noise: Delivers clear and crisp sound reproduction.
Clear and Bright Vocal Pick-up: Optimized for speech and vocal applications.
On/Off Button with LED Indicator: Located on both the base and gooseneck for easy control and status indication.
Fleksible strømmuligheder: Can be powered by 9-52V phantom power or two 1.5V AA batteries.
Ensrettet polært mønster: Fokuserer på lyd forfra, hvilket reducerer baggrundsstøj.
Durable Gooseneck Design: Allows for flexible positioning and adjustment.

3. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning for at sikre, at alle varer er til stede:

Takstar MS-189 Table Conference Microphone (Gooseneck and Base Unit)
Brugervejledning (dette dokument)

Note: XLR cable and AA batteries are typically sold separately and may not be included.

4. Opsætningsvejledning

4.1 Powering the Microphone

The MS-189 microphone offers two power options:

Phantom Power (9-52V): If your audio mixer, interface, or computer sound card provides phantom power, connect the microphone using an XLR cable. The microphone will draw power directly from the connected device. Ensure phantom power is enabled on your device.
AA Batteries (2 x 1.5V): If phantom power is not available, insert two 1.5V AA batteries into the battery compartment located on the underside of the microphone base. Ensure correct polarity (+/-) when inserting batteries.

Note: Do not use both phantom power and batteries simultaneously. The microphone will prioritize phantom power if both are connected.

4.2 Tilslutning til en enhed

The MS-189 connects via an XLR connector.

Locate the XLR output port on the microphone base.
Connect one end of a standard XLR cable (not included) to the microphone's XLR output.
Connect the other end of the XLR cable to an available XLR input on your audio mixer, audio interface, or computer sound card. Ensure the input is compatible with a condenser microphone.

4.3 Placering af mikrofon

Place the microphone on a stable, flat surface. Position the gooseneck so the microphone head is approximately 15-30 cm (6-12 inches) from the speaker's mouth, pointing directly towards them for optimal sound capture.

5. Betjeningsvejledning

5.1 Tænd/sluk

Press the ON/OFF button located on the microphone base. The LED indicator will illuminate when the microphone is active. Press the button again to turn off the microphone.

5.2 Adjusting the Gooseneck

Gently bend the flexible gooseneck to adjust the microphone's position and angle. Avoid excessive force to prevent damage.

5.3 Optimal Usage

For best results, speak directly into the microphone from a consistent distance.
Minimize background noise in the environment to enhance clarity.
Monitor audio levels on your connected device to prevent clipping or distortion.

6. Vedligeholdelse

Rensning: Use a soft, dry cloth to clean the microphone's exterior. Do not use liquid cleaners or solvents.
Opbevaring: When not in use, store the microphone in a dry, dust-free environment. Avoid extreme temperatures and humidity.
Udskiftning af batteri: If using battery power, replace AA batteries when the LED indicator dims or audio quality degrades. Remove batteries if the microphone will not be used for an extended period to prevent leakage.

7. Fejlfinding

Problem	Mulig årsag	Løsning
Ingen lydudgang	Mikrofonen er ikke tændt. Incorrect power source (e.g., phantom power not enabled, dead batteries). XLR cable not connected properly or faulty. Input device (mixer/interface) not configured correctly or volume too low.	Tryk på ON/OFF-knappen. Ensure phantom power is active or replace AA batteries. Check XLR cable connections; try a different cable. Verify input settings and volume levels on your connected device.
Poor sound quality (low volume, distortion)	Microphone too far from the sound source. Input gain on connected device too high or too low. Overdreven baggrundsstøj. Defekt kabel eller forbindelse.	Position microphone closer to the speaker (15-30 cm). Adjust input gain on your mixer/interface. Reduce ambient noise in the recording environment. Check/replace XLR cable.
LED-indikator lyser ikke	Mikrofonen er ikke tændt. No power supply (phantom power or batteries). LED-fejl.	Tryk på ON/OFF-knappen. Verify phantom power is active or replace batteries. If power is confirmed and LED still doesn't light, contact support.

8. Specifikationer

Model	MS-189
Transducerprincip	Tilbage Electret kondensator
Directivity Characteristic (Polar Pattern)	Ensrettet
Frekvensrespons	100Hz-16kHz
Følsomhed	-33dB±3dB (0dB=1V/Pa ved 1kHz)
Udgangsimpedans	340Ω±30% (ved 1kHz)
Strømkrav	9-52V phantom power or 2 x 1.5V AA battery
Forbindelsesteknologi	XLR
Connector Type	XLR
Kompatible enheder	Bærbar, personlig computer
Mikrofon formfaktor	Gooseneck, Table Array
Varedimensioner (L x B x H)	15 x 15 x 15 cm
Nettovægt	500 g
Farve	Sort

9. Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Takstar website. You may also contact your local distributor or retailer for assistance.

Visit the Takstar Store on Amazon for yderligere produktinformation og supportressourcer.
