Indledning
The AKASO V50 Elite is a high-performance action camera designed to capture your adventures in stunning detail. It records 4K/60fps video and 20MP images, offering advanced features like voice control, Electronic Image Stabilization (EIS), and adjustable view angles. With its improved waterproof case, it's ready for underwater exploration up to 131 feet (40 meters).
This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your AKASO V50 Elite action camera.

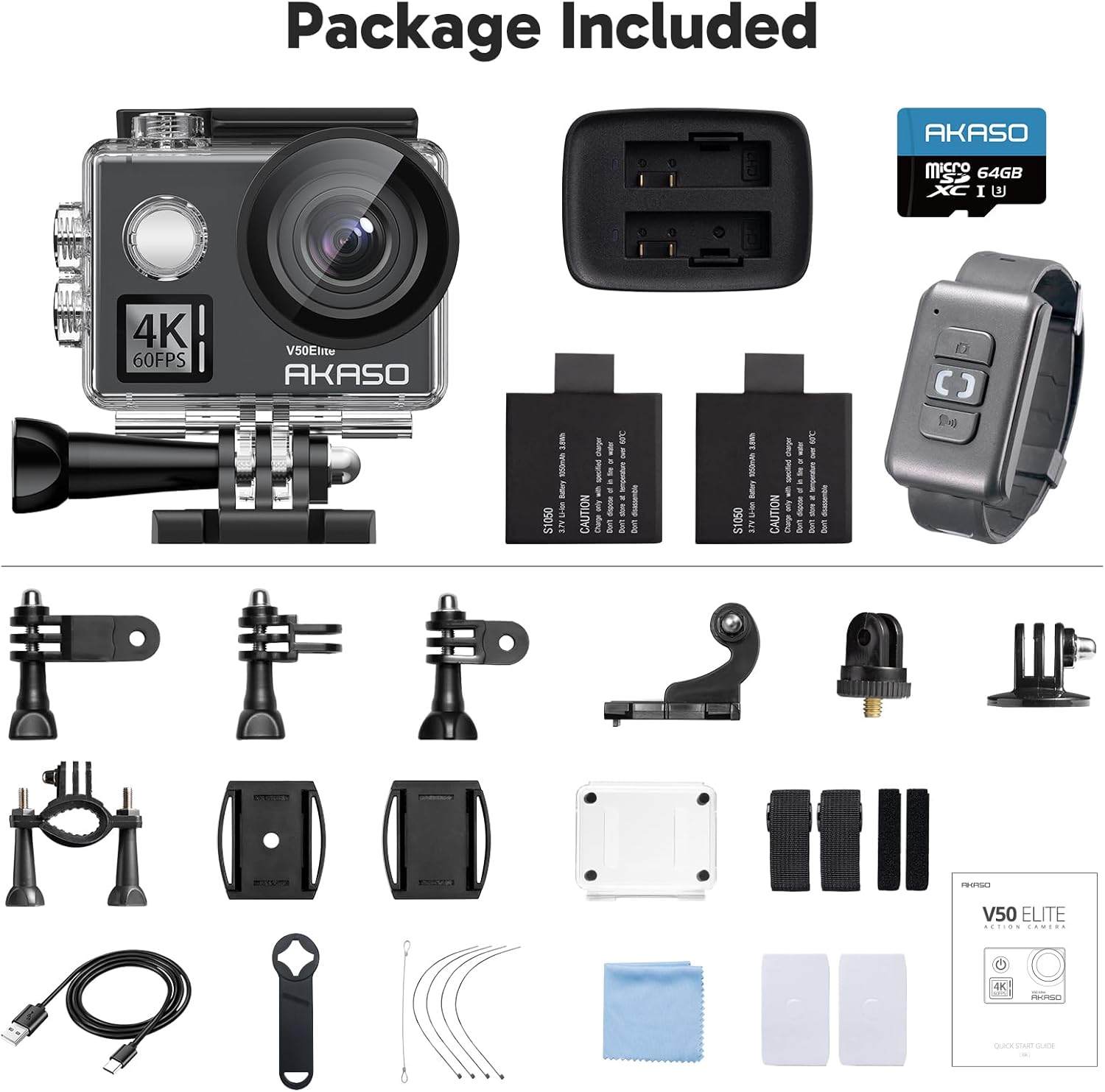

Hvad er der i æsken
Your AKASO V50 Elite package includes the following items:
- Kamerahus
- Battery Pack (2 included)
- Various Mounts
- Vandtæt etui
- 64 GB MicroSD-kort
- Fjernbetjening
- Batterioplader
- USB kabel
- Rengøringsklud
- Hurtig startvejledning
Opsætning
Oplad batteriet:
Insert the included Lithium Polymer batteries into the battery charger. Connect the charger to a USB power source using the provided USB cable. The indicator light will show charging status and turn off when fully charged.
Indsæt MicroSD-kort:
Open the battery compartment cover on the camera. Locate the microSD card slot and gently insert the 64GB MicroSD card with the gold contacts facing the back of the camera until it clicks into place. Ensure the card is formatted in the camera settings before first use.
Figur 2: Forside view of the AKASO V50 Elite camera, showing the lens and main controls. Attach Waterproof Case (Optional):
For underwater use or protection against harsh environments, place the camera inside the improved waterproof case. Ensure the case is properly sealed before submersion. The camera can be used up to 131 feet (40 meters) deep with this case.
Figure 3: The AKASO V50 Elite camera securely enclosed within its waterproof case.
Betjening af kameraet
Tænd/sluk
Press and hold the Power/Mode button on the front of the camera to turn it on or off. A short press of the Power/Mode button cycles through different modes (Video, Photo, Playback, Settings).
Optagelse af video
In Video mode, press the Shutter/Select button on top of the camera to start recording. Press it again to stop. The V50 Elite supports various resolutions and frame rates, including:
- 4K at 60 frames per second (fps)
- 4K at 30 frames per second (fps)
- 2.7K at 60 frames per second (fps)
- 2.7K at 30 frames per second (fps)
- 1080P at 120 frames per second (fps)
- 720P at 240 frames per second (fps)
Tager billeder
Switch to Photo mode using the Power/Mode button. Press the Shutter/Select button to capture a 20MP image.
Stemmekontrol
The AKASO V50 Elite supports hands-free operation using voice commands. Common commands include:
- "Action Start Video"
- "Action Stop Video"
- "Action Photo"
- "Action Turn Off"
Superb Image Stabilization (EIS)
The built-in Advanced Electronic Image Stabilization (EIS) technology helps to smooth out shaky footage, delivering incredibly stable videos even during dynamic activities. This feature predicts your movements and corrects for camera shake.
Justerbar View Vinkel
You can customize the field of view for your recordings and photos. The camera offers Wide, Medium, and Narrow view angles. It also includes a distortion calibration feature to correct image distortion, especially noticeable at wider angles.
Instant Sharing via WiFi
Connect your AKASO V50 Elite to your smartphone via Wi-Fi using the dedicated AKASO app. This allows for instant preview, playback, and sharing of your captured content directly from your camera to your mobile device and social media platforms.
Opretholdelse
Rengøring af linsen:
Use a soft, lint-free cloth, preferably a microfiber cloth, to clean the camera lens. Avoid using harsh chemicals or abrasive materials that could scratch the lens.
Vandtæt etuipleje:
After using the waterproof case in saltwater, rinse it thoroughly with fresh water and allow it to air dry. Inspect the O-ring seal regularly for any debris or damage and clean it as needed to ensure a watertight seal.
Batteriopbevaring:
When storing the camera for extended periods, remove the batteries. Store batteries in a cool, dry place, ideally at around 50% charge to prolong their lifespan.
Generel opbevaring:
Store the camera in a dry, dust-free environment away from direct sunlight and extreme temperatures.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kameraet tænder ikke. | Low or dead battery; battery not inserted correctly. | Ensure batteries are fully charged and correctly inserted. Try a different battery if available. |
| Screen is unresponsive or erratic. | Temporary software glitch; calibration issue. | Restart the camera. If issue persists, remove and reinsert the battery. Ensure firmware is up to date. |
| Camera overheats and shuts down. | Prolonged recording in high temperatures or high resolution. | Allow the camera to cool down. Reduce recording resolution/frame rate in hot environments. Ensure proper ventilation. If it doesn't turn back on, remove battery and microSD card, then connect to a 5W/2A USB power source. |
| Footage er rystende trods EIS. | EIS may not be active at highest resolutions/frame rates; extreme motion. | Check camera settings to ensure EIS is enabled for the selected resolution. Note that EIS may have limitations at certain high settings (e.g., 4K/60fps). |
| MicroSD card error. | Card not formatted; incompatible card; faulty card. | Format the microSD card using the camera's settings. Ensure you are using a compatible card (U3 or higher recommended). Try a different microSD card. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | AKASO |
| Modelnummer | V50Elite-2023 |
| Video opløsning | Op til 4K/60fps |
| Billedopløsning | 20 MP |
| Billedstabilisering | Advanced Electronic Image Stabilization (EIS) |
| Stemmekontrol | Understøttet |
| Vandtæt dybde | Up to 131 feet (40 meters) with case |
| Zoom | 8X digital zoom |
| Skærmstørrelse | 2 Inches (Touch Screen) |
| Forbindelse | Wi-Fi, HDMI, USB |
| Opbevaring | Micro SD (up to 64GB included, supports higher) |
| Batteritype | Lithium Polymer (2 inkluderet) |
| Varens vægt | 1.8 ounce |
| Produktdimensioner | 2.32 x 1.57 x 1.3 tommer |
Garanti og support
AKASO products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official AKASO webhjemmeside for detaljerede garantivilkår.
For technical support, troubleshooting assistance, or warranty claims, please contact AKASO customer service through their official webwebstedet eller kontaktoplysningerne i din produktdokumentation. Gem din købskvittering som købsbevis af garantihensyn.
