SubZero Dual Wireless Microphone System

1. Introduktion

The SubZero VOXLINK-2FL Wireless Microphone System is engineered to deliver outstanding audio performance and flexibility. This system supports up to two simultaneous users, each having the option of a lavalier or headset microphone connected to their bodypack. Operating on a UHF fixed frequency of 863.7MHz, it provides extensive coverage suitable for both indoor and outdoor applications. With an operating range of up to 50 meters, users can move freely without concerns of signal loss or interference. The entire system is conveniently transportable in its included carry case.

Hvad er inkluderet

• 1 x modtager
• 2 x Lavalier Microphones
• 2 x headsetmikrofoner
• 2 x Bodypack-sendere
• 1 x 12V DC strømforsyning
• 1 x 6.35mm Jack Cable
• 1 x brugermanual
• 4 x 1.5 V AA-batterier

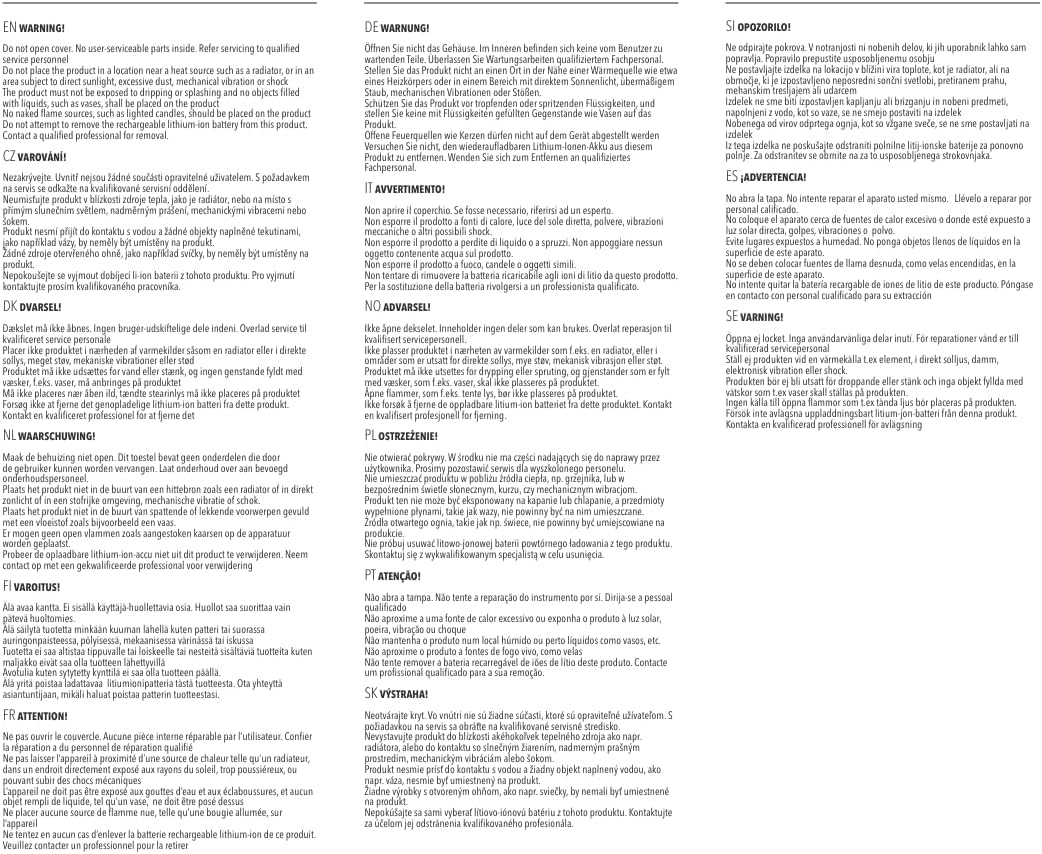

2. Sikkerhedsoplysninger og advarsler

Please read and adhere to the following safety guidelines to ensure safe operation and to prevent damage to the product.

• ÅBEN IKKE: There are no user-serviceable parts inside. All servicing should be referred to qualified service personnel.
• MILJØ: Do not place the product near heat sources (e.g., radiators), in direct sunlight, excessive dust, mechanical vibration, or shock.
• VÆSKER: The product must not be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the product.
• FLAMMER: Ingen kilder med åben ild, såsom tændte stearinlys, må placeres på eller i nærheden af ​​produktet.
• BATTERIER: Do not attempt to recharge non-rechargeable AA batteries. Always replace with new 1.5V AA batteries as specified. Dispose of used batteries responsibly.

3. Produktet er slutview

Familiarize yourself with the main components of your SubZero Wireless Microphone System.

Systemkomponenter

3.1 Modtagerenhed

The receiver unit processes the wireless audio signals from the bodypack transmitters. It features independent volume controls for each channel (A and B) and output connections for integration with your audio system.

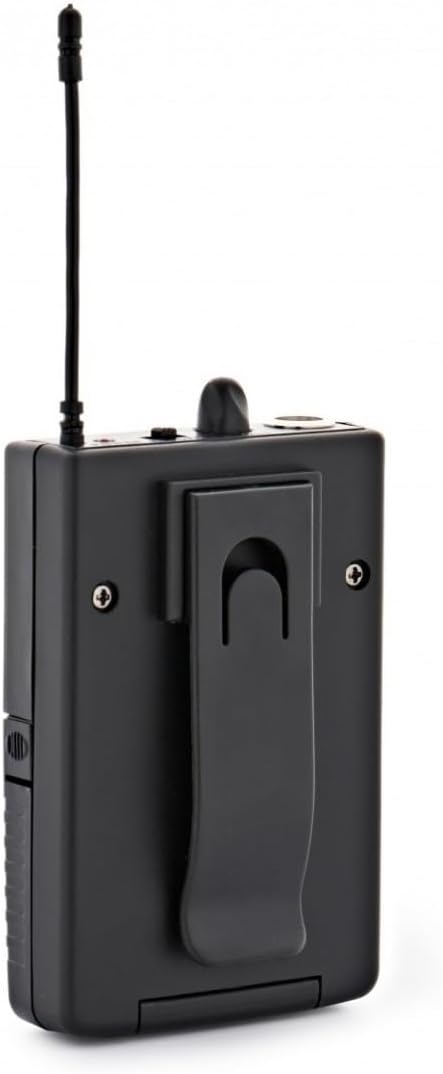

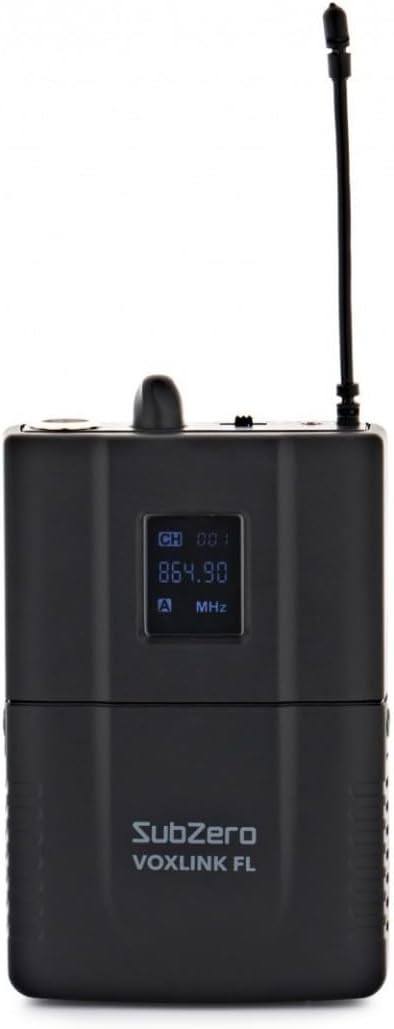

3.2 Bodypack-sendere

Each bodypack transmitter sends the microphone's audio signal wirelessly to the receiver. They are compact and designed to be worn discreetly.

3.3 Lavalier Microphones

Small, discreet microphones designed to clip onto clothing, ideal for hands-free operation.

3.4 Headset Microphones

Head-worn microphones that provide consistent microphone placement for clear audio, suitable for active performers.

4. Opsætningsvejledning

4.1 Udpakning

1. Carefully open the carry case and remove all components.
2. Inspect all items for any signs of damage. If any damage is found, contact your retailer immediately.

4.2 Modtagertilslutning

1. Place the receiver unit on a stable, flat surface, away from potential sources of interference.
2. Extend the receiver antennas vertically for optimal signal reception.
3. Connect the included 12V DC power supply to the receiver's 'DC INPUT' port and then plug it into a suitable power outlet.
4. Connect the receiver's 'MIX.OUT' (6.35mm jack) or 'BALANCE OUT' (XLR) ports to your mixer, amplifier, or audio interface using the provided 6.35mm jack cable or appropriate XLR cables (not included).

4.3 Bodypack Battery Installation

1. Slide open the battery compartment cover on each bodypack transmitter.
2. Insert two 1.5V AA batteries into each bodypack, ensuring correct polarity (+/-).
3. Luk batterirummets dæksel forsvarligt.

4.4 Mikrofonforbindelse

1. Connect either a lavalier microphone or a headset microphone to the 3.5mm input jack on each bodypack transmitter. Ensure the connector is fully inserted.
2. Secure the lavalier microphone to clothing (e.g., lapel) or position the headset microphone comfortably on the user's head, with the microphone element positioned near the mouth.

5. Betjeningsvejledning

5.1 Tænd/sluk

1. Modtager: Press the power button on the receiver unit. The power indicator light will illuminate.
2. Bodypack-sendere: Press and hold the power button on each bodypack transmitter until the display illuminates.
3. To power off, press and hold the power button on each unit until it shuts down.

5.2 Lydstyrkejustering

1. Adjust the 'VOLUME A' and 'VOLUME B' knobs on the receiver to control the output level of each microphone channel independently.
2. Start with the volume low and gradually increase it to a comfortable listening level, avoiding feedback.

5.3 Frequency Information

The SubZero VOXLINK-2FL system operates on a fixed UHF frequency of 863.7MHz. This fixed frequency ensures stable performance within its operating range. Please note that only one fixed unit at a time can be used in the same vicinity to avoid interference.

6. Vedligeholdelse

6.1 Rengøring

• Wipe the surfaces of the receiver and bodypacks with a soft, dry cloth.
• Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the finish or internal components.
• For microphones, gently clean windscreens if necessary.

6.2 Opbevaring

• When not in use for extended periods, remove batteries from the bodypack transmitters to prevent leakage.
• Store the system in its original carry case in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Fejlfinding

If you encounter issues with your SubZero Wireless Microphone System, refer to the following common problems and solutions:

Ingen lydudgang

• Ensure all units (receiver, bodypacks) are powered on.
• Check that the receiver's volume knobs are turned up.
• Verify that the receiver is correctly connected to your mixer/amplifier and that its input is selected and volume is up.
• Check batteries in bodypacks; replace if low or depleted.
• Ensure microphones are securely connected to bodypacks.

Interference or Dropouts

• Ensure the receiver antennas are fully extended and positioned vertically.
• Move the receiver closer to the transmitters, within the 50-meter operating range.
• Ensure there are no large metal objects or other wireless devices operating on similar frequencies nearby.
• Remember that only one fixed unit of this model can be used in the same vicinity at a time.

Short Operating Range

• Check bodypack battery levels. Low batteries can reduce range.
• Ensure line-of-sight between transmitters and receiver is maintained as much as possible.
• Avoid placing the receiver behind large obstacles or in enclosed spaces.

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or service inquiries, please contact your original retailer or the manufacturer, SubZero, directly. Keep your proof of purchase for any warranty claims.
