ATOMSTACK A24 Pro lasergravør og -skærer brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your ATOMSTACK A24 Pro Laser Engraver and Cutter. Please read this manual thoroughly before operating the machine and keep it for future reference.

The ATOMSTACK A24 Pro is a high-power 20W laser engraving and cutting machine, featuring a 0.06 x 0.06 mm ultra-fine laser focus area. It is designed for precise engraving and efficient cutting of various materials, including wood, acrylic, and certain metals, with cutting capabilities comparable to a 300W CO₂ laser engraving machine.

2. Sikkerhedsforanstaltninger

Operating a laser machine requires strict adherence to safety guidelines to prevent injury and damage. Always prioritize safety.

• Øjenbeskyttelse: The laser module includes a protective cover to shield the user's eyes. However, it is highly recommended to wear additional certified laser safety goggles during operation.
• Ventilation: Sørg for tilstrækkelig ventilation i arbejdsområdet for at fjerne dampe og røg, der produceres under gravering og skæring.
• Materialesikkerhed: Only engrave or cut materials specified as safe for laser processing. Avoid materials that produce toxic fumes or are highly flammable.
• Brandfare: Keep a fire extinguisher nearby. Never leave the machine unattended during operation.
• Børn og kæledyr: Keep children and pets away from the machine during operation. The laser protective cover helps prevent accidental contact with the laser point.
• Strømforsyning: Use only the provided power adapter. Ensure the power supply meets the machine's requirements (AC 100-240 V, 50/60 Hz, Output: 24 V, 5 A).
• Nødstop: Gør dig bekendt med placeringen og funktionen af ​​nødstopknappen.

3. Produktkomponenter

The ATOMSTACK A24 Pro comes with the following components:

• 1 x ATOMSTACK A24 Pro Laser Engraving Machine Frame
• 1 x Laser Module
• 1 x Cable Chain
• 1 x fastgørelsesskrue
• 1 x Værktøjssæt
• 1 x Fixed Focus Film
• 3 x Acrylic Plates
• 3 x Wood Chips
• 10 x kabelbindere
• 1 x Desiccant
• 1 x børste
• 1 x Dust-free Cloth
• 1 x strømadapter
• 1 x Brugermanual (dette dokument)
• 1 x datakabel (USB)

Billede: Overview of the accessories and components included with the ATOMSTACK A24 Pro.

4. Opsætningsvejledning

The ATOMSTACK A24 Pro features a unibody aluminum alloy casting, requiring no complex installation. It is designed for immediate use.

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Undersøg for eventuelle skader under transporten.
2. Placering: Place the machine on a stable, level, and heat-resistant surface in a well-ventilated area. Ensure sufficient space around the machine for operation and material handling.
3. Strømtilslutning: Connect the provided power adapter to the machine's power input and then to a suitable electrical outlet.
4. USB-forbindelse: Connect the machine to your computer using the supplied USB data cable.
5. Software installation: Install the recommended operating software (LaserGRBL or LightBurn) on your computer. The machine supports Win XP/Win 7/Win 8/XP/Win 10 systems. Refer to the software's documentation for installation and setup.
6. Fixed Focus Adjustment: The laser module features a fixed-focus design, eliminating the need for manual focus adjustment. For initial setup or specific material thickness, use the provided fixed focus film to ensure optimal laser performance.

Image: The ATOMSTACK A24 Pro laser engraver, ready for operation.

5. Betjeningsvejledning

This section outlines the general steps for operating your ATOMSTACK A24 Pro.

1. Forbered dit design: Create or import your design using your chosen software (LaserGRBL, LightBurn). Supported file formats include NC, BMP, JPG, PNG, DXF.
2. Materiale placering: Place the material to be engraved or cut onto the working area of the machine. Ensure it is flat and securely positioned.
3. Placering: Utilize the cross-positioning system for precise and horizontal engraving. This system aids in visual edge finding and object alignment.

Image: Cross positioning system for accurate material placement.
4. Softwareindstillinger: Adjust laser power, speed, and passes in your software based on the material type and desired effect. The A24 Pro offers high precision (0.02 mm) and high-speed operation (up to 36000 mm/min).


Image: High-speed engraving capability of the ATOMSTACK A24 Pro.

5. Start drift: Once all settings are confirmed and safety precautions are in place, initiate the engraving or cutting process from your software.
6. Overvågning: Continuously monitor the machine during operation. Be prepared to use the emergency stop if any issues arise.
7. Færdiggørelse: After the process is complete, allow the material to cool if necessary before handling. Disconnect the machine from power when not in use.

5.1. Engraving and Cutting Capabilities

The ATOMSTACK A24 Pro is equipped with a 24W optical power laser module, utilizing second-generation fiber compression packaging technology for an ultra-fine laser spot of 0.06 x 0.06 mm. This allows for powerful cutting and fine engraving.

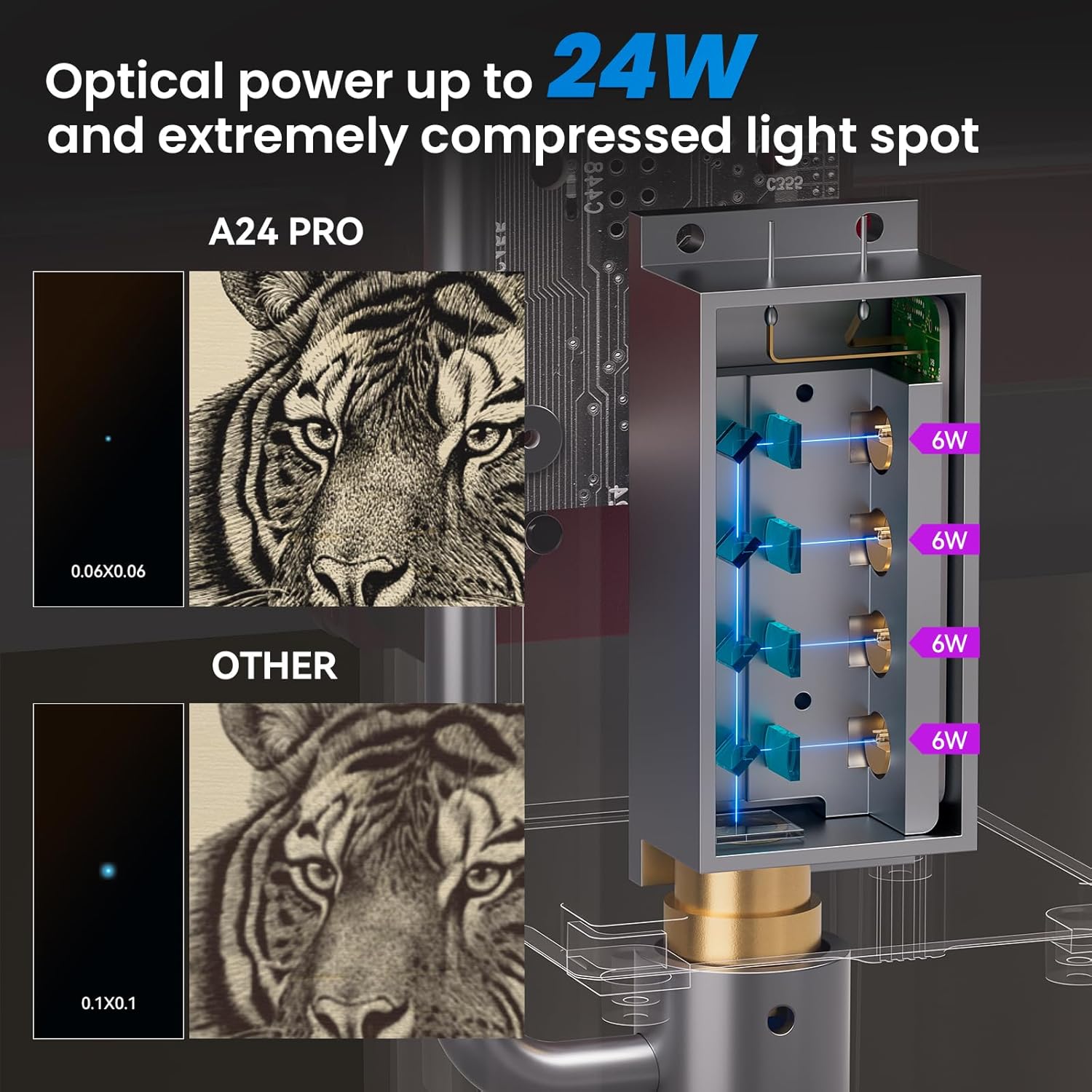

Image: Comparison of laser spot size, highlighting the A24 Pro's precision.

Image: Demonstration of the A24 Pro's high precision engraving.

Graverbare materialer:

• Wood, Bamboo, Cardboard, Plastic, Leather, PCB, Aluminum Oxide, Non-reflective Electroplated and Painted Metal, 304 Mirror Stainless Steel, Glass, Ceramic, Cotton Cloth, Slate.

Cuttable Materials:

• Cardboard, Non-woven Fabrics, Wood Boards, Plywood (up to 20mm), Acrylic (transparent acrylic needs to be painted black, up to 30mm black acrylic), Some Thin Plastic Boards, Sponges, Aluminum and Stainless Steel (up to 0.05mm thick), and other metal sheets.

Billede: Eksamples of maximum cutting thickness for various materials.

Image: Illustration of the long beam waist laser for enhanced deep cutting.

Image: Close-up of the Second Generation Packaged Blue Laser module.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din ATOMSTACK A24 Pros lange levetid og optimale ydeevne.

• Rengøring af linsen: The laser module features a dual-layer wind cover design to prevent the lens from being blocked or soiled. However, periodic inspection and gentle cleaning of the laser lens with the provided dust-free cloth are recommended to maintain laser efficiency.
• Fjernelse af støv: Regularly clean dust and debris from the machine's frame and moving parts using the provided brush or compressed air. Accumulation of dust can affect performance and lead to wear.
• Smøring af skinner: Periodically check the X-axis guide rail for smooth movement. If necessary, apply a small amount of appropriate lubricant to ensure frictionless operation.
• Firmwareopdateringer: Tjek den officielle ATOMSTACK website for any available firmware updates for the 32-bit motherboard to ensure you have the latest features and performance enhancements.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på, og deres mulige løsninger.

8. Tekniske specifikationer

9. Garantioplysninger

ATOMSTACK products are manufactured to high-quality standards. For information regarding warranty coverage and terms, please refer to the warranty card included with your product or visit the official ATOMSTACK website. Typically, products are eligible for a refund or replacement within 30 days of purchase, subject to the seller's return policy.

10. Kundesupport

If you encounter any issues or have questions not covered in this manual, please contact ATOMSTACK customer support. Refer to the contact information provided on the product packaging or the official ATOMSTACK webwebsted for de mest opdaterede supportkanaler.

When contacting support, please have your product model (ATOMSTACK A24 Pro) and serial number (if applicable) ready.
