Inseego MiFi X Pro 5G M3000 Mobilt Hotspot Brugermanual

1. Introduktion

The Inseego MiFi X Pro 5G M3000 is a powerful and secure mobile hotspot designed to provide high-speed internet connectivity. It leverages 5G and Wi-Fi 6 technologies to support up to 32 Wi-Fi enabled devices, including laptops and tablets. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

2. Enhed overview

Familiarize yourself with the physical components and display of your Inseego MiFi X Pro 5G M3000 mobile hotspot.

Figur 2.1: Forside view of the Inseego MiFi X Pro 5G M3000 Mobile Hotspot, showing the display with network information and menu options.

Figur 2.2: Top-down view highlighting the power button and the interactive touchscreen display.

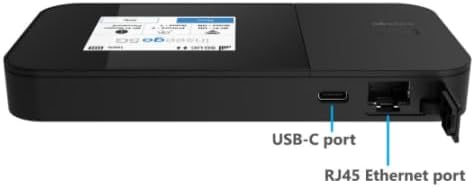

Figur 2.3: Side view illustrating the USB-C port for charging and tethering, and the RJ45 Ethernet port for wired connections.

Nøglekomponenter:

• Power knap: Located on the side, used to turn the device on/off and wake the screen.
• Touchscreen display: Provides access to device status, settings, Wi-Fi name, and password.
• USB-C-port: For charging the device, USB tethering, and universal charging of external devices.
• RJ45 Ethernet-port: For wired network connections, supporting up to 1 Gbps.
• SIM-kortplads: Located internally, for inserting the 5G 4FF Nano SIM card.

3. Opsætning

3.1. Isætning af SIM-kortet

1. Sørg for, at enheden er slukket.
2. Locate the SIM card slot, typically under the battery cover or on the side with a tray.
3. Indsæt en 5G 4FF Nano SIM card into the slot with the gold contacts facing down and the notched corner aligned correctly.
4. Secure the SIM card if necessary (e.g., close the tray or replace the battery cover).

3.2. Første opladning og tænding

1. Connect the provided USB-C cable to the device's USB-C port and the other end to a compatible power adapter or computer.
2. Allow the device to charge until the battery indicator shows a sufficient charge (e.g., 50% or more).
3. Press and hold the power button until the Inseego logo appears on the screen.
4. Follow any on-screen prompts for initial setup, such as language selection or basic network configuration.

4. Betjening af enheden

4.1. Tilslutning af enheder via Wi-Fi

The MiFi X Pro 5G M3000 supports Wi-Fi 6 (802.11 a/b/g/n/ac/ax) on both 2.4GHz and 5GHz bands, allowing up to 32 devices to connect simultaneously.

1. On the MiFi device's touchscreen, navigate to view the Wi-Fi name (SSID) and password.
2. Åbn Wi-Fi-indstillingerne på din Wi-Fi-aktiverede enhed (bærbar computer, tablet, smartphone).
3. Select the MiFi's Wi-Fi network name from the list of available networks.
4. Indtast Wi-Fi-adgangskoden, når du bliver bedt om det.
5. Your device should now be connected to the internet through the MiFi hotspot.

4.2. Tilslutning af enheder via Ethernet

The device features a 1 Gbps RJ45 Ethernet port for wired connections.

1. Connect one end of an Ethernet cable to the RJ45 port on the MiFi device.
2. Connect the other end of the Ethernet cable to the Ethernet port on your computer or network device.
3. The connected device should automatically obtain an IP address and gain internet access.

4.3. Navigation med berøringsskærm

The intuitive touchscreen allows you to monitor connections, view Wi-Fi details, and access settings.

• Startskærm: Displays network status (5G signal strength), battery level, Wi-Fi status, and number of connected devices.
• Menu-knap: Accesses advanced settings and information.
• Wi-Fi Name/Password: Hurtigt view your network credentials.
• Hjælp: Provides on-device assistance and tips.

4.4. Inseego Mobile App

For convenient management, download the Inseego Mobile app from your device's app store. The app allows for easy setup and centralized management of your MiFi device.

5. Vedligeholdelse

5.1. Batteri og opladning

• The device is equipped with a 5050 mAh Li-ion battery.
• Charge the device using the provided USB 3.1 Gen 1, Type A to C cable and a compatible power adapter.
• For 24/7 operation, the proprietary battery preservation mode can be enabled when connected to AC power.
• Avoid exposing the device to extreme temperatures to prolong battery life.

5.2. Firmwareopdateringer

Periodically check for firmware updates to ensure optimal performance, security, and access to new features. Updates can typically be initiated through the device's web administration portal or the Inseego Mobile app when connected to the internet.

5.3. Rensning

Use a soft, dry, lint-free cloth to clean the device's exterior and touchscreen. Avoid using harsh chemicals or abrasive materials.

6. Fejlfinding

This section addresses common issues you might encounter with your MiFi X Pro 5G M3000.

6.1. Ingen internetforbindelse

• Tjek SIM-kort: Ensure the 5G Nano SIM card is correctly inserted and activated with your service provider (T-Mobile).
• Signalstyrke: Verify that the device shows adequate 5G signal strength on the display. Move to an area with better reception if needed.
• Dataplan: Bekræft, at dit dataabonnement er aktivt og har tilgængelig data.
• Genstart enhed: Power off the MiFi device, wait a few seconds, and then power it back on.
• Tilsluttede enheder: Ensure your connected device (laptop, phone) is properly connected to the MiFi's Wi-Fi network or Ethernet port.

6.2. Device Not Powering On or Charging

• Tjek oplader: Ensure the USB-C cable and power adapter are functioning correctly and securely connected. Try a different charger if available.
• Batteriniveau: If the battery is completely depleted, it may take a few minutes of charging before the device responds.
• Power knap: Bekræft, at du trykker på tænd/sluk-knappen og holder den nede i den ønskede varighed (typisk 3-5 sekunder).

6.3. Slow Speeds or Intermittent Connection

• Beliggenhed: Move the MiFi to a location with better 5G signal reception.
• Interferens: Keep the MiFi away from other electronic devices that might cause interference.
• Tilsluttede enheder: Too many devices connected simultaneously can impact performance. Disconnect some devices to test.
• Wi-Fi-bånd: If possible, connect to the 5GHz Wi-Fi band for potentially faster speeds, especially in crowded areas.

7. Specifikationer

8. Garanti og support

As an Amazon Renewed product, specific warranty details are typically provided by the seller or through the Amazon Renewed program. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage and support.

For device management and additional support resources, utilize the Inseego Mobile app or visit the official Inseego support webwebsted.
