Smartmi Elektrisk Radiator 1S Brugermanual

Produkt overview

The Smartmi Electric Radiator 1S is an energy-efficient convection heater designed to provide comfortable warmth without drying the air. It features intelligent temperature control, multiple safety mechanisms, and smart connectivity for convenient operation.

Image: The Smartmi Electric Radiator 1S, a sleek white convection heater, positioned on a wooden floor in a bedroom. It features a digital display on its side and stable base feet.

This radiator utilizes convection heating, ensuring even heat distribution across a room. It operates silently with zero wind, preventing dryness and creating a pleasant atmosphere. The unit is suitable for various indoor environments, including living rooms, bedrooms, offices, and even bathrooms due to its IPX4 splash-proof rating.

Image: The Smartmi Electric Radiator 1S placed in a modern living room, illustrating the convection heating process with yellow wavy lines indicating heat spreading from the unit.

Sikkerhedsoplysninger

Your safety is paramount. The Smartmi Electric Radiator 1S is equipped with multiple safety features to ensure reliable and secure operation.

• Overophedningsbeskyttelse: An integrated temperature detection sensor automatically cuts off power if the internal chamber temperature exceeds 95°C (203°F).
• Beskyttelse mod væltning: The unit is equipped with a tilt protection switch that automatically shuts off the machine if it is tilted by 45° or more.
• IPX4 vandtæthed: This rating ensures the radiator is splash-proof, making it safe for use in bathrooms and other humid environments.
• Child Lock Design: Forhindrer utilsigtede ændringer af indstillinger af børn.

Image: An illustration highlighting the intelligent protection features: Tip-over Protection, Overheating Protection, and Child Lock Design, with the radiator in a living room setting.

Billede: En udskæring view of the radiator's internal structure, pointing out the secure overheating sensor and the electrical cutoff mechanism that activates if the unit is knocked over.

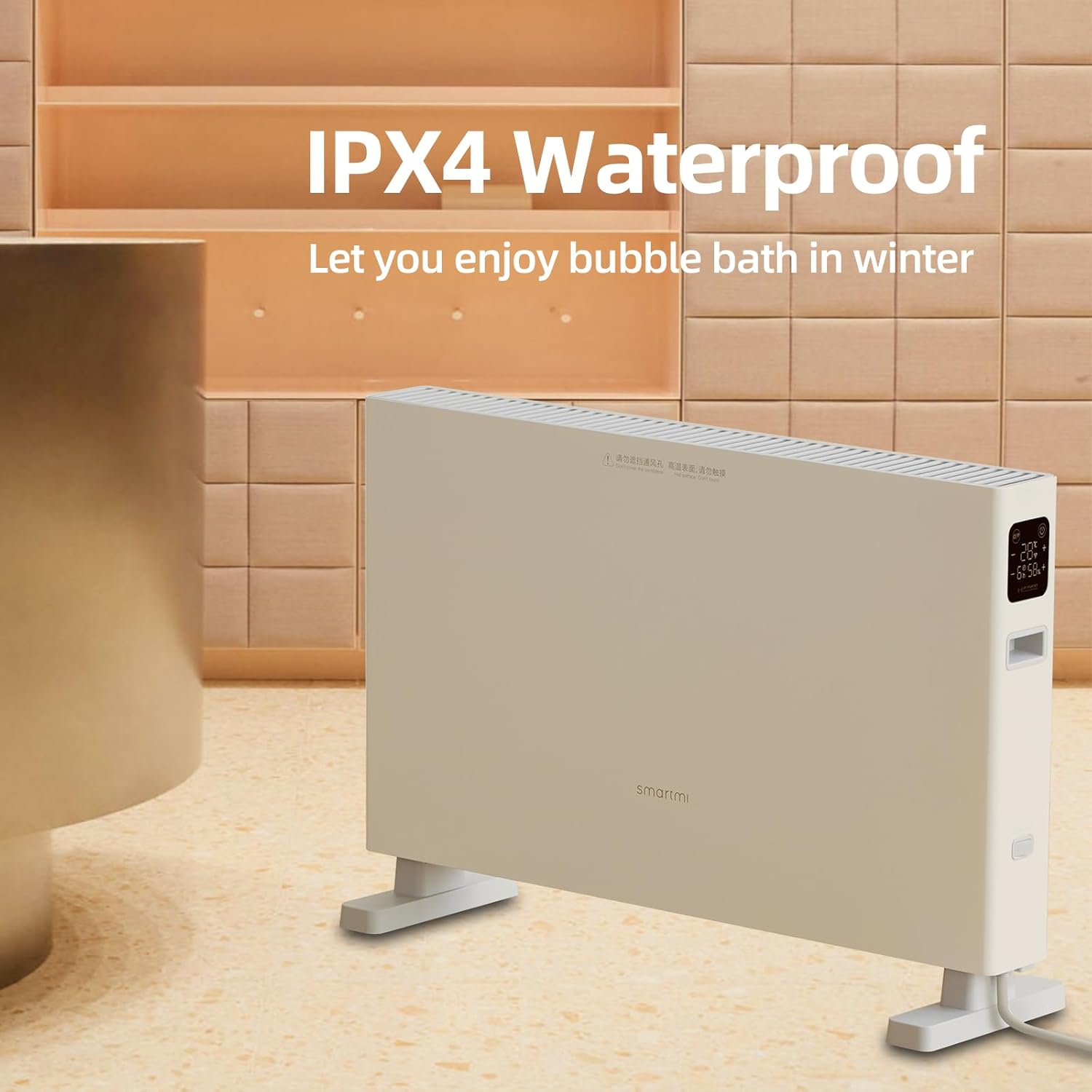

Image: The Smartmi Electric Radiator 1S positioned in a bathroom, emphasizing its IPX4 waterproof capability for safe use in humid environments.

Opsætning og installation

The Smartmi Electric Radiator 1S is designed for floor-mounted installation. Minimal assembly is required before first use.

1. Udpakning: Carefully remove the radiator and all components from the packaging. Retain packaging for future storage or transport.
2. Fastgør fødder: The radiator comes with detachable feet. Securely attach the feet to the base of the unit using the provided screws. Ensure they are firmly in place to provide stable support.
3. Placering: Place the radiator on a flat, stable surface, away from flammable materials, curtains, and direct water sources (unless specifically in a bathroom where IPX4 protection applies). Ensure adequate clearance around the unit for proper air circulation.
4. Strømtilslutning: Sæt netledningen i en passende 220V AC stikkontakt.

Betjeningsvejledning

The Smartmi Electric Radiator 1S offers multiple control methods for your convenience.

Betjening af kontrolpanel

The integrated touch screen display allows for direct control of the radiator's functions.

Billede: En detaljeret view of the Smartmi Electric Radiator 1S's digital touch screen control panel, showing temperature, humidity, and timer settings, along with brightness adjust and power switch icons.

• Tænd/sluk: Use the power button icon on the touch screen to turn the unit on or off.
• Temperaturjustering: Adjust the desired temperature between 16°C and 32°C using the '+' and '-' buttons on the display. The radiator will automatically maintain the set temperature.
• Justering af lysstyrke: The display offers three brightness settings (Bright, Dim, Off) to suit your preference, especially for nighttime use.
• Fugtighedsdisplay: The screen also shows the current humidity level in the room.
• Timer sluk: Set a timer for automatic shut-off directly from the control panel.

Smart APP kontrol

For enhanced convenience, connect your Smartmi Electric Radiator 1S to the dedicated mobile application.

1. Download APP: Download the Smartmi or compatible smart home application from your device's app store.
2. Parring: Follow the in-app instructions to pair your radiator with your smartphone. Ensure your device is connected to a 2.4GHz Wi-Fi network during pairing.
3. Fjernbetjening: Once paired, you can remotely control the radiator's power, temperature, timer, and other settings from anywhere.

Heating Modes and Power Consumption

The radiator intelligently adjusts its power consumption to maintain the set temperature, reducing unnecessary energy use.

Image: An illustration showing different power modes (900W, 1300W, 2200W) and their suggested usage scenarios, such as 900W for sleeping, 1300W for working, and 2200W for social gatherings.

• Variable Heating Power: The unit operates with a heating power range of 0-1600W, adapting to the room's needs.
• Energibesparelse: Dual temperature sensors ensure that once the ambient temperature reaches the preset value, the heater reduces power consumption to maintain warmth efficiently.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your Smartmi Electric Radiator 1S.

• Rensning:
  • Tag altid stikket ud af stikkontakten til radiatoren, og lad den køle helt af, inden den rengøres.
  • Tør de udvendige overflader af med en blød, damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
  • Do not immerse the radiator in water or spray water directly onto it.
• Opbevaring: If storing the radiator for an extended period, clean it thoroughly and store it in a cool, dry place, preferably in its original packaging.
• Inspektion: Periodically check the power cord and plug for any signs of damage. If damaged, do not use the radiator and contact qualified service personnel.

Fejlfinding

If you encounter issues with your Smartmi Electric Radiator 1S, refer to the following common troubleshooting steps.

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

Specifikationer

Garanti og support

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Smartmi website. For technical support or service inquiries, please contact Smartmi customer service through their official channels.

Bemærk: Specifikke garantivilkår og kontaktoplysninger til support kan variere afhængigt af regionen.
