Cisco Catalyst 1200-8P-E-2G Smart Switch brugermanual

Indledning

This manual provides instructions for the installation, configuration, operation, and maintenance of the Cisco Catalyst 1200-8P-E-2G Smart Switch. This device is designed to deliver reliable network performance and security for small business environments.

Pakkens indhold

Bekræft, at din pakke indeholder følgende varer:

• Cisco Catalyst 1200-8P-E-2G Smart Switch
• Netledning eller adapter
• USB Type-C kabel
• Monteringsudstyr

Note: If any items are missing or damaged, contact your vendor or Cisco support immediately.

Opsætning og installation

Follow these steps to set up your Cisco Catalyst 1200-8P-E-2G Smart Switch.

1. Fysisk placering

Place the switch on a stable, flat surface or mount it using the provided hardware. Ensure adequate ventilation around the device to prevent overheating. Avoid placing the switch in direct sunlight or near heat sources. The operating temperature should not exceed 55 degrees Celsius.

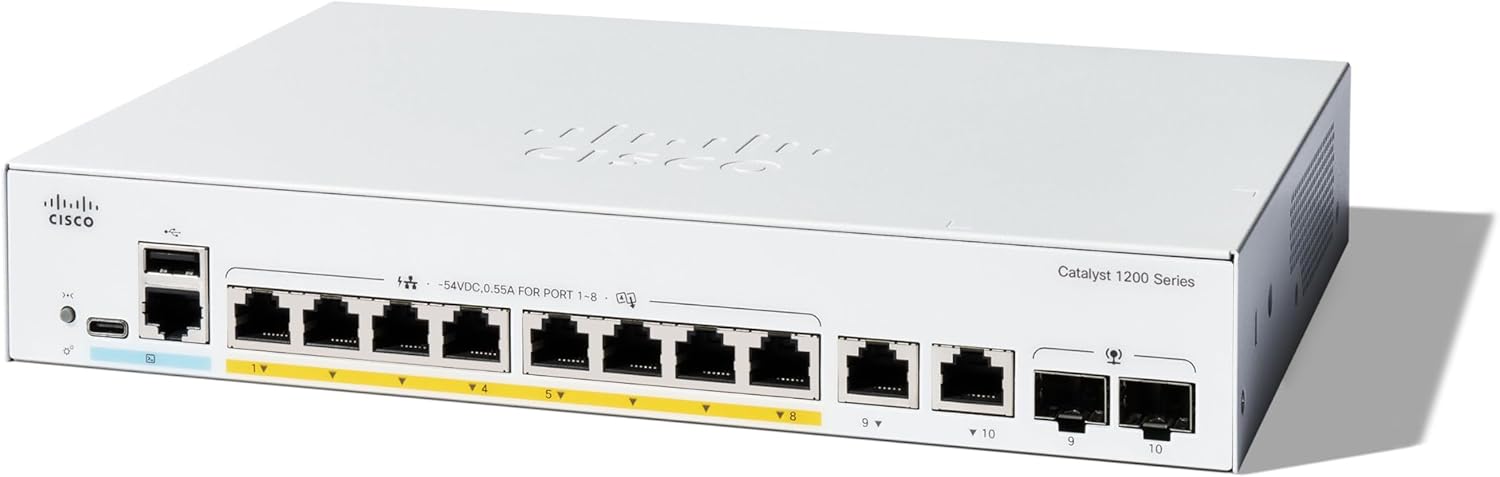

Billede 1: Front view of the Cisco Catalyst 1200-8P-E-2G Smart Switch, showing 8 Gigabit Ethernet ports with PoE+ capability and 2 1GE copper/SFP combo uplink ports.

2. Strømtilslutning

1. Connect the power cord or adapter to the switch's power input.
2. Sæt den anden ende af netledningen i en passende stikkontakt.
3. Verify that the power indicator LED on the switch illuminates, indicating power is supplied.

Vigtig: Use only the power supply provided with the switch. Ensure the power source is stable to prevent intermittent operation.

3. Netværksforbindelser

Connect your network devices (computers, servers, access points, IP cameras) to the 8 Gigabit Ethernet ports (RJ45). These ports support Power over Ethernet (PoE+) with a total power budget of 67W. Use the 2x 1GE copper/SFP combo ports for uplink connections to your core network or other switches.

Billede 2: Bag view of the Cisco Catalyst 1200-8P-E-2G Smart Switch, highlighting the power input, console port, and network ports.

4. Indledende konfiguration

The Cisco Catalyst 1200-8P-E-2G Smart Switch can be configured using the intuitive Cisco Business mobile app, the local web interface, or the Cisco Business Dashboard.

• Cisco Business Mobile-app: Download the app from your device's app store. Follow the in-app instructions for discovery and initial setup.
• Lokal Web Interface: Connect a computer directly to one of the switch's Ethernet ports. Configure your computer's IP address to be in the same subnet as the switch's default IP (refer to the Quick Start Guide for default IP). Open a web browser and navigate to the switch's IP address.
• Cisco Business Dashboard: For centralized management of multiple Cisco Business devices, integrate the switch with the Cisco Business Dashboard.

Billede 3: Visual representation of the Cisco Business Dashboard (left) and Cisco Business Mobile App (right) for network management.

Betjening af kontakten

Network Performance and Features

The Cisco Catalyst 1200-8P-E-2G provides 8 Gigabit Ethernet ports and 2 1GE copper/SFP combo uplink ports. It supports Power over Ethernet Plus (PoE+) on its 8 ports, delivering up to 67W total power for connected devices such as IP phones, wireless access points, and IP cameras.

Nøglefunktioner omfatter:

• VLAN support: Segmentér dit netværk for forbedret sikkerhed og ydeevne.
• Servicekvalitet (QoS): Prioriter netværkstrafik til kritiske applikationer.
• Sikkerhedsfunktioner: Integrated IEEE 802.1X port security, Denial-of-Service (DoS) attack prevention, and Access Control Lists (ACLs) protect your network.
• Energieffektivitet: Compliant with IEEE 802.3az Energy Efficient Ethernet, optimizing power usage.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your switch.

• Firmwareopdateringer: Tjek Cisco-supporten med jævne mellemrum webwebsted for de seneste firmwareopdateringer. Installation af opdateringer kan forbedre ydeevnen, tilføje funktioner og afhjælpe sikkerhedssårbarheder.
• Miljøforhold: Ensure the switch operates within recommended temperature and humidity ranges. Keep ventilation openings clear of obstructions.
• Kabelstyring: Ensure all network cables are securely connected and properly routed to prevent accidental disconnections or damage.
• Sikkerhedskopiering af konfiguration: Regularly back up your switch configuration to an external device or network location. This allows for quick restoration in case of a device reset or failure.

Fejlfinding

This section addresses common issues you might encounter with your Cisco Catalyst 1200-8P-E-2G Smart Switch.

• No Power / Intermittent Power:
  • Kontroller, at netledningen er korrekt tilsluttet både afbryderen og stikkontakten.
  • Sørg for, at stikkontakten fungerer.
  • If using an external power supply, ensure it is the original unit provided with the switch. Intermittent power issues can sometimes be related to faulty power supplies.
• Kan ikke få adgang Web Interface / Configuration Not Saving:
  • Ensure your computer's IP address is in the same subnet as the switch.
  • Ryd din browsers cache, eller prøv en anden browser.
  • If settings are not saving, ensure you are properly applying and saving changes within the web interface or mobile app. A firmware issue could prevent saving; consider updating firmware if possible.
  • If locked out due to a forgotten password, refer to the official Cisco documentation for password recovery procedures.
• Problemer med netværksforbindelse:
  • Check cable connections for all devices.
  • Verify port status LEDs on the switch.
  • Ensure correct VLAN configurations if your network uses them.

For more advanced troubleshooting or persistent issues, consult the comprehensive Cisco documentation or contact Cisco technical support.

Specifikationer

Garanti og support

The Cisco Catalyst 1200-8P-E-2G Smart Switch comes with a limited lifetime hardware warranty. This warranty covers defects in materials and workmanship under normal use.

Additionally, complimentary 1-year technical support is included to assist with initial setup and configuration.

For warranty claims, technical assistance, or to access additional resources, please visit the official Cisco support webwebstedet eller kontakt din autoriserede Cisco-forhandler.

Yderligere ressourcer

For more detailed information, advanced configurations, or to download the latest software and drivers, please visit the official Cisco webwebsted:

• Cisco Official Webwebsted
• Cisco Support Portal
