YT800 Elektrisk Pan-Tilt Rotationshoved Brugermanual

1. Introduktion

The Lazmin112 YT800 Electric Pan-Tilt Rotation Head is a versatile accessory designed for photographers, videographers, and content creators. It offers precise control over camera movement, enabling smooth 360-degree horizontal rotation and 50-degree vertical tilt. With its wireless remote control and robust design, it is suitable for various applications including vlogging, live streaming, outdoor photography, and more.

This manual provides detailed instructions on how to set up, operate, and maintain your YT800 Pan-Tilt Head to ensure optimal performance and longevity.

2. Sikkerhedsoplysninger

• Udsæt ikke enheden for vand eller for høj luftfugtighed.
• Undgå at tabe eller udsætte enheden for kraftige stød.
• Forsøg ikke selv at skille enheden ad eller reparere den. Kontakt kvalificeret servicepersonale.
• Opbevares utilgængeligt for børn.
• Ensure the device is placed on a stable surface or tripod before mounting equipment.
• Overskrid ikke den maksimale bæreevne på 1 kg.

3. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning. Hvis der mangler eller er beskadigede dele, skal du kontakte kundesupport.

• YT800 Electric Pan-Tilt Rotation Head
• 2.4 GHz Wireless Remote Controller
• USB Type-C opladerkabel
• Telefon Clamp
• AAA Batteries (for remote controller)

Figure 3.1: Included components in the YT800 package. This image displays the main pan-tilt head unit, a wireless remote control, a USB-C charging cable, a smartphone clamp, and two AAA batteries.

4. Produktet er slutview

4.1. Main Unit Components

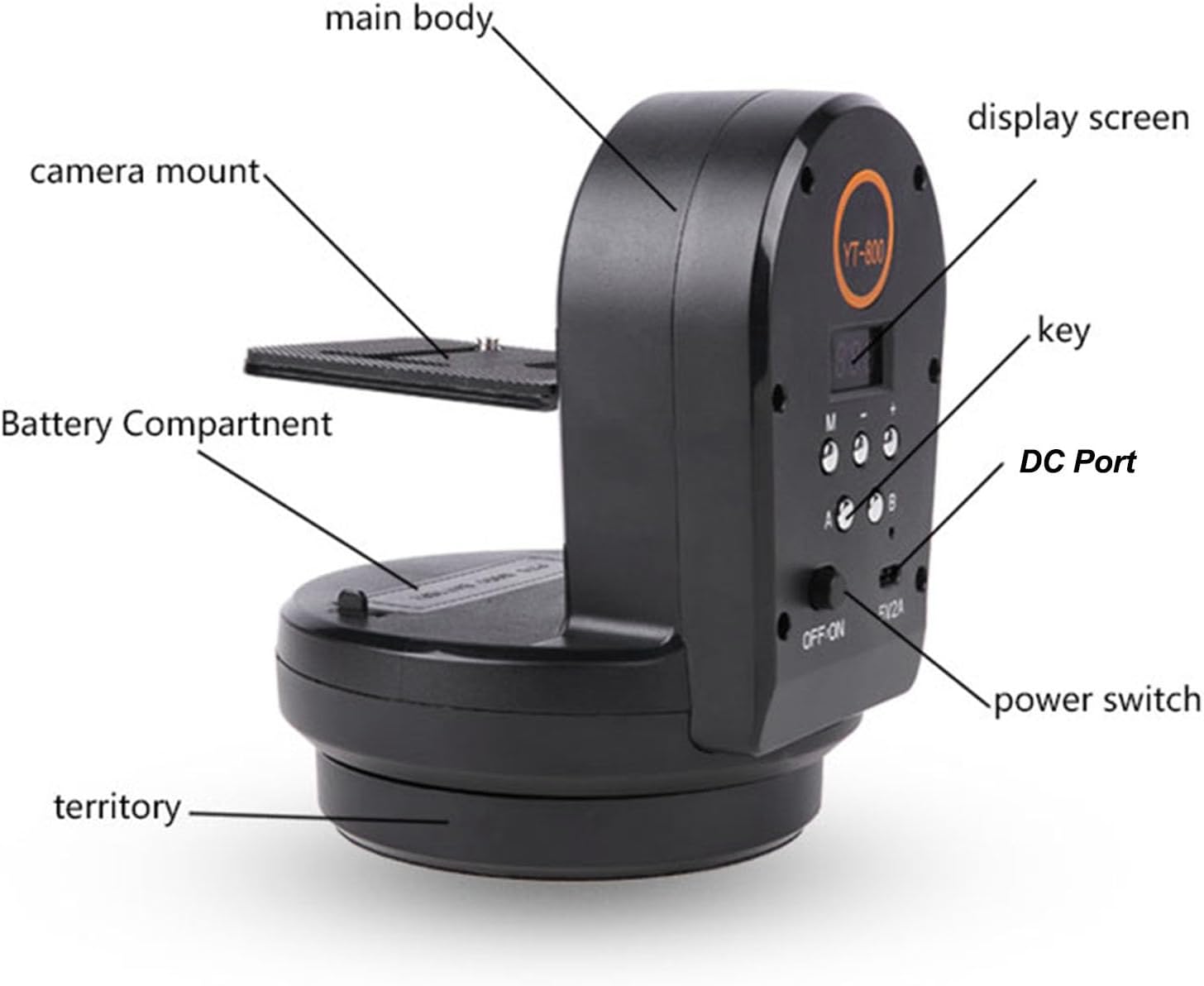

Figure 4.1: Labeled diagram of the YT800 Pan-Tilt Head. Key components include the main body, camera mount, battery compartment, base (territory), display screen, control buttons (keys), DC charging port, and power switch.

• Hoveddel: The primary structure housing the motors and electronics.
• Kameramontering: The platform with a 1/4-inch screw for attaching cameras or phone clamps.
• Batterirum: Houses the internal rechargeable battery.
• Skærm: Shows operational information (e.g., speed, battery level).
• Control Buttons (Keys): M (Mode), -, +, A, B buttons for direct control.
• DC Port (5V2A): USB Type-C-port til opladning.
• Power Switch (OFF/ON): For at tænde eller slukke for enheden.
• Territory (Base): The stable base of the pan-tilt head.

4.2. Fjernbetjening overview

Figure 4.2: Labeled diagram of the YT800 remote control. It features a display for horizontal velocity, vertical velocity, channel, and battery level. Control buttons include directional arrows (up, down, left, right), OK, Menu, S (Speed), A, and B.

• Vise: Shows current settings like horizontal/vertical velocity, channel, and battery level.
• Directional Buttons (Up/Down/Left/Right): Control the pan and tilt movement.
• OK knap: Bekræft valg.
• Menu-knap: Access settings.
• S (Speed) Button: Adjust rotation speed (7 levels).
• A/B Buttons: Set and activate A-B point cruise.

5. Opsætning

5.1. Opladning af enheden

The YT800 Pan-Tilt Head is equipped with a built-in 2000mAh rechargeable battery. Before first use, fully charge the device.

1. Locate the Type-C charging port (5V2A) on the side of the main unit.
2. Connect the provided USB Type-C cable to the port and the other end to a 5V/2A USB power adapter (not included).
3. The display screen will indicate charging status. A full charge provides long-lasting endurance. The device supports charging while in use.

Figure 5.1: USB-C fast charging port for convenient power input.

5.2. Installation af fjernbetjeningsbatterier

Insert the two AAA batteries into the remote control, ensuring correct polarity.

5.3. Mounting on a Tripod

The YT800 features a 1/4-inch screw hole at its base for easy installation on most tripods or stands.

1. Locate the 1/4-inch screw hole on the bottom of the YT800 base.
2. Align it with the screw on your tripod's quick release plate or head.
3. Securely fasten the YT800 to the tripod by rotating it clockwise until tight.

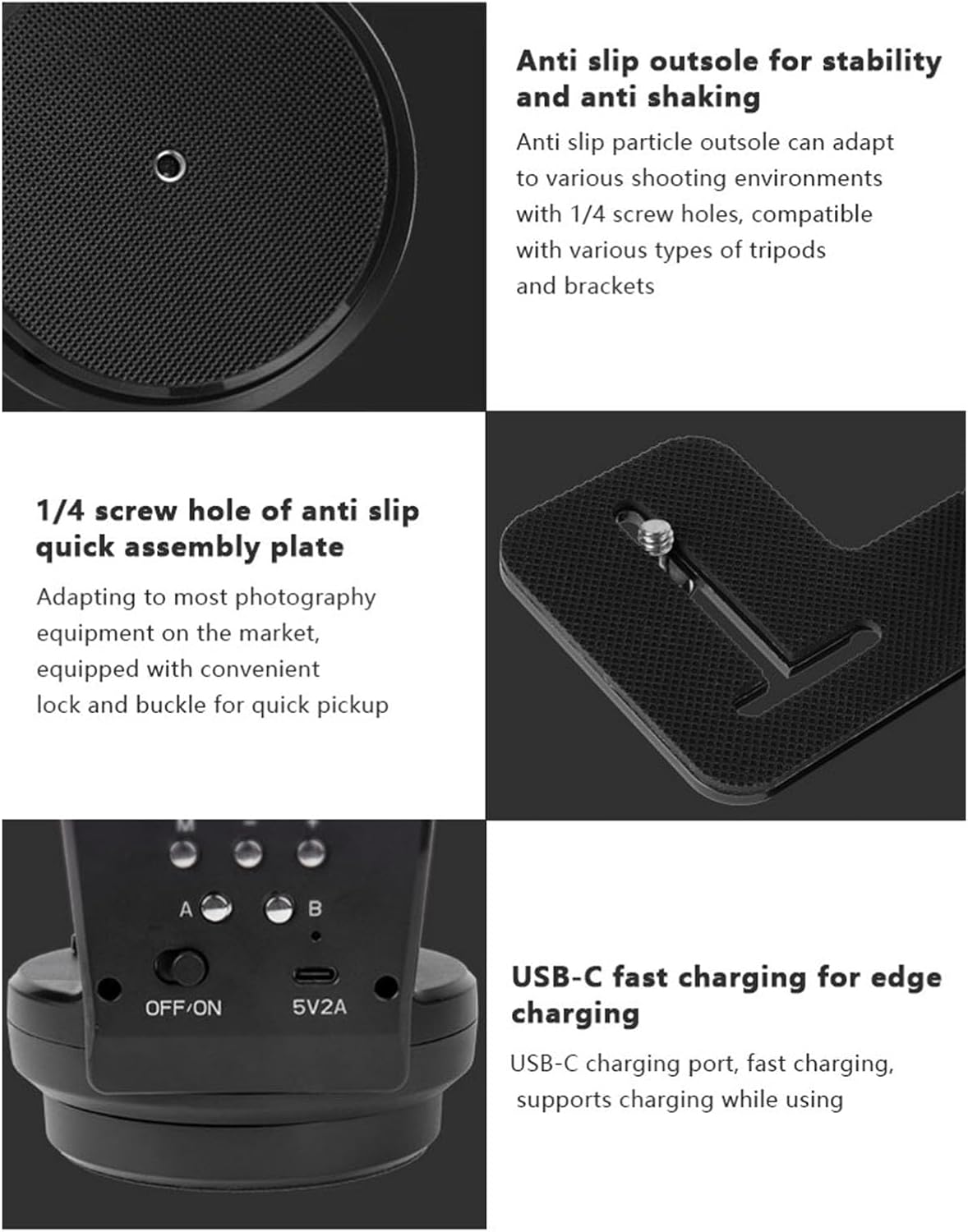

Figure 5.2: The anti-slip outsole and 1/4-inch screw hole for stable tripod mounting.

5.4. Tilslutning af kamera eller telefon

The YT800's camera mount has a 1/4-inch screw compatible with various devices.

1. For cameras (mirrorless, DSLR, action cameras): Screw the camera directly onto the 1/4-inch screw on the YT800's camera mount. Ensure it is securely tightened.
2. For smartphones: Attach the provided phone clamp to the 1/4-inch screw on the YT800's camera mount. The clamp can hold devices with a width of 5.5 to 8 cm. Insert your smartphone into the clamp, ensuring it is held firmly. The clamp supports both horizontal and vertical shooting orientations.

Figure 5.3: YT800 with a camera mounted, ready for remote-controlled movement.

6. Betjeningsvejledning

6.1. Tænd/sluk

Skub til OFF/ON switch on the main unit to the ON position to power on the device. Slide it to SLUKKET at slukke.

6.2. Basic Movement Control (Remote)

Use the directional buttons on the 2.4 GHz wireless remote control to adjust the pan (left/right) and tilt (up/down) angles.

• Venstre/højre pile: Control horizontal rotation (pan).
• Pil op/ned: Control vertical tilt.

6.3. Adjusting Rotation Speed

The YT800 supports 7 levels of adjustable speed for both horizontal and vertical movement.

1. Tryk på S (Speed) button on the remote control.
2. Use the Up/Down arrows to cycle through the 7 speed levels.
3. Trykke OK for at bekræfte dit valg.

Figure 6.1: Illustrates the 360-degree infinite horizontal rotation and 50-degree vertical tilt capabilities.

6.4. A-B Point Cruise Function

The A-B point cruise function allows you to set two specific points (A and B) and have the pan-tilt head automatically move between them.

1. Manually position the camera to your desired starting point (Point A) using the remote control.
2. Tryk på A button on the remote control to set Point A.
3. Manually position the camera to your desired ending point (Point B).
4. Tryk på B button on the remote control to set Point B.
5. To start the cruise, press the Auto button (or similar function, refer to remote diagram). The head will now move smoothly between Point A and Point B.

Figure 6.2: Illustrates the A-B point cruise function for panoramic shooting, live streaming, and vlogging.

7. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: If storing for extended periods, charge the battery to about 50% every three months to maintain battery health.

8. Fejlfinding

9. Specifikationer

Figure 9.1: Product dimensions of the YT800 Pan-Tilt Head.

10. Garantioplysninger

Dette produkt leveres med en 1 års garanti mod fabrikationsfejlGem venligst din købsbevis i tilfælde af garantikrav. Garantien dækker defekter i materialer og udførelse ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriseret ændring eller forkert installation.

11. Kundesupport

If you encounter any issues or have questions regarding your Lazmin112 YT800 Electric Pan-Tilt Rotation Head, please contact our customer support team. Refer to your purchase documentation for specific contact details or visit the official Lazmin112 webwebsted.

For de seneste oplysninger og support, besøg venligst: Lazmin112 Official Store on Amazon
