Barska Winbest Pursuit-200 metaldetektor feltsæt brugermanual

1. Introduktion

This manual provides detailed instructions for the assembly, operation, and maintenance of your Barska Winbest Pursuit-200 Metal Detector Field Kit. Please read this manual thoroughly before using the product to ensure proper function and longevity.

The Pursuit-200 Metal Detector Field Kit is designed for detecting various metals and includes a main metal detector with an LCD display, a handheld wand detector, headphones, a folding shovel, and a soft carrying case.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

Barska Winbest Pursuit-200 Metal Detector (Main Unit)
Surveyor-100 Handheld Wand Metal Detector
Hovedtelefoner
Folding Shovel with Compass
Blød bæretaske
Brugervejledning (dette dokument)

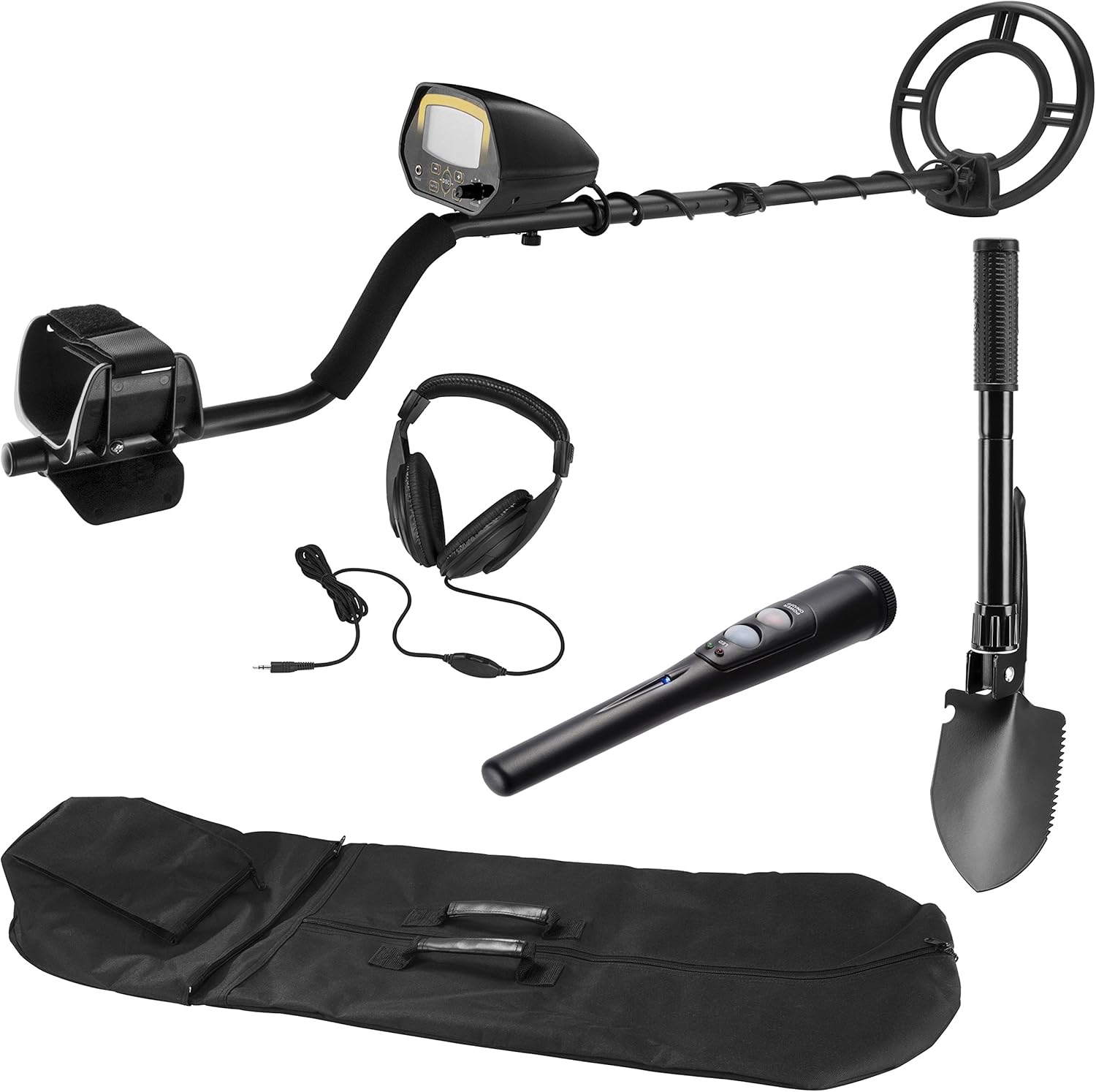

Barska Winbest Pursuit-200 Metal Detector Field Kit components

Billede 2.1: All components of the Barska Winbest Pursuit-200 Metal Detector Field Kit, including the main detector, wand detector, headphones, shovel, and carrying case.

3. Opsætning

3.1. Assembling the Main Metal Detector

Fastgør søgespolen: Secure the search coil to the lower stem using the provided bolt and nut. Ensure it is firmly attached but allows for slight angle adjustment.
Connect the Lower and Middle Stems: Insert the lower stem into the middle stem and secure it with the spring clip or locking mechanism.
Attach the Control Housing: Slide the control housing onto the upper stem. Adjust the armrest for comfort and secure the control housing in place.
Vikl kablet op: Carefully wrap the search coil cable around the stem, ensuring it is not too tight or loose, and plug the connector into the control housing.
Installer batterier: Open the battery compartment on the control housing and insert the required batteries (refer to specifications for battery type).

Assembled Barska Winbest Pursuit-200 Metal Detector

Billede 3.1: The main metal detector fully assembled, showing the search coil, stem, armrest, and control housing.

3.2. Preparing the Wand Detector

The Surveyor-100 Wand Metal Detector typically requires battery installation. Open the battery compartment, insert the correct batteries, and close the compartment securely.

Barska Surveyor-100 Handheld Wand Metal Detector

Billede 3.2: The handheld wand metal detector, showing its compact design and control buttons.

3.3. Preparing the Folding Shovel

Unfold the shovel and secure its locking mechanisms to ensure it is rigid for use. The shovel can be configured as a shovel or a pick. The compass is integrated into the handle.

Barska Folding Shovel in various configurations

Billede 3.3: The multi-use folding shovel, shown in both shovel and pick configurations.

4. Betjeningsvejledning

4.1. Main Metal Detector Operation

Barska Pursuit-200 Metal Detector LCD control panel

Billede 4.1: Close-up of the Pursuit-200 metal detector's LCD display and control panel, showing buttons for DISC, NOTCH, SENS, and volume knob.

Tænd: Turn the VOLUME knob clockwise to power on the detector.
Adjust Sensitivity (SENS): Press the SENS button and use the '+' and '-' buttons to adjust the sensitivity level. Higher sensitivity increases detection depth but may also increase false signals.
Discrimination (DISC): Press the DISC button and use '+' and '-' to set the discrimination level. This feature allows the detector to ignore certain types of metal (e.g., iron). The LCD will show the target ID.
Hak: Use the NOTCH function to selectively eliminate specific metal categories from detection.
Hovedtelefoner: Plug the included headphones into the 'PHONE' jack for private listening and clearer audio signals.
Fejning: Hold detektoren med søgespolen parallelt med jorden, cirka 1-2 cm over overfladen. Bevæg spolen langsomt fra side til side i overlappende buer.
Målindikation: When a metal object is detected, the detector will emit an audible tone, and the LCD display will show a target ID and signal strength.
Vandtæt søgespole: The 10-inch search coil is weather-sealed and can be submerged in shallow water for detection. Ensure the control housing is not submerged.

4.2. Wand Detector Operation

Hand holding Barska Surveyor-100 Wand Metal Detector

Billede 4.2: A hand holding the Surveyor-100 wand detector, demonstrating its ergonomic design for pinpointing targets.

Tænd: Press the Power ON/OFF button to activate the wand detector.
Udpegning: After locating a general area with the main detector, use the wand detector to precisely pinpoint the target's location in the soil.
Tegn: The wand detector will typically use audible alerts and/or vibration, along with LED indicators, to signal the presence of metal.

4.3. Shovel Usage

Use the folding shovel to excavate detected targets. Its compact design and pick function are useful for breaking up tough ground. The integrated compass can assist with navigation.

5. Vedligeholdelse

Rensning: Wipe down the detector and accessories with a damp klud efter hver brug. Undgå slibende rengøringsmidler.
Opbevaring: Store the kit in the provided soft carrying case in a dry, cool place when not in use.
Batteripleje: Remove batteries from both detectors if they will not be used for an extended period to prevent leakage.
Kabelinspektion: Regularly check the search coil cable for any signs of wear or damage.

6. Fejlfinding

Problem	Mulig årsag	Løsning
No power to main detector/wand detector	Døde eller forkert installerede batterier	Udskift batterierne med nye, og sørg for at polariteten vender korrekt.
Erratic signals or false positives	Høj følsomhed, elektromagnetisk interferens, mineraliseret jord	Reduce sensitivity. Move away from power lines or other electronic devices. Use discrimination settings.
Detector not finding metal	Low sensitivity, incorrect discrimination settings, search coil not parallel to ground	Increase sensitivity. Adjust discrimination settings. Ensure search coil is swept correctly.
Ingen lyd fra hovedtelefoner	Headphones not plugged in correctly, volume too low, faulty headphones	Ensure headphones are fully plugged in. Increase volume. Test with another pair of headphones if available.

7. Specifikationer

Model: Pursuit-200 (BE12748)
Mærke: Barska
Søgespolestørrelse: 10 inches (Waterproof)
Vise: LCD
Strømkilde: Battery Powered (Batteries Required: Yes)
Justerbar længde: Yes, up to 47 inches
Materiale: Metal
Varens vægt: Cirka 0.4 kilogram (14.1 ounces)
Produktdimensioner: 10"L x 9.5"W x 48.42"H (assembled)
International beskyttelsesvurdering: IP541 (til søgespole)
Inkluderet tilbehør: Surveyor-100 Wand Detector, Headphones, Folding Shovel with Compass, Soft Carrying Case

8. Sikkerhedsoplysninger

Indhent altid tilladelse, inden du ransager på privat ejendom.
Be aware of local regulations regarding metal detecting.
Exercise caution when digging to avoid damaging underground utilities or historical artifacts.
Do not use the metal detector near live electrical wires or in hazardous environments.
Hold batterier væk fra børn, og bortskaf dem korrekt.

9. Garanti og support

For warranty information and customer support, please refer to the official Barska webwebstedet eller kontakt deres kundeserviceafdeling. Behold din købskvittering som købsbevis.

Barska Official Webwebsted: www.barska.com
