Brugermanual til FLIR E5 Pro termisk kamera

Indledning

This manual provides essential instructions for the safe and effective operation of your FLIR E5 Pro Thermal Imaging Camera. The FLIR E5 Pro is a handheld infrared camera designed for professional use, offering high-resolution thermal imaging and cloud connectivity for various inspection and diagnostic applications.

Image: The FLIR E5 Pro thermal imaging camera, showing its ergonomic design and display with a thermal image.

1. Opsætning og første brug

1.1 Udpakning og indhold

Carefully unpack all items from the product packaging. Verify that all components are present:

• FLIR E5 Pro Infrared Camera
• Hård transportkuffert
• Rechargeable Lithium-ion battery (one included, pre-installed or separate)
• USB power supply/charger with international adapters (EU, UK, US, AU)
• USB-kabel
• FLIR Thermal Studio Starter software information

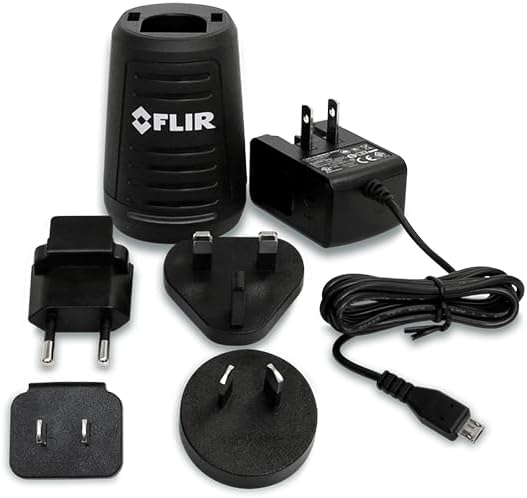

Image: The included USB power supply, charger, and various international plug adapters.

1.2 Opladning og installation af batteri

The camera uses a rechargeable Lithium-ion battery. Ensure the battery is fully charged before first use.

1. Connect the USB cable to the camera and the power supply.
2. Plug the power supply into an appropriate electrical outlet using the correct regional adapter.
3. The charging indicator on the camera will show charging status.
4. For battery installation, refer to the compartment on the camera handle.

1.3 Tænd/sluk

Press and hold the power button located on the camera to turn it on or off. The camera will perform a brief startup sequence.

2. Betjening af kameraet

2.1 Grundlæggende betjening og billedoptagelse

The FLIR E5 Pro is designed for intuitive point-and-shoot operation. The lens is always in focus, simplifying use.

• One-button image capture: Tryk på udløserknappen for at tage et termisk billede.
• Vise: View images and navigate menus on the 3.5-inch, 640 x 480 pixel color LCD touchscreen.

Billede: Side view of the FLIR E5 Pro highlighting key physical features like the lens, flashlight, and trigger button.

2.2 Thermal Imaging Features

• Termisk opløsning: 160 × 120 pixels (19,200 pixels) for detailed thermal images.
• Temperaturområde: Measures temperatures from -20°C to 400°C (-4°F to 752°F).
• MSX-teknologi: Patented Multi-Spectral Dynamic Imaging (MSX) embosses visual details onto the thermal image, enhancing clarity and making it easier to identify components.
• Billedtilstande: Select from Thermal MSX, Thermal, Picture-in-Picture, or Digital camera modes.
• Farvepaletter: Choose from various palettes including Iron, White hot, Black hot, Arctic, Lava, and Rainbow HC to visualize temperature differences effectively.

Billede: Overview of the FLIR E5 Pro's core specifications including thermal resolution and temperature range.

Image: Details on the FLIR E5 Pro's Wi-Fi capabilities, display specifications, and available imaging options.

2.3 Image Management and Connectivity

• File Format: Records standard JPEG images with embedded temperature data.
• FLIR Ignite Cloud: Connect to the FLIR Ignite App via Wi-Fi for automatic storage, editing, and sharing of images in the cloud. This facilitates rapid image transfer and collaboration.
• Touchscreen Annotations: Utilize the 3.5-inch touchscreen for quick on-screen setting changes, adding annotations to images, and saving files directly to the FLIR Ignite cloud.

Image: A hand interacting with the FLIR E5 Pro's touchscreen to add annotations to a thermal image.

2.4 Billedoptimering

The 1-Touch Level/Span feature allows for quick image contrast improvement. By touching an area on the screen, the camera automatically adjusts the level and span to optimize contrast for that specific spot, reducing diagnostic time.

Image: A user adjusting the thermal image contrast on the FLIR E5 Pro using the 1-Touch Level/Span function.

3. Vedligeholdelse

3.1 Rengøring af kameraet

• Brug en blød, damp cloth to clean the camera body.
• For the lens, use a lens cleaning cloth and solution specifically designed for optics. Avoid abrasive materials.
• Do not immerse the camera in water or use harsh chemicals.

3.2 Pleje af batterier

• Oplad batteriet regelmæssigt, selvom kameraet ikke bruges ofte, for at opretholde batteriets sundhedstilstand.
• Store the camera and battery in a cool, dry place.
• The battery provides approximately 4 hours of continuous operating time.

3.3 Softwareopdateringer

The FLIR E5 Pro supports Over-The-Air (OTA) updates, ensuring your camera is always equipped with the latest features and improvements. Connect to Wi-Fi and check for available updates through the camera's menu or the FLIR Ignite App.

4. Fejlfinding

If you encounter issues with your FLIR E5 Pro, consider the following basic troubleshooting steps:

• Kameraet tænder ikke: Ensure the battery is charged and correctly installed. Try charging the camera for at least 30 minutes.
• Image quality issues: Clean the lens. Ensure proper focus (though the lens is always in focus, debris can affect clarity). Adjust color palettes or use the 1-Touch Level/Span feature.
• Forbindelsesproblemer: Verify Wi-Fi settings and network connection. Ensure the FLIR Ignite App is updated on your device.
• Softwareproblemer: Check for and install any available OTA software updates.

For more complex issues or persistent problems, refer to the official FLIR support resources or contact customer service.

5. Specifikationer

6. Garantioplysninger

The FLIR E5 Pro Thermal Imaging Camera comes with a comprehensive warranty:

• 2-Year Full Product Warranty: Covers parts and labor for the camera.
• 10-Year Detector Warranty: Covers the thermal detector, which is a critical component of the camera.

For detailed terms and conditions, please refer to the warranty documentation included with your product or visit the official FLIR webwebsted.

7. Support og kontakt

For further assistance, technical support, or to access additional resources, please visit the official FLIR webwebsted:

www.flir.com

You can also find product registration, software downloads, and frequently asked questions on their support pages.
