1. Produktet er slutview

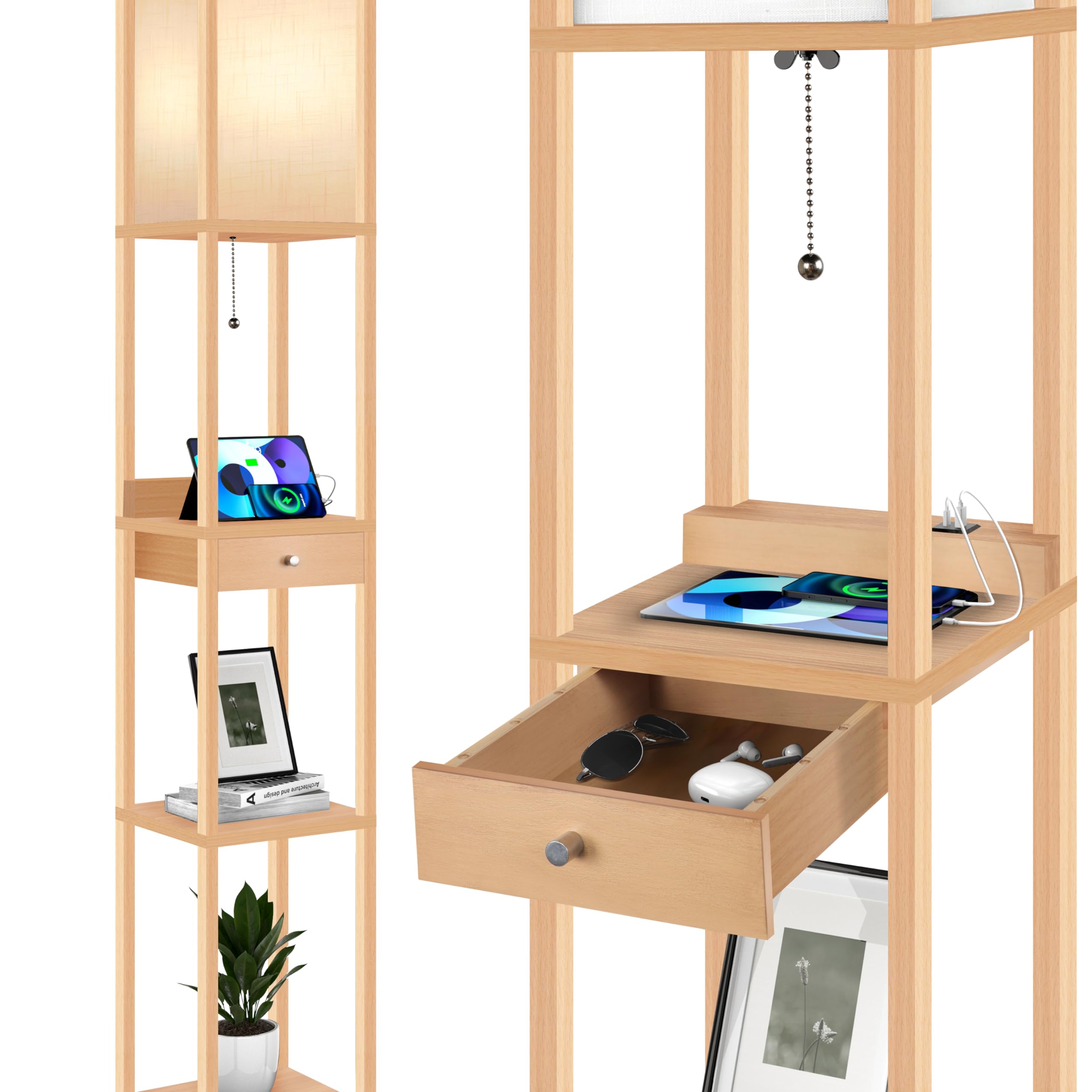

OUTON LED gulvlampe Lamp is a versatile lighting solution designed to enhance your living space. It combines a modern floor lamp with practical storage, featuring three shelves and a spacious sliding drawer. Equipped with a 9-watt LED bulb, it offers three adjustable color temperatures (Warm White, Natural White, Daylight) and includes a 1-hour timer function. For added convenience, the lamp integrates a 2-in-1 charging station with a Type-C fast charging port and a 5V/2A USB port, allowing you to charge multiple devices simultaneously.
2. Sikkerhedsinstruktioner
- Læs alle instruktioner omhyggeligt før montering og brug.
- Behold lamp væk fra vand og fugt.
- Sørg for, at netledningen ikke er beskadiget eller klemt.
- Forsøg ikke at adskille eller reparere lamp dig selv. Kontakt kvalificeret personale for service.
- Use only the specified bulb type (9W LED, E27 base).
- Do not overload the charging ports.
- Placer lamp på en stabil, plan overflade for at forhindre væltning.
3. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede, før monteringen påbegyndes:
- Lamp Frame (Wooden sections)
- Skygge af hør
- LED Bulb (9W, E27)
- Sliding Drawer with Knob
- Træk kædekontakt
- Standard E27 base
- Ledningsklemme
- Samlebeslag (skruer, stik)
- Brugermanual
4. Monteringsvejledning
OUTON LED gulvlampe Lamp is designed for easy assembly, typically taking around 10 minutes. Follow the included guide for detailed steps.
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, plan overflade.
- Saml rammen: Connect the wooden sections according to the diagram in the separate assembly guide. Ensure all connections are secure.
- Installer skuffen: Slide the drawer into its designated slot.
- Fastgør Lamp Skygge: Secure the linen shade to the top section of the lamp ramme.
- Indsæt LED-pæren: Skru den medfølgende E27 LED-pære ind iamp holder.
- Tilslut til strøm: Sæt netledningen i en passende stikkontakt.
5. Betjeningsvejledning
5.1 Lysbetjening
Lamp features a pull chain switch to control the light and cycle through color temperatures.
- Tænd/sluk: Pull the chain once to turn the lamp on. Pull it again to turn it off.
- Skift farvetemperatur: Each subsequent pull of the chain while the lamp is on will cycle through the three color temperatures: Warm White (2700K), Natural White (4000K), and Daylight (5000K).
- 1-timers timer: Lamp includes a 1-hour timer function. Specific activation details are not provided in this manual.
5.2 Ladestation
The integrated charging station allows you to power your devices conveniently.
- USB-port: Connect your device's USB cable to the 5V/2A USB port for charging.
- Type-C port: Connect your device's Type-C cable to the fast charging port for compatible devices.
- Du kan oplade to enheder samtidigt.
5.3 Storage and Display
Utilize the three open shelves and the large sliding drawer for organizing and displaying items.
- Hylder: Ideal for books, small plants, photo frames, or decorative items. Each shelf can support a maximum weight of 30 lbs (13.6 kg).
- Skuffe: Store smaller items like remote controls, charging cables, or glasses to keep your space tidy.
6. Vedligeholdelse
6.1 Rengøring
- Tag altid stikket ud af lamp før rengøring.
- Wipe the wooden frame and shelves with a soft, dry cloth.
- For the linen shade, use a soft brush or a lint roller to remove dust. Do not use liquid cleaners on the shade.
6.2 Udskiftning af pære
- Sørg for at lamp er taget ud af stikkontakten, og pæren er kølet helt af.
- Skru forsigtigt den gamle E27-pære af.
- Skru en ny E27 LED-pære i (maks. 9 W).
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | No power, loose bulb, faulty switch. | Check power outlet, ensure plug is fully inserted. Tighten bulb. Check pull chain for proper function. |
| Opladningsporte virker ikke. | Lamp not powered, device cable faulty, device incompatible. | Sørg for lamp is plugged in and receiving power. Try a different charging cable or device. |
| Lyse flimrer. | Loose bulb, unstable power supply. | Tighten bulb. Try plugging into a different outlet. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | UDEN |
| Modelnummer | H-10011 |
| Dimensioner (L x B x H) | 5 x 5 x 5 cm (product); 160 cm height, 26 cm base (approximate) |
| Vægt | 5.8 kilo |
| Materiale | Wood (frame), Linen (shade) |
| Lyskildetype | LED |
| Pære type | E27 (GU10 base mentioned in some specs, but E27 is more common for this type of lamp and bulb provided is 9W LED) |
| Wattage | 9 watt |
| Lysstrøm | 810 lm |
| Farvetemperaturer | 2700K (Warm White), 4000K (Natural White), 5000K (Daylight) |
| Særlige funktioner | Adjustable Color Temperature, 1-Hour Timer, USB Charging Port, Type-C Fast Charging Port |
| Skift stil | Træk kæde |
| Maks. hyldebelastning | 30 lbs (13.6 kg) |
| Energieffektivitetsvurdering | E |
9. Garanti og support
Dette produkt leveres med en 1 års garanti on spare parts availability. For any questions, technical support, or warranty claims, please contact OUTON customer service through your purchase platform or the official OUTON webwebsted.
