VEDINDUST HDMI Splitter Extend User Manual

1. Introduktion

The VEDINDUST HDMI Splitter Extend is designed to enhance your computing experience by allowing you to connect up to two external HDMI displays to a single computer. This device supports both screen mirroring and extended desktop modes, enabling efficient multitasking and expanded workspace. It is compatible with various Windows operating systems.

For optimal performance, please read this manual thoroughly before use and retain it for future reference.

2. Sikkerhedsoplysninger

ADVARSEL:

• Do not use this product in high temperature, humid or corrosive environments.
• Undgå at udsætte produktet for ekstreme temperaturer eller ætsende stoffer.
• Dette produkt er kun designet til indendørs brug.

Image: Product box displaying safety warnings in multiple languages (UK, DE, FR, IT, ES, NL, BE, TR, SE, PL) and manufacturer details at the bottom.

3. Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

• 1 x VEDINDUST HDMI Splitter Extend
• 1 x USB A-A Cable
• 1 x brugermanual

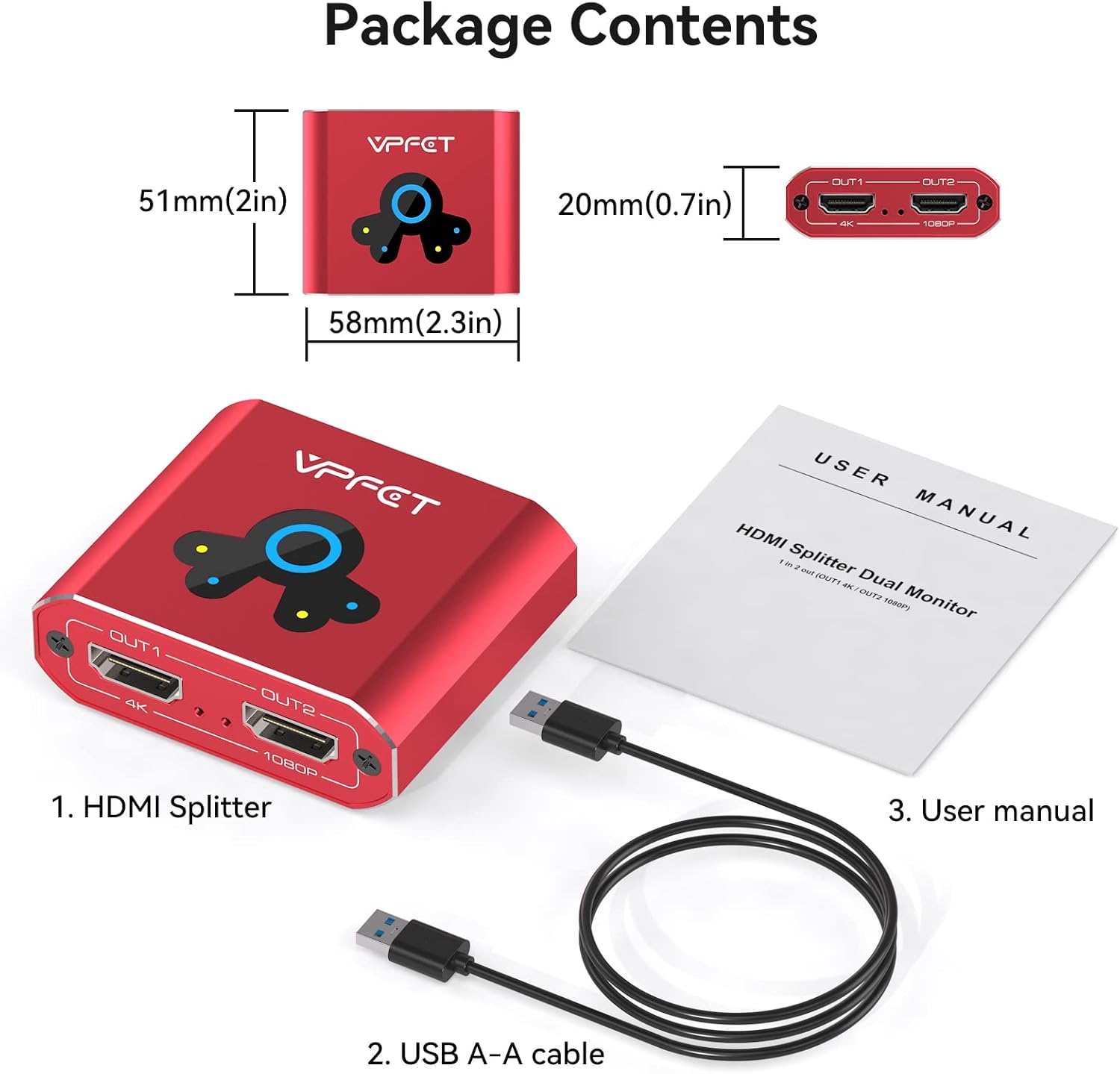

Image: Contents of the product package, showing the red HDMI splitter, a black USB A-A cable, and a white user manual.

4. Opsætningsvejledning

4.1 Systemkrav

This HDMI splitter is compatible with the following Windows operating systems:

• Windows XP
• Windows VISTA
• Windows 7
• Windows 10
• Windows 11

Note: For better compatibility, please use a Windows PC. macOS, Linux, and Chrome OS are not supported.

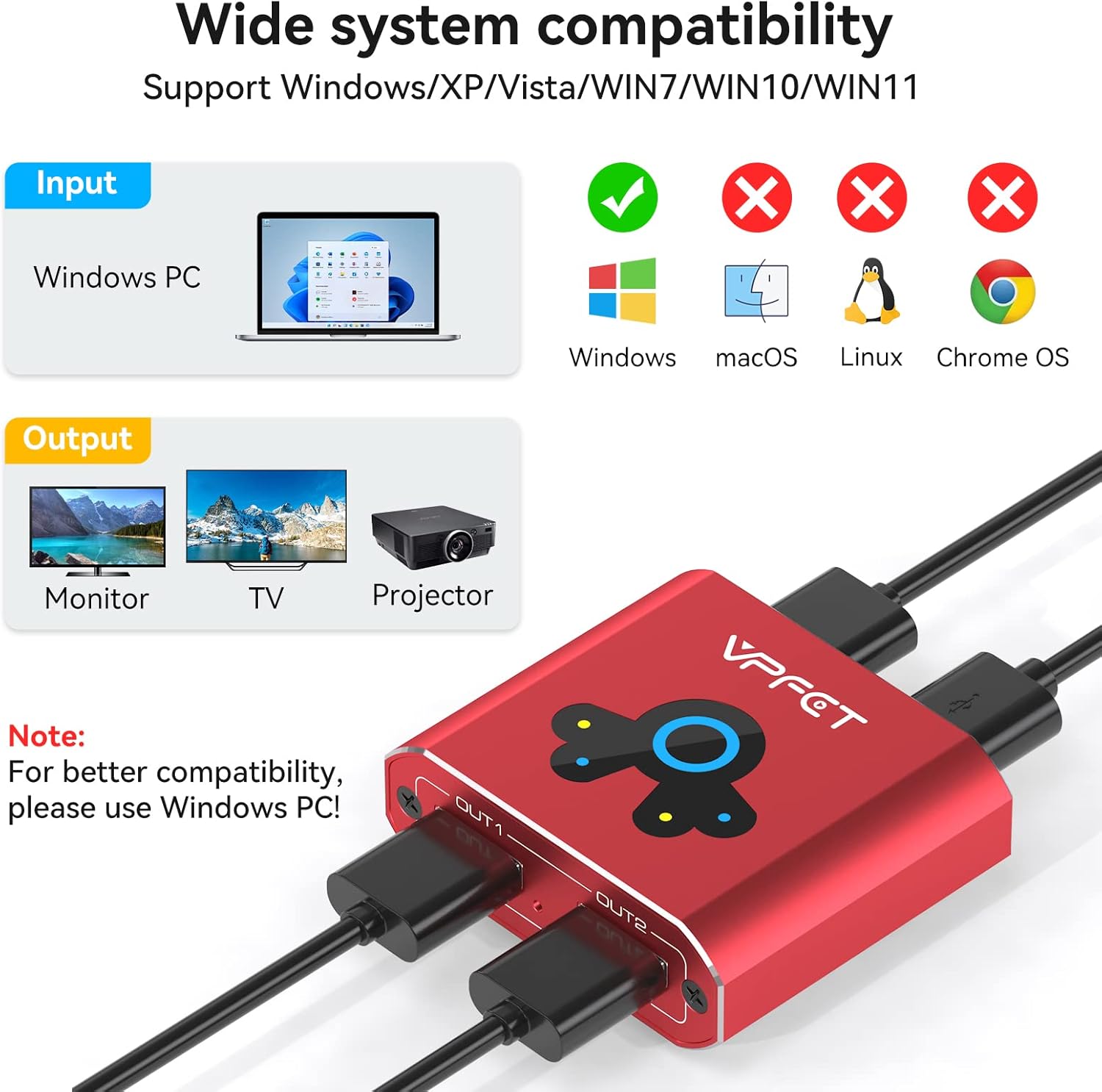

Image: Diagram illustrating system compatibility, showing a green checkmark for Windows PC and red crosses for macOS, Linux, and Chrome OS, indicating non-support.

4.2 Driverinstallation

Before using the device, the USBDISPLAY driver must be installed. The program needs to run on the integrated graphics card of your computer.

• Locate the driver software (typically provided on a mini-CD or available for download from the manufacturer's webwebsted).
• Kør installationsprogrammet, og følg vejledningen på skærmen for at fuldføre installationen.
• For Windows 11 systems, you may need to add the driver to your antivirus whitelist and PC Manager whitelist to ensure proper functionality.

4.3 Tilslutning af enheden

Follow these steps to connect the HDMI splitter to your computer and monitors:

1. Tilslut USB IN port of the HDMI splitter to a USB port on your computer using the provided USB A-A cable.
2. Tilslut HDMI-IN port of the HDMI splitter to an HDMI output port on your computer.
3. Ensure both the USB port and HDMI IN port are connected to the same computer.
4. Connect your primary monitor to the OUT 1 (4K) port on the HDMI splitter using an HDMI cable.
5. Connect your secondary monitor to the OUT 2 (1080P) port on the HDMI splitter using an HDMI cable.

Image: Detailed diagram showing the connection flow: PC to HDMI Splitter via USB IN and HDMI IN, then HDMI Splitter to two monitors via OUT1 (4K) and OUT2 (1080P). It also indicates compatibility with Windows PC and non-compatibility with other devices like Apple TV or PlayStation.

5. Driftstilstande

The VEDINDUST HDMI Splitter Extend supports various display modes to suit your needs:

5.1 Screen Copy (Mirror) Mode

In this mode, your computer's display is duplicated across both connected external monitors. All three screens (laptop, OUT1, OUT2) will show the same content.

Image: Illustration of A-B-B Extended Mode 1, where the laptop screen (A) is mirrored to both external monitors (B and B), displaying identical content.

5.2 Screen Expansion (Extend) Mode

This mode allows you to extend your desktop across multiple displays, providing more screen real estate for multitasking. You can configure different content on each screen.

There are several configurations for extended mode:

• A-B-C Extended Mode: Your laptop screen (A) displays one content, the first external monitor (B) displays different content, and the second external monitor (C) displays yet another different content. This allows for three distinct displays.


Image: Diagram showing A-B-C Extended Mode 2, where the laptop (A) and two external monitors (B and C) each display unique content, expanding the desktop workspace.

• A-A-B Extended Mode: Your laptop screen (A) and the first external monitor (A) display the same content, while the second external monitor (B) displays different content. This is useful for sharing content on one screen while working on another.


Image: Diagram showing A-A-B Extended Mode 3, where the laptop (A) and one external monitor (A) mirror each other, and the second external monitor (B) displays different content, enhancing work efficiency.

To set up screen duplication or expansion, navigate to your computer's display settings (e.g., right-click on desktop > Display settings in Windows) and configure the monitors as desired.

Image: Visual representation of the HDMI Extended Work Mode, demonstrating how different screens can display varied content to improve work efficiency, with a laptop and two external monitors.

5.3 Understøttelse af opløsning

• OUT 1 Port: Understøtter op til 4K@60Hz opløsning.
• OUT 2 Port: Supports up to 1080P@60Hz resolution.

Important Note on Resolution:

The output resolution is dependent on the USB version of the port you connect to on your computer:

• Connecting to a computer's USB 3.0 port will allow for 1080P resolution output.
• Connecting to a computer's USB 2.0 port will result in 720P resolution output.

6. Vedligeholdelse

The VEDINDUST HDMI Splitter Extend features a durable aluminum metal housing designed for effective heat dissipation and electromagnetic compatibility, contributing to a longer product lifespan.

• Hold enheden ren ved at tørre den af ​​med en blød, tør klud.
• Avoid exposing the device to liquids or excessive dust.
• Forsøg ikke selv at adskille eller reparere enheden.

7. Fejlfinding

• No Display / Incorrect Resolution:
  • Ensure the USBDISPLAY driver is correctly installed and running.
  • Verify that both the USB and HDMI IN cables are securely connected to the same computer.
  • Check your computer's display settings to ensure monitors are detected and configured for mirror or extend mode.
  • Confirm the USB port version on your computer (USB 3.0 for 1080P, USB 2.0 for 720P).
  • For Windows 11, ensure the driver is whitelisted in your antivirus and PC Manager software.
• Ingen lyd:
  • Check your computer's sound settings to ensure the correct audio output device is selected.
  • Verify that your monitors or connected audio devices have their volume turned up.
• Intermitterende forbindelse:
  • Ensure all cables are firmly connected.
  • Try using different HDMI or USB cables to rule out cable issues.
  • Avoid placing the device near strong electromagnetic interference sources.

If you encounter any problems with your product that are not resolved by the above steps, please contact VEDINDUST customer support for professional solutions.

8. Specifikationer

9. Garanti og support

For any product-related issues or inquiries, please contact VEDINDUST customer support. The manufacturer is Shenzhen Videoperfect Technology Co., Ltd.

Contact information for the manufacturer (as seen on packaging):

• Fabrikant: Shenzhen Videoperfect Technology Co., Ltd.
• Adresse: Zone A, 4th Floor, Lilian technology Building, Jiaziang Community, Fenghuang Street, Guangming District, Shenzhen.
• E-mail: service@video-perfects.com

Se venligst din købsdokumentation for specifikke garantivilkår.
