LAUNCH X431 PRO Dyno 2025 Bidirectional Scan Tool User Manual

1. Introduktion

The LAUNCH X431 PRO Dyno 2025 is a state-of-the-art bidirectional scan tool designed for comprehensive vehicle diagnostics. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and longevity.

Key features include advanced ECU Coding, OE-Level All System Diagnostics, Bi-directional Active Tests, and over 38 special functions. It supports modern automotive protocols like CAN-FD and DoIP, offering extensive vehicle coverage.

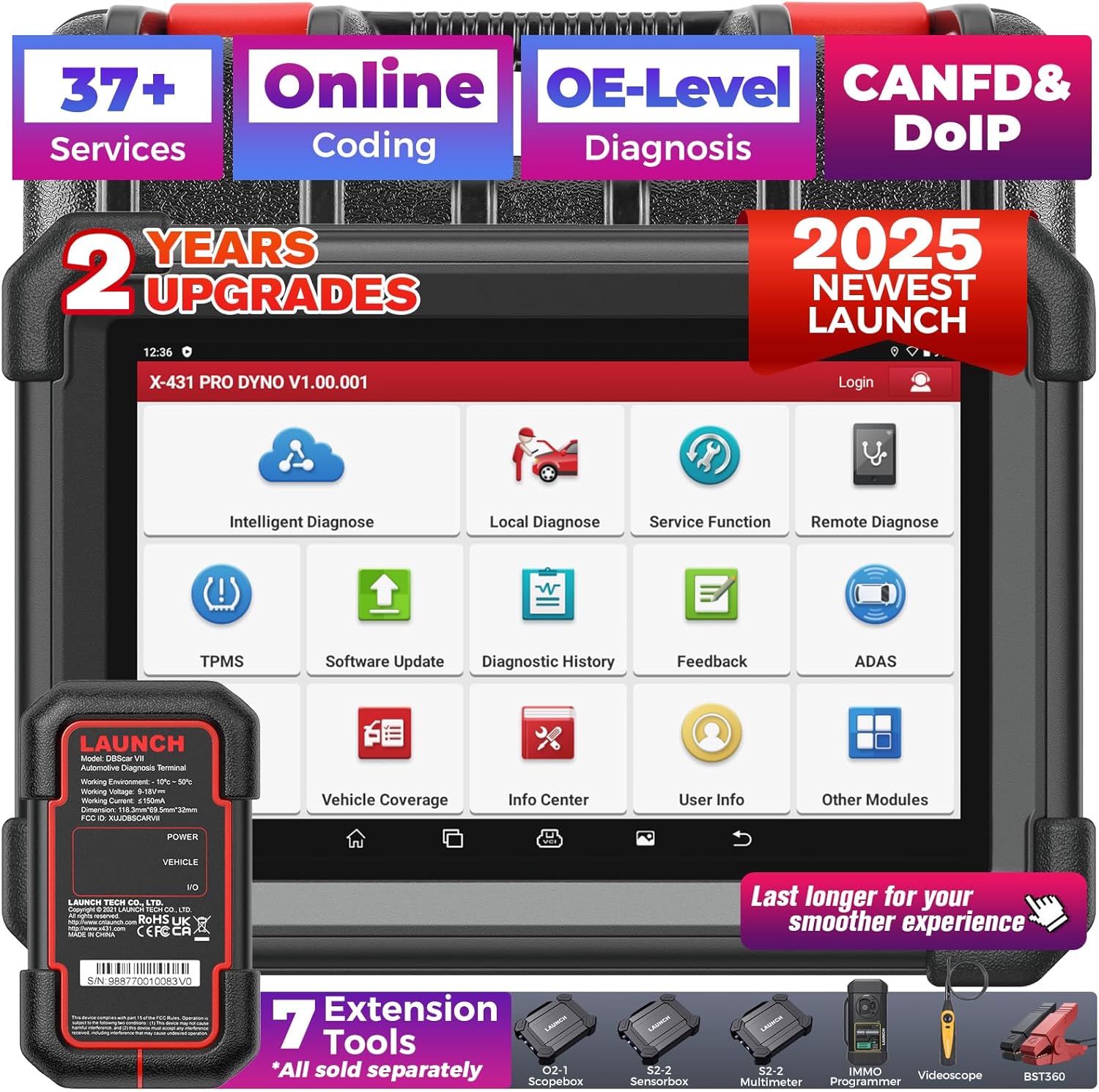

Figure 1.1: LAUNCH X431 PRO Dyno 2025 Scan Tool and its components.

2. Hvad er der i æsken

Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og i god stand:

• X-431 PRO fifth generation tablet
• DBSCAR VII diagnostic connector
• Power adapter, 5V / 5A, wire length 1.2m
• Various OBD-II and non-OBD-II adapters (as shown in product images)

Figure 2.1: The LAUNCH X431 PRO Dyno 2025 scan tool and its comprehensive set of adapters and cables.

3. Opsætningsvejledning

3.1 Første opstart og konfiguration

1. Oplad enheden: Connect the provided power adapter to the X-431 PRO Dyno tablet and a power outlet. Allow the device to fully charge before first use. The 6300mAh battery provides over 21 hours of continuous use.
2. Tænd: Press and hold the power button until the LAUNCH logo appears on the 8-inch 1280x800 display.
3. Sprogvalg: Follow the on-screen prompts to select your preferred language. The device supports 24 languages including English, French, Spanish, German, and more.
4. Wi-Fi-forbindelse: Connect the device to a stable Wi-Fi network. This is crucial for software updates and online features.
5. Softwareopdatering: Navigate to the "Software Update" section. Perform a one-touch smart update to ensure all diagnostic software and vehicle data are current. Regular updates are provided for 2 years free of charge.

Figure 3.1: The software update interface on the LAUNCH X431 PRO Dyno 2025, showing the progress of an update.

3.2 Tilslutning til køretøj

1. Find OBD-II-porten: Identify the vehicle's OBD-II diagnostic port, typically located under the dashboard on the driver's side.
2. Connect DBSCAR VII: Plug the DBSCAR VII diagnostic connector into the vehicle's OBD-II port. Ensure a secure connection.
3. Etabler kommunikation: The DBSCAR VII connects wirelessly via Bluetooth (up to 33ft range) or via Type-C wired connection for stable data transmission. The tablet will automatically detect the VCI.
4. Tænding til: Drej bilens tænding til "ON"-positionen (motoren er slukket).

Figure 3.2: The DBSCAR VII diagnostic connector (VCI) connected to a vehicle's OBD-II port, illustrating wireless communication with the tablet.

4. Betjeningsvejledning

4.1 All System Diagnostics

The LAUNCH X431 PRO Dyno performs OE-level diagnostics across all accessible vehicle systems (e.g., PCM, ECM, EPS, PDM, BCM, TPMS, SCCM, RADIO, ABS, SRS, etc.).

1. AutoVIN & Scan: From the main menu, select "Intelligent Diagnose" or "Local Diagnose" and then "AutoVIN" (for 2006+ models) to automatically identify the vehicle. Alternatively, manually select vehicle make, model, and year.
2. Sundhedsrapport: Initiate a "Health Report" scan to quickly identify all system fault codes (DTCs). The scan tool will display a progress bar and list detected issues.
3. Læs/slet DTC'er: View detailed descriptions of Diagnostic Trouble Codes. Use the "Clear Codes" function to erase DTCs after repairs are completed.
4. Live datastrøm: Access real-time data parameters from various sensors and modules. Data can be displayed in graphical format for easier analysis.

Figur 4.1: Overview of the all-system diagnostic capabilities, including AutoVIN, Clear Codes, Read Codes, AutoScan, Live Data, and ECU Info.

4.2 Bi-directional Active Tests

This function allows sending commands from the scan tool to vehicle ECUs to test specific components or systems.

1. Access Active Test: From the diagnostic menu, select "Active Test" or "Bi-directional Control."
2. Select Component: Choose the component you wish to test (e.g., radiator fan, fuel pump, windows, lights, etc.).
3. Udfør test: Send commands to activate or deactivate the component and observe its response. This helps in quickly pinpointing faulty parts.

Figure 4.2: Demonstrates the bi-directional control feature, allowing the user to send commands to vehicle components like parking brake, AC clutch, headlamps, ABS pump, and windows/doors.

4.3 ECU-kodning

ECU Coding allows for customization, matching, and recalibration of ECU components.

1. Access ECU Coding: Select "ECU Coding" from the main menu or diagnostic functions.
2. Perform Operations:
   • Setup New ECU Modules: Match, learn, or code new ECU modules after replacement.
   • Personalisering: Customize vehicle functions (e.g., auto engine start-stop, flashing headlights on alarm, auto side mirrors folding, change dashboard brightness, fuel consumption display, auto door).
   • Fix Complex Issues: Recode or calibrate ECUs to resolve performance issues.
3. Note: Available coding operations vary by vehicle make, model, and year.

Figure 4.3: The ECU Coding interface, showing options for personalizing car settings and optimizing driving experience.

4.4 Special Functions (38+)

The device offers over 38 commonly used special functions for various maintenance and reset services.

• Olie nulstillingsservice: Reset engine oil life system.
• EPB-nulstilling: Nulstilling af elektronisk parkeringsbremse.
• SAS kalibrering: Kalibrering af styrevinkelsensor.
• ABS-blødning: Bleed the Anti-lock Braking System.
• Injektorkodning: Write adaptive code for injectors.
• TPMS-nulstilling: Tire Pressure Monitoring System reset.
• BMS-nulstilling: Battery Management System reset.
• Tilpasning af gashåndtaget: Adapt throttle position.
• Suspension Matching: Adjust suspension parameters.
• And many more, including Gear Learning, Windows Calibration, Sunroof Initialization, AFS Reset, etc.

Figure 4.4: A visual representation of some of the 38+ special functions available, such as Oil Reset, EPB Reset, SAS Calibration, Airbag Reset, BMS Reset, Brake Bleed, TPMS, and Injector Coding.

4.5 Yderligere funktioner

• CAN-FD & DoIP Support: Covers modern vehicles using these protocols. A DoIP adapter may be required for some models.
• FCA automatisk godkendelse: Provides secure gateway access for 2018+ FCA vehicles.
• Fjerndiagnose: Allows for remote technical assistance.
• Diagnostisk rapport: Generate and print comprehensive diagnostic reports.
• Onlinefeedback: Direct communication channel for operational and diagnostic tips.

Figure 4.5: Highlights various features including AutoAuth for FCA SGM, V.A.G Guided Function, CAN-FD & DoIP support, Remote Diagnostic, Online Repair Resources, 8-in-1 Live Data Stream, and Diagnostic Report Print & Share.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your LAUNCH X431 PRO Dyno.

• Softwareopdateringer: Regularly check for and install software updates to ensure compatibility with new vehicle models and access to the latest features. Updates are free for 2 years.
• Rensning: Brug en blød, tør klud til at rengøre tablettens skærm og kabinet. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the device in its protective case in a cool, dry place when not in use. Avoid extreme temperatures.
• Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte. Oplad enheden regelmæssigt, selvom den ikke er i aktiv brug.
• VCI Care: Keep the DBSCAR VII connector clean and free of debris. Ensure pins are not bent or damaged.

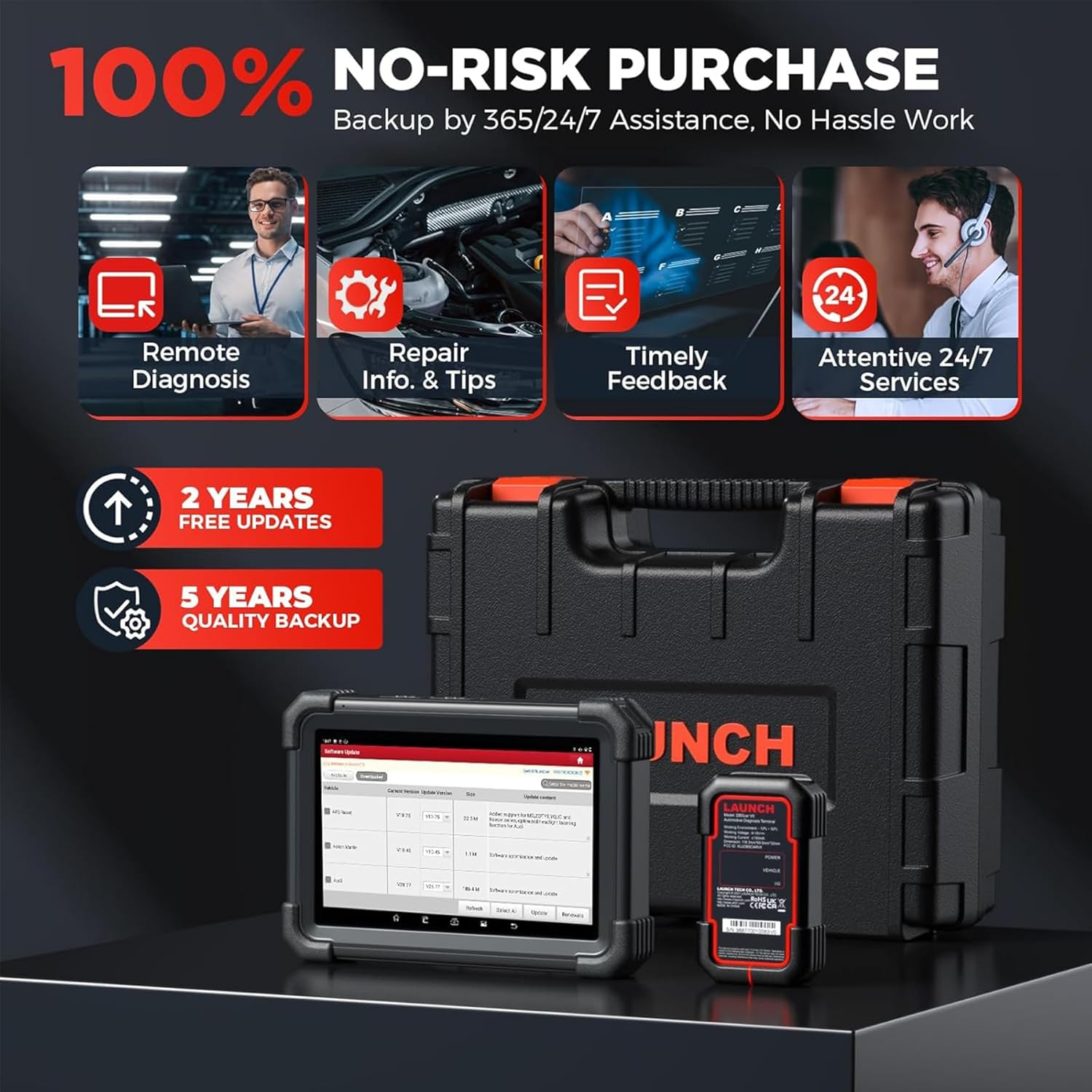

Figure 5.1: The device and its protective case, emphasizing the importance of proper storage and care.

6. Fejlfinding

Dette afsnit omhandler almindelige problemer og deres løsninger.

For further assistance, utilize the "Online Feedback" or "Remote Diagnosis" features on the device, or contact customer support.

7. Specifikationer

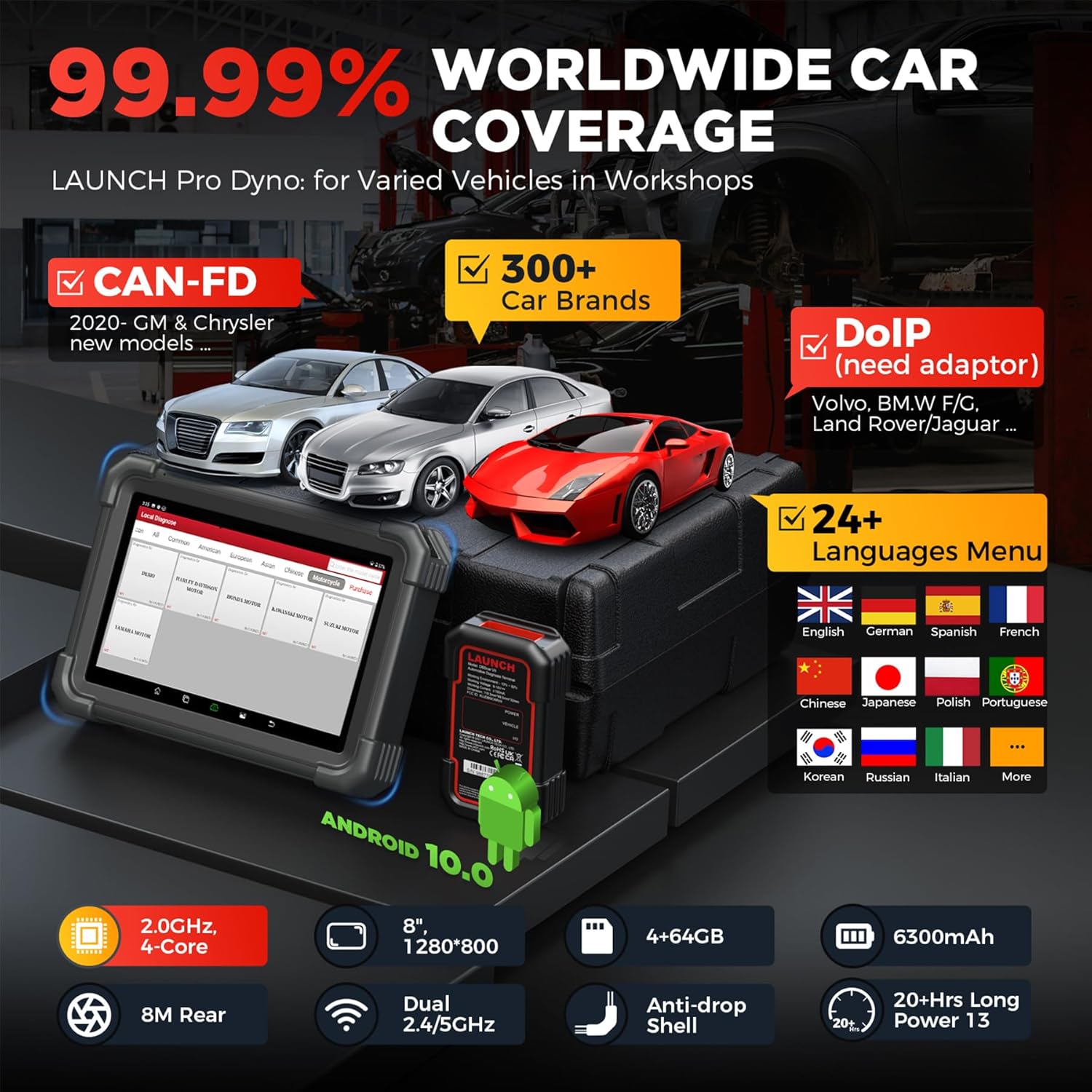

Figure 7.1: Key specifications and worldwide car coverage details for the LAUNCH X431 PRO Dyno 2025.

8. Garanti og support

The LAUNCH X431 PRO Dyno comes with a commitment to customer satisfaction and long-term support.

• Free Software Updates: Enjoy 2 years of subscription-free software updates.
• Kvalitetsbackup: The product includes a 5-year quality backup.
• Lifetime Technical Assistance: Reliable lifetime technical assistance is offered by a team of experts, available 24/7/365.
• Kontakt support: For any issues or inquiries, you can contact customer support at 1-888-756-2936 (Mon-Fri 9:00 AM–6:00 PM EST) or use the "Online Feedback" feature on the device.

Figur 8.1: Overview of the LAUNCH X431 PRO Dyno's main features and support offerings.

9. Officielle produktvideoer

Watch these official videos for a visual guide on using your LAUNCH X431 PRO Dyno.
