Juniper Networks QFX5200-32C-AFO Switch User Manual

1. Introduktion

This manual provides essential instructions for the Juniper Networks QFX5200-32C-AFO Switch. It covers critical aspects of installation, operation, maintenance, and troubleshooting to ensure proper and safe use of the device. Please read this manual thoroughly before operating the switch.

2. Sikkerhedsoplysninger

Observe the following safety guidelines to prevent injury and damage to the equipment:

• Elektrisk sikkerhed: Ensure the switch is connected to a properly grounded power source. Do not operate the switch with damaged power cords.
• Ventilation: Maintain adequate airflow around the switch. Do not block ventilation openings. This model features front-to-back airflow.
• Håndtering: The switch is heavy. Use proper lifting techniques or assistance when moving or installing the unit.
• Kvalificeret personale: Installation and servicing should only be performed by qualified personnel.
• Lasersikkerhed: This product may contain laser components. Avoid direct exposure to laser beams.

3. Pakkens indhold

Verify that your package contains the following items. If any items are missing or damaged, contact your vendor immediately.

• Juniper Networks QFX5200-32C-AFO Switch
• Strømledning(er)
• Rack Mount Kit
• Konsolekabel
• Dokumentation (hurtigstartguide, sikkerhedsoplysninger)

4. Fysisk overview

The Juniper Networks QFX5200-32C-AFO is a high-performance, fixed-configuration switch designed for data center and enterprise environments. It features 32 QSFP+/QSFP28 ports and front-to-back airflow for efficient cooling.

Figure 1: Front panel of the QFX5200-32C-AFO Switch, showing 32 QSFP+/QSFP28 ports, console port, and management Ethernet port.

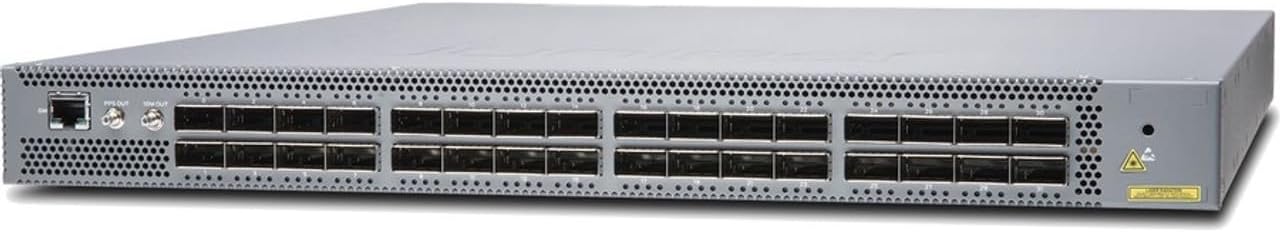

Figur 2: Vinklet view of the QFX5200-32C-AFO Switch, highlighting its compact 1U form factor and port layout.

Figure 3: Alternative angled view of the QFX5200-32C-AFO Switch, providing a clear perspective of the chassis design.

4.1 Frontpanelets komponenter

• QSFP+/QSFP28 Ports (32x): High-speed ports for network connectivity.
• Konsolport: RJ-45 serial port for local management access.
• Management Ethernet Port: RJ-45 port for out-of-band management.
• Status LED'er: Indicators for system status, port activity, and power.

4.2 Bagpanelkomponenter

• Strømforsyningsmoduler: Redundant, hot-swappable power supplies.
• Ventilatormoduler: Hot-swappable fan trays for cooling.

5. Opsætning

5.1 Rackmontering

1. Fastgør de medfølgende rackmonteringsbeslag til siderne af switchen med de medfølgende skruer.
2. Carefully slide the switch into the rack, aligning the brackets with the rack posts.
3. Secure the switch to the rack using appropriate rack screws.

5.2 Strømtilslutning

1. Ensure the power switches on the power supply modules are in the OFF position.
2. Connect the power cords to the power supply modules on the rear of the switch.
3. Plug the other end of the power cords into a grounded AC power outlet.
4. Flip the power switches on the power supply modules to the ON position.

5.3 Netværksforbindelser

1. Insert QSFP+/QSFP28 transceivers into the desired ports on the front panel.
2. Connect appropriate fiber optic or copper cables to the transceivers.
3. For management, connect an Ethernet cable to the management port and/or a serial cable to the console port.

6. Betjening af kontakten

6.1 Tænd

Once power is connected and switched ON, the system will initiate its boot sequence. Observe the system status LEDs on the front panel. A stable green LED typically indicates normal operation.

6.2 Adgang til indledende konfiguration

To access the switch for initial configuration:

• Konsolport: Connect a computer via a serial cable to the console port. Use a terminal emulator (e.g., PuTTY, Tera Term) with settings: 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control.
• Management Ethernet Port: If the switch has a default IP address, you can connect a computer to the management port and access the web interface or SSH. Refer to Juniper Networks documentation for default IP addresses and login credentials.

7. Vedligeholdelse

7.1 Rengøring

Regularly inspect the switch for dust accumulation, especially around ventilation openings. Use a soft, dry cloth to clean the exterior. For internal cleaning, consult a qualified technician or Juniper Networks support.

7.2 firmwareopdateringer

Tjek regelmæssigt Juniper Networks support website for the latest firmware updates. Keeping the firmware up-to-date ensures optimal performance, security, and access to new features. Follow the provided instructions carefully when performing updates.

7.3 Fan and Power Supply Replacement

The fan modules and power supply modules are hot-swappable. Refer to the detailed Juniper Networks hardware guide for specific replacement procedures to avoid service interruption.

8. Fejlfinding

8.1 Fælles problemer

• Ingen strøm: Verify power cords are securely connected to both the switch and the power outlet. Check power supply LEDs. Ensure power switches are ON.
• Intet link på porten: Check the cable connection, ensure the transceiver is properly seated, and verify the link status on the connected device. Check port configuration.
• Systemet svarer ikke: Attempt to access the switch via the console port. If unresponsive, perform a power cycle (power OFF, wait 30 seconds, then power ON).
• Ydelsesproblemer: Check network load, port error counters, and switch configuration. Ensure proper ventilation to prevent overheating.

For advanced diagnostics and solutions, consult the comprehensive troubleshooting guides available on the official Juniper Networks support webwebsted.

9. Specifikationer

10. Garantioplysninger

This Juniper Networks QFX5200-32C-AFO Switch is sold as a "Renewed" product by Amazon Renewed. The warranty terms for renewed products typically differ from new products.

Please refer to the specific warranty details provided by Amazon Renewed or the seller, Network Hardware Depot, at the time of your purchase. Standard manufacturer warranties from Juniper Networks may not apply to renewed equipment. Always consult your purchase documentation for precise warranty coverage.

11. Support

For technical assistance, comprehensive documentation, software downloads, and further product information, please visit the official Juniper Networks support webwebsted:

www.juniper.net/us/en/support.html

For inquiries related to your renewed product purchase, including order status, returns, or seller-specific support, please contact the seller directly: Network Hardware Depot.
