1. Introduktion
This manual provides essential information for the safe and efficient operation of your THOMSON 40FD2S13 40 Inch LED Full HD Easy TV. Please read it thoroughly before using the television and retain it for future reference.
Your THOMSON Easy TV is designed for straightforward entertainment, featuring a Full HD display, multiple connectivity options, and a triple tuner for versatile signal reception.
Billede: Forside view of the THOMSON 40FD2S13 40 Inch LED Full HD Easy TV, showcasing dens display og elegante design.
2. Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger dette fjernsyn, for at mindske risikoen for brand, elektrisk stød og personskade.
- Udsæt ikke TV'et for regn eller fugt.
- Åbn ikke kabinettet; overlad al service til kvalificeret personale.
- Sørg for korrekt ventilation omkring tv'et.
- Hold tv'et væk fra direkte sollys og varmekilder.
- Tag stikket ud af tv'et under tordenvejr eller når det ikke bruges i længere perioder.
- Position the TV on a stable, level surface or securely wall-mount it.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- THOMSON 40FD2S13 40 Inch LED Full HD Easy TV
- Fjernbetjening
- Strømkabel
- Brugervejledning (dette dokument)
- TV Stands (if applicable, check packaging)
- Screws for TV Stands (if applicable)
4. Opsætning
4.1 Montering af TV-stativer
If you are not wall-mounting the television, attach the included stands to the bottom of the TV. Ensure the stands are securely fastened with the provided screws to prevent the TV from tipping.
Image: Diagram showing the dimensions of the THOMSON 40FD2S13 TV, including stand measurements, to assist with placement.
4.2 Vægmontering
For wall mounting, use a VESA-compatible wall mount kit (not included) that matches the TV's specifications. Follow the instructions provided with your wall mount kit carefully. Ensure the wall can support the weight of the TV.
4.3 Tilslutning af eksterne enheder
Your THOMSON TV offers various connection ports for external devices. Refer to the image below for port locations and types.

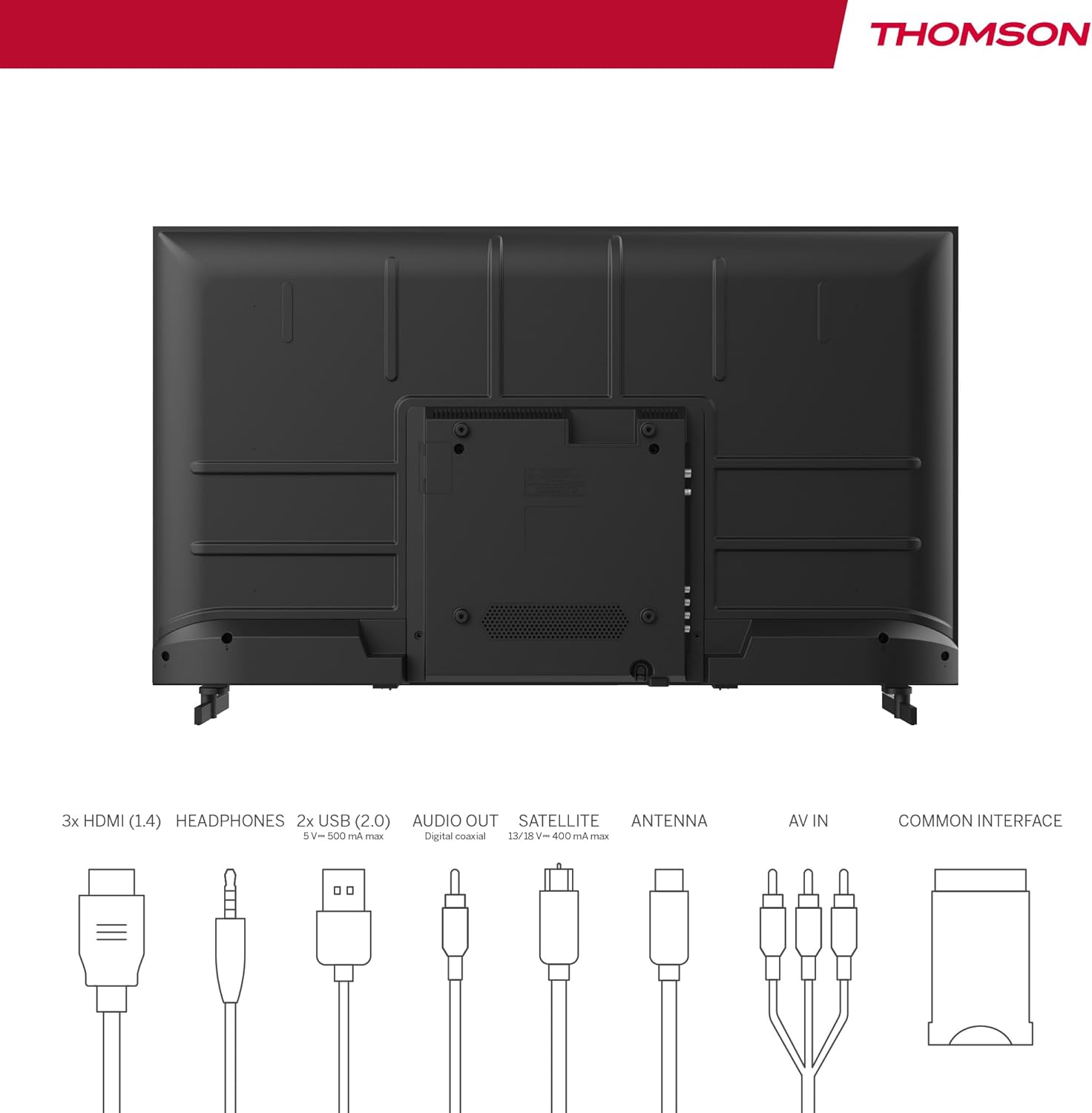

Image: Rear panel of the THOMSON 40FD2S13 TV, illustrating the location of all input and output ports, including HDMI, USB, Audio Out, Satellite, Antenna, AV IN, and Common Interface.

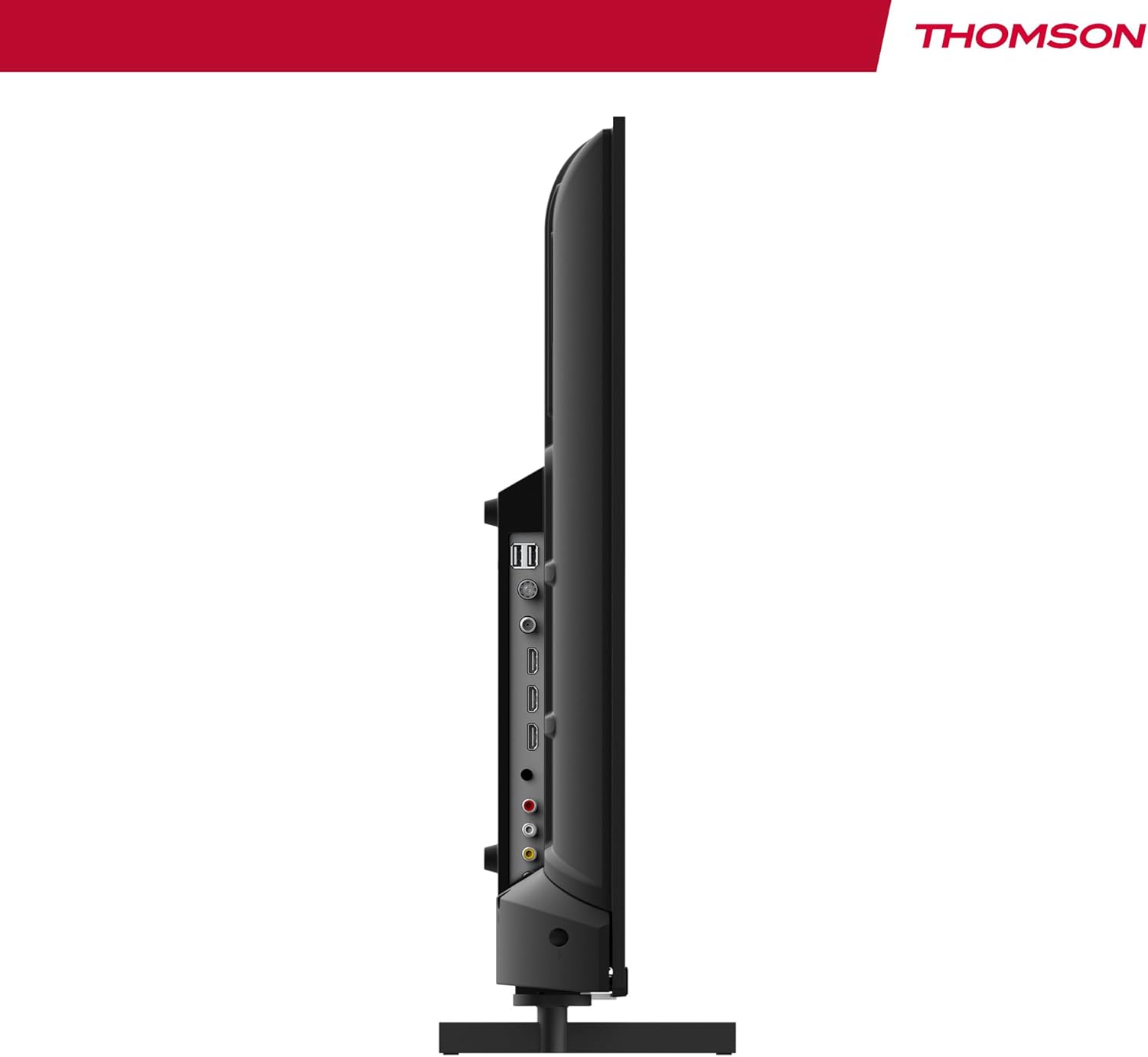

Billede: Side view of the THOMSON 40FD2S13 TV, highlighting the conveniently located side ports for easy access.
- HDMI (x3): Tilslut Blu-ray-afspillere, spillekonsoller, set-top-bokse eller andre HDMI-aktiverede enheder.
- USB (x2): Tilslut USB-lagerenheder til medieafspilning.
- AV IN: Tilslut ældre enheder ved hjælp af kompositvideo- og stereolydkabler.
- Hovedtelefoner: Tilslut hovedtelefoner for privat lytning.
- Digital lydudgang: Tilslut til et eksternt lydsystem for forbedret lyd.
- Antenna (DVB-T2): Tilslut en jordbaseret antenne til modtagelse af digital udsendelse.
- Satellite (DVB-S2): Tilslut en parabolantenne til modtagelse af satellitudsendelser.
- CI+ slot: Insert a Conditional Access Module (CAM) and smart card for encrypted channels.
4.4 Strømtilslutning
After connecting all necessary cables, plug the power cable into the TV's power input and then into a wall outlet. The TV will enter standby mode.
5. Betjening af tv'et
5.1 Fjernbetjening
The included remote control allows you to access all TV functions. It features backlit buttons for easy navigation in dim lighting.
Image: The THOMSON TV remote control, highlighting its ergonomic design and backlit buttons for convenient use.
- Power knap: Tænder/slukker tv'et eller sætter det i standby.
- Nummerknapper: Vælg kanaler direkte.
- Volumen +/-: Juster lydstyrken.
- Kanal +/-: Skift kanal sekventielt.
- Menu-knap: Få adgang til hovedmenuen for indstillinger.
- Navigationsknapper (Op/Ned/Venstre/Højre/OK): Naviger gennem menuer og bekræft valg.
- Kildeknap: Select input sources (HDMI, AV, Tuner).
- INFO knap: Display current channel information.
- GUIDE-knap: Access the Electronic Program Guide (EPG).
- REC-knap: Initiate recording to a connected USB storage device (if supported and configured).
5.2 Indledende opsætning og kanalscanning
Upon first power-on, the TV will guide you through the initial setup process, including language selection, country, and channel scanning. Select your preferred reception type (Antenna, Cable, or Satellite) and follow the on-screen instructions to scan for available channels.
Image: Close-up of the TV's tuner inputs, indicating compatibility with DVB-T2 (terrestrial antenna), DVB-C (cable), and DVB-S2 (satellite) signals.
5.3 Media Player
Connect a USB storage device to one of the USB ports to access photos, music, videos, and text files directly on your TV. Use the remote control to navigate the media player interface.
5.4 Særlige funktioner
- Elektronisk programguide (EPG): View upcoming program schedules and set reminders.
- Tidsforsinkelse: Pause live TV broadcasts (requires a connected USB storage device).
- Forældrekontrol: Set restrictions on channels or programs based on age ratings.
- Hoteltilstand: Configure specific settings for use in hotel environments, such as default volume and input source.
- Dolby Audio: Experience enhanced sound quality with Dolby Audio technology.
Image: A family enjoying content on the THOMSON TV, with the Dolby Audio logo indicating superior sound experience.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your THOMSON TV, follow these maintenance guidelines:
- Rengøring af skærmen: Tør forsigtigt skærmen af med en blød, fnugfri klud. Ved genstridige mærker, tør let afampRengør kluden med vand eller en specialiseret skærmrens. Sprøjt aldrig væske direkte på skærmen.
- Rengøring af kabinettet: Brug en blød, tør klud til at tørre tv-kabinettet af. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.
- Ventilation: Ensure the ventilation openings on the back of the TV are not blocked.
- Strømledning: Kontrollér regelmæssigt strømkablet for skader. Kontakt kundesupport for udskiftning, hvis det er beskadiget.
7. Fejlfinding
If you encounter issues with your TV, consult the following common troubleshooting steps before contacting customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Netledningen er ikke tilsluttet; stikkontakten virker ikke. | Ensure the power cord is securely plugged into the TV and a working wall outlet. Check the power switch on the TV (if present). |
| Intet billede, men der er lyd | Forkert indgangskilde valgt; problem med baggrundsbelysning. | Press the "Source" button on the remote to select the correct input. Try adjusting brightness/contrast settings. |
| Ingen lyd, men der er billede | Lydstyrken er slået fra eller for lav; forkerte indstillinger for lydudgang. | Press the "Volume +" button or unmute the TV. Check audio output settings in the TV menu. |
| Fjernbetjening virker ikke | Batteries are dead or incorrectly inserted; obstruction between remote and TV. | Replace batteries with new ones, ensuring correct polarity. Remove any obstructions. Point the remote directly at the TV's IR sensor. |
| Dårlig billedkvalitet / Intet signal | Antenna/cable/satellite connection loose or damaged; incorrect tuner settings. | Check all antenna/cable/satellite connections. Perform a channel scan again. Ensure the correct tuner input is selected. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | THOMSON |
| Model | 40FD2S13 |
| Skærmstørrelse | 40 tomme (101 cm) |
| Displayteknologi | LED |
| Opløsning | 1920 x 1080 (Fuld HD) |
| Opdateringshastighed | 60 Hz |
| Tuner-teknologi | DVB-C, DVB-S2, DVB-T2 |
| HDMI porte | 3 |
| USB-porte | 2 |
| Andre grænseflader | AV IN, Headphone, Digital Audio Out, CI+ Slot |
| Lydafkodning | DD (Dolby Digital) |
| Højttalerkonfiguration | 2.0 Surround Sound |
| Voltage | 230 volt |
| Energieffektivitetsklasse | E |
| Produktmål (B x H x D) | 72 x 42 x 8.2 cm (without stand, approx.) |
| Vægt | 6.9 kg (ca.) |
9. Garantioplysninger
Your THOMSON 40FD2S13 TV comes with a 3 års garanti from the date of purchase. This warranty covers manufacturing defects and ensures that your product meets high-quality standards. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official THOMSON webwebsted.
10. Kundesupport
If you require further assistance, have questions not covered in this manual, or need technical support, please contact THOMSON customer service.
- Online support: Visit the official THOMSON support webwebsted med ofte stillede spørgsmål, fejlfindingsvejledninger og kontaktformularer.
- Telefonsupport: Refer to your product packaging or the THOMSON webwebsted for regionale kundeservicekontaktnumre.
When contacting support, please have your TV model number (40FD2S13) and serial number ready.
