Produkt overview
The Sunco 4 Pack 5CCT Black LED Recessed Lights offer a versatile and efficient lighting solution for various indoor spaces. These dimmable can lights feature a selectable color temperature (CCT) function, allowing you to choose from five different light settings to match your desired ambiance. Designed for easy retrofit installation, they are suitable for both 5-inch and 6-inch housings and come with both E26 base and TP24 connectors for flexible setup.
Image: A pack of four Sunco 5CCT Black LED Recessed Lights, showcasing their design and included E26 base adapters.
Opsætning og installation
These recessed lights are designed for straightforward retrofit installation into existing 5-inch or 6-inch can housings. No additional accessories are typically needed beyond what is provided in the package.
Før installation:
- Ensure power is turned off at the circuit breaker before beginning any electrical work.
- Verify that your existing can housing is compatible with 5-inch or 6-inch retrofit lights.
- Pak alle komponenter ud, og kontroller dem for eventuelle skader.
Installationstrin:
- Remove the existing light bulb and trim from the recessed can.
- Metode 1 (E26-base): Screw the E26 base adapter into the existing socket within the can housing. Connect the light fixture's wires to the adapter's connector.
- Metode 2 (TP24-stik): If your housing has a TP24 connector, simply plug the light fixture's TP24 connector directly into it.
- Carefully push the light fixture into the can housing. The spring clips will secure the fixture in place, providing a flush mount with the ceiling.
- Ensure the fixture is seated firmly and flush against the ceiling.

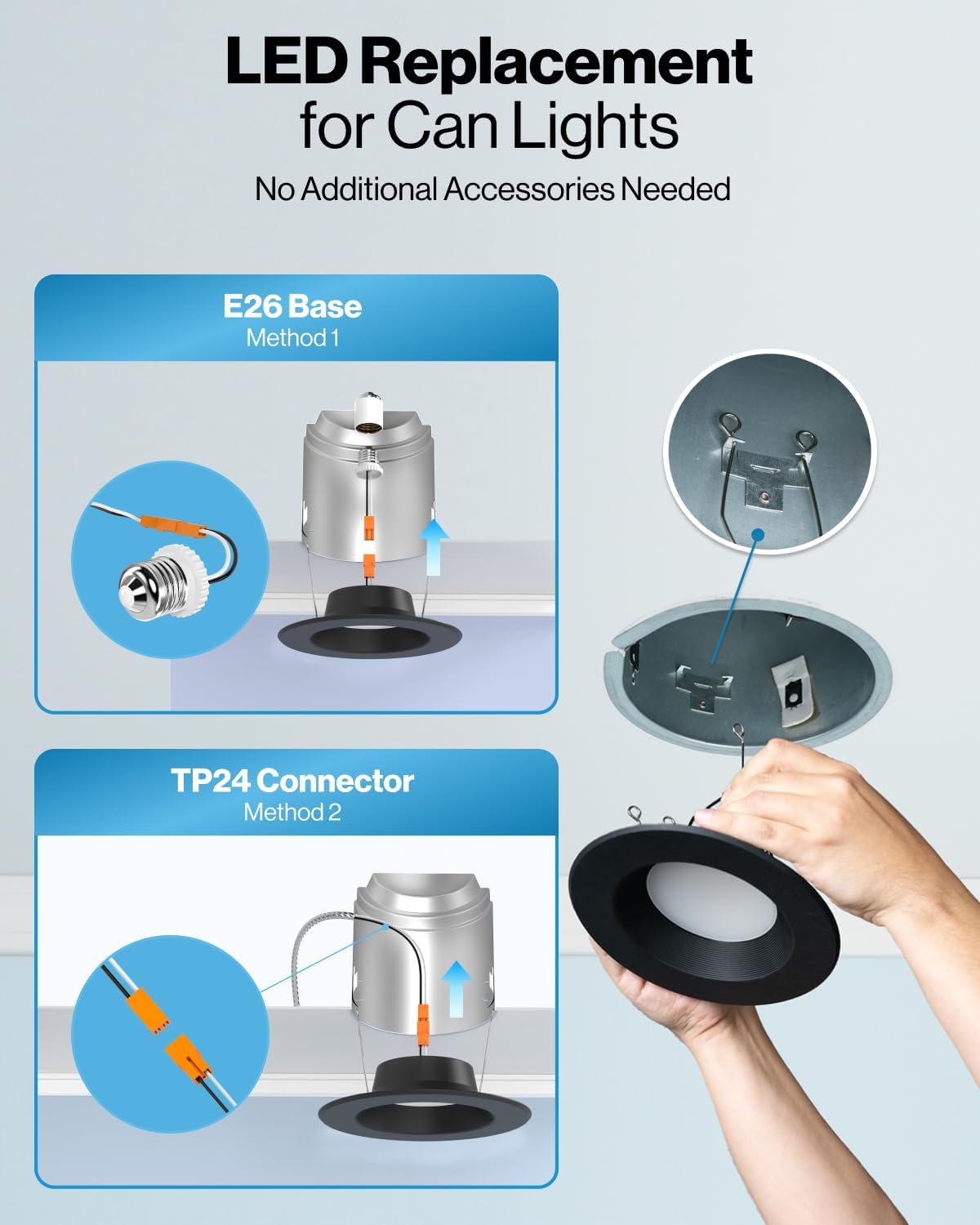

Image: Detailed illustration of the two primary installation methods: using the E26 screw-in base or the TP24 quick connector.
Betjeningsvejledning
The Sunco 5CCT LED Recessed Lights offer adjustable color temperature and dimming capabilities to suit your lighting needs.
Color Temperature Selection (5-in-1 CCT):
Before or during installation, locate the slider switch on the back of the light fixture. This switch allows you to select one of five color temperatures:
- 2700K: Soft White (Warm, cozy ambiance)
- 3000K: Warm White (Slightly less warm, inviting)
- 3500K: Neutral White (Balanced, natural light)
- 4000K: Cool White (Brighter, more energetic)
- 5000K: Daylight (Very bright, crisp white light)
Choose the setting that best complements your room's decor and desired mood.
Image: Visual representation of the five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) in various room settings.
Dæmpningsfunktion:
These lights are fully dimmable from 10% to 100%. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed. Adjust the dimmer switch to achieve your preferred brightness level.
Image: Demonstrates the 10%-100% dimming range and lists compatible dimmer switch brands and models.
Opretholdelse
The Sunco LED Recessed Lights are designed for long-lasting performance with minimal maintenance. Due to their non-removable fixture type and LED technology, there are no bulbs to replace.
- Rensning: To clean the trim or lens, ensure the power is off. Use a soft, dry, or slightly damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Inspektion: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are observed, consult a qualified electrician.
- Varmeafledning: The fixture is designed with heat dissipation features to prevent overheating. Ensure proper airflow around the fixture in the ceiling cavity.
Fejlfinding
If you encounter issues with your Sunco LED Recessed Lights, refer to the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm, løs forbindelse, defekt afbryder. | Check circuit breaker. Ensure all connections are secure. Test the switch. |
| Lyset flimrer eller dæmpes ujævnt. | Incompatible dimmer, loose wiring, power fluctuations. | Ensure dimmer is LED compatible (10%-100% dimmable). Check wiring connections. Consult electrician if power fluctuations are suspected. |
| Forkert farvetemperatur. | CCT-kontakten er indstillet forkert. | Adjust the slider switch on the back of the fixture to the desired CCT setting. |
| Lyset flugter ikke med loftet. | Spring clips not properly engaged. | Gently pull down the fixture and re-engage the spring clips into the can housing. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte Sunco Lightings kundesupport.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | DL_BF6-BK-2750K-4PK |
| Mærke | Sunco belysning |
| Farve | Sort |
| Materiale | Plast |
| Lysarmatur Form | Forsænket |
| Produktdimensioner | 7.5 cm L x 2.24 cm B x 7.5 cm H |
| Indendørs/Udendørs brug | Indendørs |
| Strømkilde | Kablet |
| Installationstype | Flush Mount |
| Speciel funktion | Dimmable, 5CCT Selectable |
| Lyskildetype | LED |
| Voltage | 120 volt |
| Lys farve | Warm to Cool White (2700K-5000K) |
| Inkluderede komponenter | E26 Base, TP24 Connector |
| Varens vægt | 7.2 ounces (pr. lys) |
| Antal genstande | 4 (in pack) |
| Wattage | 13 watts (equivalent to 120W incandescent) |
| Lysstyrke | 869 Lumen |
| Gennemsnitligt liv | 50,000 timer |
| Vandmodstandsniveau | Damp Bedømt |
| Certificeringer | UL Listed, FCC, RoHS Compliant, ETL Intertek |
Image: Key specifications and features, including dimensions, compatibility, and certifications.
Billede: En intern view of the light highlighting its high-efficiency components and long lifespan.
Garantioplysninger
Sunco Lighting stands behind the quality of its products. This product is covered by a 7-års garantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug og service. Gem venligst din købsbevis i tilfælde af garantikrav.
For detailed warranty terms and conditions, please refer to the official Sunco Lighting webwebsted eller kontakt kundesupport.
Support og kontaktoplysninger
For any questions, technical assistance, or warranty claims, please contact Sunco Lighting customer support:
- Online support: Visit the official Sunco Lighting website for FAQs, additional resources, and contact forms.
- Telefonsupport: Refer to the product packaging or the Sunco Lighting webhjemmeside for det seneste kundeservicetelefonnummer.
You can also find more information and products by visiting the Sunco Lighting Store på Amazon.
Video: An official video from Sunco Lighting, providing an overview of the brand and its commitment to quality and customer satisfaction.
