Akko Mekanisk Keyboard 3098 ASA Profile Brugermanual

1. Introduktion og overview

The Akko 3098 mechanical keyboard is a wired gaming keyboard featuring a 98-key layout, also known as a "compact full-size keyboard." This design provides the functionality of a full-sized keyboard in a more space-efficient form factor. It is equipped with Akko V3 Cream Blue switches and durable PBT double-shot keycaps, offering a reliable and responsive typing experience for both Mac and Windows systems.

Nøglefunktioner:

• 98-tasters layout: A compact full-size design that saves desk space while retaining essential keys.
• Anti-Ghosting (NKRO): N-key rollover ensures all simultaneous key presses are registered accurately, crucial for gaming.
• PBT Double Shot Keycaps: Highly durable keycaps resistant to wear and fading, with vibrant and sharp legends.
• Programmerbare nøgler: Most keys can be re-mapped for custom action sequences, excluding Macro mode control keys (Esc/Win).
• Mac- og Windows-kompatibilitet: Easily switch between operating systems using a simple key combination.
• Justerbare fødder: Three levels of height adjustment for personalized typing comfort.

Figur 1.1: Fuld view of the Akko 3098 Mechanical Keyboard in Neon theme.

2. Opsætning

Pakkeindhold:

• Akko Mechanical Keyboard 3098
• USB-kabel (USB-C til USB-A)
• Additional Keycaps (if included with specific model variant)
• Tasteaftrækker (hvis medfølger)

Tilslutning af tastaturet:

1. Locate the USB-C port on the Akko 3098 keyboard, typically on the top edge.
2. Connect one end of the provided USB-C cable to the keyboard's USB-C port.
3. Connect the other end of the USB-A cable to an available USB-A port on your computer (laptop, tablet, or desktop PC).
4. The keyboard should be automatically recognized by your operating system (Windows or Mac) and ready for use.

Figure 2.1: The Akko 3098 keyboard on a desk, illustrating its key features including wired Type-C connectivity.

3. Betjeningsvejledning

Keyboard Layout and Key Functions:

The Akko 3098 features a 98-key layout, which includes a full alphanumeric section, function row, navigation cluster, and a numeric keypad, all arranged to optimize space without sacrificing functionality.

N-nøgleoverførsel (NKRO):

This keyboard supports N-key rollover, meaning that every key press is registered independently, even when multiple keys are pressed simultaneously. This feature is particularly beneficial for fast-paced typing and gaming, preventing missed inputs.

PBT Double Shot Keycaps:

The keycaps are made from PBT plastic using a double-shot molding process. This ensures that the legends are part of the keycap material itself, preventing them from fading or wearing off over time, even with extensive use.

Figure 3.1: Detail of the durable PBT Double-shot keycaps.

ASA Profile Taster:

The keycaps feature an ASA profile, which is designed for ergonomic comfort and a unique typing feel. This profile typically has a spherical top and varying heights across rows to conform to natural finger movement.

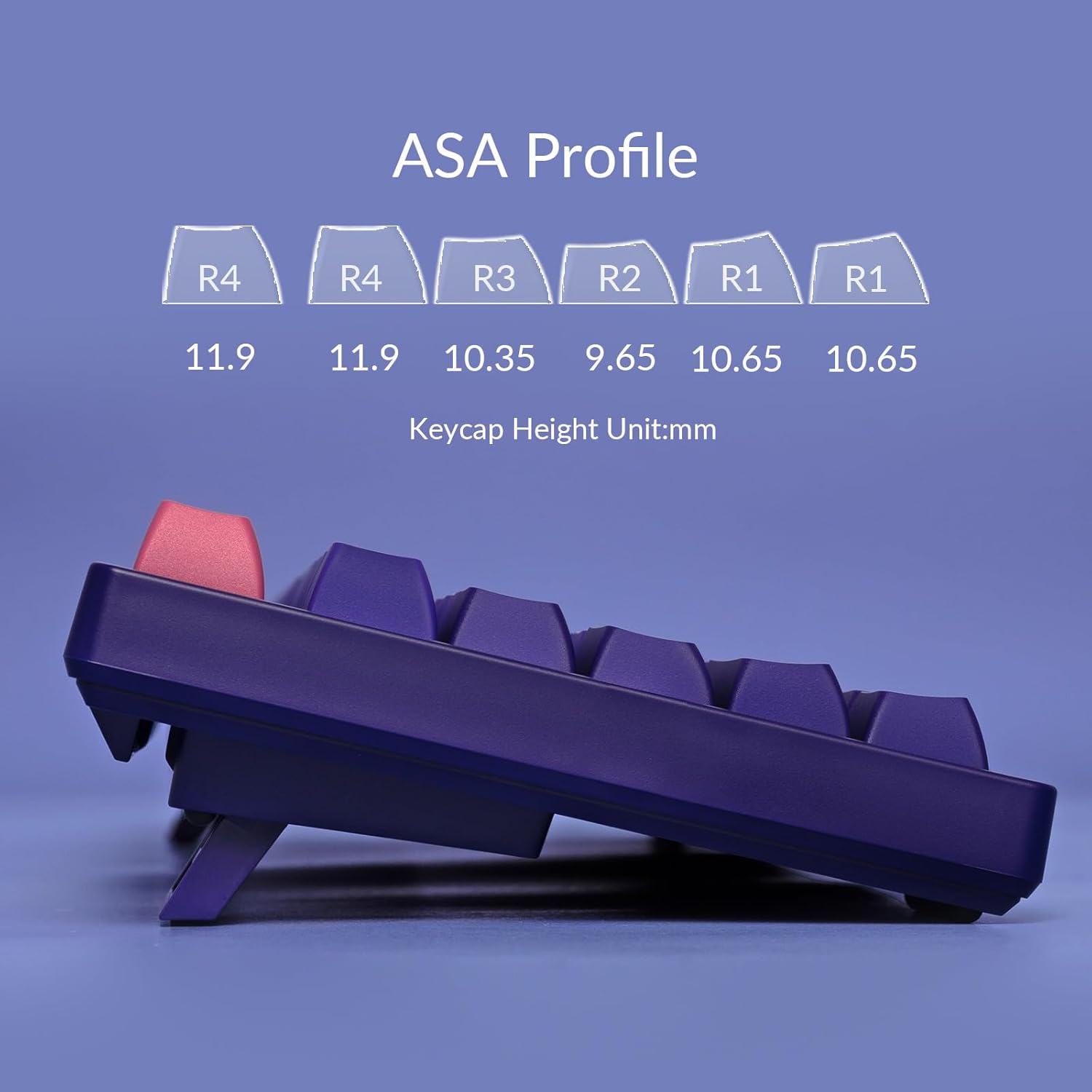

Figure 3.2: Diagram illustrating the ergonomic ASA Profile keycap heights.

Programmable Functionality:

All keys on the keyboard, except those used for controlling Macro mode (Esc/Win), can be re-mapped to perform custom actions or sequences. Refer to the official Akko software for detailed instructions on key remapping and macro creation. The keyboard does not feature built-in LED backlighting, but it has LED slots for modification by advanced users.

Operativsystemskift:

To switch between Windows and Mac operating system modes, use the following key combinations:

• For Windows mode: Press and hold Fn + Q
• For Mac mode: Press and hold Fn + O

Justerbar højde:

The keyboard is equipped with two adjustable feet on its underside, allowing you to set the typing angle to three different levels for personalized comfort.

Figure 3.3: Demonstration of the keyboard's adjustable feet for ergonomic positioning.

4. Vedligeholdelse

Rengøring af tastaturet:

• Generel rengøring: Brug en blød, fnugfri klud lidt dampened with water or a mild cleaning solution to wipe down the keycaps and keyboard surface. Avoid excessive moisture.
• Fjernelse af støv: Brug trykluft til at fjerne støv og snavs mellem tastaturerne og kontakterne.
• Rengøring af tastatur: For deeper cleaning, keycaps can be carefully removed using a keycap puller. Wash them with mild soap and water, rinse thoroughly, and ensure they are completely dry before reattaching.

Keycap and Switch Handling:

When removing or reattaching keycaps, apply gentle, even pressure to avoid damaging the keycap or the switch stem. The Akko 3098 uses soldered switches, meaning they are permanently attached to the PCB and cannot be easily replaced without soldering equipment.

Figur 4.1: View of the Akko V3 Cream Blue switches beneath the keycaps.

5. Fejlfinding

Almindelige problemer og løsninger:

• Tastaturet reagerer ikke:
  • Sørg for, at USB-C-kablet er korrekt tilsluttet til både tastaturet og computeren.
  • Prøv at tilslutte tastaturet til en anden USB-port på din computer.
  • Test tastaturet på en anden computer for at udelukke systemspecifikke problemer.
  • Genstart din computer.
• Specifikke taster virker ikke:
  • Kontrollér for fysiske forhindringer eller snavs under tastaturet.
  • If you have re-mapped keys, ensure the mapping is correct in the Akko software.
  • Perform a factory reset if available (refer to Akko's official support for specific instructions).
• Incorrect Operating System Mode:
  • Ensure you have switched to the correct mode for your operating system (Fn+Q for Windows, Fn+O for Mac).
• Software Issues (if applicable):
  • If experiencing issues with key remapping or macros, ensure you are using the latest version of the Akko software.
  • Kør softwaren som administrator.

For further assistance, please visit the official Akko support webwebsted eller kontakt deres kundeservice.

6. Specifikationer

7. Garanti og support

For information regarding product warranty, returns, or technical support, please refer to the official Akko website or contact their customer service directly. Warranty terms and conditions may vary by region and retailer.

Akko Official Webwebsted: www.akkogear.com

Gem venligst din købsbevis i tilfælde af garantikrav.
